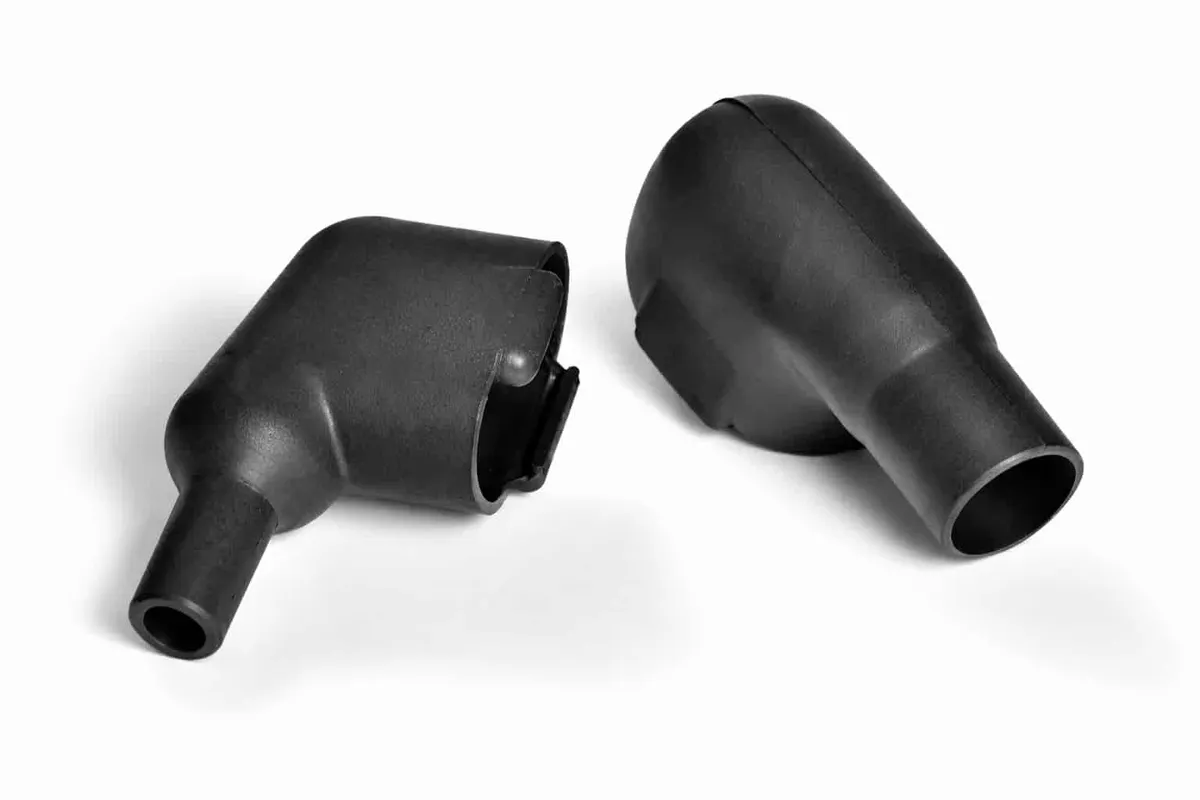

Helashrink 2100 series 90° connector cover providing strain relief and mechanical protection for Min-D connectors

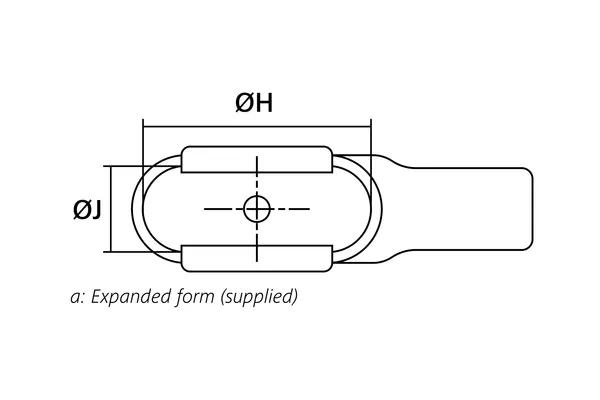

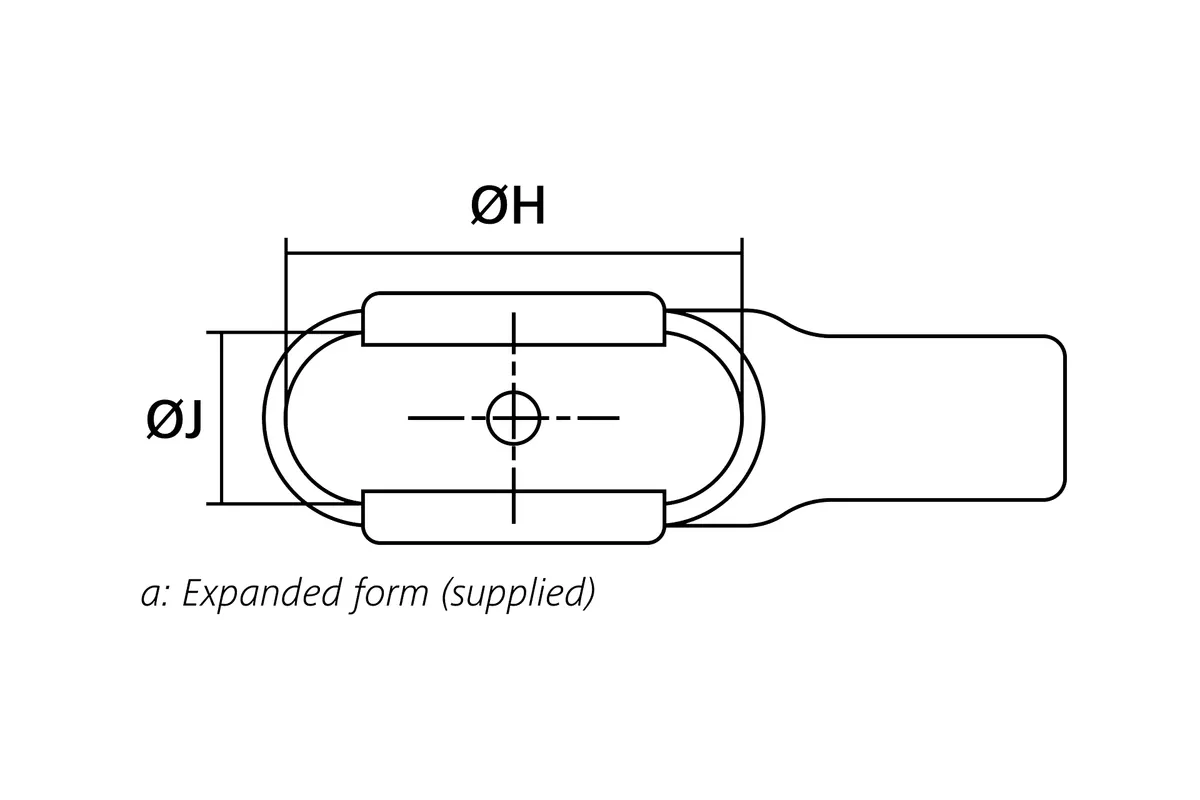

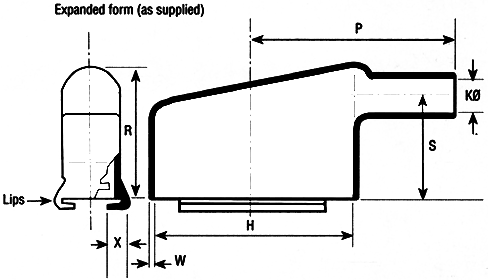

Technical drawing showing the expanded supplied top view of a 90° heat shrink connector cover for Min-D connectors
Overview diagram of Helashrink 2100 series 90° entry heat shrink connector cover for Min-D connectors

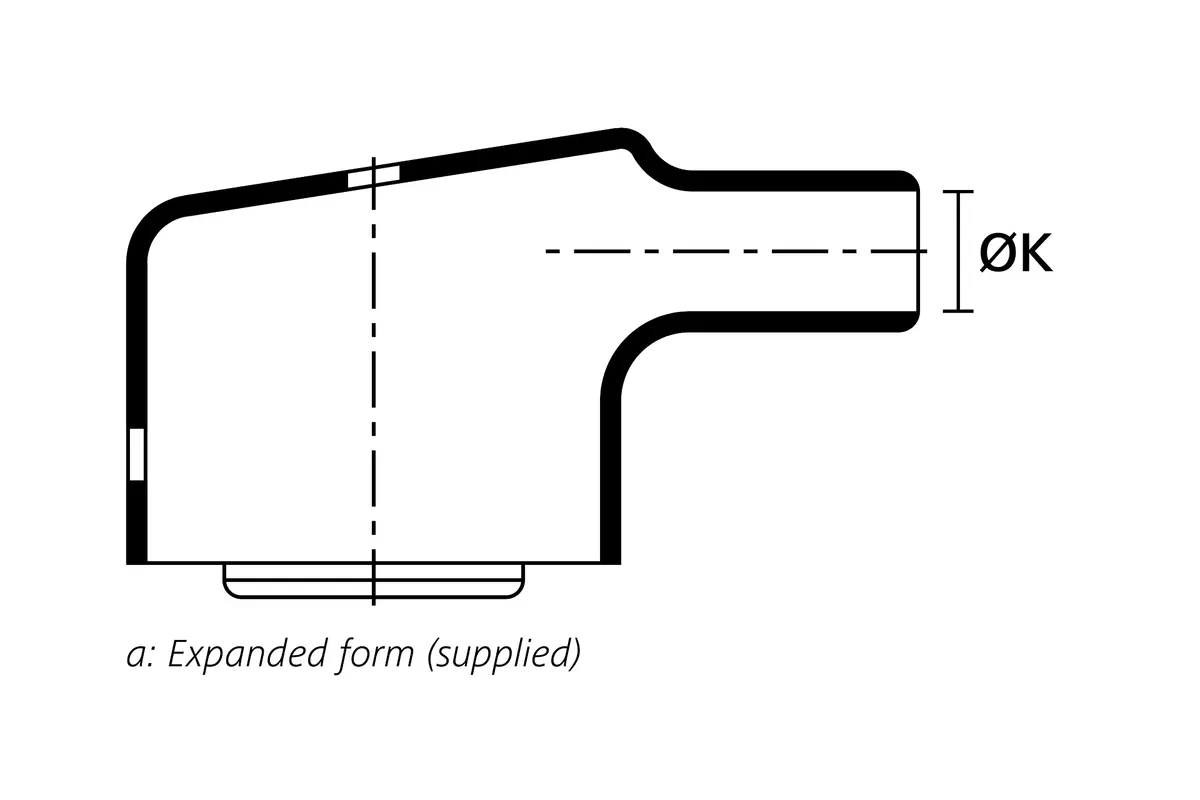

Technical drawing showing the expanded supplied side view of a 90° heat shrink connector cover

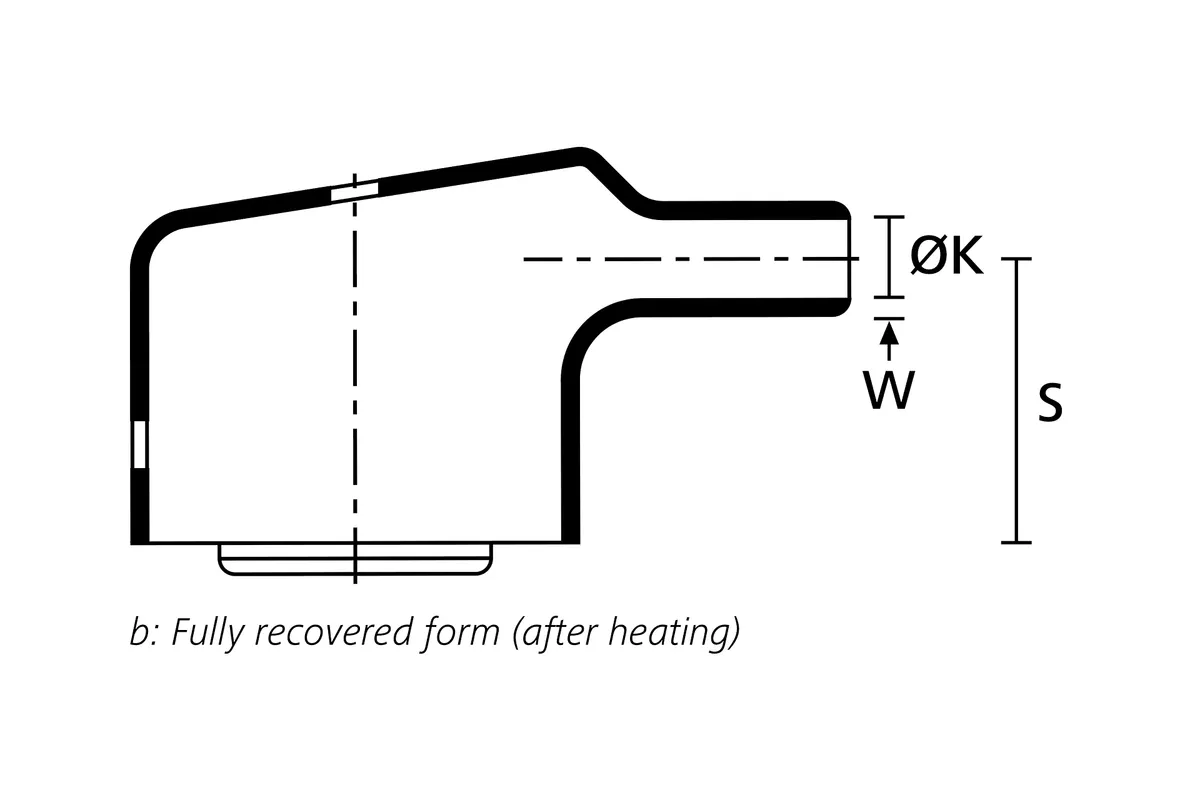

Technical drawing showing the fully recovered side view of a 90° heat shrink connector cover

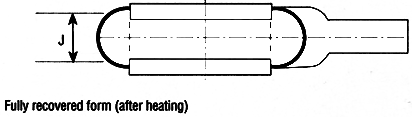

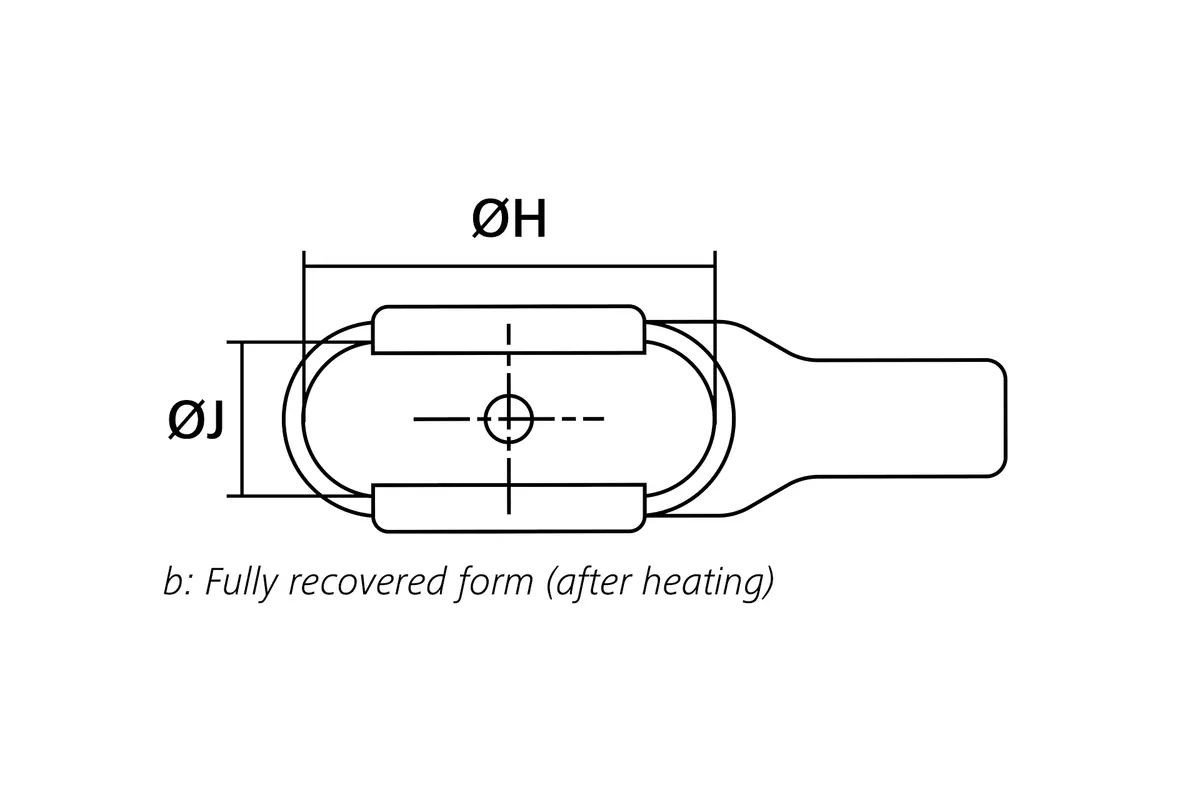

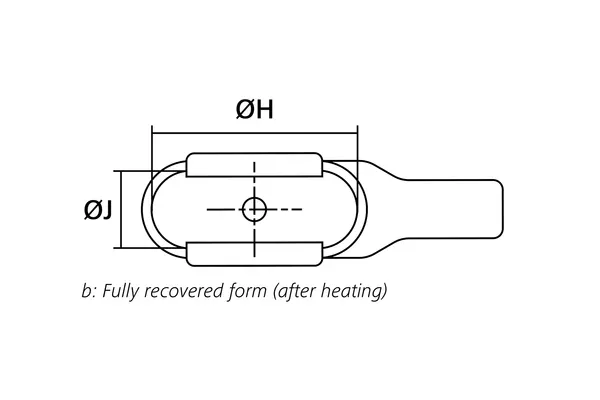

Technical drawing showing the fully recovered top view of a 90° heat shrink connector cover

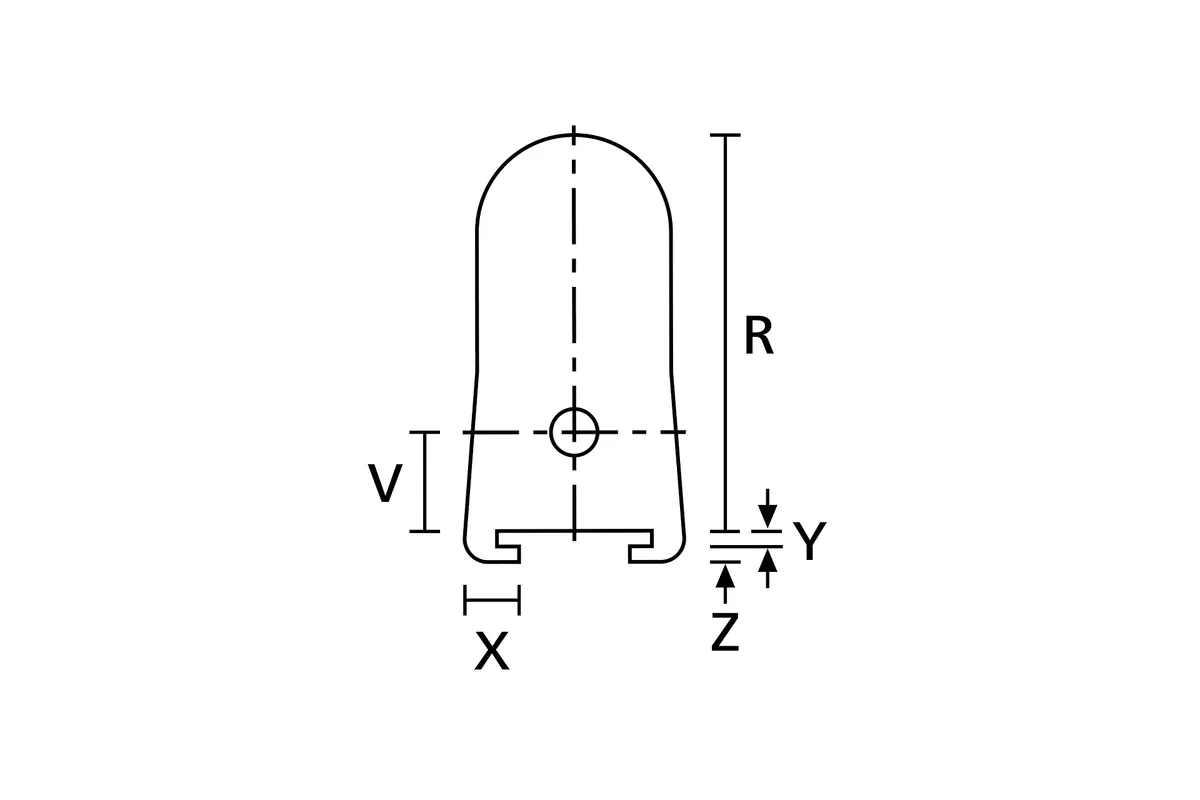

Technical drawing showing the end view and key dimensions of a 90° heat shrink connector cover for Min-D connectors

2100 Series Connector Cover for Min-D Series (Side Entry)

Connector Covers

Products

Item # Type Expanded (Min) H Expanded (Min) J Expanded (Min) K Material
2101-1-B7 With Lips 0.80 0.42 0.31 Semi-Rigid Flame Retarded Polyolefin
2101-1-G With Lips 0.80 0.42 0.31 Fluid Resistant Flame Retarded Elastomer
2101-1-H With Lips 0.80 0.42 0.31 Flexible Zero-Hal Limited Fire Hazard Material
2101-1-J With Lips 0.80 0.42 0.31 Flexible Flame Retarded Polyolefin
2101-1-L With Lips 0.80 0.42 0.31 Flexible Flame Retarded Fluro-Elastomer
2101-2-B7 With Lips 0.63 0.63 0.63 Semi-Rigid Flame Retarded Polyolefin
2101-2-G With Lips 0.63 0.63 0.63 Fluid Resistant Flame Retarded Elastomer
2101-2-H With Lips 0.63 0.63 0.63 Flexible Zero-Hal Limited Fire Hazard Material
2101-2-J With Lips 0.63 0.63 0.63 Flexible Flame Retarded Polyolefin
2101-2-L With Lips 0.63 0.63 0.63 Flexible Flame Retarded Fluro-Elastomer
2102-1-B7 With Lips 1.11 0.42 0.40 Semi-Rigid Flame Retarded Polyolefin
2102-1-G With Lips 1.11 0.42 0.40 Fluid Resistant Flame Retarded Elastomer
2102-1-H With Lips 1.11 0.42 0.40 Flexible Zero-Hal Limited Fire Hazard Material
2102-1-J With Lips 1.11 0.42 0.40 Flexible Flame Retarded Polyolefin
2102-1-L With Lips 1.11 0.42 0.40 Flexible Flame Retarded Fluro-Elastomer
2102-2-B7 With Lips 0.75 0.75 0.75 Semi-Rigid Flame Retarded Polyolefin
2102-2-G With Lips 0.75 0.75 0.75 Fluid Resistant Flame Retarded Elastomer
2102-2-H With Lips 0.75 0.75 0.75 Flexible Zero-Hal Limited Fire Hazard Material
2102-2-J With Lips 0.75 0.75 0.75 Flexible Flame Retarded Polyolefin
2102-2-L With Lips 0.75 0.75 0.75 Flexible Flame Retarded Fluro-Elastomer
2103-1-B7 With Lips 1.66 0.42 0.55 Semi-Rigid Flame Retarded Polyolefin
2103-1-H With Lips 1.66 0.42 0.55 Flexible Zero-Hal Limited Fire Hazard Material
2103-1-J With Lips 1.66 0.42 0.55 Flexible Flame Retarded Polyolefin
2103-1-L With Lips 1.66 0.42 0.55 Flexible Flame Retarded Fluro-Elastomer
2103-2-B7 With Lips 1.15 1.15 1.15 Semi-Rigid Flame Retarded Polyolefin
2103-2-G With Lips 1.15 1.15 1.15 Fluid Resistant Flame Retarded Elastomer
2103-2-H With Lips 1.15 1.15 1.15 Flexible Zero-Hal Limited Fire Hazard Material
2103-2-J With Lips 1.15 1.15 1.15 Flexible Flame Retarded Polyolefin
2103-2-L With Lips 1.15 1.15 1.15 Flexible Flame Retarded Fluro-Elastomer
2103-3-B7 Without Lips 1.69 0.49 0.55 Semi-Rigid Flame Retarded Polyolefin
2103-3-G Without Lips 1.69 0.49 0.55 Fluid Resistant Flame Retarded Elastomer
2103-3-H Without Lips 1.69 0.49 0.55 Flexible Zero-Hal Limited Fire Hazard Material
2103-3-J Without Lips 1.69 0.49 0.55 Flexible Flame Retarded Polyolefin
2103-3-L Without Lips 1.69 0.49 0.55 Flexible Flame Retarded Fluro-Elastomer
2104-1-B7 With Lips 2.31 0.42 0.68 Semi-Rigid Flame Retarded Polyolefin
2104-1-G With Lips 2.31 0.42 0.68 Fluid Resistant Flame Retarded Elastomer
2104-1-H With Lips 2.31 0.42 0.68 Flexible Zero-Hal Limited Fire Hazard Material
2104-1-J With Lips 2.31 0.42 0.68 Flexible Flame Retarded Polyolefin
2104-1-L With Lips 2.31 0.42 0.68 Flexible Flame Retarded Fluro-Elastomer
2105-1-B7 With Lips 2.28 0.54 0.75 Semi-Rigid Flame Retarded Polyolefin
2105-1-G With Lips 2.28 0.54 0.75 Fluid Resistant Flame Retarded Elastomer
2105-1-H With Lips 2.28 0.54 0.75 Flexible Zero-Hal Limited Fire Hazard Material
2105-1-J With Lips 2.28 0.54 0.75 Flexible Flame Retarded Polyolefin
2105-1-L With Lips 2.28 0.54 0.75 Flexible Flame Retarded Fluro-Elastomer
2105-2-B7 With Lips 1.48 1.48 1.48 Semi-Rigid Flame Retarded Polyolefin
2105-2-G With Lips 1.48 1.48 1.48 Fluid Resistant Flame Retarded Elastomer
2105-2-H With Lips 1.48 1.48 1.48 Flexible Zero-Hal Limited Fire Hazard Material
2105-2-L With Lips 1.48 1.48 1.48 Flexible Flame Retarded Fluro-Elastomer
2105-3-B7 Without Lips 2.26 0.60 0.75 Semi-Rigid Flame Retarded Polyolefin
2105-3-G Without Lips 2.26 0.60 0.75 Fluid Resistant Flame Retarded Elastomer
2105-3-H Without Lips 2.26 0.60 0.75 Flexible Zero-Hal Limited Fire Hazard Material
2105-3-L Without Lips 2.26 0.60 0.75 Flexible Flame Retarded Fluro-Elastomer
2103-1-G With Lips 1.66 0.42 0.55 Fluid Resistant Flame Retarded Elastomer
2105-2-J With Lips 1.48 1.48 1.48 Flexible Flame Retarded Polyolefin
2105-3-J Without Lips 2.26 0.60 0.75 Flexible Flame Retarded Polyolefin
