ELECTRI-TONE® Two 24 American Wire Gauge (AWG) Conductors Shielded and Jacketed Microphone Electric Cable
ELECTRI-TONE® Two 24 American Wire Gauge (AWG) Conductors Shielded and Jacketed Microphone Electric Cable
Product #: W-4930-090
Specifications
| Field | Value |
|---|---|
| Applications | Shielded and Jacketed Microphone Electric Cable |
| AWG Size | 24 |
| Temperature | -40 to 90 ºC |
| Root Mean Square (RMS) Voltage | 600 V |
| Conductor Color | Blue |
| Red | |
| Industry Standards | RoHS Compliant |
| Packaging | To be supplied on bulk reels - 1000 foot minimm lengths |

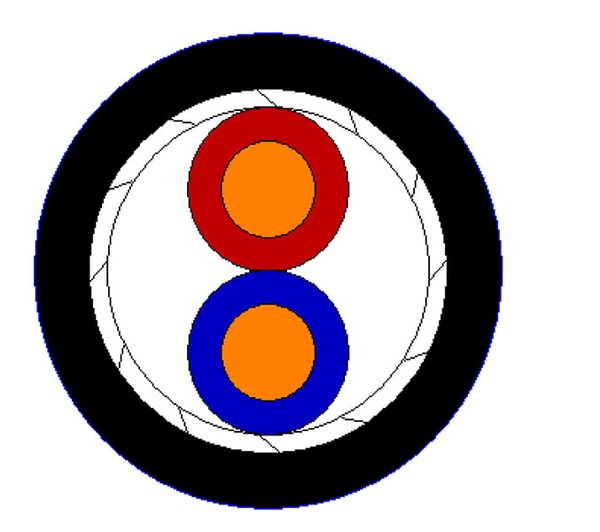

Construction Details
| Field | Value |
|---|---|
| Conductor | 24 AWG 19/36 Bare Copper |
| Nom. Conductor Diameter | 0.025 in |
| Insulation | Extruded Flexible PVC - 0.010" Nominal Wall |
| Nom. Insulation Diameter | 0.045 in |
| Shield | Spiral 36 AWG Bare Copper - 60% Coverage |
| Nom. Shield Diameter | 0.010 in |
| Jacket | Extruded Flexible PVC - 0.058" Nominal Wall |
| Nom. Jacket Diameter | 0.220 in |
