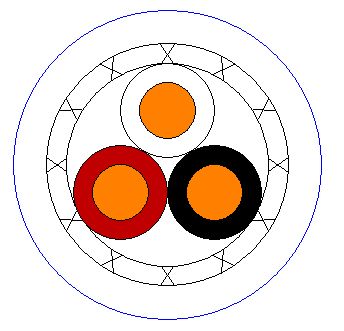

3 Conductor 28 AWG Flexible Miniature Cable
Product #: W-SIL-28-3-SJ
Specifications
| Field | Value |
|---|---|
| Certified To | RoHS Compliant |
Construction Details
| Field | Value |
|---|---|
| Conductor | 28 AWG 65/46 Silver Plated Copper |
| Nom. Conductor Diameter | 0.015 in |
| Insulation | Extruded FLEXI-LENE 300 |
| 0.010" Nominal Wall Thickness | |
| Nom. Insulation Diameter | 0.035 in |
| Cabling | Cable two 28 AWG Single Wires |
| Nom. Cable Diameter | 0.075 in |
| Shield | Braided 44 AWG Silver Plated Copper |
| 90% Minimum Coverage | |
| Jacket | Extruded FLEXI-LENE 300 |
| 0.015" nominal wall thickness color - white | |
| Nom. Jacket Diameter | 0.112 in |
Color Code
| Field | Value |
|---|---|
| Color | Black |
| Red | |
| White |
Properties
| Field | Value |
|---|---|
| Temperature | -60 to 200 ºC |
| Voltage | 600 V RMS |
| Weight | 7.20 lb/mft |
Packaging
| Field | Value |
|---|---|
| Note | To be supplied on bulk reels - 100 foot minimum lengths |
