Broadcast Cables

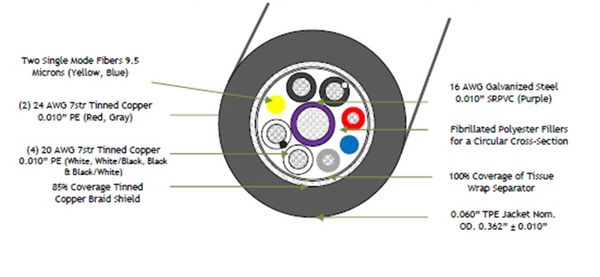

Four element composite cable cabled on a planetary cabler with an overall TPE jacket. For SMPTE 311M application(4) 20 AWG 19 Strands TC PE insulated(2) 24 AWG 7 Strands TC PE insulated(1)16 AWG 19 Strands GLVS PVC insulated(2) 9.5 Micron fibers insulated

Product #: W-4831-100

Conductor

Field	Value
AWG & Stranding	Multiple

Element 1: 20 AWG 4 Conductors PE Insulated (Auxiliary)

Field	Value
AWG & Stranding - Conductor	20 AWG 19 Strands Class C
Material - Conductor	Annealed Tinned Copper
Conductor Count - Conductor	4
Material - Insulation	Polyethylene
Wall Thickness - Insulation	0.010 in
Color Code - Insulation	Black
	Black/White
	White
	White/Black

Element 2: 24 AWG 2 Conductors PE Insulated (Single)

Field	Value
AWG & Stranding - Conductor	24 AWG 7 Strands Class B
Material - Conductor	Annealed Tinned Copper
Conductor Count - Conductor	2
Material - Insulation	Polyethylene
Wall Thickness - Insulation	0.010 in
Color Code - Insulation	Gray
	Red

Element 3: 16 AWG SRPVC Insulated (Strength Member)

Field	Value
AWG & Stranding - Conductor	16 AWG 19 Strands Class C
Material - Conductor	Galvanized Steel
Conductor Count - Conductor	1
Material - Insulation	Semi-Rigid Polyvinylchloride
Wall Thickness - Insulation	0.010 in
Color Code - Insulation	Purple

Element 4: Two Single Mode Fibers

Field	Value
Mode Field Diameter - Conductor	9.5 ± 50 µ
	0.035 ± 0.002 in
Cladding Diameter - Conductor	125 ± 1 µ
Buffer Material - Conductor	Thermoplastic
Optical Attenuation - Conductor
Color Code - Conductor	Blue
	Yellow

Cable Assembly - (Final Assembly - Elements 1 thru 4)

Field	Value
Cable Lay Length	Per the Standard
Cable Binder	Tissue Wrap Binder, 100% Coverage
Cable Fillers	Fibrillated Polypropylene - as Necessary for a Circular Cross-Section
Shield	85% Coverage, Tinned Copper Braid

Jacket

Field	Value
Material	Thermoplastic Elastomer
Wall Thickness	0.060 in
Diameter	0.362 in. ± 0.010 in. Nom.
Colors	Black
Ripcord	No
Weight	97 lb/Mft

Markings

Field	Value
Type	Cable permanently identified via surface silver ink
Legend	AVBSMPTE311M SMPTE 311M High Definition Broadcast Hybrid Fiber Optic Camera Cable Made in the USA RoHS Compliant
Footage Markers	No

Jacketing

Field	Value
Diameter	0.362 in

Standards

Field	Value
Note	Meets or exceeds the Requirements of SMPTE311M applications
	All materials used in the manufacture of this cable are RoHS compliant
	Made in the USA

Note

Field	Value
Note	All specified parameters are nominal and subject to verification.
