75 Ohm 26 AWG HDTV Coaxial Cables
Product #: W-4200-1135
Specifications
| Field | Value |
|---|---|
| Temperature | -55 to 150 ºC |
| Impedance | 75 Ohms ± 3 |
| Capacitance | 16.0 pF/ft |
| Nom. Velocity of Propagation | 80 % |
| Nom. Attenuation @ 1 MHz per 100 ft. | 0.58 dB |
| Nom. Attenuation @ 10 MHz per 100 ft. | 1.30 dB |
| Nom. Attenuation @ 50 MHz per 100 ft. | 3.5 dB |
| Nom. Attenuation @ 100 MHz per 100 ft. | 4.60 dB |
| Nom. Attenuation @ 1450 MHz per 100 ft. | 18.9 dB |
| VSWR (Max 1.50 GHz) | 1.40 |
| Min. Bend Radius | 0.65 in |
| Nom. Weight | 15.00 lb/1000 ft. |
| Flammability | Shall Pass FAA FAR 25.853/869 |
| Packaging | To be supplied on bulk reels, 100 feet minimum lengths |

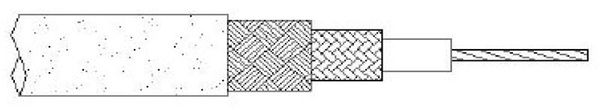

Construction Details
| Field | Value |
|---|---|
| Conductor | 26 AWG 19/38 Silver Plated Copper |
| Nom. Conductor Diameter | 0.019 in |
| Insulation | Extruded Foamed Fep |
| Nom. Insulation Diameter | 0.086 in |
| Inner Shield | Braided Flat Silver Plated Copper - 100% coverage |
| Nom. Inner Shield Diameter | 0.091 in |
| Outer Shield | Round Tin Plated Copper - 95% minimum coverage |
| Nom. Outer Shield Diameter | 0.107 in |
| Outer Jacket | Extruded FEP - color White |
| Nom. Outer Jacket Diameter | 0.125 in |
| Jacket Print | W-4200-1135 - 75 Ohm |
