100 Ohm 24 AWG Quadrax Cables - Low Smoke Zero Halogen
Product #: W3568-26
Specifications
| Field | Value |
|---|---|
| Temperature | -55 to 90 ºC |
| Impedance | 100 ohms ± 10 |
| Capacitance | 13.0 pF/ft |
| Velocity of Propagation | 80.0 % |
| Attenuation @ 10 MHz per 100 ft. | 3.1 dB |
| Attenuation @ 100 MHz per 100 ft. | 8.0 dB |
| Dielectric Volt Rating | 1.5 KV RMS |
| Near End Cross Talk @ 10 MHz per 100 ft. | 47.0 dB |
| Near End Cross Talk @ 100 MHz per 100 ft. | 32.0 dB |
| Weight | 26.0 lb/1000 ft. |
| Flammability | Shall pass FAA 25.853/869 |
| Color | 1 - Blue |
| 2 - Orange | |
| 3 - White | |
| 4 - Green | |
| Packaging | To be supplied on bulk reels, random factory lengths |

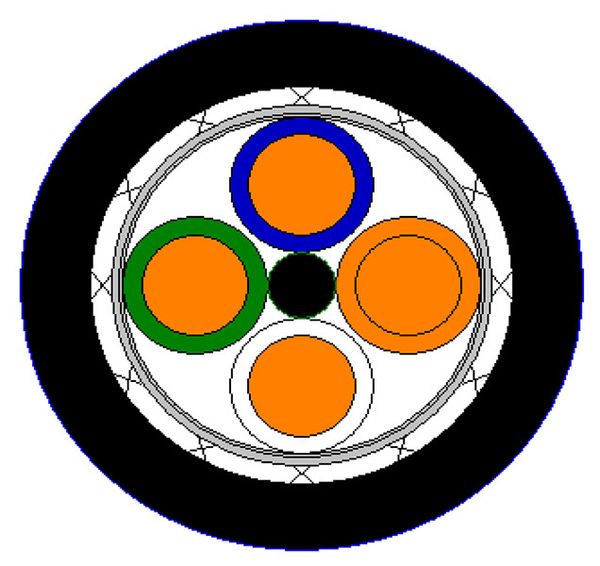

Construction Details
| Field | Value |
|---|---|
| Conductor | 24 AWG 19/36 Silver Plated High Strength Copper Alloy |
| Nom. Conductor Diameter | 0.024 in |
| Insulation | Extruded Foamed Fep |
| Nom. Insulation Diameter | 0.052 in |
| Cable Type | Planetary Twist per M17 with Filler In Core |
| Nom. Cable Diameter | 0.116 in |
| Binder | PTFE Tape Wrap |
| Nom. Binder Diameter | 0.125 in |
| Inner Shield | Aluminized Mylar Facing Out |
| Nom. Inner Shield Diameter | 0.131 in |
| Outer Shield | Braided Silver Plated Copper - 95% Minimum Coverage |
| Nom. Outer Shield Diameter | 0.148 in |
| Jacket | Extruded DUR-X-THANE ZH / color - Black |
| Nom. Jacket Diameter | 0.172 in |
