100 Ohm 26 AWG 2 Pair Data Cables - Low Smoke Zero Halogen
Product #: W3572-26
Specifications
| Field | Value |
|---|---|
| Temperature | -55 to 90 ºC |
| Capacitance | 13.0 pF/ft |
| Impedance | 100 ohms ± 10 |
| Velocity of Propagation | 80.0 % |
| Dielectric Volt Rating | 1.5 KV RMS |
| Weight | 42.0 lb/1000 ft. |
| Color | Pair 1 - Blue & White |
| Pair 2 - Orange & Green | |
| Two Differential Pairs | |
| Flammability | Shall Pass FAA FAR 25.853/869 |
| Packaging | To be supplied on bulk reels, random factory lengths |

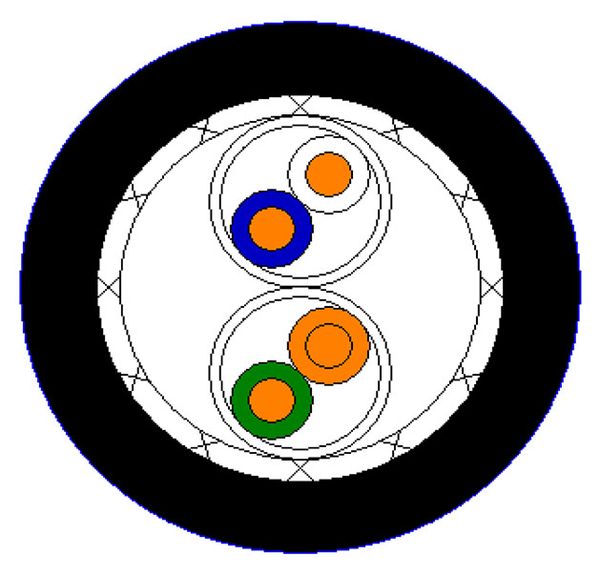

Construction Details
| Field | Value |
|---|---|
| Conductor | 26 AWG 19/38 Silver Plated Copper Alloy |
| Nom. Conductor Diameter | 0.019 in |
| Insulation | Extruded Foamed Fep |
| Nom. Insulation Diameter | 0.048 in |
| Cable Pairs | Planetary twist per M17 for balanced line |
| Nom. Cable Pairs Diameter | 0.150 in |
| Inner Shield | Each pair - wrap of aluminized mylar facing out |
| Nom. Inner Shield Diameter | 0.105 in |
| Cable Type | Planetary Twist per M17 |
| Nom. Cable Diameter | 0.208 in |
| Shield | Braided Silver Plated Copper - 95% Minimum Coverage |
| Nom. Outer Shield Diameter | 0.230 in |
| Jacket | Extruded DUR-X-THANE ZH / color - Black |
| Nom. Jacket Diameter | 0.275 in |
