90 Ohm USB Aerospace Cables - Low Smoke Zero Halogen
Product #: W3628-26
Specifications
| Field | Value |
|---|---|
| Temperature | -55 to 90 ºC |
| Data Pair Impedance | 90.0 Ohm ± 13 |
| Velocity of Propagation | 70.0 % |
| Delay Skew | 6.0 Ps/foot |
| Attenuation @ 1 MHz per 100 ft. | 1.40 dB |
| Attenuation @ 200 MHz per 100 ft. | 23.40 dB |
| Attenuation @ 400 MHz per 100 ft. | 42.0 dB |
| Color | A - Green (D+) & White (D-) |
| B - Red (Vbus) & Black (Ground) | |
| Flammability | Shall pass FAA 25.853/869 and AIRBUS ABD 00031, RoHS Compliant |
| Packaging | To be supplied on bulk reels, 100 feet multiple lengths |

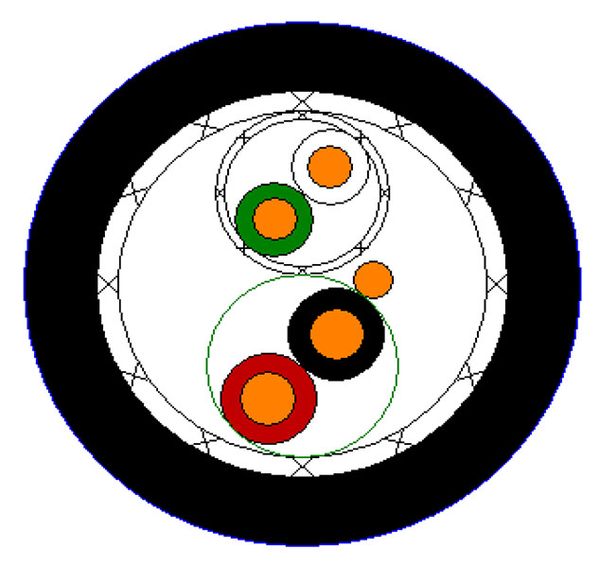

Construction Details
| Field | Value |
|---|---|
| Data Pair Conductor | 26 AWG 19/38 Silver Plated Copper Alloy |
| Nom. Data Pair Conductor Diameter | 0.020 in |
| Insulation | Extruded FEP |
| Nom. Insulation Diameter | 0.047 in |
| Shield | Braided Silver Plated Copper Over Data Pair |
| Nom. Shield Diameter | 0.086 in |
| Power Pair Conductor | 22 AWG 19/34 Silver Plated Copper Alloy |
| Nom. Power Pair Conductor Diameter | 0.030 in |
| Cable Type | Twist data pair, 2 power conductors + 26 AWG SPCA drain wire |
| Braid Type | Braided Silver Plated Copper Overall - 95% miminum coverage |
| Nom. Braid Diameter | 0.176 in |
| Jacket | Extruded DUR-X-THANE ZH / color - Black |
| Nom. Jacket Diameter | 0.210 in |
