100 Ohm 24 AWG Ethernet Cables - Low Smoke Zero Halogen
Product #: W-3569-26
Specifications
| Field | Value |
|---|---|
| Impedance | 100 ohms ± 10 |
| Capacitance | 14.5 pF/ft |
| Temperature | -55 to 90 ºC |
| Dielectric Volt Rating | 1.5 KV RMS |
| Velocity of Propagation | 70.0 % |
| Near End Cross Talk @ 10 MHz per 100 ft. | 47.0 dB |
| Near End Cross Talk @ 100 MHz per 100 ft. | 32.0 dB |
| Attenuation @ 10 MHz per 100 ft. | 2.5 dB |
| Attenuation @ 100 MHz per 100 ft. | 7.2 dB |
| Flammability | Shall pass FAA 25.853/869 |
| Weight | 48.0 lb/1000 ft. |
| Color | 1 - White/Blue Stripe & Blue |
| 2 - White/Orange Stripe & Orange | |
| 3 - White/Green Stripe & Green | |
| 4 - White/Brown Stripe & Brown |

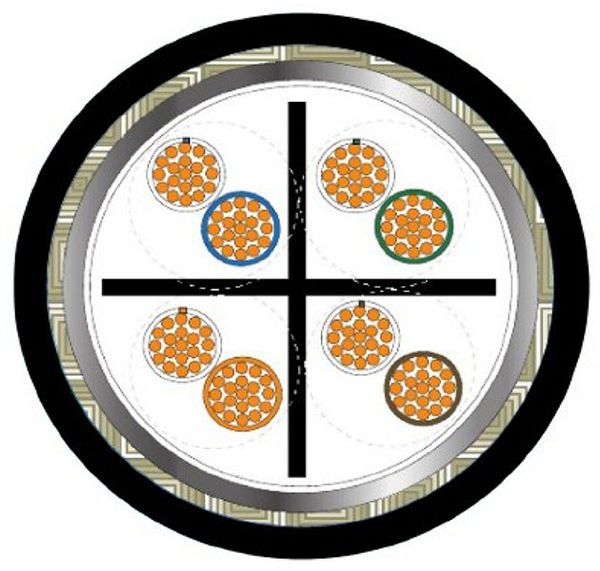

Construction Details
| Field | Value |
|---|---|
| Conductor | 8 x 24 AWG (19/36) Silver Plated Copper Alloy |
| Nom. Conductor Diameter | 0.0235 ± 0.0025 in |
| Insulation | Extruded FEP |
| Nom. Insulation Diameter | 0.045 ± 0.003 in |
| Cable Type | Cable (4) pairs with spline |
| Binder | PTFE Tape Wrap |
| Nom. Binder Diameter | 0.220 in |
| Shield No. 1 | Aluminum mylar tape, facing out |
| Nom. Shield No. 1 Diameter | 0.225 in |
| Shield No. 2 | Braided silver plated copper, 95% minimum coverage |
| Nom. Shield No. 2 Diameter | 0.241 in |
| Jacket | Extruded DUR-X-THANE ZH |
| Nom. Jacket Diameter | 0.290 in |
