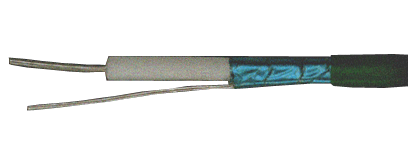

LTE High-performance Transmission Cables - 75 Ohm High-speed Miniature
LTE low-density, air-expanded PTFE dielectric gives these cables very fast transmission speed and low loss in a small size, along with exceptional flexibility. This cable is just one example of the performance levels provided by LTE dielectric- many other configurations are also available.
Product #: E75-132DAMXE
Specifications
| Field | Value |
|---|---|
| Temperature Rating | 200 ºC |
| Impedance | 75 ± 7 Ω |
| Shield | Wrapped foil / film tape |
| Jacket | Extruded FEP, natural color |
| Jacket Diameter | 0.060 in |
| 1.52 mm | |
| Primary Insulation | LTE (extruded expanded low-density PTFE) |
| Center Conductor | Silver-plated copper |
| Inner Conductor Diameter | 0.008 in |
| 0.20 mm | |
| Inner Conductor Stranding | Solid SPC (Silver-plated copper) |
| Min. Bend Radius | 0.30 in |
| 7.60 mm | |
| Nom. Capacitance | 17.00 pF/ft |
| Velocity of Propagation | 84% nominal |
| Time Delay | 1.21 ns/foot |
| Weight | 2.10 lb/1000 ft. |
| 3.10 kg/1000 m. | |
| Drain Wire | Solid SPC (Silver-plated copper), 32 AWG, parallel to component wire. |
| Shield Diameter | 0.046 in |
| 1.17 mm | |
| Insulation Diameter | 0.032 in |
| 0.810 mm | |
| Options | Other jacket colors; other conductor materials and / or stranding; other impedances. |
