50 Ohm 26 AWG Highly Flexible Miniature Cables
Product #: W-4743-3299

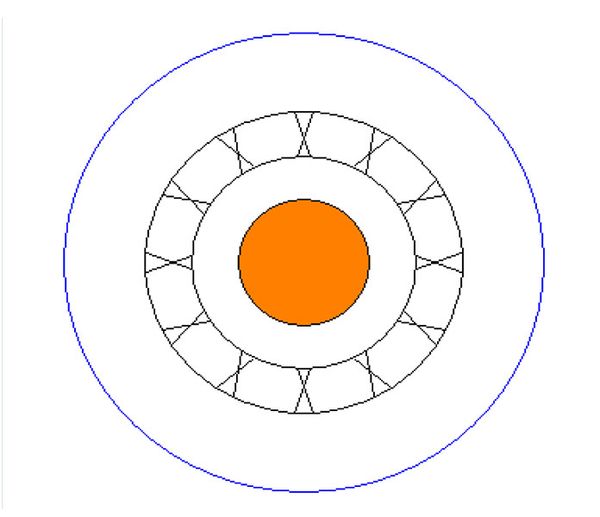

Construction Details
| Field | Value |
|---|---|
| Conductor | 26 AWG 7/34 Copper Covered Steel (CW) |
| Insulation | Extruded Tempa-Lene 340 |
| Nom. Wall Thickness - Insulation | 0.020 in |
| Shield | Braided 38 AWG Tin Plated Copper |
| Minimum Coverage - Shield | 90 % |
| Jacket | Extruded Flexi-Lene 300 |
| Nom. Wall Thickness - Jacket | 0.0365 in |
| Jacket Color | White |
| Nom. Conductor Diameter | 0.019 in |
| Nom. Insulation Diameter | 0.059 in |
| Nom. Shield Diameter | 0.130 in |
| Nom. Jacket Diameter | 0.150 in |
Color Code
| Field | Value |
|---|---|
| Color Code | Translucent |
Properties
| Field | Value |
|---|---|
| Temperature | -60 to 200 ºC |
| Root Mean Square (RMS) Voltage | 600 V |
| Impedance | 50 ohms |
| Weight | 13.48 lb/mft |
Specifications
| Field | Value |
|---|---|
| Industry Standards | RoHS Compliant |
Packaging
| Field | Value |
|---|---|
| Packaging | To be supplied on bulk reels - 100 foot minimum lengths |
