120 Ohm 30 AWG Twinaxial Cable
Product #: W-6089-250
Specifications
| Field | Value |
|---|---|
| Impedance | 120 ohms |
| Impedance Tolerance | ±10 ohms |
| Temperature | -55 to 200 ºC |
| Nom. Velocity of Propagation | 80 % |
| Capacitance | 13.0 pF/ft |
| Root Mean Square (RMS) Dielectric Strength | 1500 V |
| Flammability | Shall Pass FAA FAR 25.853/869 Complies with RoHS (DIRECTIVE 2002/95EC) |
| Maximum Attenuation @ 100 MHz per 100 ft. | 20.9 dB |
| Maximum Attenuation @ 200 MHz per 100 ft. | 23.6 dB |
| Nom. Weight per 1000 ft. | 5.3 lb |

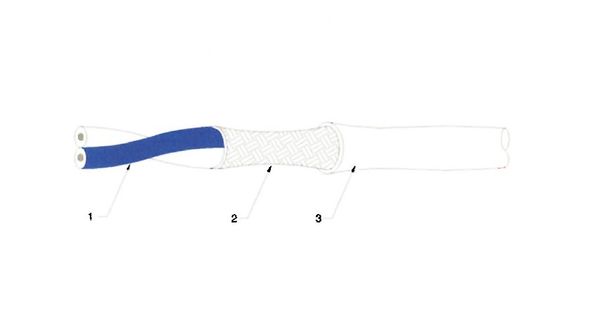

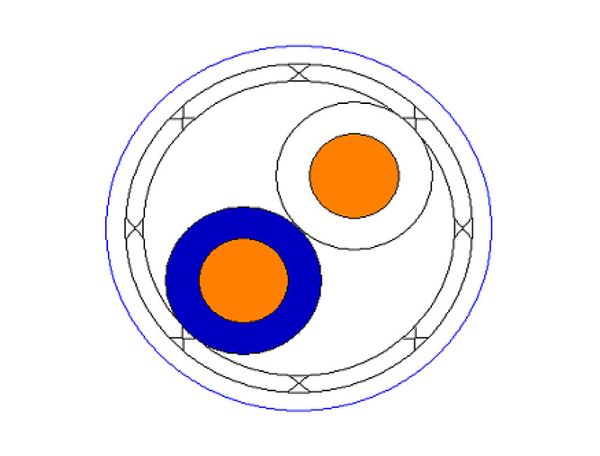

Construction Details
| Field | Value |
|---|---|
| Conductor | 30 AWG 7/38 Silver Plated Copper |
| Nom. Conductor Diameter | 0.012 in |
| Insulation | Composite Fluoropolymer - Colors - White & Blue |
| Cable Type | Planetary Twist Per M17 for Balanced Line |
| Shield | 40 AWG Silver Plated Copper Having 90% minimum coverage |
| Nom. Shield Diameter | 0.087 in |
| Outer Jacket Material | PTFE Tape Wrap - HSTF 0.003" MIL Wall |
| Nom. Outer Jacket Diameter | 0.105 in |
| Jacket Color | White |
Packaging
| Field | Value |
|---|---|
| Packaging | To be supplied on bulk reels, random factory lengths |
