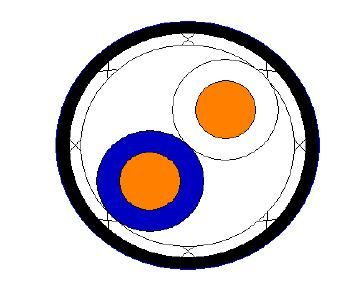

120 Ohm 20 AWG Twinaxial Cable
Product #: W-4365-250
Specifications
| Field | Value |
|---|---|
| Impedance | 120 ohms |
| Impedance Tolerance | ±10 ohms |
| Temperature | -55 to 200 ºC |
| Nom. Velocity of Propagation | 80 % |
| Nom. Attenuation @ 100 MHz per 100 ft. | 7.50 dB |
| Nom. Attenuation @ 400 MHz per 100 ft. | 14.40 dB |
| Capacitance | 12.0 pF/ft |
| Root Mean Square (RMS) Dielectric Strength | 1000 V |
| Flammability | Shall Pass FAA FAR 25.853/869 |
| Nom. Weight per 1000 ft. | 29.70 lb |
Construction Details
| Field | Value |
|---|---|
| Conductor | 20 AWG 19/32 Silver Plated Copper |
| Nom. Conductor Diameter | 0.040 in |
| Insulation | Extruded PTFE Over Expanded PTFE Colors - White and Blue |
| Nom. Insulation Diameter | 0.090 in |
| Cable Type | Planetary Twist Per M17 for Balanced Line |
| Nom. Cable Diameter | 0.185 in |
| Shield | 38 AWG Silver Plated Copper Braid Having 90% minimum optimum coverage |
| Nom. Shield Diameter | 0.206 in |
| Outer Jacket Material | Extruded ETFE / Color - Black |
| Nom. Outer Jacket Diameter | 0.232 in |
Packaging
| Field | Value |
|---|---|
| Packaging | To be supplied on bulk reels, random factory lengths |
