100 Ohm 26 AWG High Performance Twinaxial Cable
Product #: W-3065-1726
Specifications
| Field | Value |
|---|---|
| Temperature | -55 to 200 ºC |
| Impedance | 100 ohms |
| Impedance Tolerance | +5 ohms |
| -10 ohms | |
| Time Delay | 1.24 nsec/ft |
| Nom. Velocity of Propagation | 80 % |
| Nom. Attenuation @ 100 MHz per 100 ft. | 9.50 dB |
| Nom. Attenuation @ 200 MHz per 100 ft. | 13.4 dB |
| Nom. Attenuation @ 1 GHz per 100 ft. | 31.00 dB |
| Flammability | Shall Pass FAA FAR 25.853/869 |
| Maximum Time Delay | 1.24 nsec/ft |
| Root Mean Square (RMS) Dielectric Strength | 1200 V |
| Nom. Weight per 1000 ft. | 12.00 lb |

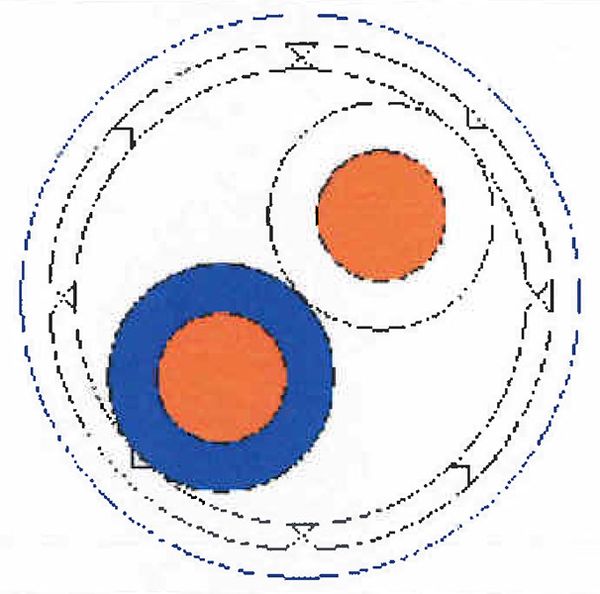

Construction Details
| Field | Value |
|---|---|
| Conductor | 26 AWG 65/44 Rope Lay of Silver Plated Copper |
| Nom. Conductor Diameter | 0.019 in |
| Insulation | Extruded PTFE Over Expanded PTFE Colors - White and Blue |
| Nom. Insulation Diameter | 0.054 in |
| Cable Type | Planetary Twist Per M17 for Balanced Line |
| Outer Shield | 40 AWG Silver Plated Copper Braid Having 90% Minimum Optimum Coverage |
| Outer Jacket Material | HSTF Tape Wrap 0.002 Inch Wall - Color Natural |
| Nom. Outer Jacket Diameter | 0.100 in |
Packaging
| Field | Value |
|---|---|
| Packaging | To be supplied on bulk reels, random factory lengths |
