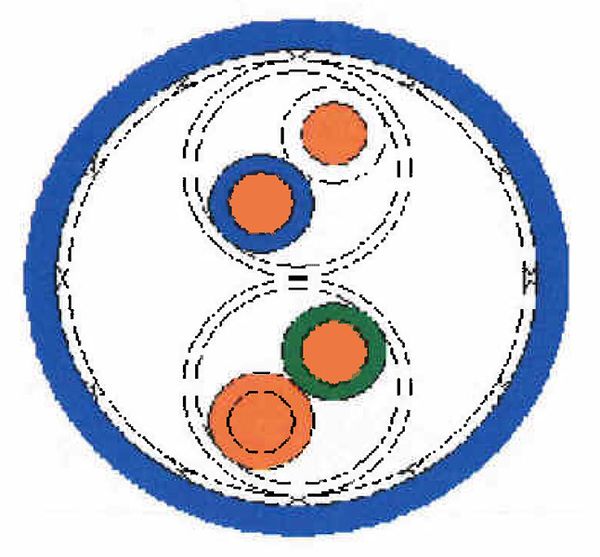

100 Ohm 26 AWG 2 Pair Quadrax Data Cable
Product #: W-3516-26
Specifications
| Field | Value |
|---|---|
| Wire Temperature | -55 to 200 ºC |
| Velocity of Propagation | 80.0 % |
| Capacitance | 13.0 pF/ft |
| Weight | 39.0 lb/1000 ft. |
| Pair 1 Color | Blue + White |
| Pair 2 Color | Orange + Green |
Construction Details
| Field | Value |
|---|---|
| Conductor | 26 AWG 19/38 Silver Plated Copper Alloy |
| Nom. Conductor Diameter | 0.019 in |
| Insulation | Extruded Foamed Fluorinated Ethylene Propylene (FEP) |
| Nom. Insulation Diameter | 0.048 in |
| Cable Pairs | Planetary twist per M17 for balanced line |
| Nom. Cable Pairs Diameter | 0.150 in |
| Cable Type | Planetary Twist per M17 |
| Nom. Cable Diameter | 0.200 in |
| Shield | Braided Silver Plated Copper - 95% Minimum Coverage |
| Nom. Shield Diameter | 0.230 in |
| Inner Shield | Each pair-wrap of Aluminized Mylar facing out |
| Nom. Inner Shield Diameter | 0.105 in |
| Jacket Material | Extruded FEP - color: Translucent Blue |
| Nom. Jacket Diameter | 0.235 in |
Properties
| Field | Value |
|---|---|
| Impedance | 100 ohms |
| Impedance Tolerance | ±10 ohms |
| Flammability | Shall Pass FAA FAR 25.853/869 |
Packaging
| Field | Value |
|---|---|
| Packaging | To be supplied on bulk reels, random factory lengths |
