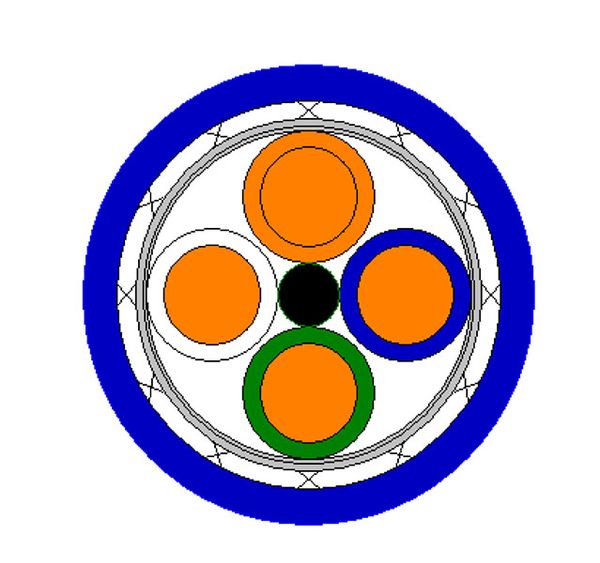

100 Ohm 24 AWG Aluminized Mylar Shielded Quadrax Cable
Product #: W-3508-26
Specifications
| Field | Value |
|---|---|
| Color Code | Blue |
| Green | |
| Orange | |
| White |
Construction Details
| Field | Value |
|---|---|
| Conductor | 24 AWG 19/36 Silver Plated High Strength Copper Alloy |
| Nom. Conductor Diameter | 0.024 in |
| Insulation | Extruded Foamed Fluorinated Ethylene Propylene (FEP) |
| Nom. Insulation Diameter | 0.052 in |
| Cable Type | Planetary Twist per M17 with Filler In Core |
| Nom. Cable Diameter | 0.116 in |
| Binder | PTFE Tape Wrap |
| Nom. Binder Diameter | 0.125 in |
| Inner Shield | Aluminized Mylar Facing Out |
| Nom. Inner Shield Diameter | 0.131 in |
| Outer Shield | Braided Silver Plated Copper - 95% Minimum Coverage |
| Nom. Outer Shield Diameter | 0.148 in |
| Outer Jacket Material | Extruded Fluorinated Ethylene Propylene (FEP) Translucent Blue Marker Tape Under Jacket To Read: W-3508-26 (GPS43-2) |
| Nom. Outer Jacket Diameter | 0.172 in |
Properties
| Field | Value |
|---|---|
| Temperature | -55 to 200 ºC |
| Impedance | 100 ohms |
| Impedance Tolerance | ±10 ohms |
| Nom. Capacitance | 13 pF/ft |
| Nom. Velocity of Propagation | 80 % |
| Attenuation @ 10 MHz per 100 ft. | 3.1 dB |
| Attenuation @ 100 MHz per 100 ft. | 8.0 dB |
| Root Mean Square (RMS) Dielectric Strength | 1200 V |
| Near End Cross Talk @ 10 MHz per 100 ft. | 47.0 dB |
| Near End Cross Talk @ 100 MHz per 100 ft. | 32.0 dB |
| Nom. Weight per 1000 ft. | 26 lb |
| Flammability | Shall Pass FAA 25.869/25.853 |
Packaging
| Field | Value |
|---|---|
| Packaging | To be supplied on bulk reels, random factory lengths |
