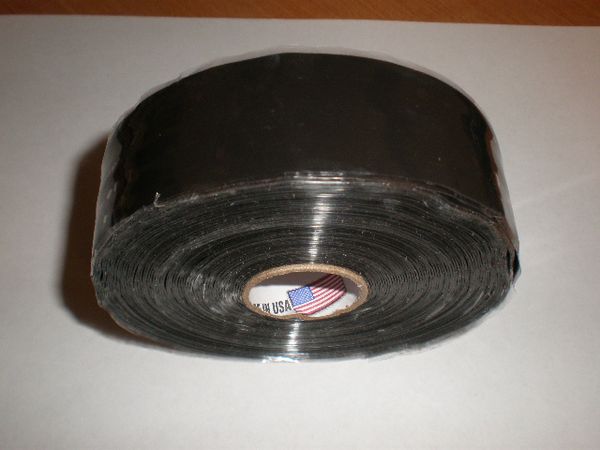

Fusion Wrap
Chemical & heat resistant, self sealing wrapFusion Wrap is a self-fusing, modified silicon tape that starts curing the moment it touches itself. This product offers excellent moisture & chemical resistant, along with excellent dielectric strength. Among its countless uses, this product is perfect for repairing electrical wire/cable, where the insulation/jacket has been compromised.
Product #: FW-1.0-20-0-R
Specifications
| Field | Value |
|---|---|
| Note | Although **FW-1.0-20-0-R** is a standard stocking item. this product can be made in many different widths, thicknesses, colors and shapes. |
| Width | 1.0 (Standard) |
| Thickness | 20 mils (Standard) |
| Color | Black (Standard) |
| Blue (Optional) | |
| Brown (Optional) | |
| Gray (Optional) | |
| Green (Optional) | |
| Orange (Optional) | |
| Red (Optional) | |
| Violet (Optional) | |
| White (Optional) | |
| Yellow (Optional) | |
| Shape | Rectangular (Standard) |
| Triangular (Optional) |
Properties
| Field | Value |
|---|---|
| Operating Temperature | Continuous: -54 to 260 ºC |
| Intermittent: -65 to 260 ºC | |
| Dielectric Strength | 0.010" - 0.030" = 400 VPM |
| 0.040" = 300 VPM | |
| 0.050" = 275 VPM | |
| 0.060" = 250 VPM | |
| 0.070" - 0.080" = 200 VPM | |
| Dielectric Constant, 1 KHz | 2.95 |
| Dissipation Factor, 1 KHz | |
| Volume Resistivity | 1x10¹⁴ Ohm/cm |
| Cold Brittle Point | -65°C |
| Water Absorption | 3 o/o Max. by weight |
| Tensile Strength | 700 PSI Min. |
| Ultimate Elongation | 300 o/o Min. |
| Aging Property | Elongation: 50 o/o |
| Tensile Strength: 75 o/o | |
| Tear Resistance | 85 PSI |
| Durometer Hardness | 50 o/o (+/- 5) |
