Helashrink 1310 double T-shape heat shrink moulding with 30° branches for harness strain relief
Overview diagram of Helashrink 1310 series double T-shaped heat shrink molded shape with 30° angle branches

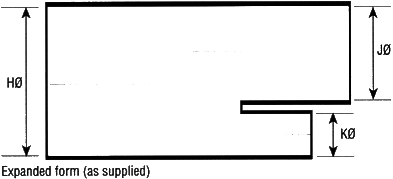

Technical drawing showing the expanded supplied form of a double T heat shrink molded shape

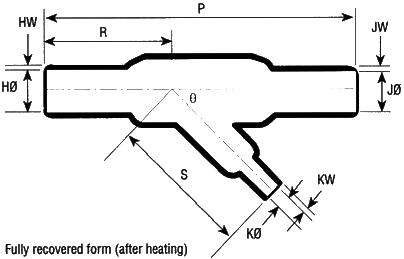

Technical drawing showing the fully recovered form of a double T heat shrink molded shape

1300 Series 45º Angle T Heatshrink Shapes (VG Style)

Heat Shrink T Boots

Products

Item # Expanded (Min) H Expanded (Min) K P ±10% R ±10% Material
1301-1-B7 0.51 0.28 1.97 0.91 Semi-Rigid Flame Retarded Polyolefin
1301-1-G 0.51 0.28 1.97 0.91 Fluid Resistant Flame Retarded Elastomer
1301-1-H 0.51 0.28 1.97 0.91 Flexible Zero-Hal Limited Fire Hazard Material
1301-1-L 0.51 0.28 1.97 0.91 Flexible Flame Retarded Fluro-Elastomer
1302-1-B7 1.06 0.28 3.62 1.61 Semi-Rigid Flame Retarded Polyolefin
1302-1-G 1.06 0.28 3.62 1.61 Fluid Resistant Flame Retarded Elastomer
1302-1-H 1.06 0.28 3.62 1.61 Flexible Zero-Hal Limited Fire Hazard Material
1302-1-J 1.06 0.28 3.62 1.61 Flexible Flame Retarded Polyolefin
1302-1-L 1.06 0.28 3.62 1.61 Flexible Flame Retarded Fluro-Elastomer
1303-1-B7 1.06 0.51 5.71 2.76 Semi-Rigid Flame Retarded Polyolefin
1303-1-G 1.06 0.51 5.71 2.76 Fluid Resistant Flame Retarded Elastomer
1303-1-H 1.06 0.51 5.71 2.76 Flexible Zero-Hal Limited Fire Hazard Material
1303-1-J 1.06 0.51 5.71 2.76 Flexible Flame Retarded Polyolefin
1303-1-L 1.06 0.51 5.71 2.76 Flexible Flame Retarded Fluro-Elastomer
1306-1-B7 0.51 0.26 1.77 0.91 Semi-Rigid Flame Retarded Polyolefin
1306-1-G 0.51 0.26 1.77 0.91 Fluid Resistant Flame Retarded Elastomer
1306-1-H 0.51 0.26 1.77 0.91 Flexible Zero-Hal Limited Fire Hazard Material
1306-1-J 0.51 0.26 1.77 0.91 Flexible Flame Retarded Polyolefin
1306-1-L 0.51 0.26 1.77 0.91 Flexible Flame Retarded Fluro-Elastomer
1307-1-B7 1.06 0.51 3.54 1.65 Semi-Rigid Flame Retarded Polyolefin
1307-1-G 1.06 0.51 3.54 1.65 Fluid Resistant Flame Retarded Elastomer
1307-1-H 1.06 0.51 3.54 1.65 Flexible Zero-Hal Limited Fire Hazard Material
1307-1-J 1.06 0.51 3.54 1.65 Flexible Flame Retarded Polyolefin
1307-1-L 1.06 0.51 3.54 1.65 Flexible Flame Retarded Fluro-Elastomer
1311-1-B7 1.20 0.80 3.25 1.26 Semi-Rigid Flame Retarded Polyolefin
1311-1-G 1.20 0.80 3.25 1.26 Fluid Resistant Flame Retarded Elastomer
1311-1-H 1.20 0.80 3.25 1.26 Flexible Zero-Hal Limited Fire Hazard Material
1311-1-J 1.20 0.80 3.25 1.26 Flexible Flame Retarded Polyolefin
1311-1-L 1.20 0.80 3.25 1.26 Flexible Flame Retarded Fluro-Elastomer
1301-1-J 0.51 0.28 1.97 0.91 Flexible Flame Retarded Polyolefin
