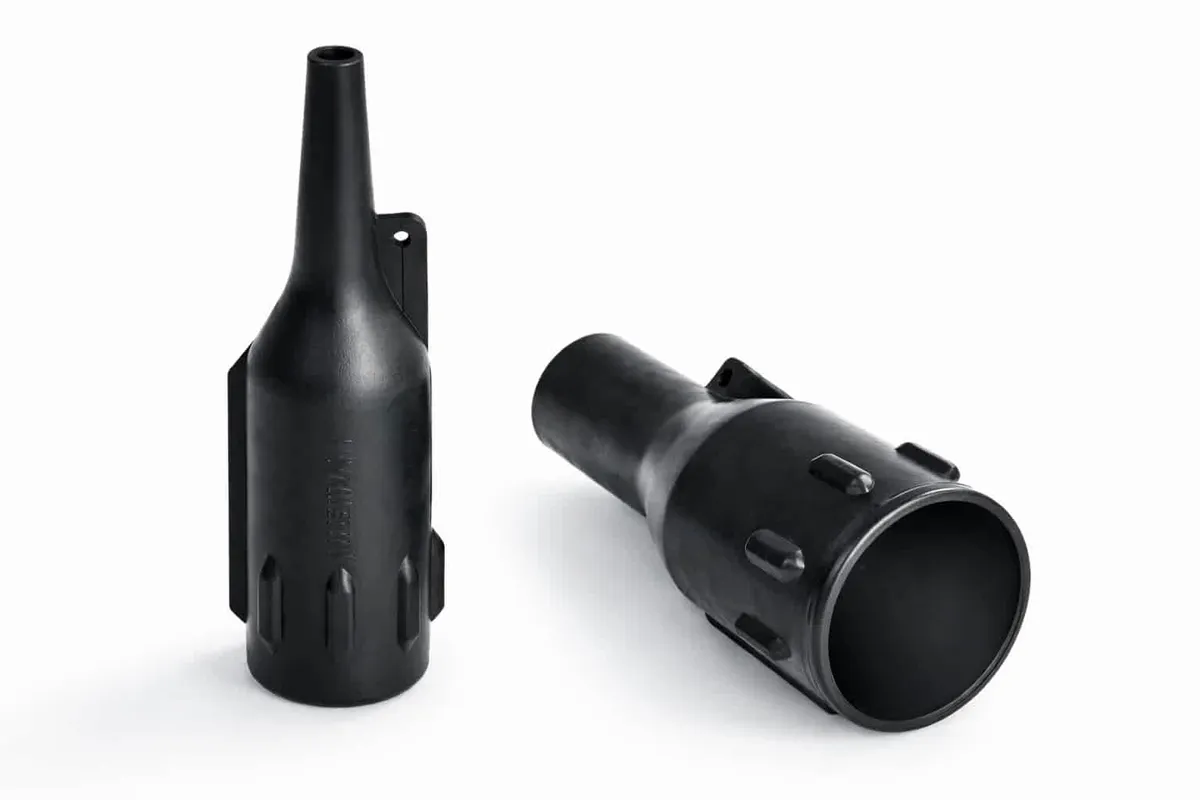

Bottle-shaped heat shrink molded shape with external ribs for improved grip.

Bottle shapes with external ribs for enhanced grip.

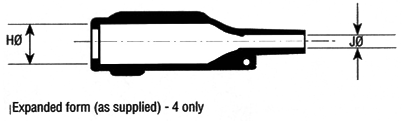

Expanded form of Helashrink 190 series bottle shape before heat recovery.

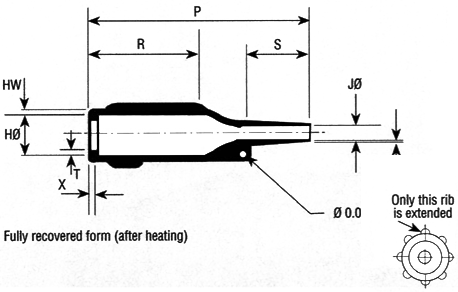

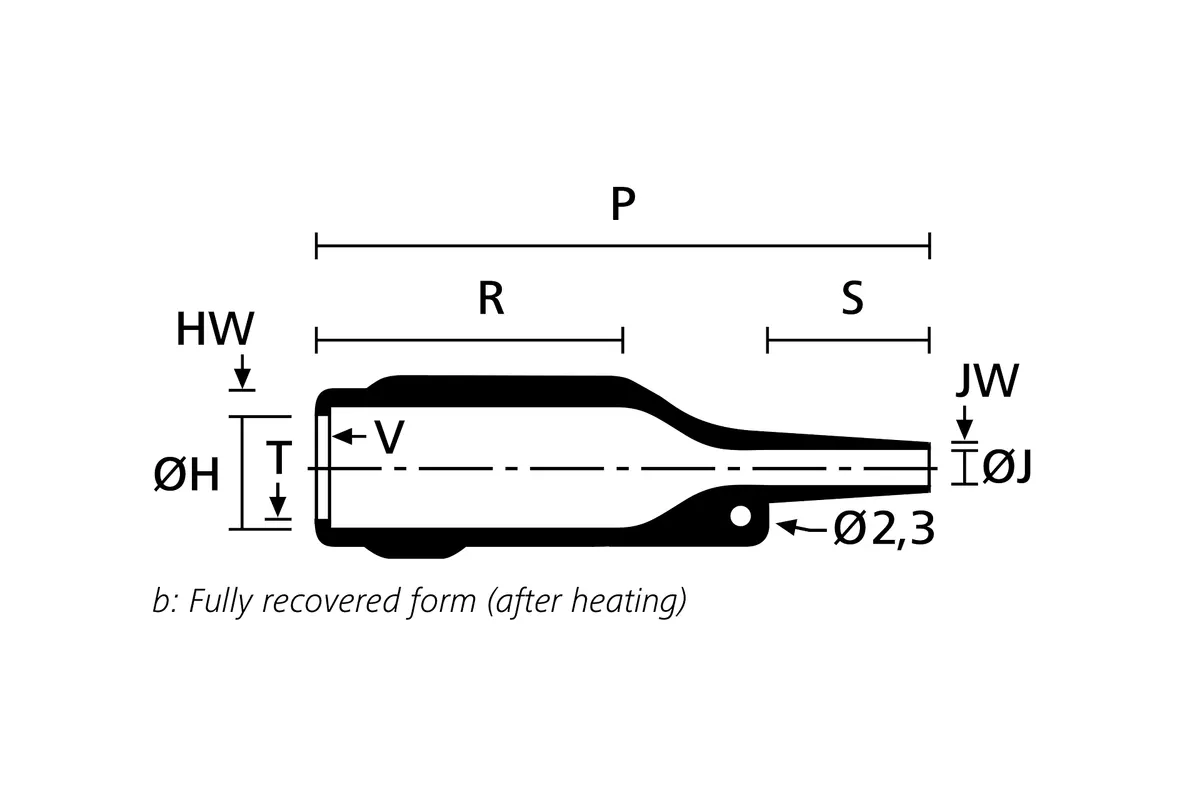

Fully recovered form of Helashrink 190 series bottle shape after heating.

190 Series Bottle Heatshrink Shapes with External Ribs (VG Style)

Heat Shrink Bottle Boots

Item #	Expanded (Min) H	Expanded (Min) J	P ±10%	R ±10%	Material
199-4-B7	0.69	0.28	2.76	1.38	Semi-Rigid Flame Retarded Polyolefin
199-4-G	0.69	0.28	2.76	1.38	Fluid Resistant Flame Retarded Elastomer
199-4-H	0.69	0.28	2.76	1.38	Flexible Zero-Hal Limited Fire Hazard Material
199-4-J	0.69	0.28	2.76	1.38	Flexible Flame Retarded Polyolefin
199-4-L	0.69	0.28	2.76	1.38	Flexible Flame Retarded Fluro-Elastomer
199-6-B7	0.73	0.73	2.76	1.38	Semi-Rigid Flame Retarded Polyolefin
199-6-G	0.73	0.73	2.76	1.38	Fluid Resistant Flame Retarded Elastomer
199-6-H	0.73	0.73	2.76	1.38	Flexible Zero-Hal Limited Fire Hazard Material
199-6-J	0.73	0.73	2.76	1.38	Flexible Flame Retarded Polyolefin
199-6-L	0.73	0.73	2.76	1.38	Flexible Flame Retarded Fluro-Elastomer
