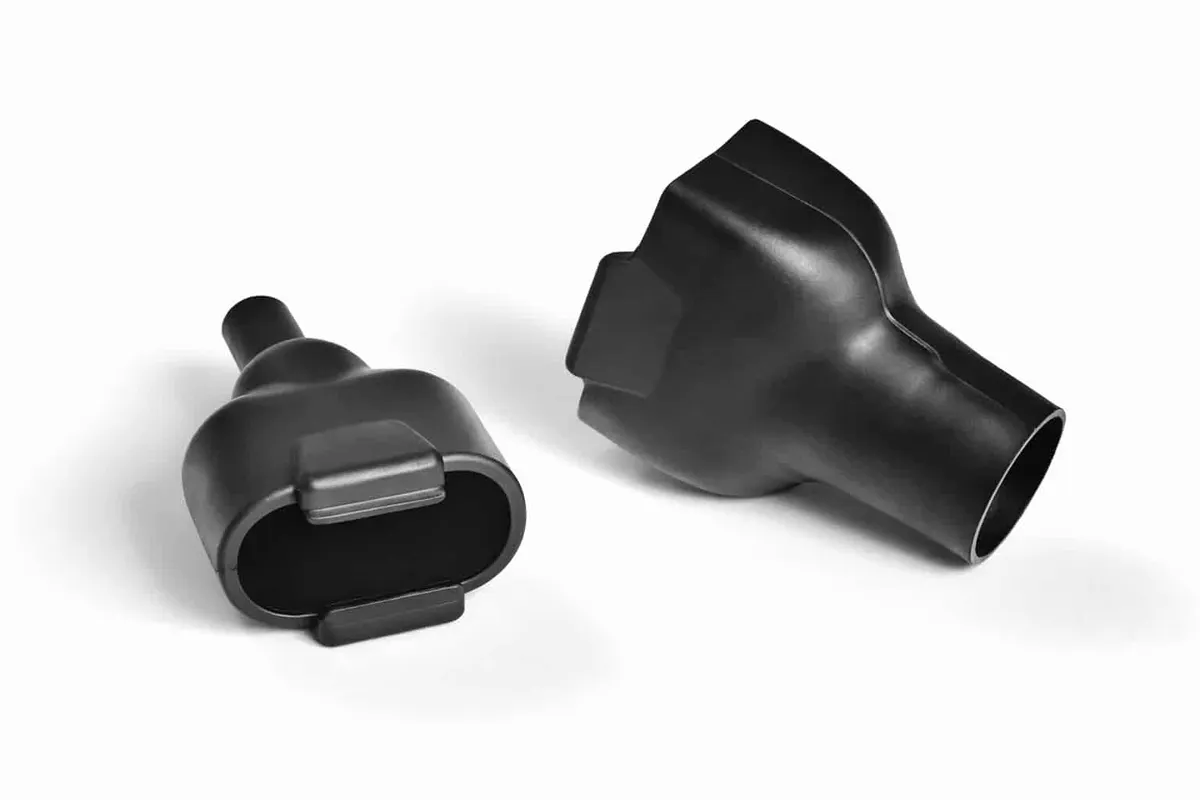

1500 Series Connector Cover for Min-D Series (Top Entry)
Connector Covers
Products

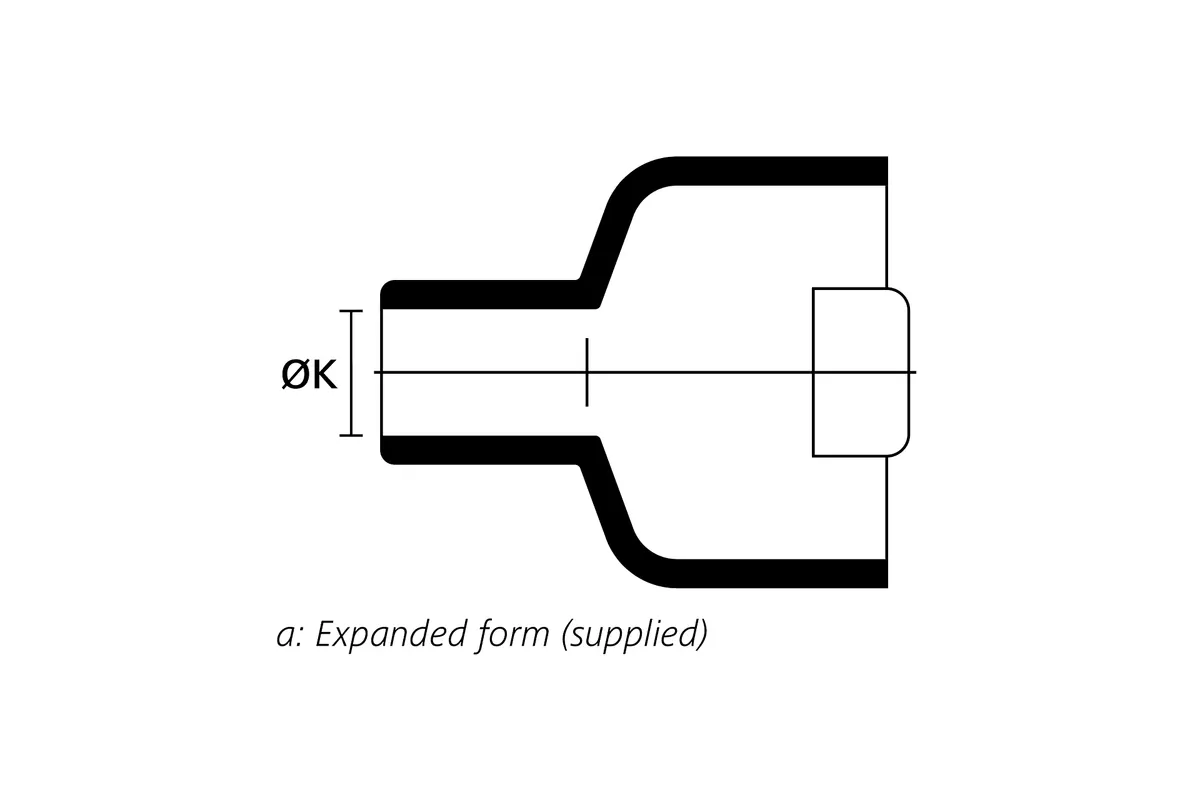

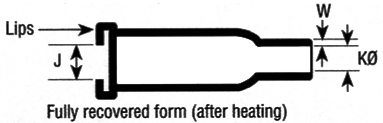

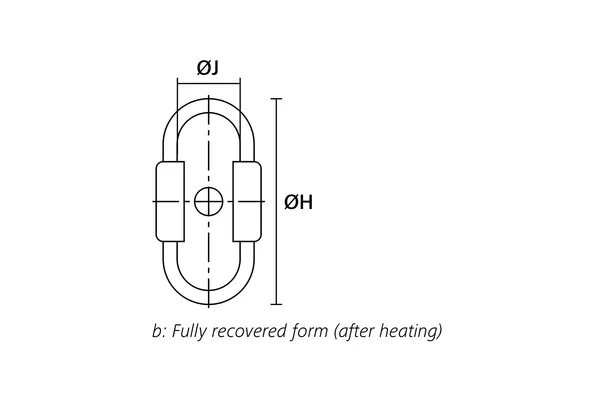

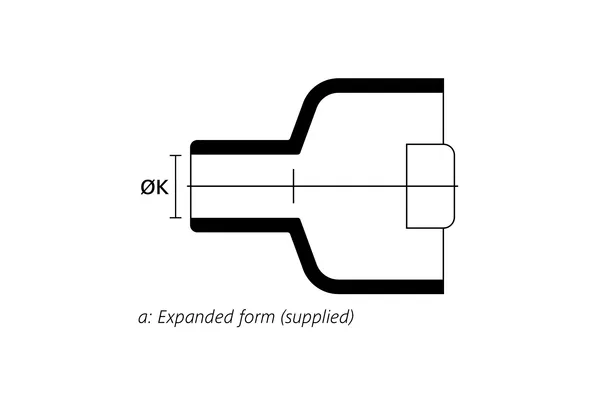

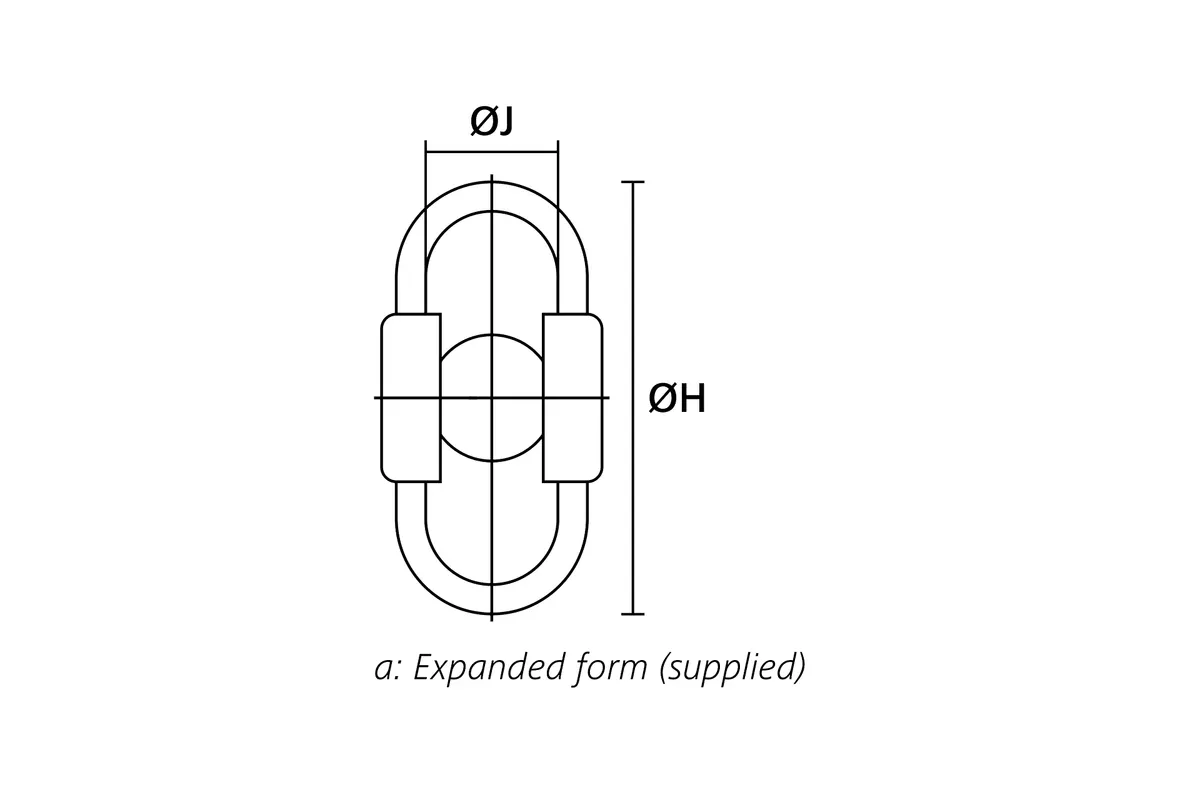

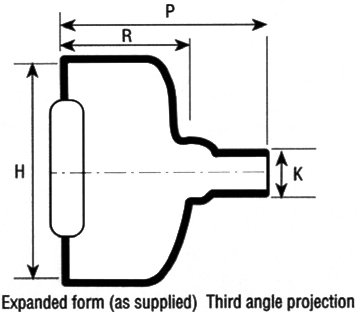

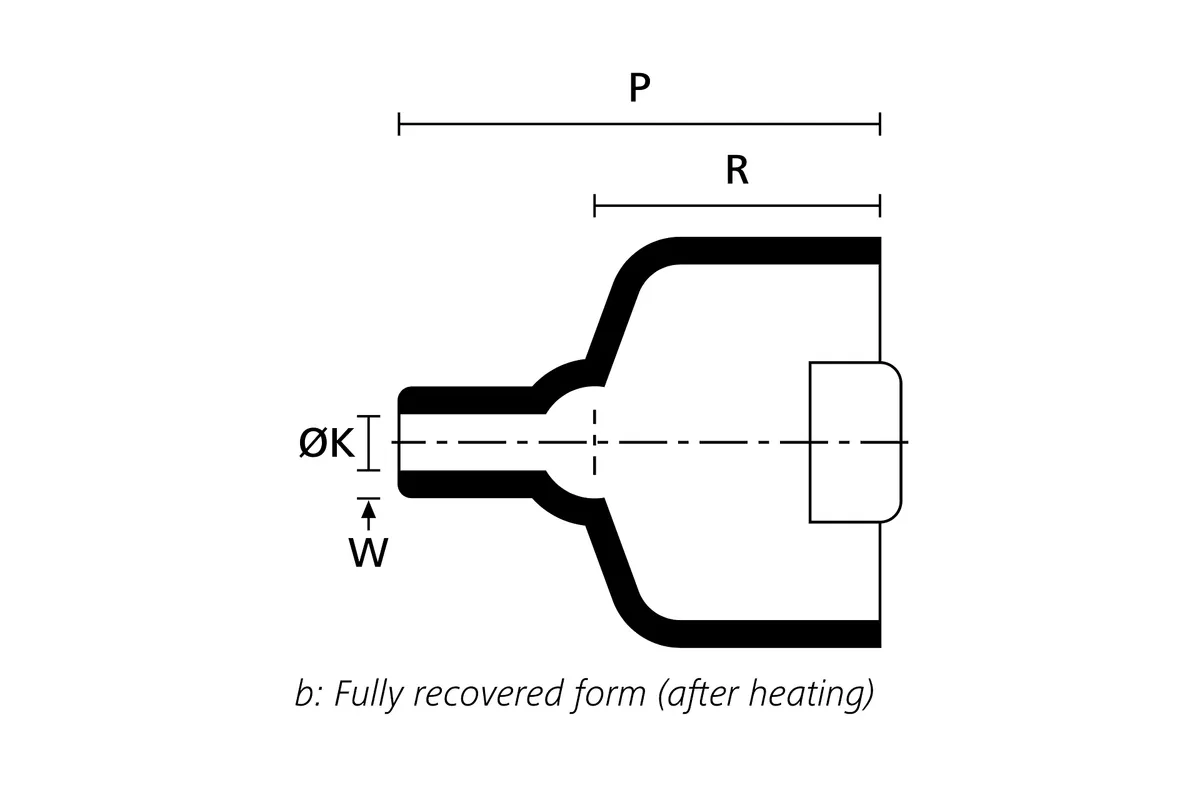

| Item # | Type | Expanded (Min) H | Expanded (Min) J | Expanded (Min) K | Material |
|---|---|---|---|---|---|
| 1501-1-B7 | With Lips | 2.30 | 0.42 | 0.68 | Semi-Rigid Flame Retarded Polyolefin |
| 1501-1-G | With Lips | 2.30 | 0.42 | 0.68 | Fluid Resistant Flame Retarded Elastomer |
| 1501-1-H | With Lips | 2.30 | 0.42 | 0.68 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1501-1-J | With Lips | 2.30 | 0.42 | 0.68 | Flexible Flame Retarded Polyolefin |
| 1501-2-B7 | With Lips | 1.35 | 1.35 | 1.35 | Semi-Rigid Flame Retarded Polyolefin |
| 1501-2-B8 | With Lips | 1.35 | 1.35 | 1.35 | Semi-Rigid Flame Retarded Cross-Linked Modified Polyolefin |
| 1501-2-G | With Lips | 1.35 | 1.35 | 1.35 | Fluid Resistant Flame Retarded Elastomer |
| 1501-2-H | With Lips | 1.35 | 1.35 | 1.35 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1501-2-J | With Lips | 1.35 | 1.35 | 1.35 | Flexible Flame Retarded Polyolefin |
| 1501-3-B7 | Without Lips | 2.35 | 0.49 | 0.68 | Semi-Rigid Flame Retarded Polyolefin |
| 1501-3-B8 | Without Lips | 2.35 | 0.49 | 0.68 | Semi-Rigid Flame Retarded Cross-Linked Modified Polyolefin |
| 1501-3-G | Without Lips | 2.35 | 0.49 | 0.68 | Fluid Resistant Flame Retarded Elastomer |
| 1501-3-H | Without Lips | 2.35 | 0.49 | 0.68 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1501-3-J | Without Lips | 2.35 | 0.49 | 0.68 | Flexible Flame Retarded Polyolefin |
| 1501-7-B7 | Without Lips | 2.30 | 0.42 | 0.68 | Semi-Rigid Flame Retarded Polyolefin |
| 1501-7-B8 | Without Lips | 2.30 | 0.42 | 0.68 | Semi-Rigid Flame Retarded Cross-Linked Modified Polyolefin |
| 1501-7-G | Without Lips | 2.30 | 0.42 | 0.68 | Fluid Resistant Flame Retarded Elastomer |
| 1501-7-H | Without Lips | 2.30 | 0.42 | 0.68 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1501-7-J | Without Lips | 2.30 | 0.42 | 0.68 | Flexible Flame Retarded Polyolefin |
| 1502-1-B7 | With Lips | 1.48 | 1.48 | 1.48 | Semi-Rigid Flame Retarded Polyolefin |
| 1502-1-B8 | With Lips | 1.48 | 1.48 | 1.48 | Semi-Rigid Flame Retarded Cross-Linked Modified Polyolefin |
| 1502-1-G | With Lips | 1.48 | 1.48 | 1.48 | Fluid Resistant Flame Retarded Elastomer |
| 1502-1-H | With Lips | 1.48 | 1.48 | 1.48 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1502-1-J | With Lips | 1.48 | 1.48 | 1.48 | Flexible Flame Retarded Polyolefin |
| 1502-2-B7 | With Lips | 2.28 | 0.54 | 0.75 | Semi-Rigid Flame Retarded Polyolefin |
| 1502-2-B8 | With Lips | 2.28 | 0.54 | 0.75 | Semi-Rigid Flame Retarded Cross-Linked Modified Polyolefin |
| 1502-2-G | With Lips | 2.28 | 0.54 | 0.75 | Fluid Resistant Flame Retarded Elastomer |
| 1502-2-H | With Lips | 2.28 | 0.54 | 0.75 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1502-2-J | With Lips | 2.28 | 0.54 | 0.75 | Flexible Flame Retarded Polyolefin |
| 1502-3-B7 | Without Lips | 2.26 | 0.54 | 0.75 | Semi-Rigid Flame Retarded Polyolefin |
| 1502-3-G | Without Lips | 2.26 | 0.54 | 0.75 | Fluid Resistant Flame Retarded Elastomer |
| 1502-3-H | Without Lips | 2.26 | 0.54 | 0.75 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1505-1-B7 | With Lips | 0.80 | 0.42 | 0.31 | Semi-Rigid Flame Retarded Polyolefin |
| 1505-1-B8 | With Lips | 0.80 | 0.42 | 0.31 | Semi-Rigid Flame Retarded Cross-Linked Modified Polyolefin |
| 1505-1-G | With Lips | 0.80 | 0.42 | 0.31 | Fluid Resistant Flame Retarded Elastomer |
| 1505-1-H | With Lips | 0.80 | 0.42 | 0.31 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1505-1-J | With Lips | 0.80 | 0.42 | 0.31 | Flexible Flame Retarded Polyolefin |
| 1505-2-B7 | With Lips | 0.63 | 0.63 | 0.63 | Semi-Rigid Flame Retarded Polyolefin |
| 1505-2-B8 | With Lips | 0.63 | 0.63 | 0.63 | Semi-Rigid Flame Retarded Cross-Linked Modified Polyolefin |
| 1505-2-G | With Lips | 0.63 | 0.63 | 0.63 | Fluid Resistant Flame Retarded Elastomer |
| 1505-2-H | With Lips | 0.63 | 0.63 | 0.63 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1505-2-J | With Lips | 0.63 | 0.63 | 0.63 | Flexible Flame Retarded Polyolefin |
| 1505-3-B7 | Without Lips | 0.83 | 0.49 | 0.31 | Semi-Rigid Flame Retarded Polyolefin |
| 1505-3-B8 | Without Lips | 0.83 | 0.49 | 0.31 | Semi-Rigid Flame Retarded Cross-Linked Modified Polyolefin |
| 1505-3-G | Without Lips | 0.83 | 0.49 | 0.31 | Fluid Resistant Flame Retarded Elastomer |
| 1505-3-H | Without Lips | 0.83 | 0.49 | 0.31 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1505-3-J | Without Lips | 0.83 | 0.49 | 0.31 | Flexible Flame Retarded Polyolefin |
| 1505-7-B7 | With Lips | 0.80 | 0.59 | 0.47 | Semi-Rigid Flame Retarded Polyolefin |
| 1505-7-B8 | With Lips | 0.80 | 0.59 | 0.47 | Semi-Rigid Flame Retarded Cross-Linked Modified Polyolefin |
| 1505-7-G | With Lips | 0.80 | 0.59 | 0.47 | Fluid Resistant Flame Retarded Elastomer |
| 1505-7-H | With Lips | 0.80 | 0.59 | 0.47 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1505-7-J | With Lips | 0.80 | 0.59 | 0.47 | Flexible Flame Retarded Polyolefin |
| 1505-8-B7 | With Lips | 0.63 | 0.63 | 0.63 | Semi-Rigid Flame Retarded Polyolefin |
| 1505-8-B8 | With Lips | 0.63 | 0.63 | 0.63 | Semi-Rigid Flame Retarded Cross-Linked Modified Polyolefin |
| 1505-8-G | With Lips | 0.63 | 0.63 | 0.63 | Fluid Resistant Flame Retarded Elastomer |
| 1505-8-H | With Lips | 0.63 | 0.63 | 0.63 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1505-8-J | With Lips | 0.63 | 0.63 | 0.63 | Flexible Flame Retarded Polyolefin |
| 1506-1-B7 | With Lips | 1.11 | 0.42 | 0.40 | Semi-Rigid Flame Retarded Polyolefin |
| 1506-1-B8 | With Lips | 1.11 | 0.42 | 0.40 | Semi-Rigid Flame Retarded Cross-Linked Modified Polyolefin |
| 1506-1-G | With Lips | 1.11 | 0.42 | 0.40 | Fluid Resistant Flame Retarded Elastomer |
| 1506-1-H | With Lips | 1.11 | 0.42 | 0.40 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1506-2-B7 | With Lips | 0.75 | 0.75 | 0.75 | Semi-Rigid Flame Retarded Polyolefin |
| 1506-2-B8 | With Lips | 0.75 | 0.75 | 0.75 | Semi-Rigid Flame Retarded Cross-Linked Modified Polyolefin |
| 1506-2-H | With Lips | 0.75 | 0.75 | 0.75 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1506-2-J | With Lips | 0.75 | 0.75 | 0.75 | Flexible Flame Retarded Polyolefin |
| 1506-5-B7 | With Lips | 1.46 | 0.42 | 0.40 | Semi-Rigid Flame Retarded Polyolefin |
| 1506-5-B8 | With Lips | 1.46 | 0.42 | 0.40 | Semi-Rigid Flame Retarded Cross-Linked Modified Polyolefin |
| 1506-5-G | With Lips | 1.46 | 0.42 | 0.40 | Fluid Resistant Flame Retarded Elastomer |
| 1506-5-H | With Lips | 1.46 | 0.42 | 0.40 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1506-5-J | With Lips | 1.46 | 0.42 | 0.40 | Flexible Flame Retarded Polyolefin |
| 1507-1-B7 | With Lips | 1.66 | 0.42 | 0.55 | Semi-Rigid Flame Retarded Polyolefin |
| 1507-1-B8 | With Lips | 1.66 | 0.42 | 0.55 | Semi-Rigid Flame Retarded Cross-Linked Modified Polyolefin |
| 1507-1-G | With Lips | 1.66 | 0.42 | 0.55 | Fluid Resistant Flame Retarded Elastomer |
| 1507-1-H | With Lips | 1.66 | 0.42 | 0.55 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1507-1-J | With Lips | 1.66 | 0.42 | 0.55 | Flexible Flame Retarded Polyolefin |
| 1507-2-B7 | With Lips | 1.15 | 1.15 | 1.15 | Semi-Rigid Flame Retarded Polyolefin |
| 1507-2-B8 | With Lips | 1.15 | 1.15 | 1.15 | Semi-Rigid Flame Retarded Cross-Linked Modified Polyolefin |
| 1507-2-G | With Lips | 1.15 | 1.15 | 1.15 | Fluid Resistant Flame Retarded Elastomer |
| 1507-2-H | With Lips | 1.15 | 1.15 | 1.15 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1507-2-J | With Lips | 1.15 | 1.15 | 1.15 | Flexible Flame Retarded Polyolefin |
| 1507-3-B7 | Without Lips | 1.66 | 0.42 | 0.55 | Semi-Rigid Flame Retarded Polyolefin |
| 1507-3-B8 | Without Lips | 1.66 | 0.42 | 0.55 | Semi-Rigid Flame Retarded Cross-Linked Modified Polyolefin |
| 1507-3-G | Without Lips | 1.66 | 0.42 | 0.55 | Fluid Resistant Flame Retarded Elastomer |
| 1507-3-H | Without Lips | 1.66 | 0.42 | 0.55 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1507-3-J | Without Lips | 1.66 | 0.42 | 0.55 | Flexible Flame Retarded Polyolefin |
| 1507-7-B7 | With Lips | 2.17 | 0.55 | 0.98 | Semi-Rigid Flame Retarded Polyolefin |
| 1507-7-B8 | With Lips | 2.17 | 0.55 | 0.98 | Semi-Rigid Flame Retarded Cross-Linked Modified Polyolefin |
| 1507-7-G | With Lips | 2.17 | 0.55 | 0.98 | Fluid Resistant Flame Retarded Elastomer |
| 1507-7-H | With Lips | 2.17 | 0.55 | 0.98 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1507-7-J | With Lips | 2.17 | 0.55 | 0.98 | Flexible Flame Retarded Polyolefin |
| 1501-1-B8 | With Lips | 2.30 | 0.42 | 0.68 | Semi-Rigid Flame Retarded Cross-Linked Modified Polyolefin |
| 1502-3-B8 | Without Lips | 2.26 | 0.54 | 0.75 | Semi-Rigid Flame Retarded Cross-Linked Modified Polyolefin |
| 1502-3-J | Without Lips | 2.26 | 0.54 | 0.75 | Flexible Flame Retarded Polyolefin |
| 1506-1-J | With Lips | 1.11 | 0.42 | 0.40 | Flexible Flame Retarded Polyolefin |
| 1506-2-G | With Lips | 0.75 | 0.75 | 0.75 | Fluid Resistant Flame Retarded Elastomer |
