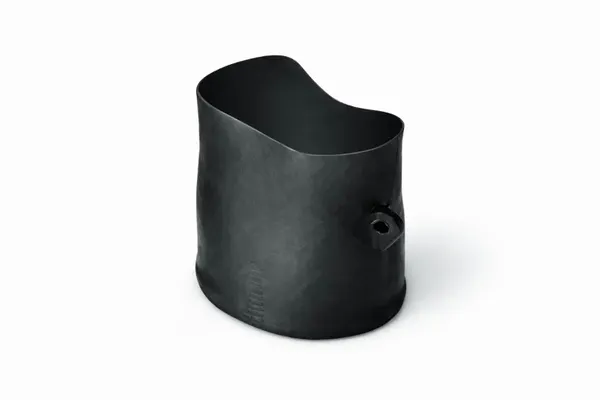

Helashrink 150 series bottle shaped heat shrink molded shape with rib supplied for use with circular grooved adaptors

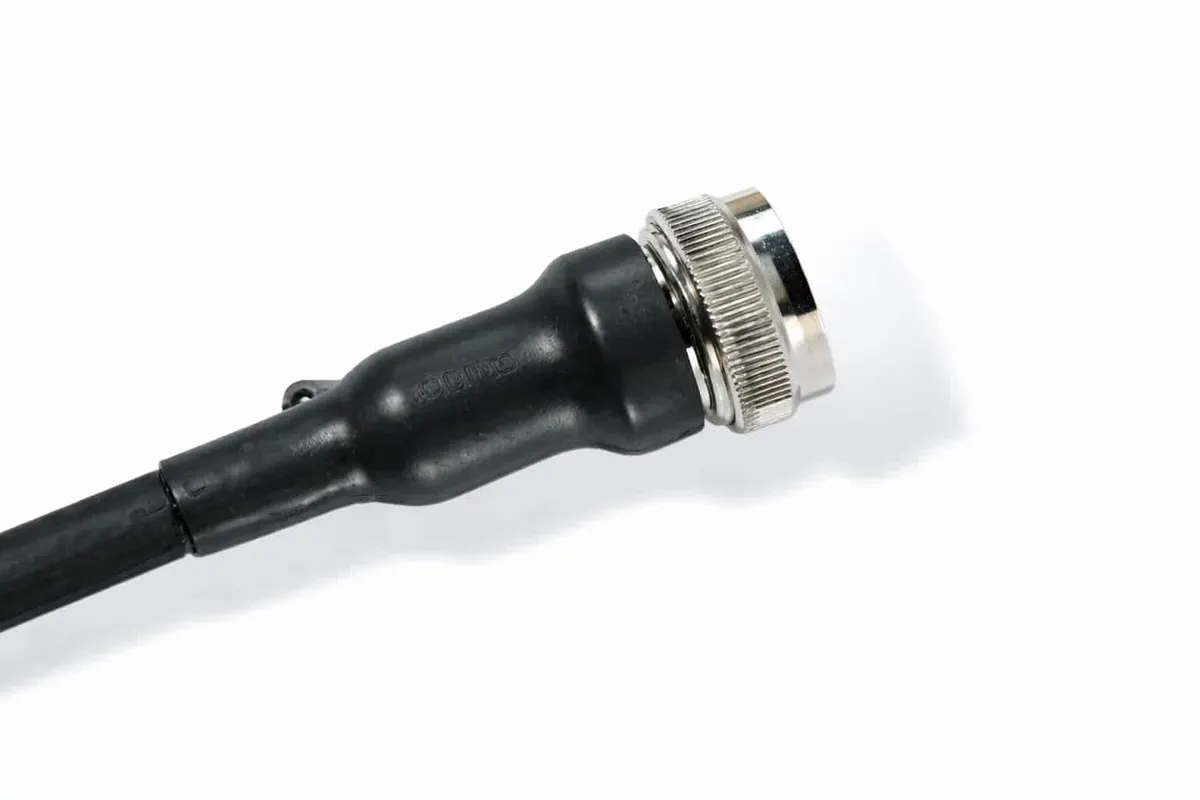

Helashrink 150 bottle shape heat shrink boot with rib installed on circular connector for sealing
Overview diagram of Helashrink 150 series bottle shaped heat shrink boots with rib for VG style cable strain relief

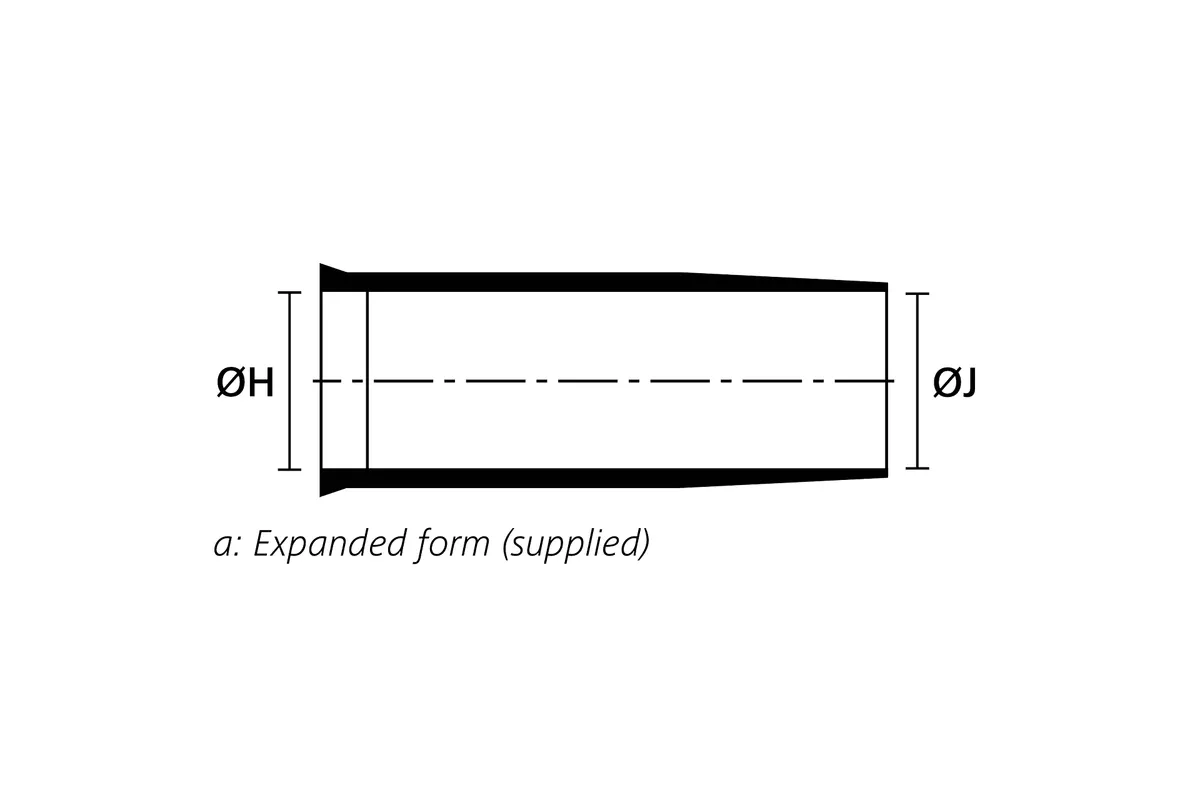

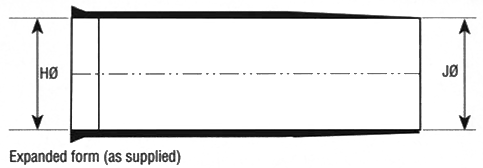

Expanded drawing of Helashrink 150 bottle shape heat shrink boot with rib before recovery

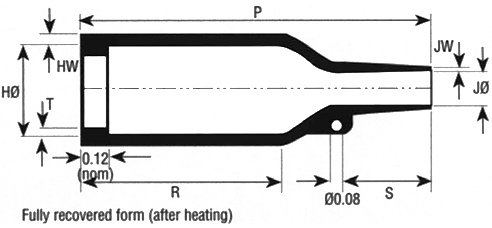

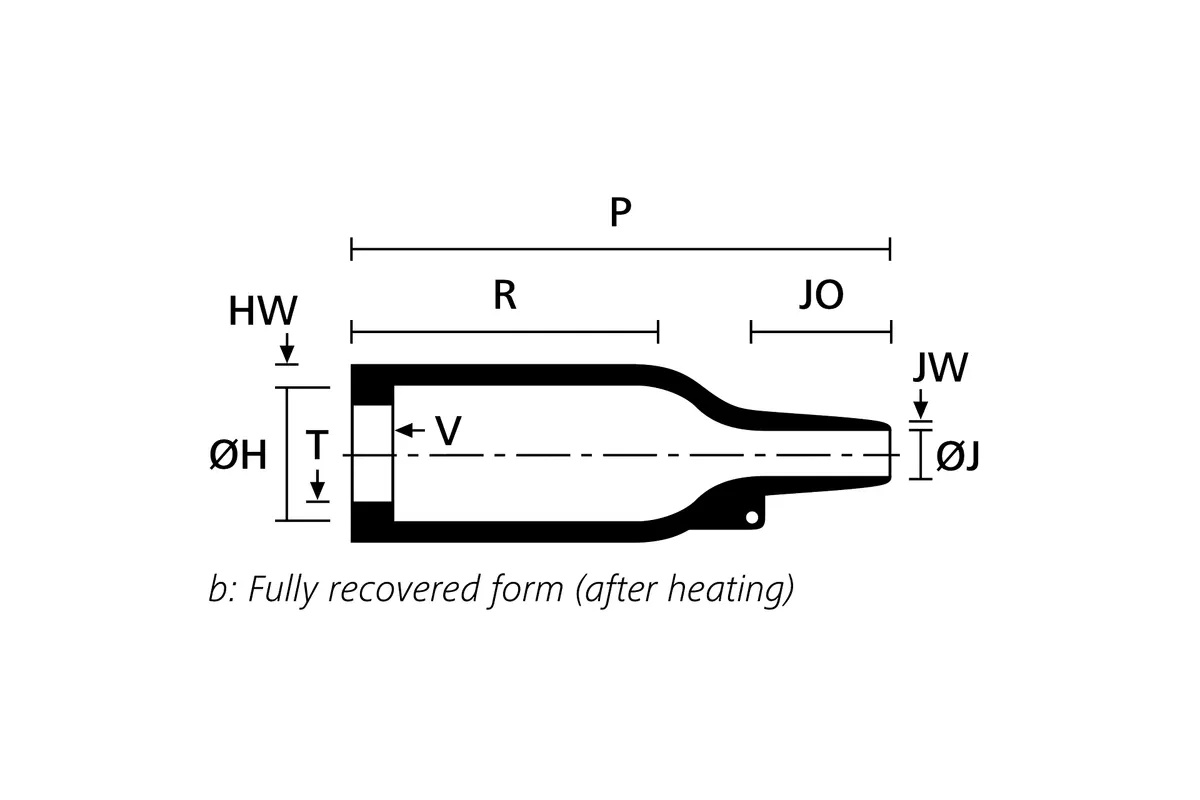

Recovered drawing of Helashrink 150 bottle shape heat shrink boot with rib

150 Series Bottle Heatshrink Shapes with Rib (VG Style)

Heat Shrink Bottle Boots

Products

Item # Expanded (Min) H Expanded (Min) J P ±10% R ±10% Material
152-41-B7 0.94 0.94 1.02 0.35 Semi-Rigid Flame Retarded Polyolefin
152-41-G 0.94 0.94 1.02 0.35 Fluid Resistant Flame Retarded Elastomer
152-41-J 0.94 0.94 1.02 0.35 Flexible Flame Retarded Polyolefin
152-41-L 0.94 0.94 1.02 0.35 Flexible Flame Retarded Fluro-Elastomer
152-42-G 0.94 0.94 1.50 0.82 Fluid Resistant Flame Retarded Elastomer
152-42-H 0.94 0.94 1.50 0.82 Flexible Zero-Hal Limited Fire Hazard Material
152-42-J 0.94 0.94 1.50 0.82 Flexible Flame Retarded Polyolefin
152-42-L 0.94 0.94 1.50 0.82 Flexible Flame Retarded Fluro-Elastomer
153-41-B7 0.98 0.98 1.57 0.51 Semi-Rigid Flame Retarded Polyolefin
153-41-G 0.98 0.98 1.57 0.51 Fluid Resistant Flame Retarded Elastomer
153-41-H 0.98 0.98 1.57 0.51 Flexible Zero-Hal Limited Fire Hazard Material
153-41-J 0.98 0.98 1.57 0.51 Flexible Flame Retarded Polyolefin
153-41-L 0.98 0.98 1.57 0.51 Flexible Flame Retarded Fluro-Elastomer
153-42-B7 0.98 0.35 2.17 1.10 Semi-Rigid Flame Retarded Polyolefin
153-42-G 0.98 0.35 2.17 1.10 Fluid Resistant Flame Retarded Elastomer
153-42-H 0.98 0.35 2.17 1.10 Flexible Zero-Hal Limited Fire Hazard Material
153-42-J 0.98 0.35 2.17 1.10 Flexible Flame Retarded Polyolefin
153-42-L 0.98 0.35 2.17 1.10 Flexible Flame Retarded Fluro-Elastomer
154-41-B7 1.18 1.18 1.69 0.79 Semi-Rigid Flame Retarded Polyolefin
154-41-G 1.18 1.18 1.69 0.79 Fluid Resistant Flame Retarded Elastomer
154-41-H 1.18 1.18 1.69 0.79 Flexible Zero-Hal Limited Fire Hazard Material
154-41-J 1.18 1.18 1.69 0.79 Flexible Flame Retarded Polyolefin
154-41-L 1.18 1.18 1.69 0.79 Flexible Flame Retarded Fluro-Elastomer
154-42-B7 1.18 1.18 2.17 1.26 Semi-Rigid Flame Retarded Polyolefin
154-42-G 1.18 1.18 2.17 1.26 Fluid Resistant Flame Retarded Elastomer
154-42-H 1.18 1.18 2.17 1.26 Flexible Zero-Hal Limited Fire Hazard Material
154-42-J 1.18 1.18 2.17 1.26 Flexible Flame Retarded Polyolefin
154-42-L 1.18 1.18 2.17 1.26 Flexible Flame Retarded Fluro-Elastomer
155-41-B7 1.22 1.22 1.85 0.59 Semi-Rigid Flame Retarded Polyolefin
155-41-G 1.22 1.22 1.85 0.59 Fluid Resistant Flame Retarded Elastomer
155-41-H 1.22 1.22 1.85 0.59 Flexible Zero-Hal Limited Fire Hazard Material
155-41-J 1.22 1.22 1.85 0.59 Flexible Flame Retarded Polyolefin
155-41-L 1.22 1.22 1.85 0.59 Flexible Flame Retarded Fluro-Elastomer
155-42-G 1.22 1.22 2.64 1.38 Fluid Resistant Flame Retarded Elastomer
155-42-H 1.22 1.22 2.64 1.38 Flexible Zero-Hal Limited Fire Hazard Material
155-42-L 1.22 1.22 2.64 1.38 Flexible Flame Retarded Fluro-Elastomer
156-41-B7 1.42 1.42 2.36 0.87 Semi-Rigid Flame Retarded Polyolefin
156-41-G 1.42 1.42 2.36 0.87 Fluid Resistant Flame Retarded Elastomer
156-41-H 1.42 1.42 2.36 0.87 Flexible Zero-Hal Limited Fire Hazard Material
156-41-J 1.42 1.42 2.36 0.87 Flexible Flame Retarded Polyolefin
156-41-L 1.42 1.42 2.36 0.87 Flexible Flame Retarded Fluro-Elastomer
156-42-B7 1.42 1.42 3.15 1.65 Semi-Rigid Flame Retarded Polyolefin
156-42-G 1.42 1.42 3.15 1.65 Fluid Resistant Flame Retarded Elastomer
156-42-H 1.42 1.42 3.15 1.65 Flexible Zero-Hal Limited Fire Hazard Material
156-42-J 1.42 1.42 3.15 1.65 Flexible Flame Retarded Polyolefin
156-42-L 1.42 1.42 3.15 1.65 Flexible Flame Retarded Fluro-Elastomer
157-41-B7 1.69 1.69 2.36 0.83 Semi-Rigid Flame Retarded Polyolefin
157-41-G 1.69 1.69 2.36 0.83 Fluid Resistant Flame Retarded Elastomer
157-41-H 1.69 1.69 2.36 0.83 Flexible Zero-Hal Limited Fire Hazard Material
157-41-J 1.69 1.69 2.36 0.83 Flexible Flame Retarded Polyolefin
157-41-L 1.69 1.69 2.36 0.83 Flexible Flame Retarded Fluro-Elastomer
157-42-B7 1.69 1.69 3.11 1.61 Semi-Rigid Flame Retarded Polyolefin
157-42-G 1.69 1.69 3.11 1.61 Fluid Resistant Flame Retarded Elastomer
157-42-H 1.69 1.69 3.11 1.61 Flexible Zero-Hal Limited Fire Hazard Material
157-42-J 1.69 1.69 3.11 1.61 Flexible Flame Retarded Polyolefin
157-42-L 1.69 1.69 3.11 1.61 Flexible Flame Retarded Fluro-Elastomer
157-43-B7 1.69 1.69 3.90 2.36 Semi-Rigid Flame Retarded Polyolefin
157-43-G 1.69 1.69 3.90 2.36 Fluid Resistant Flame Retarded Elastomer
157-43-H 1.69 1.69 3.90 2.36 Flexible Zero-Hal Limited Fire Hazard Material
157-43-J 1.69 1.69 3.90 2.36 Flexible Flame Retarded Polyolefin
157-43-L 1.69 1.69 3.90 2.36 Flexible Flame Retarded Fluro-Elastomer
158-41-B7 2.36 2.36 3.54 1.26 Semi-Rigid Flame Retarded Polyolefin
158-41-G 2.36 2.36 3.54 1.26 Fluid Resistant Flame Retarded Elastomer
158-41-H 2.36 2.36 3.54 1.26 Flexible Zero-Hal Limited Fire Hazard Material
158-41-L 2.36 2.36 3.54 1.26 Flexible Flame Retarded Fluro-Elastomer
158-42-B7 2.36 2.36 4.33 2.05 Semi-Rigid Flame Retarded Polyolefin
158-42-H 2.36 2.36 4.33 2.05 Flexible Zero-Hal Limited Fire Hazard Material
158-42-L 2.36 2.36 4.33 2.05 Flexible Flame Retarded Fluro-Elastomer
158-43-B7 2.36 2.36 5.12 2.83 Semi-Rigid Flame Retarded Polyolefin
158-43-G 2.36 2.36 5.12 2.83 Fluid Resistant Flame Retarded Elastomer
158-43-H 2.36 2.36 5.12 2.83 Flexible Zero-Hal Limited Fire Hazard Material
158-43-J 2.36 2.36 5.12 2.83 Flexible Flame Retarded Polyolefin
158-43-L 2.36 2.36 5.12 2.83 Flexible Flame Retarded Fluro-Elastomer
159-41-B7 2.60 2.60 5.12 1.97 Semi-Rigid Flame Retarded Polyolefin
159-41-G 2.60 2.60 5.12 1.97 Fluid Resistant Flame Retarded Elastomer
159-41-H 2.60 2.60 5.12 1.97 Flexible Zero-Hal Limited Fire Hazard Material
159-41-J 2.60 2.60 5.12 1.97 Flexible Flame Retarded Polyolefin
159-41-L 2.60 2.60 5.12 1.97 Flexible Flame Retarded Fluro-Elastomer
159-42-B7 2.60 2.60 5.91 2.76 Semi-Rigid Flame Retarded Polyolefin
159-42-G 2.60 2.60 5.91 2.76 Fluid Resistant Flame Retarded Elastomer
159-42-H 2.60 2.60 5.91 2.76 Flexible Zero-Hal Limited Fire Hazard Material
159-42-J 2.60 2.60 5.91 2.76 Flexible Flame Retarded Polyolefin
159-42-L 2.60 2.60 5.91 2.76 Flexible Flame Retarded Fluro-Elastomer
159-43-B7 2.60 2.60 6.73 3.54 Semi-Rigid Flame Retarded Polyolefin
159-43-G 2.60 2.60 6.73 3.54 Fluid Resistant Flame Retarded Elastomer
159-43-H 2.60 2.60 6.73 3.54 Flexible Zero-Hal Limited Fire Hazard Material
159-43-J 2.60 2.60 6.73 3.54 Flexible Flame Retarded Polyolefin
159-43-L 2.60 2.60 6.73 3.54 Flexible Flame Retarded Fluro-Elastomer
160-41-B7 3.23 3.23 5.39 1.46 Semi-Rigid Flame Retarded Polyolefin
160-41-G 3.23 3.23 5.39 1.46 Fluid Resistant Flame Retarded Elastomer
160-41-H 3.23 3.23 5.39 1.46 Flexible Zero-Hal Limited Fire Hazard Material
160-41-J 3.23 3.23 5.39 1.46 Flexible Flame Retarded Polyolefin
160-41-L 3.23 3.23 5.39 1.46 Flexible Flame Retarded Fluro-Elastomer
160-42-B7 3.23 3.23 6.22 2.28 Semi-Rigid Flame Retarded Polyolefin
160-42-G 3.23 3.23 6.22 2.28 Fluid Resistant Flame Retarded Elastomer
160-42-H 3.23 3.23 6.22 2.28 Flexible Zero-Hal Limited Fire Hazard Material
160-42-J 3.23 3.23 6.22 2.28 Flexible Flame Retarded Polyolefin
160-42-L 3.23 3.23 6.22 2.28 Flexible Flame Retarded Fluro-Elastomer
160-43-B7 3.23 3.23 8.39 4.45 Semi-Rigid Flame Retarded Polyolefin
160-43-G 3.23 3.23 8.39 4.45 Fluid Resistant Flame Retarded Elastomer
160-43-H 3.23 3.23 8.39 4.45 Flexible Zero-Hal Limited Fire Hazard Material
160-43-J 3.23 3.23 8.39 4.45 Flexible Flame Retarded Polyolefin
160-43-L 3.23 3.23 8.39 4.45 Flexible Flame Retarded Fluro-Elastomer
152-41-H 0.94 0.94 1.02 0.35 Flexible Zero-Hal Limited Fire Hazard Material
152-42-B7 0.94 0.94 1.50 0.82 Semi-Rigid Flame Retarded Polyolefin
155-42-B7 1.22 1.22 2.64 1.38 Semi-Rigid Flame Retarded Polyolefin
155-42-J 1.22 1.22 2.64 1.38 Flexible Flame Retarded Polyolefin
158-41-J 2.36 2.36 3.54 1.26 Flexible Flame Retarded Polyolefin
158-42-G 2.36 2.36 4.33 2.05 Fluid Resistant Flame Retarded Elastomer
158-42-J 2.36 2.36 4.33 2.05 Flexible Flame Retarded Polyolefin
