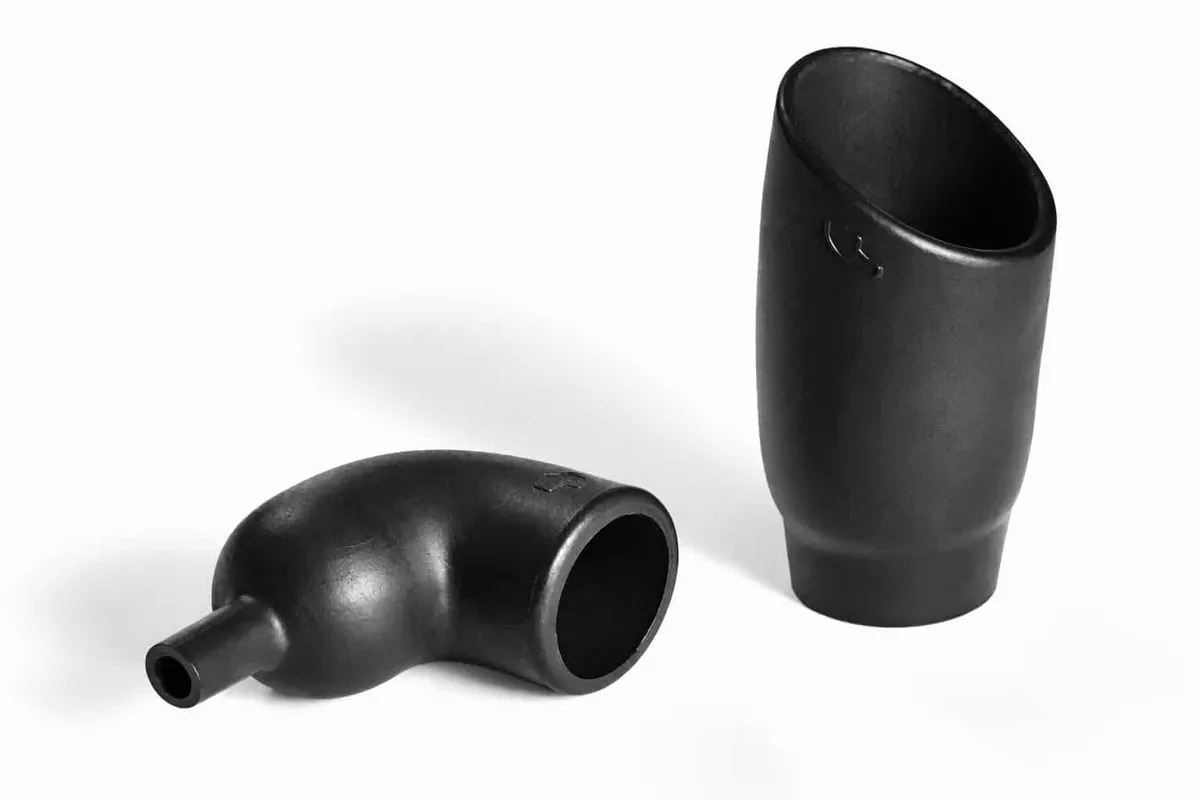

Helashrink 1100 thick wall right angle heat shrink shape without rib for connector cable strain relief
Diagram of Helashrink 1100 series right angle thick wall heat shrink shape without rib for connector strain relief

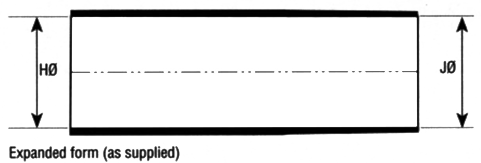

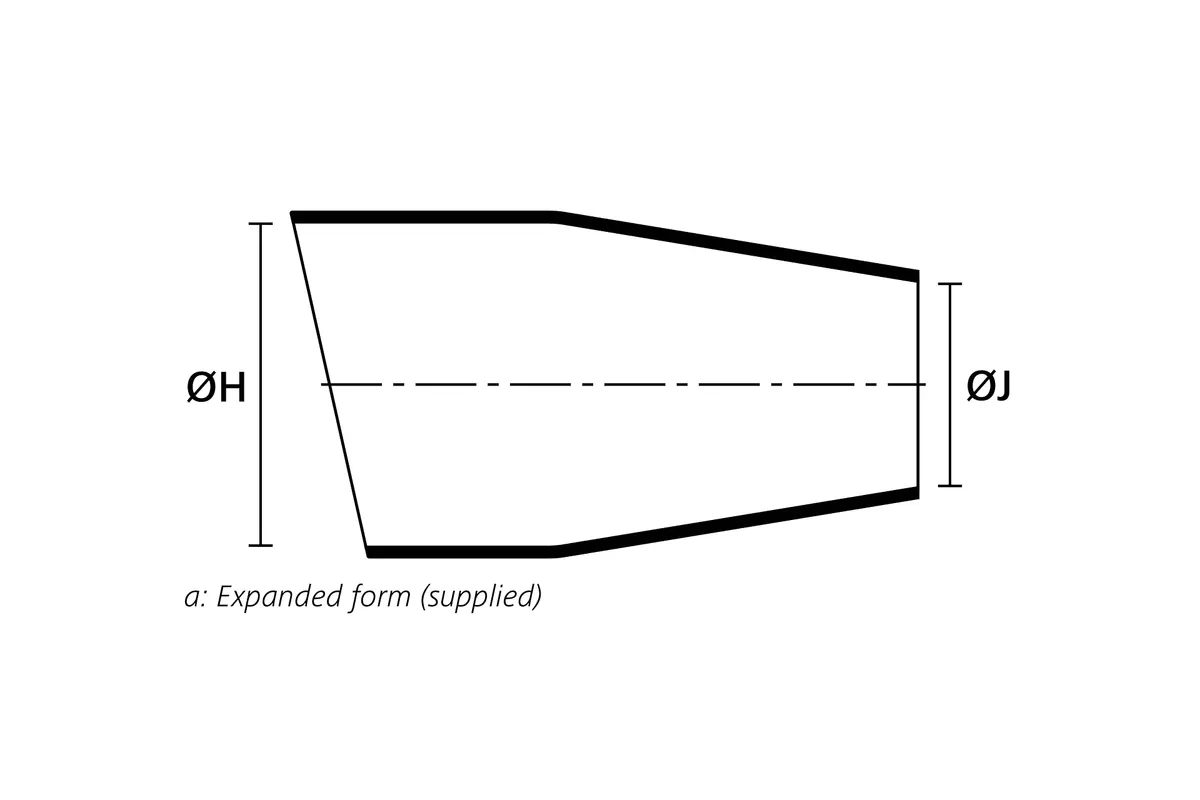

Technical drawing showing the expanded supplied form of a thick wall right angle heat shrink molded shape

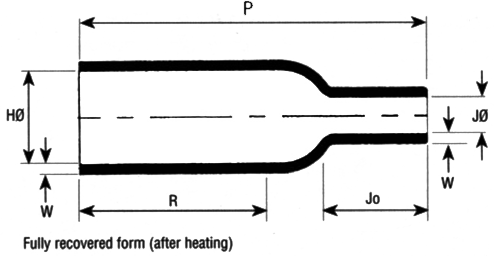

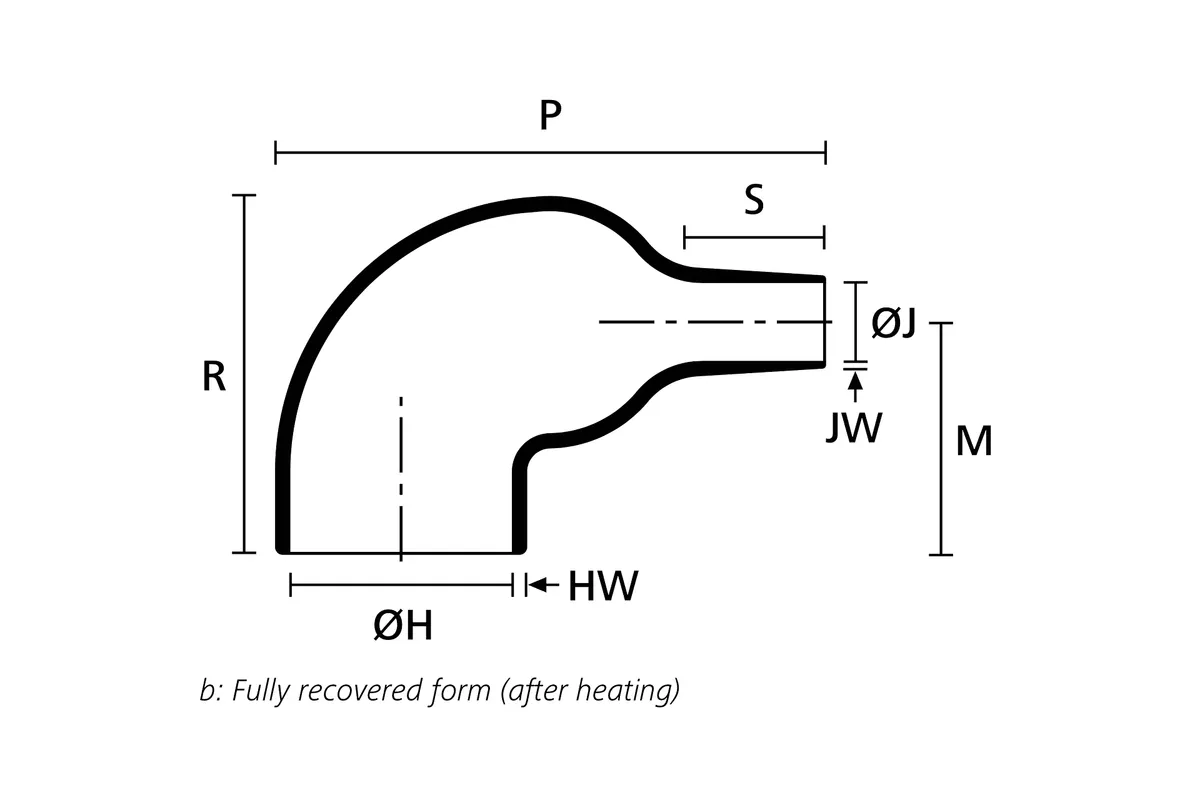

Technical drawing showing the fully recovered form of a thick wall right angle heat shrink molded shape

100 Series Bottle Heatshrink Shapes without Rib (Thick Wall)

Thick Wall Heat Shrink Bottle Boots

Products

Item # Expanded (Min) H Expanded (Min) J P ±10% R ±10% Material
108-1-B7 0.54 0.26 1.50 0.90 Semi-Rigid Flame Retarded Polyolefin
108-1-G 0.54 0.26 1.50 0.90 Fluid Resistant Flame Retarded Elastomer
108-1-H 0.54 0.26 1.50 0.90 Flexible Zero-Hal Limited Fire Hazard Material
108-1-J 0.54 0.26 1.50 0.90 Flexible Flame Retarded Polyolefin
108-1-L 0.54 0.26 1.50 0.90 Flexible Flame Retarded Fluro-Elastomer
108-2-B7 1.10 0.31 1.50 0.90 Semi-Rigid Flame Retarded Polyolefin
108-2-G 1.10 0.31 1.50 0.90 Fluid Resistant Flame Retarded Elastomer
108-2-H 1.10 0.31 1.50 0.90 Flexible Zero-Hal Limited Fire Hazard Material
108-2-J 1.10 0.31 1.50 0.90 Flexible Flame Retarded Polyolefin
108-2-L 1.10 0.31 1.50 0.90 Flexible Flame Retarded Fluro-Elastomer
109-1-B7 0.76 0.32 2.10 1.40 Semi-Rigid Flame Retarded Polyolefin
109-1-G 0.76 0.32 2.10 1.40 Fluid Resistant Flame Retarded Elastomer
109-1-H 0.76 0.32 2.10 1.40 Flexible Zero-Hal Limited Fire Hazard Material
109-1-J 0.76 0.32 2.10 1.40 Flexible Flame Retarded Polyolefin
109-1-L 0.76 0.32 2.10 1.40 Flexible Flame Retarded Fluro-Elastomer
109-2-B7 1.50 0.46 2.10 1.40 Semi-Rigid Flame Retarded Polyolefin
109-2-G 1.50 0.46 2.10 1.40 Fluid Resistant Flame Retarded Elastomer
109-2-H 1.50 0.46 2.10 1.40 Flexible Zero-Hal Limited Fire Hazard Material
109-2-J 1.50 0.46 2.10 1.40 Flexible Flame Retarded Polyolefin
109-2-L 1.50 0.46 2.10 1.40 Flexible Flame Retarded Fluro-Elastomer
110-1-B7 0.94 0.46 2.50 1.50 Semi-Rigid Flame Retarded Polyolefin
110-1-G 0.94 0.46 2.50 1.50 Fluid Resistant Flame Retarded Elastomer
110-1-H 0.94 0.46 2.50 1.50 Flexible Zero-Hal Limited Fire Hazard Material
110-1-J 0.94 0.46 2.50 1.50 Flexible Flame Retarded Polyolefin
110-1-L 0.94 0.46 2.50 1.50 Flexible Flame Retarded Fluro-Elastomer
110-2-B7 2.00 0.67 2.50 1.50 Semi-Rigid Flame Retarded Polyolefin
110-2-G 2.00 0.67 2.50 1.50 Fluid Resistant Flame Retarded Elastomer
110-2-H 2.00 0.67 2.50 1.50 Flexible Zero-Hal Limited Fire Hazard Material
110-2-J 2.00 0.67 2.50 1.50 Flexible Flame Retarded Polyolefin
110-2-L 2.00 0.67 2.50 1.50 Flexible Flame Retarded Fluro-Elastomer
111-1-B7 1.18 0.58 3.00 1.70 Semi-Rigid Flame Retarded Polyolefin
111-1-G 1.18 0.58 3.00 1.70 Fluid Resistant Flame Retarded Elastomer
111-1-H 1.18 0.58 3.00 1.70 Flexible Zero-Hal Limited Fire Hazard Material
111-1-J 1.18 0.58 3.00 1.70 Flexible Flame Retarded Polyolefin
111-1-L 1.18 0.58 3.00 1.70 Flexible Flame Retarded Fluro-Elastomer
111-2-B7 2.50 0.84 3.00 1.70 Semi-Rigid Flame Retarded Polyolefin
111-2-G 2.50 0.84 3.00 1.70 Fluid Resistant Flame Retarded Elastomer
111-2-H 2.50 0.84 3.00 1.70 Flexible Zero-Hal Limited Fire Hazard Material
111-2-J 2.50 0.84 3.00 1.70 Flexible Flame Retarded Polyolefin
111-2-L 2.50 0.84 3.00 1.70 Flexible Flame Retarded Fluro-Elastomer
113-1-B7 0.42 0.18 1.00 0.57 Semi-Rigid Flame Retarded Polyolefin
113-1-G 0.42 0.18 1.00 0.57 Fluid Resistant Flame Retarded Elastomer
113-1-H 0.42 0.18 1.00 0.57 Flexible Zero-Hal Limited Fire Hazard Material
113-1-L 0.42 0.18 1.00 0.57 Flexible Flame Retarded Fluro-Elastomer
113-2-B7 0.79 0.23 1.00 0.57 Semi-Rigid Flame Retarded Polyolefin
113-2-G 0.79 0.23 1.00 0.57 Fluid Resistant Flame Retarded Elastomer
113-2-H 0.79 0.23 1.00 0.57 Flexible Zero-Hal Limited Fire Hazard Material
113-2-J 0.79 0.23 1.00 0.57 Flexible Flame Retarded Polyolefin
113-2-L 0.79 0.23 1.00 0.57 Flexible Flame Retarded Fluro-Elastomer
116-1-B7 2.34 1.72 6.25 3.60 Semi-Rigid Flame Retarded Polyolefin
116-1-G 2.34 1.72 6.25 3.60 Fluid Resistant Flame Retarded Elastomer
116-1-H 2.34 1.72 6.25 3.60 Flexible Zero-Hal Limited Fire Hazard Material
116-1-J 2.34 1.72 6.25 3.60 Flexible Flame Retarded Polyolefin
116-1-L 2.34 1.72 6.25 3.60 Flexible Flame Retarded Fluro-Elastomer
113-1-J 0.42 0.18 1.00 0.57 Flexible Flame Retarded Polyolefin
