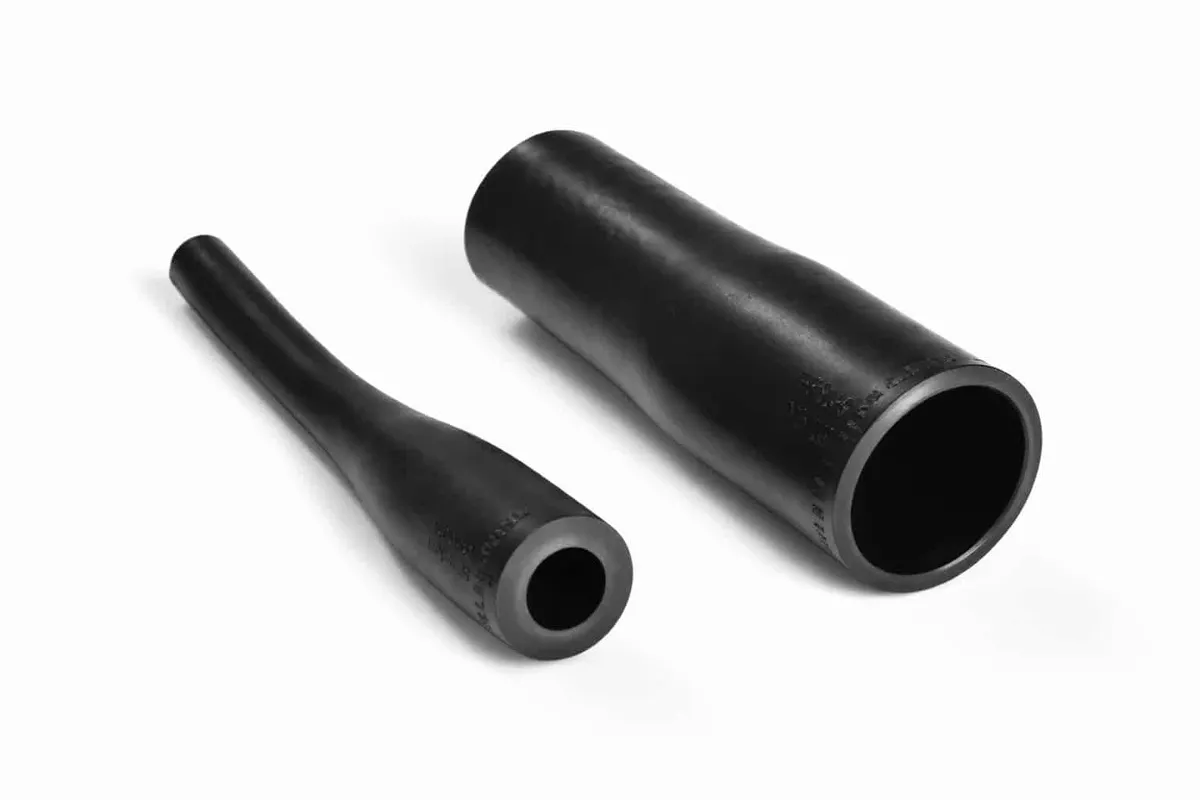

1750 Series Graduated Strain Relief Heatshrink Shapes
Heat Shrink Strain Relief Boots
Products

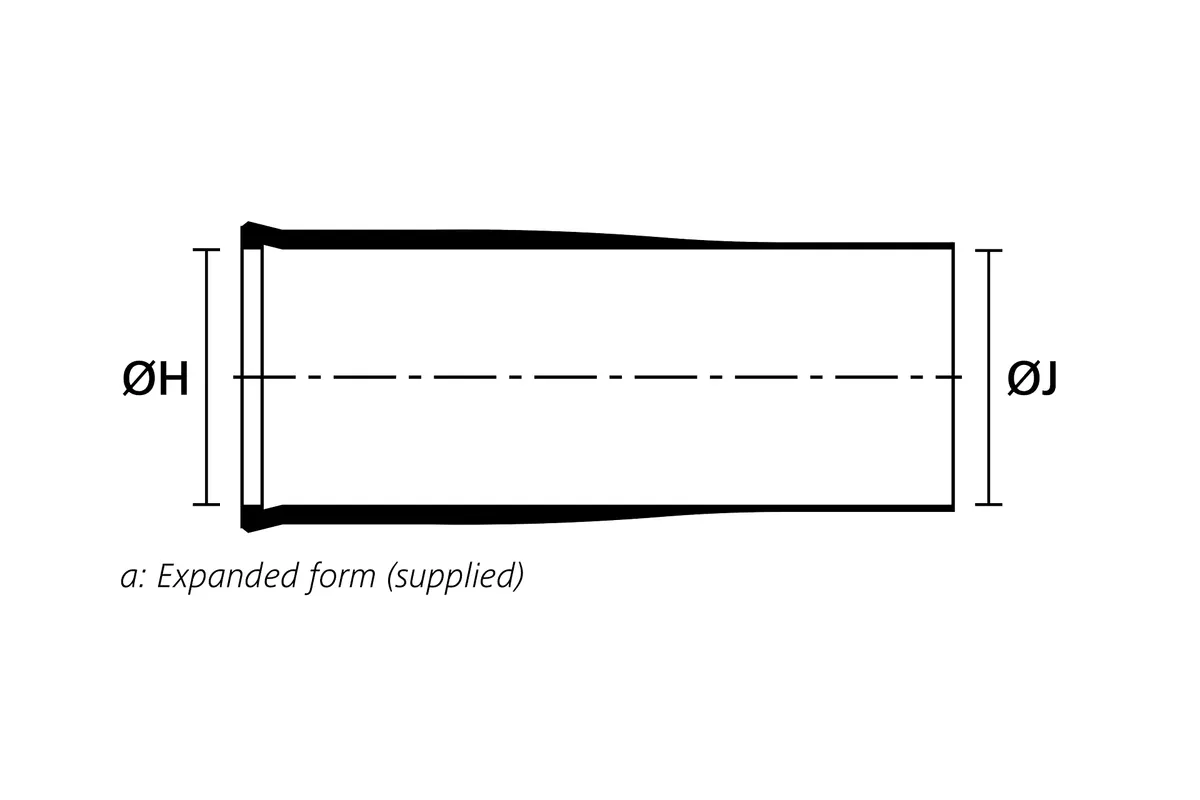

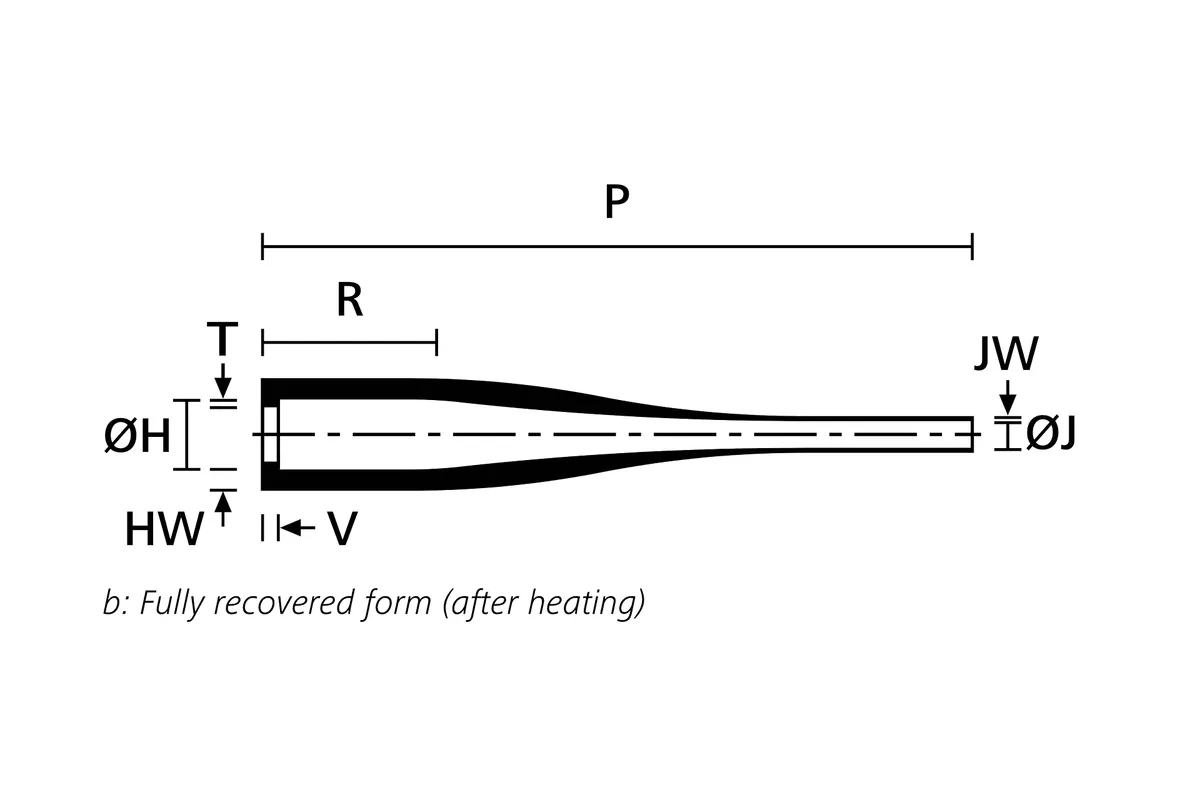

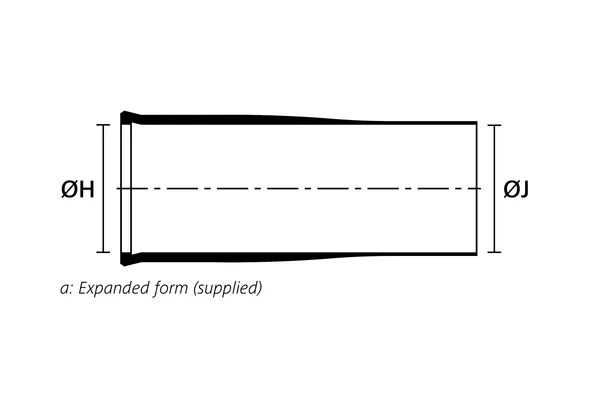

| Item # | Expanded (Min) H | Expanded (Min) J | Recovered (Max) H | Recovered (Max) J | Material |
|---|---|---|---|---|---|
| 1750-1-B7 | 0.94 | 0.66 | 0.55 | 0.21 | Semi-Rigid Flame Retarded Polyolefin |
| 1750-1-G | 0.94 | 0.66 | 0.55 | 0.21 | Fluid Resistant Flame Retarded Elastomer |
| 1750-1-H | 0.94 | 0.66 | 0.55 | 0.21 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1750-1-J | 0.94 | 0.66 | 0.55 | 0.21 | Flexible Flame Retarded Polyolefin |
| 1751-1-G | 1.00 | 1.00 | 0.65 | 0.33 | Fluid Resistant Flame Retarded Elastomer |
| 1751-1-H | 1.00 | 1.00 | 0.65 | 0.33 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1751-1-J | 1.00 | 1.00 | 0.65 | 0.33 | Flexible Flame Retarded Polyolefin |
| 1751-1-L | 1.00 | 1.00 | 0.65 | 0.33 | Flexible Flame Retarded Fluro-Elastomer |
| 1751-2-B7 | 1.30 | 1.30 | 0.65 | 0.33 | Semi-Rigid Flame Retarded Polyolefin |
| 1751-2-G | 1.30 | 1.30 | 0.65 | 0.33 | Fluid Resistant Flame Retarded Elastomer |
| 1751-2-H | 1.30 | 1.30 | 0.65 | 0.33 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1751-2-J | 1.30 | 1.30 | 0.65 | 0.33 | Flexible Flame Retarded Polyolefin |
| 1751-2-L | 1.30 | 1.30 | 0.65 | 0.33 | Flexible Flame Retarded Fluro-Elastomer |
| 1752-1-B7 | 1.30 | 1.30 | 0.80 | 0.43 | Semi-Rigid Flame Retarded Polyolefin |
| 1752-1-G | 1.30 | 1.30 | 0.80 | 0.43 | Fluid Resistant Flame Retarded Elastomer |
| 1752-1-H | 1.30 | 1.30 | 0.80 | 0.43 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1752-1-J | 1.30 | 1.30 | 0.80 | 0.43 | Flexible Flame Retarded Polyolefin |
| 1752-1-L | 1.30 | 1.30 | 0.80 | 0.43 | Flexible Flame Retarded Fluro-Elastomer |
| 1752-2-B7 | 1.70 | 1.70 | 0.80 | 0.43 | Semi-Rigid Flame Retarded Polyolefin |
| 1752-2-G | 1.70 | 1.70 | 0.80 | 0.43 | Fluid Resistant Flame Retarded Elastomer |
| 1752-2-H | 1.70 | 1.70 | 0.80 | 0.43 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1752-2-J | 1.70 | 1.70 | 0.80 | 0.43 | Flexible Flame Retarded Polyolefin |
| 1752-2-L | 1.70 | 1.70 | 0.80 | 0.43 | Flexible Flame Retarded Fluro-Elastomer |
| 1753-1-B7 | 1.70 | 1.70 | 0.90 | 0.56 | Semi-Rigid Flame Retarded Polyolefin |
| 1753-1-G | 1.70 | 1.70 | 0.90 | 0.56 | Fluid Resistant Flame Retarded Elastomer |
| 1753-1-H | 1.70 | 1.70 | 0.90 | 0.56 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1753-1-J | 1.70 | 1.70 | 0.90 | 0.56 | Flexible Flame Retarded Polyolefin |
| 1753-1-L | 1.70 | 1.70 | 0.90 | 0.56 | Flexible Flame Retarded Fluro-Elastomer |
| 1753-2-B7 | 2.10 | 2.10 | 0.90 | 0.56 | Semi-Rigid Flame Retarded Polyolefin |
| 1753-2-G | 2.10 | 2.10 | 0.90 | 0.56 | Fluid Resistant Flame Retarded Elastomer |
| 1753-2-J | 2.10 | 2.10 | 0.90 | 0.56 | Flexible Flame Retarded Polyolefin |
| 1753-2-L | 2.10 | 2.10 | 0.90 | 0.56 | Flexible Flame Retarded Fluro-Elastomer |
| 1754-1-B7 | 2.10 | 2.10 | 1.10 | 0.70 | Semi-Rigid Flame Retarded Polyolefin |
| 1754-1-G | 2.10 | 2.10 | 1.10 | 0.70 | Fluid Resistant Flame Retarded Elastomer |
| 1754-1-J | 2.10 | 2.10 | 1.10 | 0.70 | Flexible Flame Retarded Polyolefin |
| 1754-1-L | 2.10 | 2.10 | 1.10 | 0.70 | Flexible Flame Retarded Fluro-Elastomer |
| 1754-2-B7 | 2.85 | 2.85 | 1.10 | 0.70 | Semi-Rigid Flame Retarded Polyolefin |
| 1754-2-G | 2.85 | 2.85 | 1.10 | 0.70 | Fluid Resistant Flame Retarded Elastomer |
| 1754-2-H | 2.85 | 2.85 | 1.10 | 0.70 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1754-2-J | 2.85 | 2.85 | 1.10 | 0.70 | Flexible Flame Retarded Polyolefin |
| 1754-2-L | 2.85 | 2.85 | 1.10 | 0.70 | Flexible Flame Retarded Fluro-Elastomer |
| 1755-1-B7 | 2.85 | 2.85 | 1.45 | 0.95 | Semi-Rigid Flame Retarded Polyolefin |
| 1755-1-G | 2.85 | 2.85 | 1.45 | 0.95 | Fluid Resistant Flame Retarded Elastomer |
| 1755-1-H | 2.85 | 2.85 | 1.45 | 0.95 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1755-1-J | 2.85 | 2.85 | 1.45 | 0.95 | Flexible Flame Retarded Polyolefin |
| 1755-1-L | 2.85 | 2.85 | 1.45 | 0.95 | Flexible Flame Retarded Fluro-Elastomer |
| 1755-2-B7 | 3.43 | 3.43 | 1.45 | 0.95 | Semi-Rigid Flame Retarded Polyolefin |
| 1755-2-G | 3.43 | 3.43 | 1.45 | 0.95 | Fluid Resistant Flame Retarded Elastomer |
| 1755-2-H | 3.43 | 3.43 | 1.45 | 0.95 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1755-2-J | 3.43 | 3.43 | 1.45 | 0.95 | Flexible Flame Retarded Polyolefin |
| 1755-2-L | 3.43 | 3.43 | 1.45 | 0.95 | Flexible Flame Retarded Fluro-Elastomer |
| 1750-1-L | 0.94 | 0.66 | 0.55 | 0.21 | Flexible Flame Retarded Fluro-Elastomer |
| 1751-1-B7 | 1.00 | 1.00 | 0.65 | 0.33 | Semi-Rigid Flame Retarded Polyolefin |
| 1753-2-H | 2.10 | 2.10 | 0.90 | 0.56 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1754-1-H | 2.10 | 2.10 | 1.10 | 0.70 | Flexible Zero-Hal Limited Fire Hazard Material |
