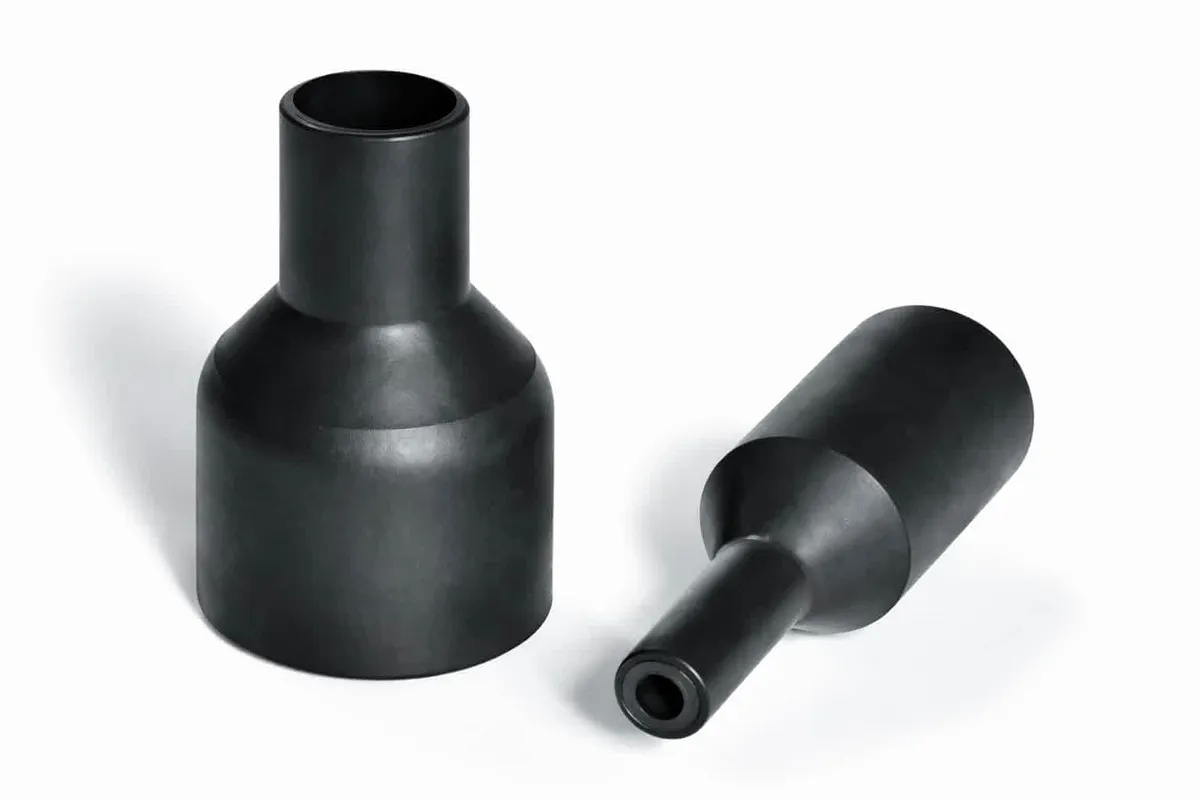

160 Series Bottle Heatshrink Shapes without Rib
Heat Shrink Bottle Boots
Products
| Item # | Expanded (Min) H | Expanded (Min) J | P ±10% | R ±10% | Material |
|---|---|---|---|---|---|
| 162-1-B7 | 0.87 | 0.35 | 1.53 | 0.62 | Semi-Rigid Flame Retarded Polyolefin |
| 162-1-G | 0.87 | 0.35 | 1.53 | 0.62 | Fluid Resistant Flame Retarded Elastomer |
| 162-1-H | 0.87 | 0.35 | 1.53 | 0.62 | Flexible Zero-Hal Limited Fire Hazard Material |
| 162-1-J | 0.87 | 0.35 | 1.53 | 0.62 | Flexible Flame Retarded Polyolefin |
| 162-1-L | 0.87 | 0.35 | 1.53 | 0.62 | Flexible Flame Retarded Fluro-Elastomer |
| 169-1-B7 | 0.88 | 0.31 | 2.00 | 1.08 | Semi-Rigid Flame Retarded Polyolefin |
| 169-1-G | 0.88 | 0.31 | 2.00 | 1.08 | Fluid Resistant Flame Retarded Elastomer |
| 169-1-H | 0.88 | 0.31 | 2.00 | 1.08 | Flexible Zero-Hal Limited Fire Hazard Material |
| 169-1-J | 0.88 | 0.31 | 2.00 | 1.08 | Flexible Flame Retarded Polyolefin |
| 169-1-L | 0.88 | 0.31 | 2.00 | 1.08 | Flexible Flame Retarded Fluro-Elastomer |
| 169-2-B7 | 1.40 | 0.34 | 2.00 | 1.08 | Semi-Rigid Flame Retarded Polyolefin |
| 169-2-G | 1.40 | 0.34 | 2.00 | 1.08 | Fluid Resistant Flame Retarded Elastomer |
| 169-2-H | 1.40 | 0.34 | 2.00 | 1.08 | Flexible Zero-Hal Limited Fire Hazard Material |
| 169-2-J | 1.40 | 0.34 | 2.00 | 1.08 | Flexible Flame Retarded Polyolefin |
| 169-2-L | 1.40 | 0.34 | 2.00 | 1.08 | Flexible Flame Retarded Fluro-Elastomer |
