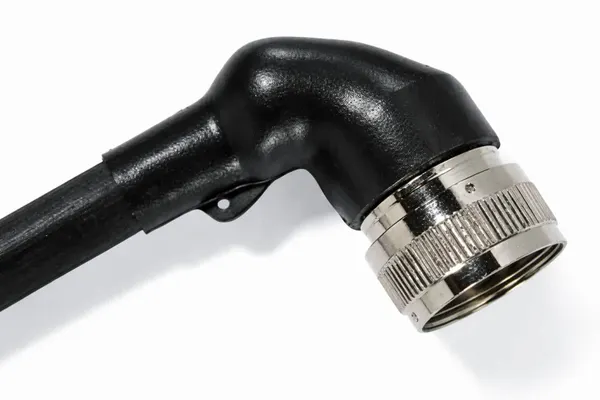

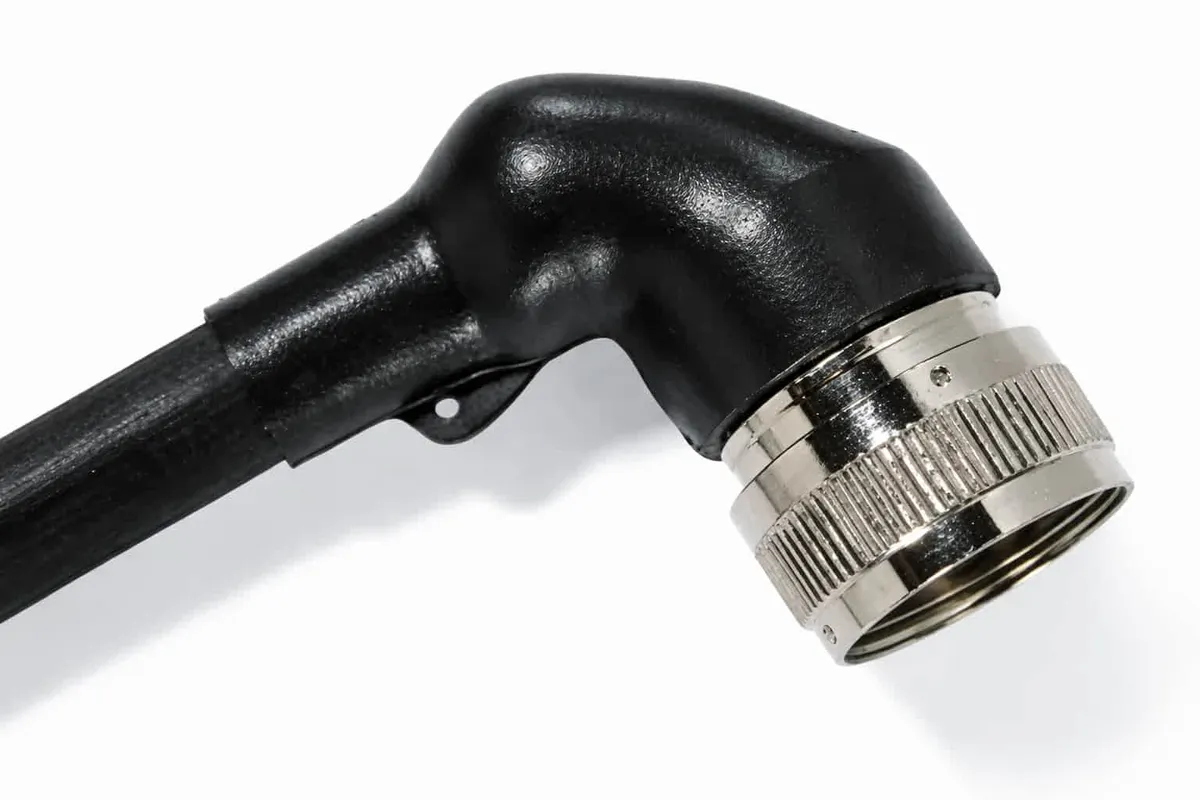

1100 Series Right Angle Heatshrink Shapes with Rib (VG Style)
Heat Shrink Right Angle Boots
Products

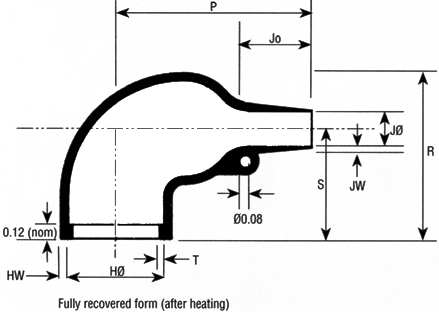

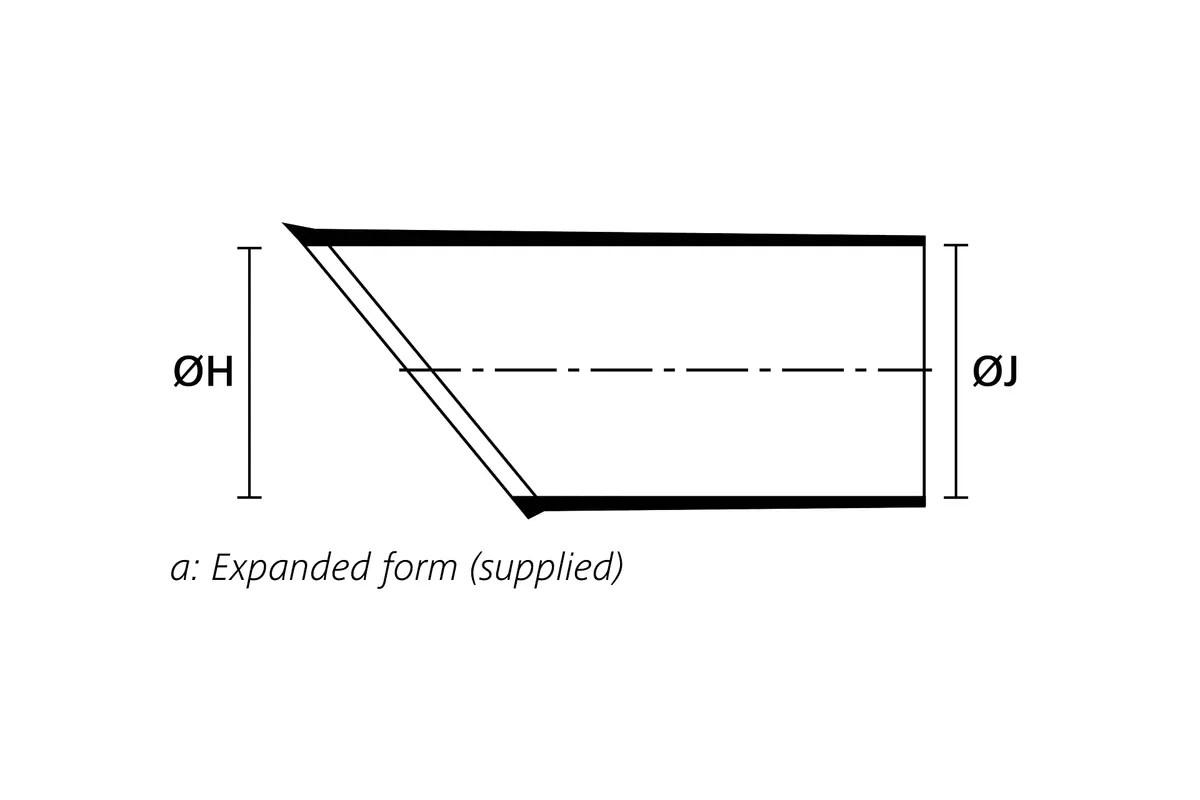

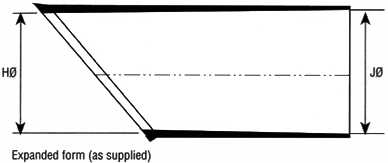

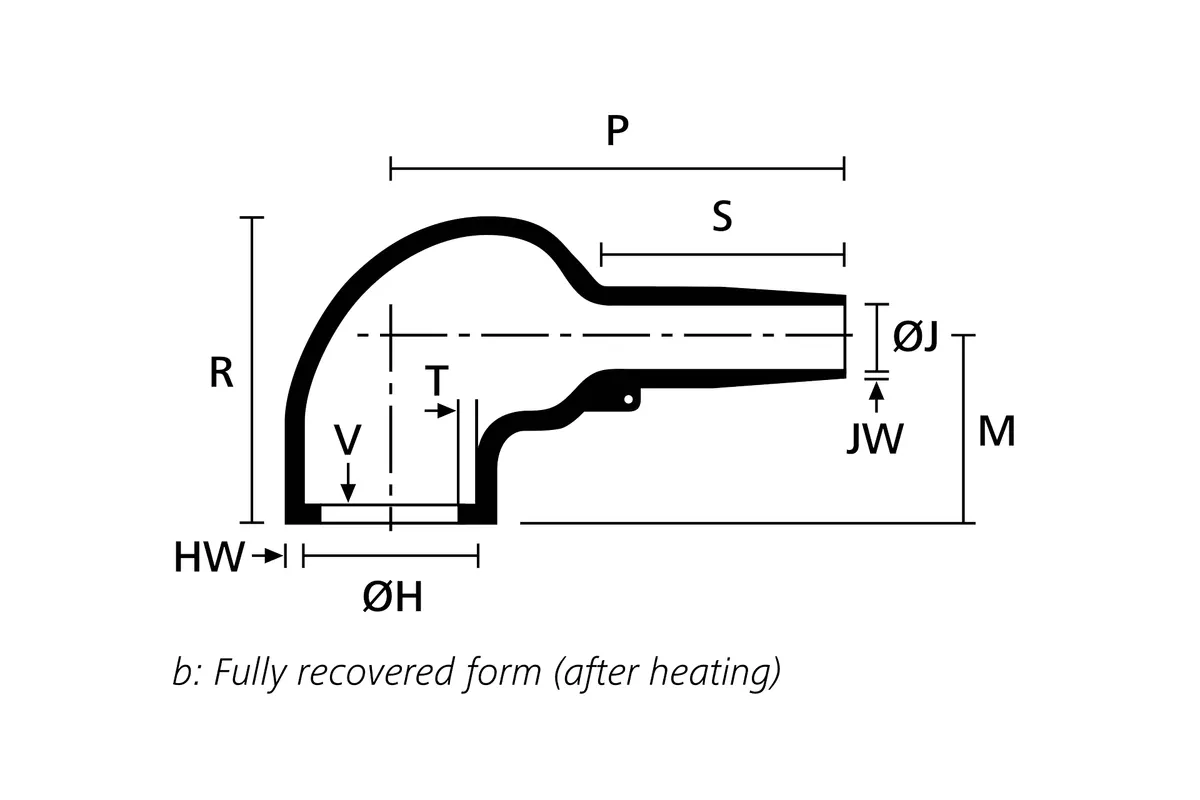

| Item # | Expanded (Min) H | Expanded (Min) J | P ±10% | R ±10% | Material |
|---|---|---|---|---|---|
| 1152-4-B7 | 0.94 | 0.94 | 1.02 | 0.98 | Semi-Rigid Flame Retarded Polyolefin |
| 1152-4-G | 0.94 | 0.94 | 1.02 | 0.98 | Fluid Resistant Flame Retarded Elastomer |
| 1152-4-H | 0.94 | 0.94 | 1.02 | 0.98 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1152-4-J | 0.94 | 0.94 | 1.02 | 0.98 | Flexible Flame Retarded Polyolefin |
| 1152-4-L | 0.94 | 0.94 | 1.02 | 0.98 | Flexible Flame Retarded Fluro-Elastomer |
| 1154-4-B7 | 1.18 | 1.18 | 1.26 | 1.06 | Semi-Rigid Flame Retarded Polyolefin |
| 1154-4-G | 1.18 | 1.18 | 1.26 | 1.06 | Fluid Resistant Flame Retarded Elastomer |
| 1154-4-H | 1.18 | 1.18 | 1.26 | 1.06 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1154-4-J | 1.18 | 1.18 | 1.26 | 1.06 | Flexible Flame Retarded Polyolefin |
| 1154-4-L | 1.18 | 1.18 | 1.26 | 1.06 | Flexible Flame Retarded Fluro-Elastomer |
| 1155-4-G | 1.22 | 1.22 | 1.57 | 1.22 | Fluid Resistant Flame Retarded Elastomer |
| 1155-4-H | 1.22 | 1.22 | 1.57 | 1.22 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1155-4-J | 1.22 | 1.22 | 1.57 | 1.22 | Flexible Flame Retarded Polyolefin |
| 1155-4-L | 1.22 | 1.22 | 1.57 | 1.22 | Flexible Flame Retarded Fluro-Elastomer |
| 1156-4-B7 | 1.42 | 1.42 | 1.81 | 1.50 | Semi-Rigid Flame Retarded Polyolefin |
| 1156-4-G | 1.42 | 1.42 | 1.81 | 1.50 | Fluid Resistant Flame Retarded Elastomer |
| 1156-4-H | 1.42 | 1.42 | 1.81 | 1.50 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1156-4-J | 1.42 | 1.42 | 1.81 | 1.50 | Flexible Flame Retarded Polyolefin |
| 1156-4-L | 1.42 | 1.42 | 1.81 | 1.50 | Flexible Flame Retarded Fluro-Elastomer |
| 1157-4-B7 | 1.69 | 1.69 | 2.17 | 1.77 | Semi-Rigid Flame Retarded Polyolefin |
| 1157-4-G | 1.69 | 1.69 | 2.17 | 1.77 | Fluid Resistant Flame Retarded Elastomer |
| 1157-4-H | 1.69 | 1.69 | 2.17 | 1.77 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1157-4-J | 1.69 | 1.69 | 2.17 | 1.77 | Flexible Flame Retarded Polyolefin |
| 1157-4-L | 1.69 | 1.69 | 2.17 | 1.77 | Flexible Flame Retarded Fluro-Elastomer |
| 1158-4-B7 | 2.36 | 2.36 | 3.15 | 2.13 | Semi-Rigid Flame Retarded Polyolefin |
| 1158-4-G | 2.36 | 2.36 | 3.15 | 2.13 | Fluid Resistant Flame Retarded Elastomer |
| 1158-4-H | 2.36 | 2.36 | 3.15 | 2.13 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1158-4-J | 2.36 | 2.36 | 3.15 | 2.13 | Flexible Flame Retarded Polyolefin |
| 1158-4-L | 2.36 | 2.36 | 3.15 | 2.13 | Flexible Flame Retarded Fluro-Elastomer |
| 1159-4-B7 | 2.60 | 2.60 | 4.25 | 2.68 | Semi-Rigid Flame Retarded Polyolefin |
| 1159-4-G | 2.60 | 2.60 | 4.25 | 2.68 | Fluid Resistant Flame Retarded Elastomer |
| 1159-4-H | 2.60 | 2.60 | 4.25 | 2.68 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1159-4-J | 2.60 | 2.60 | 4.25 | 2.68 | Flexible Flame Retarded Polyolefin |
| 1159-4-L | 2.60 | 2.60 | 4.25 | 2.68 | Flexible Flame Retarded Fluro-Elastomer |
| 1160-4-B7 | 3.23 | 3.23 | 4.65 | 3.31 | Semi-Rigid Flame Retarded Polyolefin |
| 1160-4-G | 3.23 | 3.23 | 4.65 | 3.31 | Fluid Resistant Flame Retarded Elastomer |
| 1160-4-J | 3.23 | 3.23 | 4.65 | 3.31 | Flexible Flame Retarded Polyolefin |
| 1160-4-L | 3.23 | 3.23 | 4.65 | 3.31 | Flexible Flame Retarded Fluro-Elastomer |
| 1155-4-B7 | 1.22 | 1.22 | 1.57 | 1.22 | Semi-Rigid Flame Retarded Polyolefin |
| 1160-4-H | 3.23 | 3.23 | 4.65 | 3.31 | Flexible Zero-Hal Limited Fire Hazard Material |
