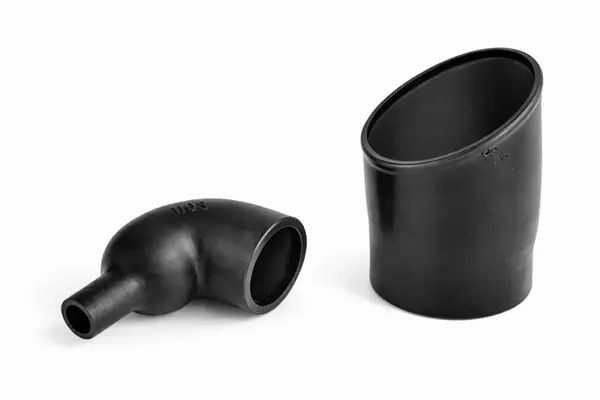

1100 Series Right Angle Heatshrink Shapes with Rib (MIL Style)

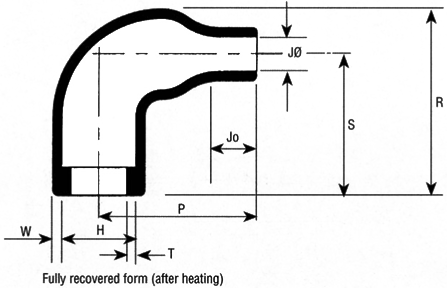

Heat Shrink Right Angle Boots
Products

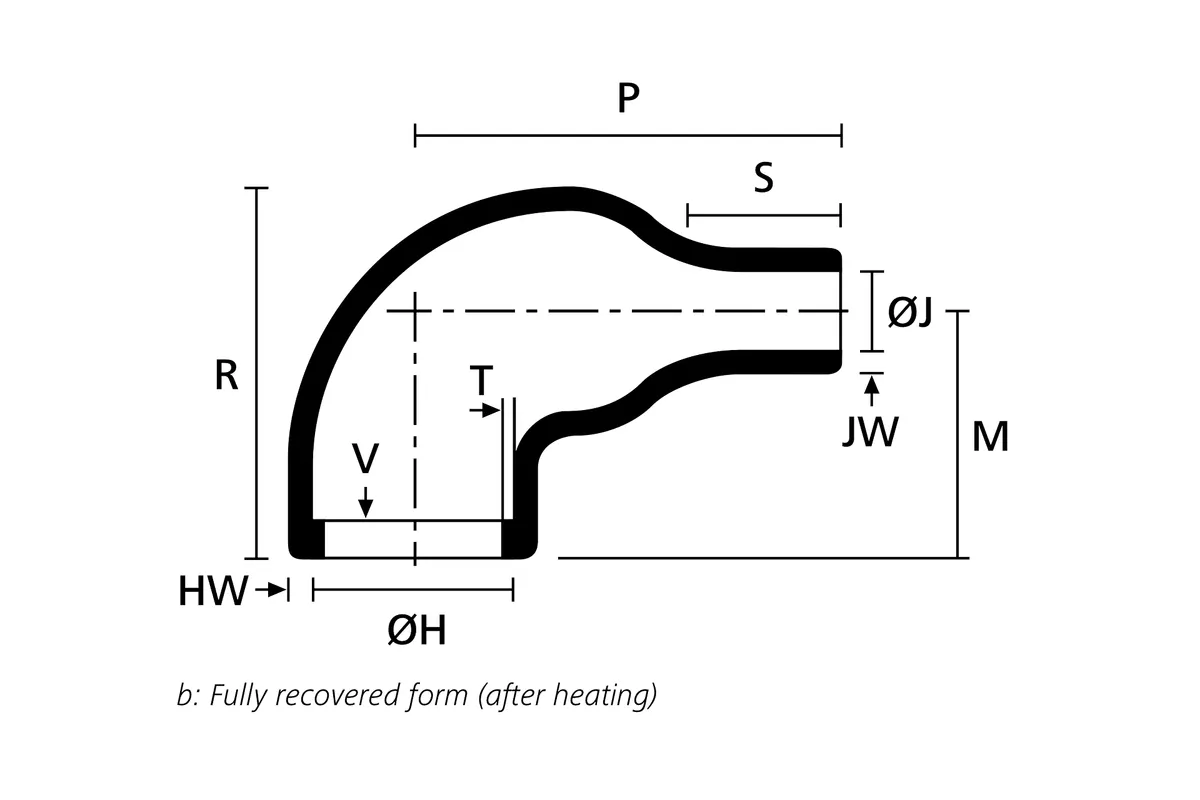

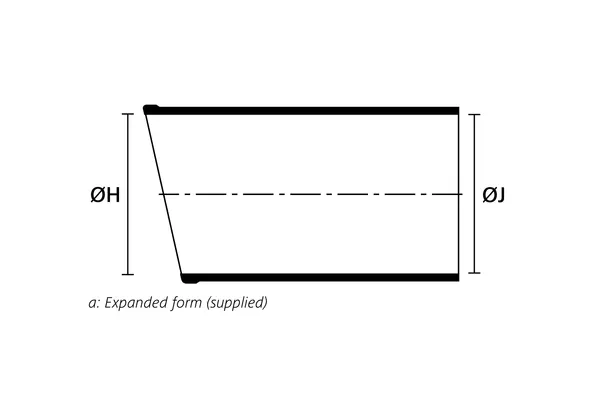

| Item # | Expanded (Min) H | Expanded (Min) J | P ±10% | R ±10% | Material |
|---|---|---|---|---|---|
| 1101-4-B7 | 1.68 | 1.68 | 2.10 | 1.70 | Semi-Rigid Flame Retarded Polyolefin |
| 1101-4-G | 1.68 | 1.68 | 2.10 | 1.70 | Fluid Resistant Flame Retarded Elastomer |
| 1101-4-H | 1.68 | 1.68 | 2.10 | 1.70 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1101-4-J | 1.68 | 1.68 | 2.10 | 1.70 | Flexible Flame Retarded Polyolefin |
| 1103-4-B7 | 1.42 | 1.42 | 1.70 | 1.40 | Semi-Rigid Flame Retarded Polyolefin |
| 1103-4-G | 1.42 | 1.42 | 1.70 | 1.40 | Fluid Resistant Flame Retarded Elastomer |
| 1103-4-H | 1.42 | 1.42 | 1.70 | 1.40 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1103-4-J | 1.42 | 1.42 | 1.70 | 1.40 | Flexible Flame Retarded Polyolefin |
| 1103-4-L | 1.42 | 1.42 | 1.70 | 1.40 | Flexible Flame Retarded Fluro-Elastomer |
| 1104-4-B7 | 1.22 | 1.22 | 1.40 | 1.20 | Semi-Rigid Flame Retarded Polyolefin |
| 1104-4-G | 1.22 | 1.22 | 1.40 | 1.20 | Fluid Resistant Flame Retarded Elastomer |
| 1104-4-H | 1.22 | 1.22 | 1.40 | 1.20 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1104-4-J | 1.22 | 1.22 | 1.40 | 1.20 | Flexible Flame Retarded Polyolefin |
| 1104-4-L | 1.22 | 1.22 | 1.40 | 1.20 | Flexible Flame Retarded Fluro-Elastomer |
| 1105-4-B7 | 2.04 | 2.04 | 3.10 | 2.10 | Semi-Rigid Flame Retarded Polyolefin |
| 1105-4-G | 2.04 | 2.04 | 3.10 | 2.10 | Fluid Resistant Flame Retarded Elastomer |
| 1105-4-H | 2.04 | 2.04 | 3.10 | 2.10 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1105-4-J | 2.04 | 2.04 | 3.10 | 2.10 | Flexible Flame Retarded Polyolefin |
| 1105-4-L | 2.04 | 2.04 | 3.10 | 2.10 | Flexible Flame Retarded Fluro-Elastomer |
| 1106-4-B7 | 0.92 | 0.92 | 0.80 | 0.90 | Semi-Rigid Flame Retarded Polyolefin |
| 1106-4-G | 0.92 | 0.92 | 0.80 | 0.90 | Fluid Resistant Flame Retarded Elastomer |
| 1106-4-H | 0.92 | 0.92 | 0.80 | 0.90 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1106-4-J | 0.92 | 0.92 | 0.80 | 0.90 | Flexible Flame Retarded Polyolefin |
| 1106-4-L | 0.92 | 0.92 | 0.80 | 0.90 | Flexible Flame Retarded Fluro-Elastomer |
| 1107-4-B7 | 1.12 | 1.12 | 1.17 | 1.12 | Semi-Rigid Flame Retarded Polyolefin |
| 1107-4-G | 1.12 | 1.12 | 1.17 | 1.12 | Fluid Resistant Flame Retarded Elastomer |
| 1107-4-H | 1.12 | 1.12 | 1.17 | 1.12 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1107-4-J | 1.12 | 1.12 | 1.17 | 1.12 | Flexible Flame Retarded Polyolefin |
| 1107-4-L | 1.12 | 1.12 | 1.17 | 1.12 | Flexible Flame Retarded Fluro-Elastomer |
| 1108-4-B7 | 0.65 | 0.65 | 0.68 | 0.79 | Semi-Rigid Flame Retarded Polyolefin |
| 1108-4-G | 0.65 | 0.65 | 0.68 | 0.79 | Fluid Resistant Flame Retarded Elastomer |
| 1108-4-H | 0.65 | 0.65 | 0.68 | 0.79 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1108-4-J | 0.65 | 0.65 | 0.68 | 0.79 | Flexible Flame Retarded Polyolefin |
| 1108-4-L | 0.65 | 0.65 | 0.68 | 0.79 | Flexible Flame Retarded Fluro-Elastomer |
| 1109-4-B7 | 2.60 | 2.60 | 3.84 | 2.60 | Semi-Rigid Flame Retarded Polyolefin |
| 1109-4-G | 2.60 | 2.60 | 3.84 | 2.60 | Fluid Resistant Flame Retarded Elastomer |
| 1109-4-J | 2.60 | 2.60 | 3.84 | 2.60 | Flexible Flame Retarded Polyolefin |
| 1109-4-L | 2.60 | 2.60 | 3.84 | 2.60 | Flexible Flame Retarded Fluro-Elastomer |
| 1110-4-B7 | 3.20 | 2.20 | 5.03 | 3.12 | Semi-Rigid Flame Retarded Polyolefin |
| 1110-4-G | 3.20 | 2.20 | 5.03 | 3.12 | Fluid Resistant Flame Retarded Elastomer |
| 1110-4-H | 3.20 | 2.20 | 5.03 | 3.12 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1110-4-J | 3.20 | 2.20 | 5.03 | 3.12 | Flexible Flame Retarded Polyolefin |
| 1110-4-L | 3.20 | 2.20 | 5.03 | 3.12 | Flexible Flame Retarded Fluro-Elastomer |
| 1181-4-B7 | 0.47 | 0.24 | 0.75 | 0.51 | Semi-Rigid Flame Retarded Polyolefin |
| 1181-4-G | 0.47 | 0.24 | 0.75 | 0.51 | Fluid Resistant Flame Retarded Elastomer |
| 1181-4-H | 0.47 | 0.24 | 0.75 | 0.51 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1181-4-J | 0.47 | 0.24 | 0.75 | 0.51 | Flexible Flame Retarded Polyolefin |
| 1181-4-L | 0.47 | 0.24 | 0.75 | 0.51 | Flexible Flame Retarded Fluro-Elastomer |
| 1101-4-L | 1.68 | 1.68 | 2.10 | 1.70 | Flexible Flame Retarded Fluro-Elastomer |
| 1109-4-H | 2.60 | 2.60 | 3.84 | 2.60 | Flexible Zero-Hal Limited Fire Hazard Material |
