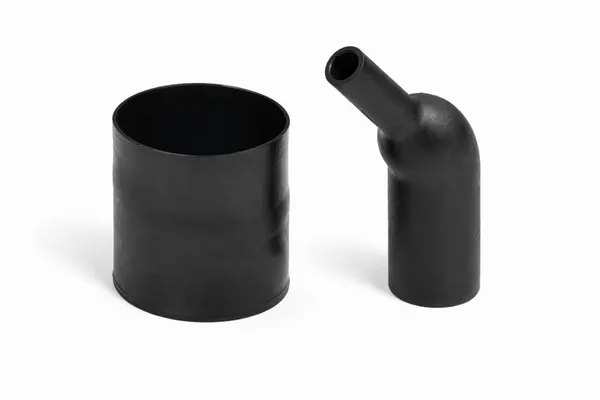

Helashrink 1800 45° angle heat shrink moulding variant 4 with rib for harness strain relief

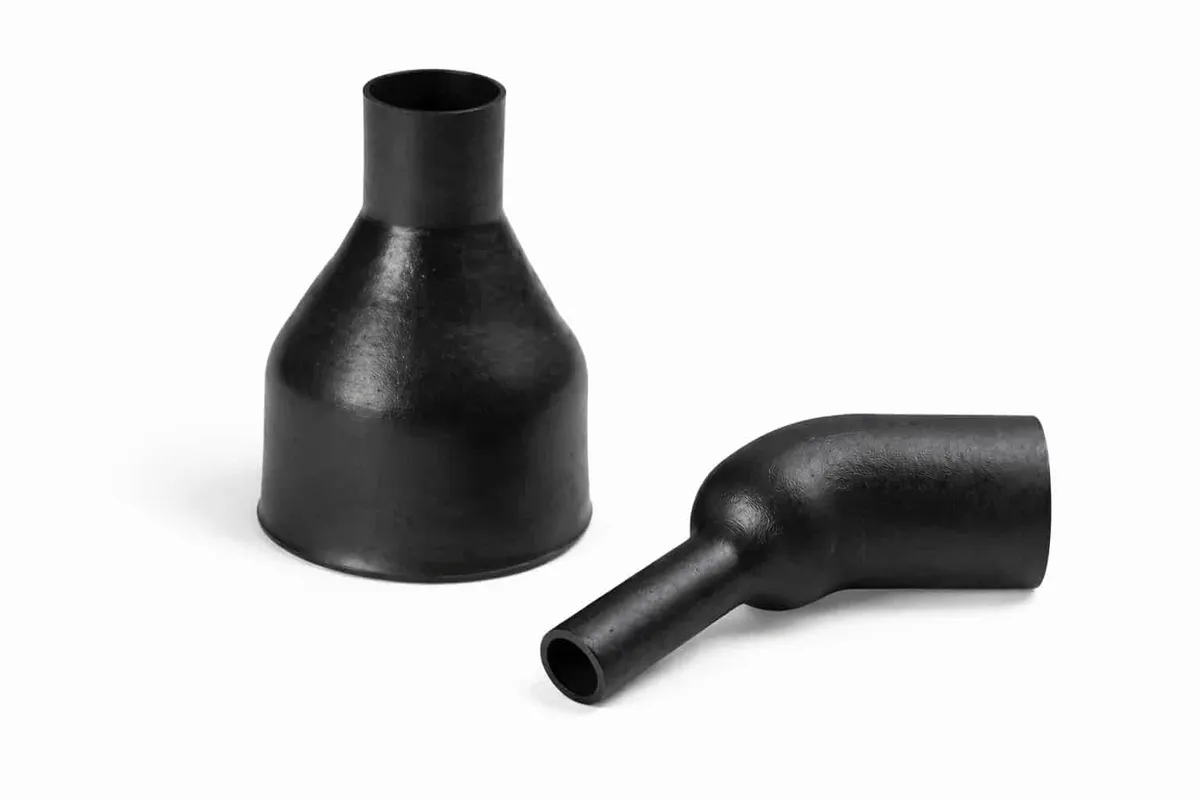

Helashrink 1800 45° angle heat shrink moulding variant 5 with rib for high temperature harness use
Helashrink 1800 45° angle heat shrink moulding overview, variant 5 for harness protection

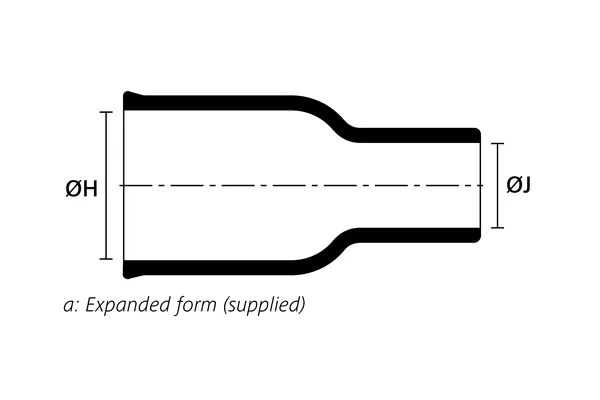

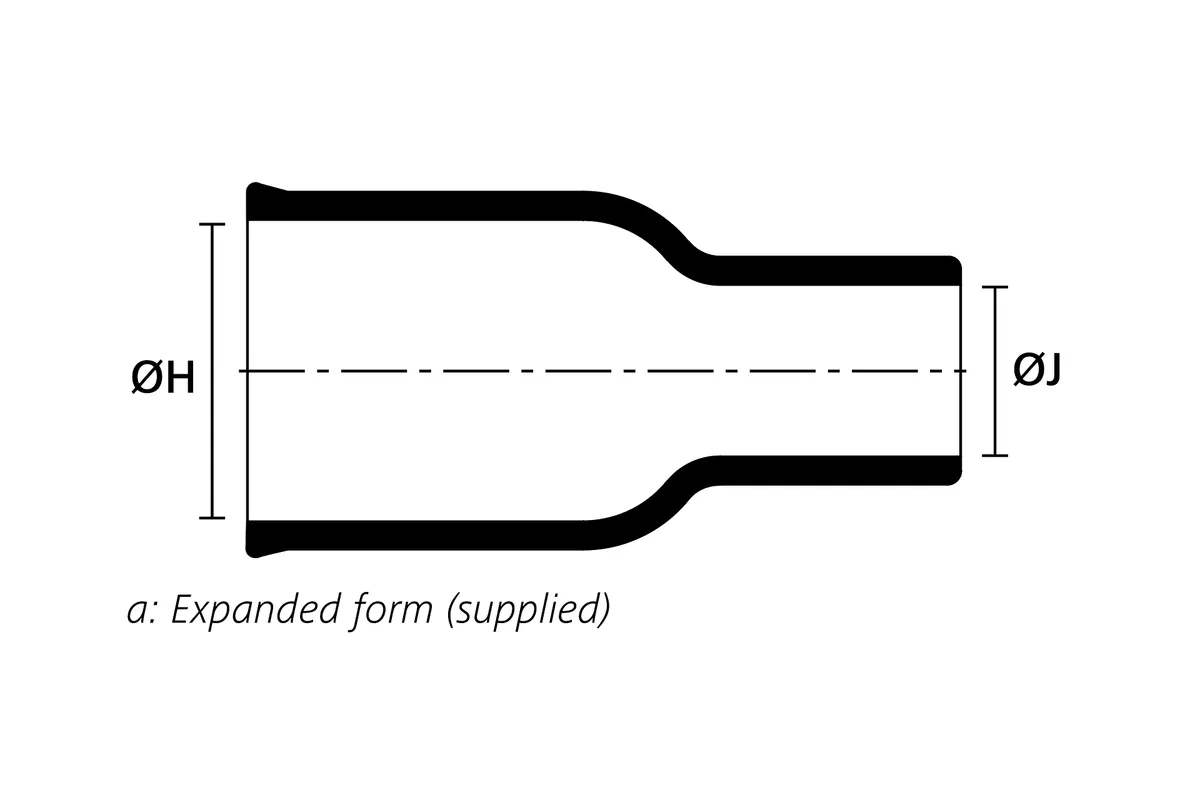

Technical drawing showing the expanded supplied form of 1837-5, a 45° heat shrink angle shape

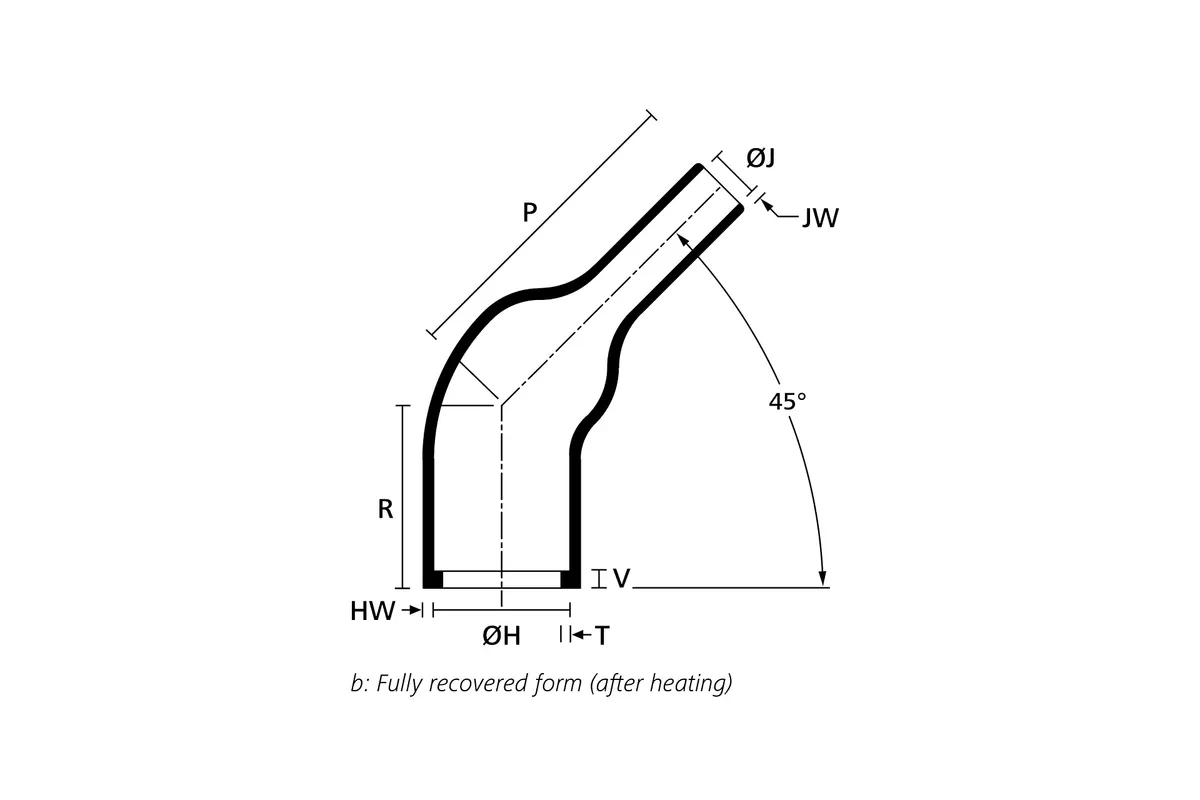

Technical drawing showing the fully recovered form of 1837-5, a 45° heat shrink angle shape

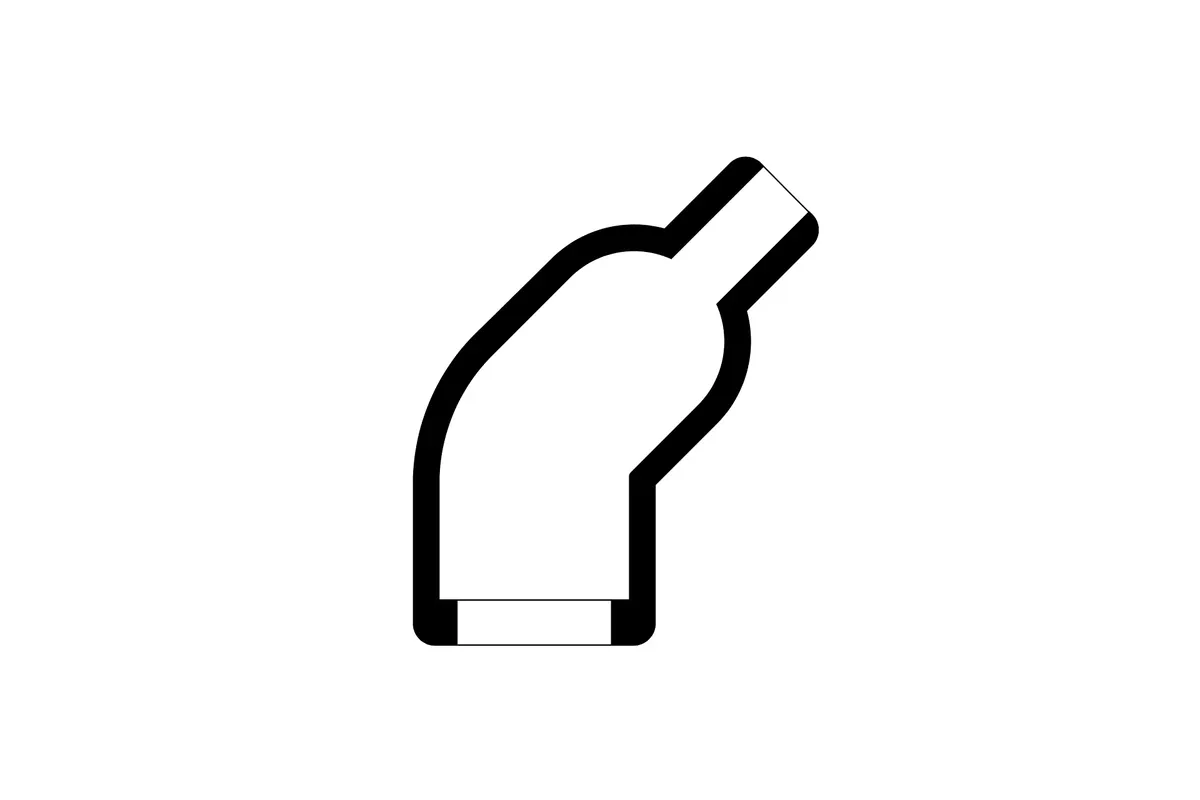

Technical drawing showing the fully recovered form of 1837-4, a 45° heat shrink angled molded shape

1800 Series 45º Angle Heatshrink Shapes with Rib

Heat Shrink Angle Boots

Products

Item # Angle Nominal Expanded (Min) H Expanded (Min) J P ±10% Material
1805-4-B7 45 º 1.57 1.57 1.10 Semi-Rigid Flame Retarded Polyolefin
1805-4-G 45 º 1.57 1.57 1.10 Fluid Resistant Flame Retarded Elastomer
1805-4-H 45 º 1.57 1.57 1.10 Flexible Zero-Hal Limited Fire Hazard Material
1805-4-J 45 º 1.57 1.57 1.10 Flexible Flame Retarded Polyolefin
1805-4-L 45 º 1.57 1.57 1.10 Flexible Flame Retarded Fluro-Elastomer
1806-4-B7 45 º 1.68 1.68 3.35 Semi-Rigid Flame Retarded Polyolefin
1806-4-H 45 º 1.68 1.68 3.35 Flexible Zero-Hal Limited Fire Hazard Material
1806-4-J 45 º 1.68 1.68 3.35 Flexible Flame Retarded Polyolefin
1806-4-L 45 º 1.68 1.68 3.35 Flexible Flame Retarded Fluro-Elastomer
1807-4-B7 45 º 1.40 1.40 1.70 Semi-Rigid Flame Retarded Polyolefin
1807-4-G 45 º 1.40 1.40 1.70 Fluid Resistant Flame Retarded Elastomer
1807-4-J 45 º 1.40 1.40 1.70 Flexible Flame Retarded Polyolefin
1807-4-L 45 º 1.40 1.40 1.70 Flexible Flame Retarded Fluro-Elastomer
1819-42-B7 60 º 1.69 1.69 2.17 Semi-Rigid Flame Retarded Polyolefin
1819-42-G 60 º 1.69 1.69 2.17 Fluid Resistant Flame Retarded Elastomer
1819-42-H 60 º 1.69 1.69 2.17 Flexible Zero-Hal Limited Fire Hazard Material
1819-42-J 60 º 1.69 1.69 2.17 Flexible Flame Retarded Polyolefin
1819-42-L 60 º 1.69 1.69 2.17 Flexible Flame Retarded Fluro-Elastomer
1820-42-B7 30 º 1.42 1.42 1.81 Semi-Rigid Flame Retarded Polyolefin
1820-42-G 30 º 1.42 1.42 1.81 Fluid Resistant Flame Retarded Elastomer
1820-42-H 30 º 1.42 1.42 1.81 Flexible Zero-Hal Limited Fire Hazard Material
1820-42-J 30 º 1.42 1.42 1.81 Flexible Flame Retarded Polyolefin
1820-42-L 30 º 1.42 1.42 1.81 Flexible Flame Retarded Fluro-Elastomer
1821-42-B7 45 º 0.79 0.79 0.95 Semi-Rigid Flame Retarded Polyolefin
1821-42-G 45 º 0.79 0.79 0.95 Fluid Resistant Flame Retarded Elastomer
1821-42-H 45 º 0.79 0.79 0.95 Flexible Zero-Hal Limited Fire Hazard Material
1821-42-J 45 º 0.79 0.79 0.95 Flexible Flame Retarded Polyolefin
1821-42-L 45 º 0.79 0.79 0.95 Flexible Flame Retarded Fluro-Elastomer
1806-4-G 45 º 1.68 1.68 3.35 Fluid Resistant Flame Retarded Elastomer
1807-4-H 45 º 1.40 1.40 1.70 Flexible Zero-Hal Limited Fire Hazard Material
