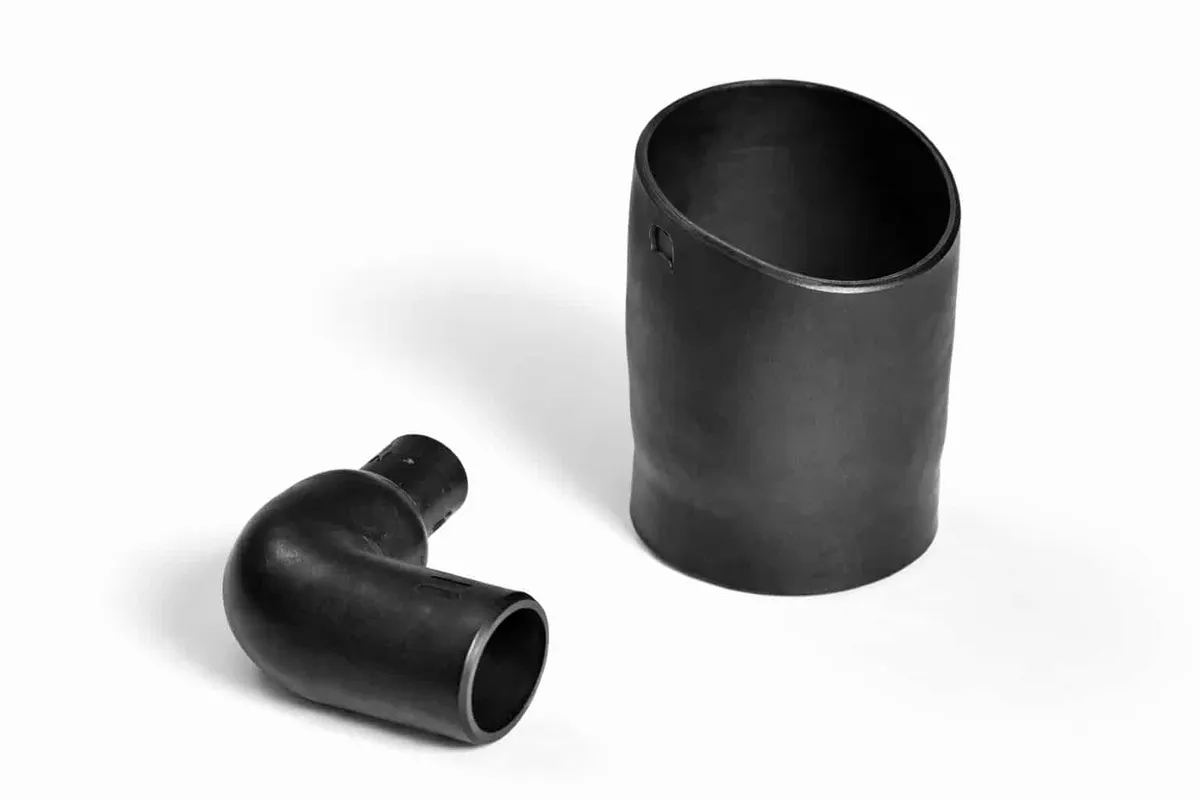

Helashrink 1100 series right angle heat shrink molded shape without rib providing strain relief for connector cables
Diagram of Helashrink 1100 series right angle heat shrink shape without rib for connector cable strain relief

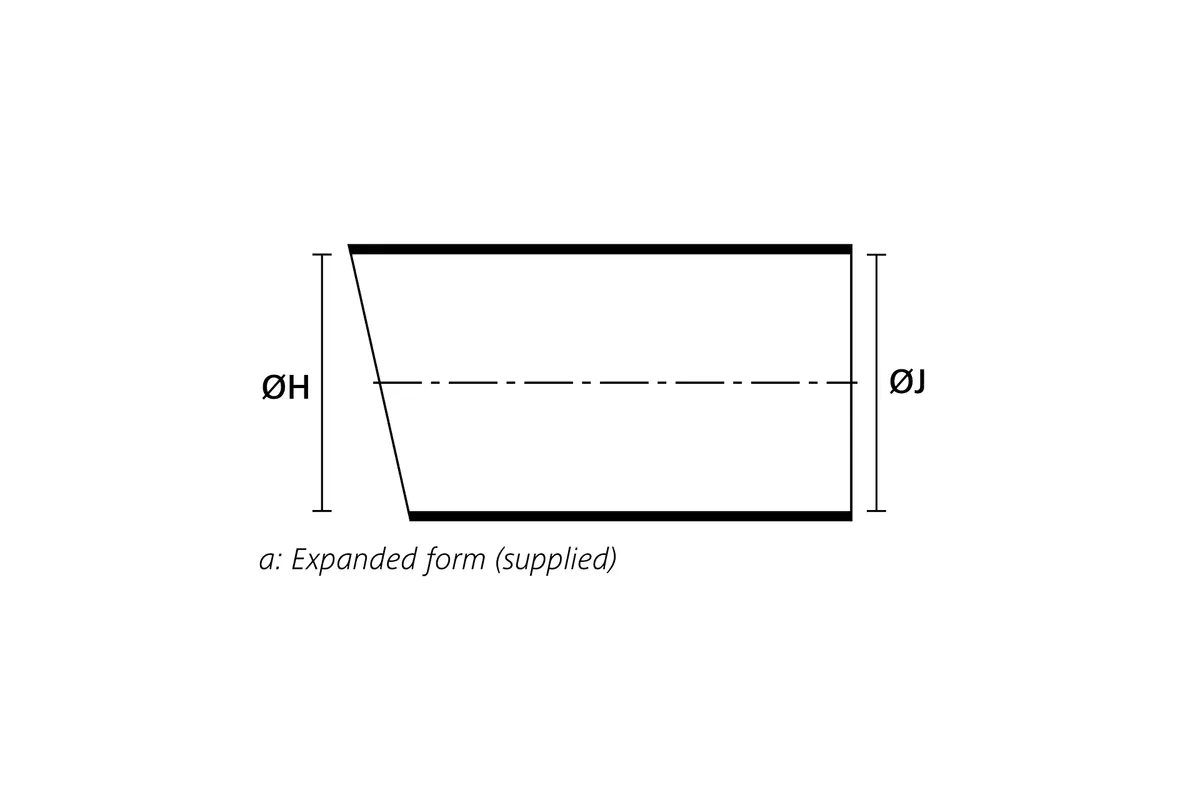

Technical drawing showing the expanded supplied form of a right angle heat shrink molded shape without rib

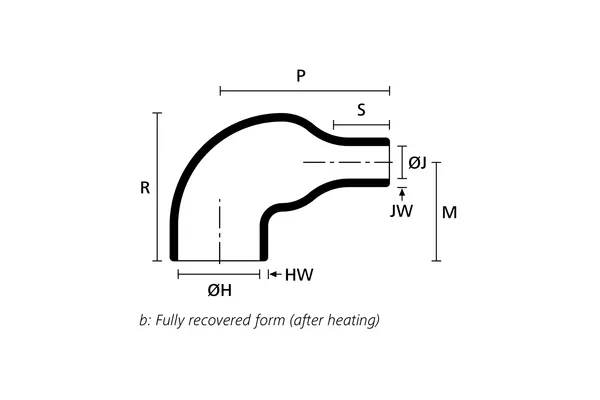

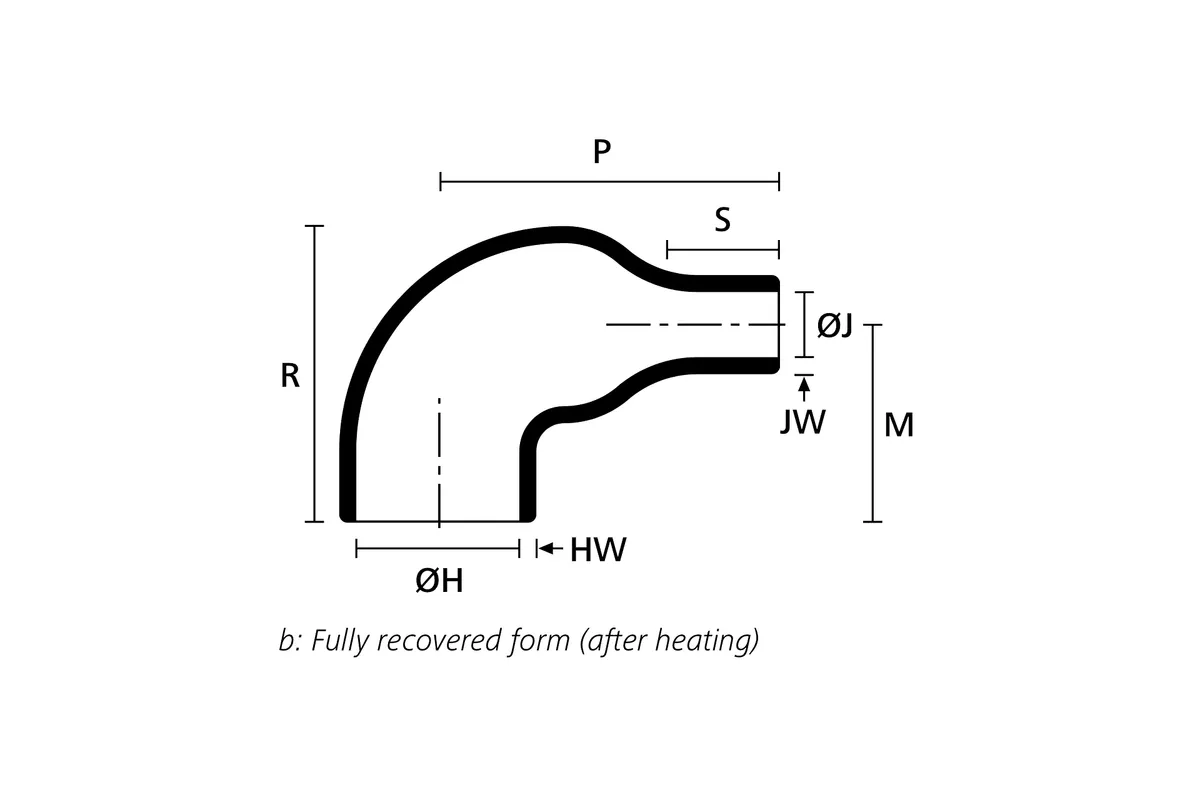

Technical drawing showing the fully recovered form of a right angle heat shrink molded shape without rib

1100 Series Right Angle Heatshrink Shapes without Rib

Heat Shrink Right Angle Boots

Products

Item # Expanded (Min) H Expanded (Min) J P ±10% R ±10% Material
1101-1-B7 1.70 1.70 2.18 1.70 Semi-Rigid Flame Retarded Polyolefin
1101-1-G 1.70 1.70 2.18 1.70 Fluid Resistant Flame Retarded Elastomer
1101-1-H 1.70 1.70 2.18 1.70 Flexible Zero-Hal Limited Fire Hazard Material
1101-1-J 1.70 1.70 2.18 1.70 Flexible Flame Retarded Polyolefin
1101-1-L 1.70 1.70 2.18 1.70 Flexible Flame Retarded Fluro-Elastomer
1101-2-B7 1.50 0.90 2.18 1.70 Semi-Rigid Flame Retarded Polyolefin
1101-2-G 1.50 0.90 2.18 1.70 Fluid Resistant Flame Retarded Elastomer
1101-2-H 1.50 0.90 2.18 1.70 Flexible Zero-Hal Limited Fire Hazard Material
1101-2-J 1.50 0.90 2.18 1.70 Flexible Flame Retarded Polyolefin
1101-2-L 1.50 0.90 2.18 1.70 Flexible Flame Retarded Fluro-Elastomer
1103-1-G 1.50 1.50 1.70 1.40 Fluid Resistant Flame Retarded Elastomer
1103-1-H 1.50 1.50 1.70 1.40 Flexible Zero-Hal Limited Fire Hazard Material
1103-1-J 1.50 1.50 1.70 1.40 Flexible Flame Retarded Polyolefin
1103-1-L 1.50 1.50 1.70 1.40 Flexible Flame Retarded Fluro-Elastomer
1103-2-B7 1.20 0.75 1.70 1.40 Semi-Rigid Flame Retarded Polyolefin
1103-2-G 1.20 0.75 1.70 1.40 Fluid Resistant Flame Retarded Elastomer
1103-2-H 1.20 0.75 1.70 1.40 Flexible Zero-Hal Limited Fire Hazard Material
1103-2-J 1.20 0.75 1.70 1.40 Flexible Flame Retarded Polyolefin
1103-2-L 1.20 0.75 1.70 1.40 Flexible Flame Retarded Fluro-Elastomer
1104-1-B7 0.95 0.62 1.40 1.20 Semi-Rigid Flame Retarded Polyolefin
1104-1-G 0.95 0.62 1.40 1.20 Fluid Resistant Flame Retarded Elastomer
1104-1-H 0.95 0.62 1.40 1.20 Flexible Zero-Hal Limited Fire Hazard Material
1104-1-J 0.95 0.62 1.40 1.20 Flexible Flame Retarded Polyolefin
1104-1-L 0.95 0.62 1.40 1.20 Flexible Flame Retarded Fluro-Elastomer
1104-2-B7 1.25 1.25 1.40 1.20 Semi-Rigid Flame Retarded Polyolefin
1104-2-G 1.25 1.25 1.40 1.20 Fluid Resistant Flame Retarded Elastomer
1104-2-H 1.25 1.25 1.40 1.20 Flexible Zero-Hal Limited Fire Hazard Material
1104-2-J 1.25 1.25 1.40 1.20 Flexible Flame Retarded Polyolefin
1104-2-L 1.25 1.25 1.40 1.20 Flexible Flame Retarded Fluro-Elastomer
1105-1-G 2.06 2.06 3.10 2.10 Fluid Resistant Flame Retarded Elastomer
1105-1-H 2.06 2.06 3.10 2.10 Flexible Zero-Hal Limited Fire Hazard Material
1105-1-J 2.06 2.06 3.10 2.10 Flexible Flame Retarded Polyolefin
1105-1-L 2.06 2.06 3.10 2.10 Flexible Flame Retarded Fluro-Elastomer
1105-2-B7 1.85 1.40 3.10 2.10 Semi-Rigid Flame Retarded Polyolefin
1105-2-G 1.85 1.40 3.10 2.10 Fluid Resistant Flame Retarded Elastomer
1105-2-H 1.85 1.40 3.10 2.10 Flexible Zero-Hal Limited Fire Hazard Material
1105-2-J 1.85 1.40 3.10 2.10 Flexible Flame Retarded Polyolefin
1105-2-L 1.85 1.40 3.10 2.10 Flexible Flame Retarded Fluro-Elastomer
1106-1-B7 0.93 0.93 0.80 0.90 Semi-Rigid Flame Retarded Polyolefin
1106-1-G 0.93 0.93 0.80 0.90 Fluid Resistant Flame Retarded Elastomer
1106-1-H 0.93 0.93 0.80 0.90 Flexible Zero-Hal Limited Fire Hazard Material
1106-1-J 0.93 0.93 0.80 0.90 Flexible Flame Retarded Polyolefin
1106-1-L 0.93 0.93 0.80 0.90 Flexible Flame Retarded Fluro-Elastomer
1106-2-B7 0.54 0.46 0.80 0.90 Semi-Rigid Flame Retarded Polyolefin
1106-2-G 0.54 0.46 0.80 0.90 Fluid Resistant Flame Retarded Elastomer
1106-2-H 0.54 0.46 0.80 0.90 Flexible Zero-Hal Limited Fire Hazard Material
1106-2-J 0.54 0.46 0.80 0.90 Flexible Flame Retarded Polyolefin
1106-2-L 0.54 0.46 0.80 0.90 Flexible Flame Retarded Fluro-Elastomer
1107-1-B7 1.12 1.12 0.84 0.84 Semi-Rigid Flame Retarded Polyolefin
1107-1-H 1.12 1.12 0.84 0.84 Flexible Zero-Hal Limited Fire Hazard Material
1107-1-J 1.12 1.12 0.84 0.84 Flexible Flame Retarded Polyolefin
1107-1-L 1.12 1.12 0.84 0.84 Flexible Flame Retarded Fluro-Elastomer
1107-2-B7 0.76 0.56 0.84 0.84 Semi-Rigid Flame Retarded Polyolefin
1107-2-G 0.76 0.56 0.84 0.84 Fluid Resistant Flame Retarded Elastomer
1107-2-H 0.76 0.56 0.84 0.84 Flexible Zero-Hal Limited Fire Hazard Material
1107-2-J 0.76 0.56 0.84 0.84 Flexible Flame Retarded Polyolefin
1107-2-L 0.76 0.56 0.84 0.84 Flexible Flame Retarded Fluro-Elastomer
1108-1-B7 0.65 0.65 0.68 0.79 Semi-Rigid Flame Retarded Polyolefin
1108-1-G 0.65 0.65 0.68 0.79 Fluid Resistant Flame Retarded Elastomer
1108-1-H 0.65 0.65 0.68 0.79 Flexible Zero-Hal Limited Fire Hazard Material
1108-1-J 0.65 0.65 0.68 0.79 Flexible Flame Retarded Polyolefin
1108-1-L 0.65 0.65 0.68 0.79 Flexible Flame Retarded Fluro-Elastomer
1108-2-B7 0.42 0.33 0.68 0.79 Semi-Rigid Flame Retarded Polyolefin
1108-2-G 0.42 0.33 0.68 0.79 Fluid Resistant Flame Retarded Elastomer
1108-2-H 0.42 0.33 0.68 0.79 Flexible Zero-Hal Limited Fire Hazard Material
1108-2-J 0.42 0.33 0.68 0.79 Flexible Flame Retarded Polyolefin
1108-2-L 0.42 0.33 0.68 0.79 Flexible Flame Retarded Fluro-Elastomer
1109-1-B7 2.60 2.60 3.84 2.60 Semi-Rigid Flame Retarded Polyolefin
1109-1-G 2.60 2.60 3.84 2.60 Fluid Resistant Flame Retarded Elastomer
1109-1-J 2.60 2.60 3.84 2.60 Flexible Flame Retarded Polyolefin
1109-1-L 2.60 2.60 3.84 2.60 Flexible Flame Retarded Fluro-Elastomer
1109-2-B7 2.34 1.72 3.84 2.60 Semi-Rigid Flame Retarded Polyolefin
1109-2-G 2.34 1.72 3.84 2.60 Fluid Resistant Flame Retarded Elastomer
1109-2-H 2.34 1.72 3.84 2.60 Flexible Zero-Hal Limited Fire Hazard Material
1109-2-J 2.34 1.72 3.84 2.60 Flexible Flame Retarded Polyolefin
1109-2-L 2.34 1.72 3.84 2.60 Flexible Flame Retarded Fluro-Elastomer
1109-3-B7 3.00 3.00 3.84 2.60 Semi-Rigid Flame Retarded Polyolefin
1109-3-G 3.00 3.00 3.84 2.60 Fluid Resistant Flame Retarded Elastomer
1109-3-H 3.00 3.00 3.84 2.60 Flexible Zero-Hal Limited Fire Hazard Material
1109-3-J 3.00 3.00 3.84 2.60 Flexible Flame Retarded Polyolefin
1109-3-L 3.00 3.00 3.84 2.60 Flexible Flame Retarded Fluro-Elastomer
1110-2-B7 3.20 2.19 5.04 3.12 Semi-Rigid Flame Retarded Polyolefin
1110-2-G 3.20 2.19 5.04 3.12 Fluid Resistant Flame Retarded Elastomer
1110-2-H 3.20 2.19 5.04 3.12 Flexible Zero-Hal Limited Fire Hazard Material
1110-2-J 3.20 2.19 5.04 3.12 Flexible Flame Retarded Polyolefin
1103-1-B7 1.50 1.50 1.70 1.40 Semi-Rigid Flame Retarded Polyolefin
1105-1-B7 2.06 2.06 3.10 2.10 Semi-Rigid Flame Retarded Polyolefin
1107-1-G 1.12 1.12 0.84 0.84 Fluid Resistant Flame Retarded Elastomer
1109-1-H 2.60 2.60 3.84 2.60 Flexible Zero-Hal Limited Fire Hazard Material
1110-2-L 3.20 2.19 5.04 3.12 Flexible Flame Retarded Fluro-Elastomer
