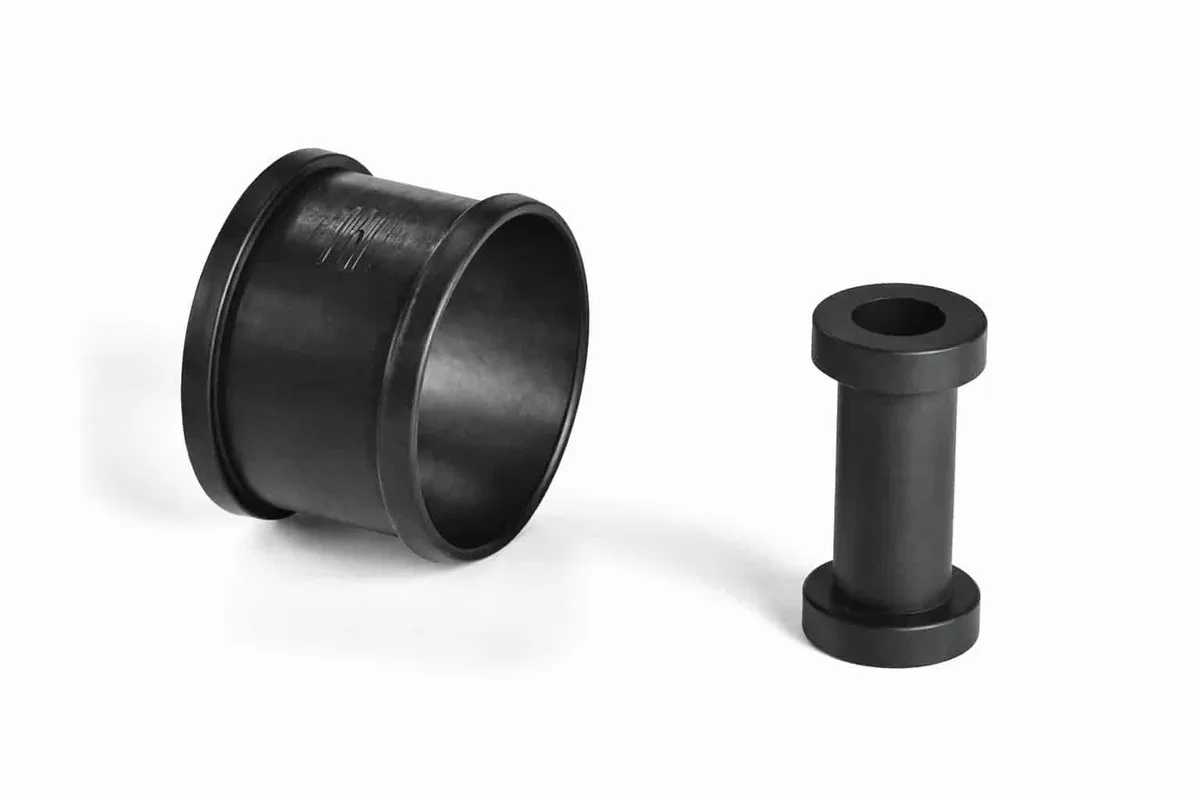

Helashrink locating bushes used for cable location, cushioning, and protection at bulkhead and enclosure entry points

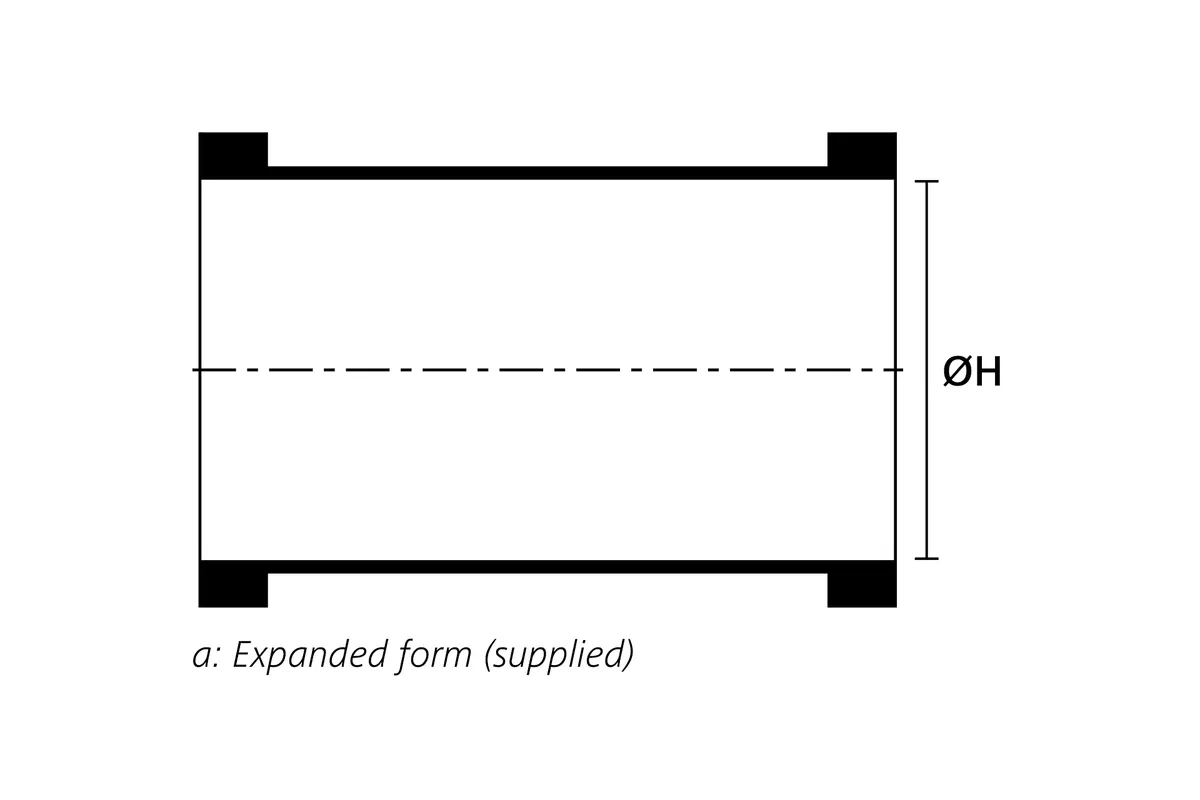

Technical drawing showing the expanded supplied form of a heat shrink locating bush

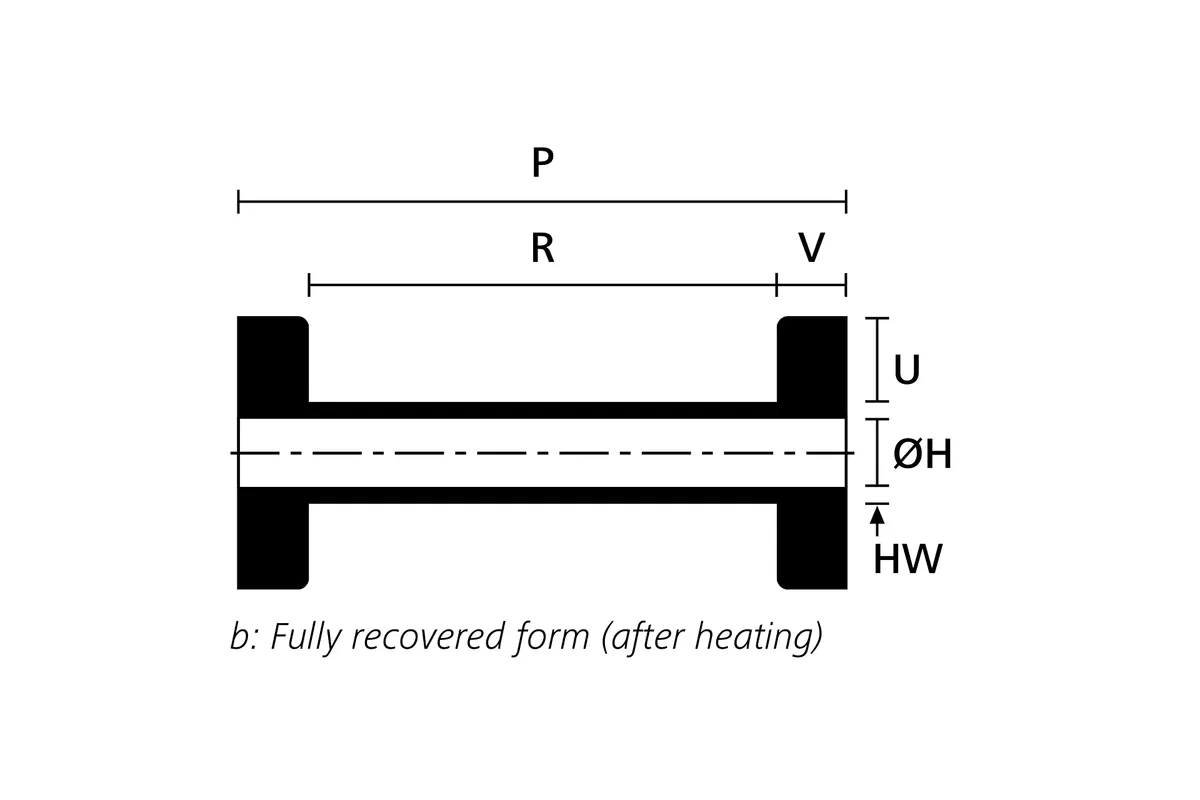

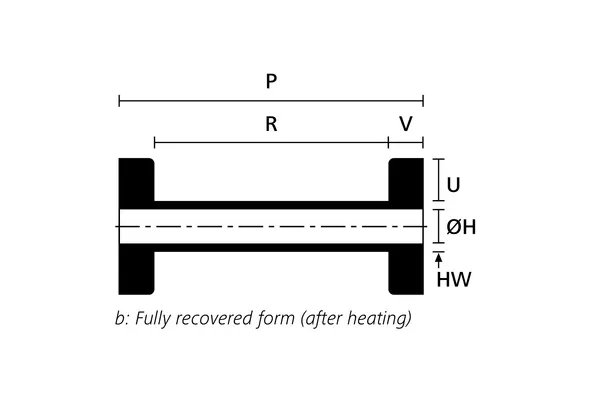

Technical drawing showing the fully recovered form of a heat shrink locating bush
Overview diagram of Helashrink locating bushes used for cable location and protection at bulkhead and enclosure entry points

Locating Brush Heatshrink Shapes

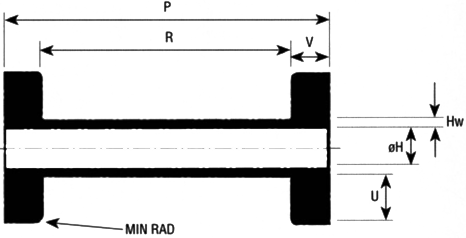

Heat Shrink Brush Shapes

Products

Item # Expanded (Min) H Recovered (Max) H R ±10% U ±10% Material
1764-1-B7 0.50 0.12 0.95 0.180 Semi-Rigid Flame Retarded Polyolefin
1764-1-G 0.50 0.12 0.95 0.180 Fluid Resistant Flame Retarded Elastomer
1764-1-H 0.50 0.12 0.95 0.180 Flexible Zero-Hal Limited Fire Hazard Material
1764-1-J 0.50 0.12 0.95 0.180 Flexible Flame Retarded Polyolefin
1764-1-L 0.50 0.12 0.95 0.180 Flexible Flame Retarded Fluro-Elastomer
1793-3-B7 1.26 0.37 1.00 0.120 Semi-Rigid Flame Retarded Polyolefin
1793-3-G 1.26 0.37 1.00 0.120 Fluid Resistant Flame Retarded Elastomer
1793-3-H 1.26 0.37 1.00 0.120 Flexible Zero-Hal Limited Fire Hazard Material
1793-3-J 1.26 0.37 1.00 0.120 Flexible Flame Retarded Polyolefin
1793-3-L 1.26 0.37 1.00 0.120 Flexible Flame Retarded Fluro-Elastomer
1794-3-B7 1.42 0.71 1.00 0.120 Semi-Rigid Flame Retarded Polyolefin
1794-3-G 1.42 0.71 1.00 0.120 Fluid Resistant Flame Retarded Elastomer
1794-3-J 1.42 0.71 1.00 0.120 Flexible Flame Retarded Polyolefin
1794-3-L 1.42 0.71 1.00 0.120 Flexible Flame Retarded Fluro-Elastomer
1795-3-G 1.58 0.50 1.00 0.120 Fluid Resistant Flame Retarded Elastomer
1795-3-H 1.58 0.50 1.00 0.120 Flexible Zero-Hal Limited Fire Hazard Material
1795-3-J 1.58 0.50 1.00 0.120 Flexible Flame Retarded Polyolefin
1795-3-L 1.58 0.50 1.00 0.120 Flexible Flame Retarded Fluro-Elastomer
1796-3-B7 0.86 0.25 0.95 0.080 Semi-Rigid Flame Retarded Polyolefin
1796-3-G 0.86 0.25 0.95 0.080 Fluid Resistant Flame Retarded Elastomer
1796-3-H 0.86 0.25 0.95 0.080 Flexible Zero-Hal Limited Fire Hazard Material
1796-3-J 0.86 0.25 0.95 0.080 Flexible Flame Retarded Polyolefin
1796-3-L 0.86 0.25 0.95 0.080 Flexible Flame Retarded Fluro-Elastomer
1822-2-B7 0.47 0.23 0.95 0.080 Semi-Rigid Flame Retarded Polyolefin
1822-2-G 0.47 0.23 0.95 0.080 Fluid Resistant Flame Retarded Elastomer
1822-2-H 0.47 0.23 0.95 0.080 Flexible Zero-Hal Limited Fire Hazard Material
1822-2-J 0.47 0.23 0.95 0.080 Flexible Flame Retarded Polyolefin
1822-2-L 0.47 0.23 0.95 0.080 Flexible Flame Retarded Fluro-Elastomer
1823-3-B7 0.63 0.30 0.95 0.098 Semi-Rigid Flame Retarded Polyolefin
1823-3-G 0.63 0.30 0.95 0.098 Fluid Resistant Flame Retarded Elastomer
1823-3-H 0.63 0.30 0.95 0.098 Flexible Zero-Hal Limited Fire Hazard Material
1823-3-L 0.63 0.30 0.95 0.098 Flexible Flame Retarded Fluro-Elastomer
1794-3-H 1.42 0.71 1.00 0.120 Flexible Zero-Hal Limited Fire Hazard Material
1795-3-B7 1.58 0.50 1.00 0.120 Semi-Rigid Flame Retarded Polyolefin
1823-3-J 0.63 0.30 0.95 0.098 Flexible Flame Retarded Polyolefin
