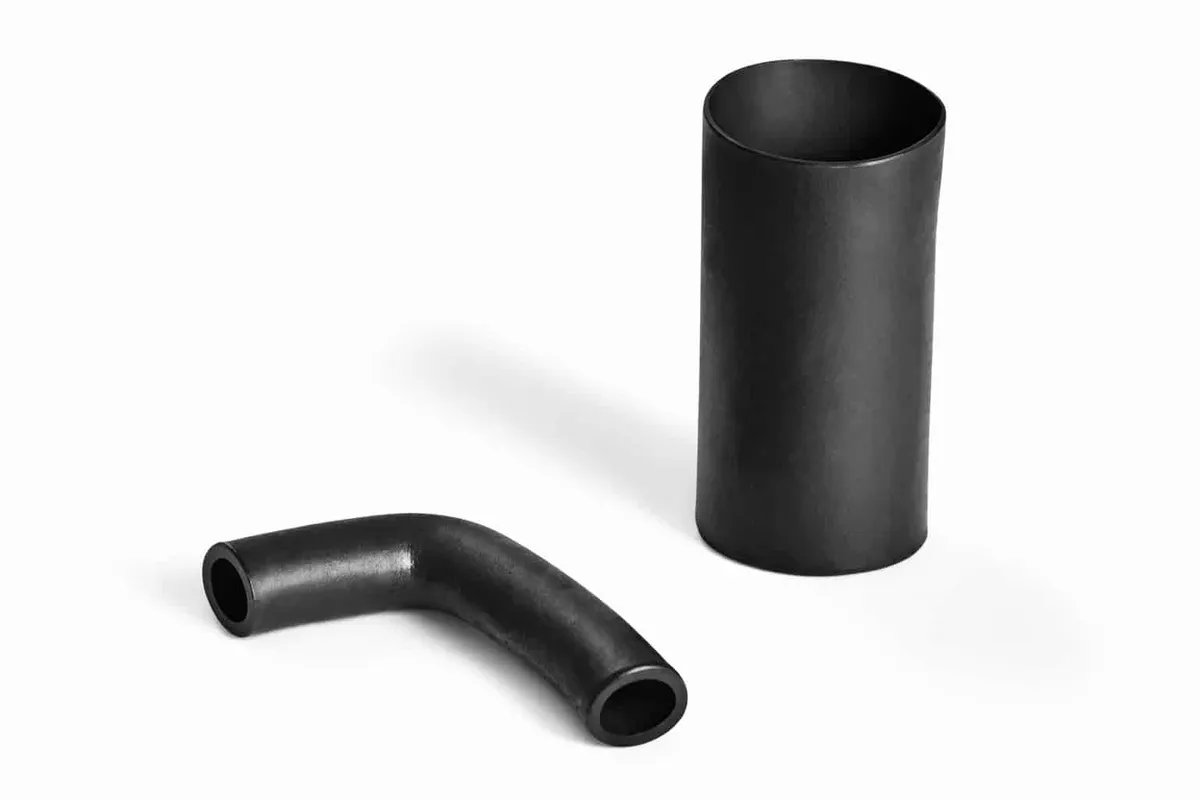

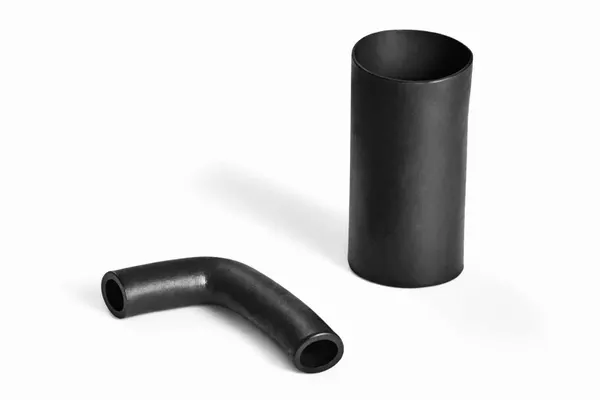

Helashrink 1400 90° elbow heat shrink moulding for cable routing, strain relief, and protection
Overview diagram of Helashrink 1400 series 90° angle elbow heat shrink molded shape for cable routing

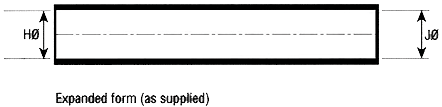

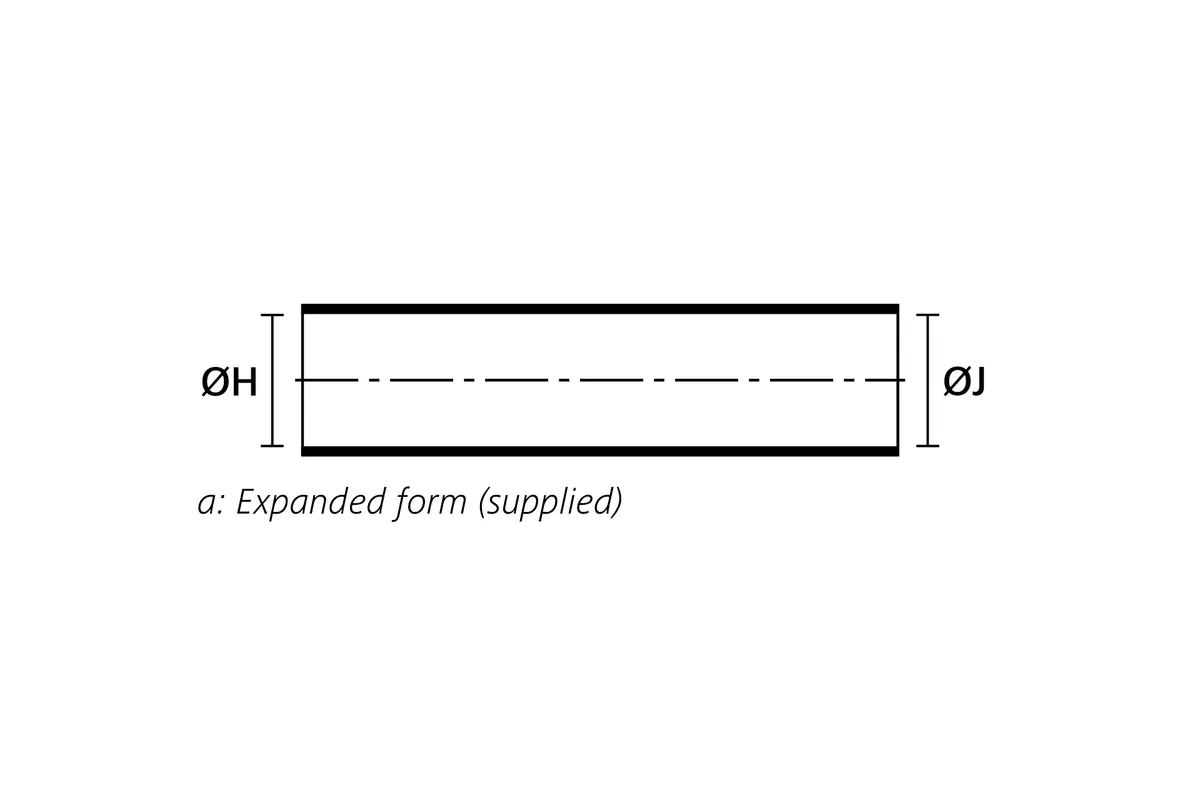

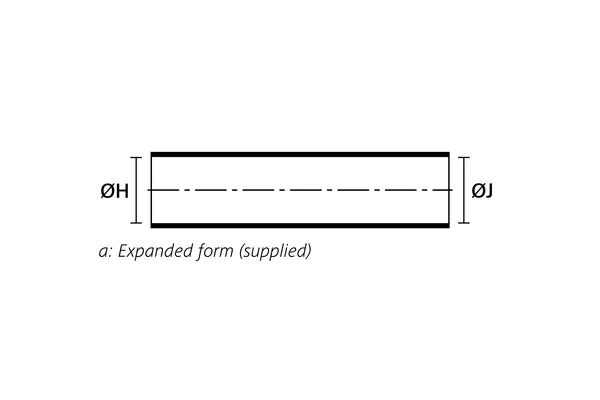

Technical drawing showing the expanded supplied form of a 90° heat shrink elbow shape

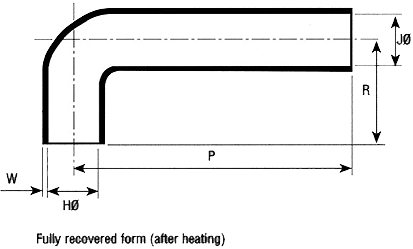

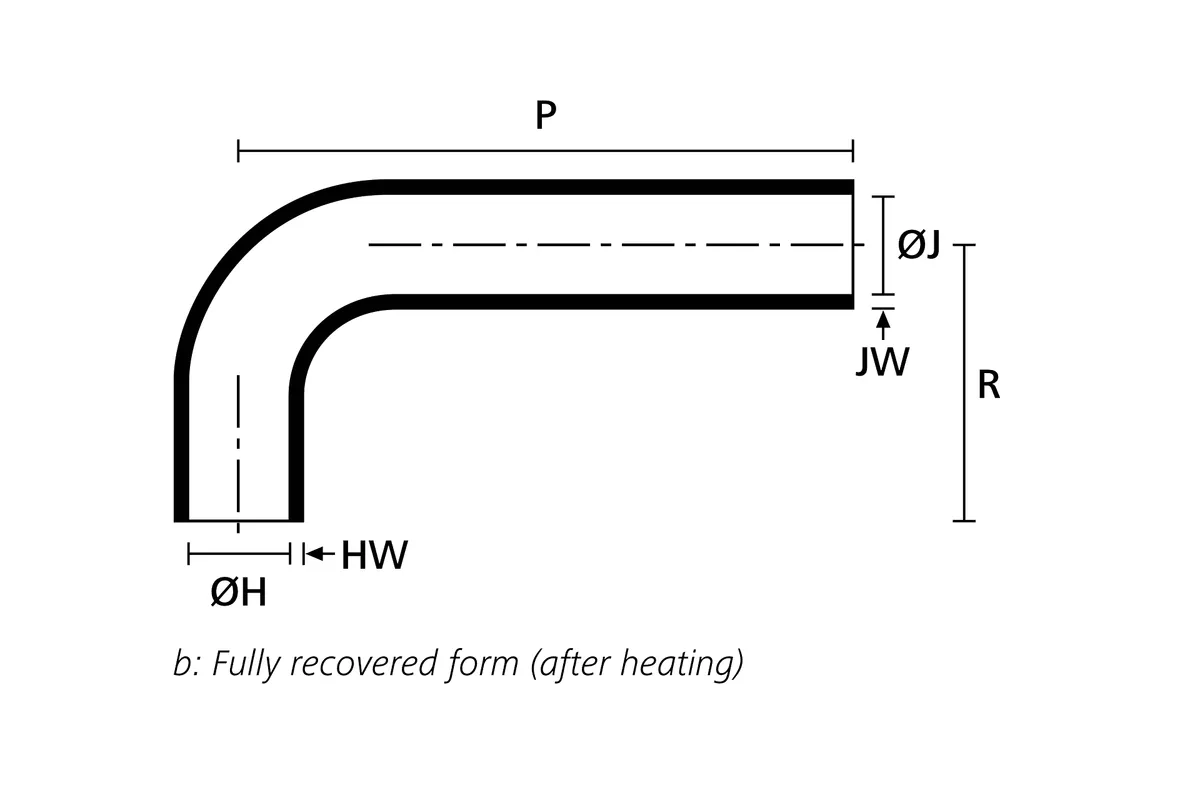

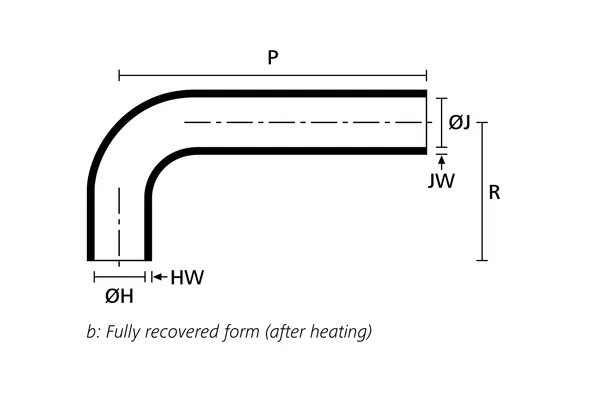

Technical drawing showing the fully recovered form of a 90° heat shrink elbow shape

1400 Series 90º Angle Elbow Heatshrink Shapes

Heat Shrink Elbow Boots

Products

Item # Expanded (Min) H Expanded (Min) J Recovered (Max) H Recovered (Max) J Material
1401-1-B7 1.25 1.25 0.62 0.62 Semi-Rigid Flame Retarded Polyolefin
1401-1-G 1.25 1.25 0.62 0.62 Fluid Resistant Flame Retarded Elastomer
1401-1-H 1.25 1.25 0.62 0.62 Flexible Zero-Hal Limited Fire Hazard Material
1401-1-J 1.25 1.25 0.62 0.62 Flexible Flame Retarded Polyolefin
1401-1-L 1.25 1.25 0.62 0.62 Flexible Flame Retarded Fluro-Elastomer
1401-2-B7 1.50 1.50 0.62 0.62 Semi-Rigid Flame Retarded Polyolefin
1401-2-G 1.50 1.50 0.62 0.62 Fluid Resistant Flame Retarded Elastomer
1401-2-H 1.50 1.50 0.62 0.62 Flexible Zero-Hal Limited Fire Hazard Material
1401-2-J 1.50 1.50 0.62 0.62 Flexible Flame Retarded Polyolefin
1401-2-L 1.50 1.50 0.62 0.62 Flexible Flame Retarded Fluro-Elastomer
1403-1-B7 0.62 0.62 0.31 0.31 Semi-Rigid Flame Retarded Polyolefin
1403-1-G 0.62 0.62 0.31 0.31 Fluid Resistant Flame Retarded Elastomer
1403-1-H 0.62 0.62 0.31 0.31 Flexible Zero-Hal Limited Fire Hazard Material
1403-1-J 0.62 0.62 0.31 0.31 Flexible Flame Retarded Polyolefin
1403-1-L 0.62 0.62 0.31 0.31 Flexible Flame Retarded Fluro-Elastomer
1405-1-B7 0.98 0.98 0.31 0.31 Semi-Rigid Flame Retarded Polyolefin
1405-1-G 0.98 0.98 0.31 0.31 Fluid Resistant Flame Retarded Elastomer
1405-1-H 0.98 0.98 0.31 0.31 Flexible Zero-Hal Limited Fire Hazard Material
1405-1-J 0.98 0.98 0.31 0.31 Flexible Flame Retarded Polyolefin
1405-1-L 0.98 0.98 0.31 0.31 Flexible Flame Retarded Fluro-Elastomer
1406-1-B7 0.79 0.79 0.31 0.31 Semi-Rigid Flame Retarded Polyolefin
1406-1-G 0.79 0.79 0.31 0.31 Fluid Resistant Flame Retarded Elastomer
1406-1-H 0.79 0.79 0.31 0.31 Flexible Zero-Hal Limited Fire Hazard Material
1406-1-J 0.79 0.79 0.31 0.31 Flexible Flame Retarded Polyolefin
1408-2-B7 0.75 0.75 0.35 0.35 Semi-Rigid Flame Retarded Polyolefin
1408-2-G 0.75 0.75 0.35 0.35 Fluid Resistant Flame Retarded Elastomer
1408-2-H 0.75 0.75 0.35 0.35 Flexible Zero-Hal Limited Fire Hazard Material
1408-2-J 0.75 0.75 0.35 0.35 Flexible Flame Retarded Polyolefin
1406-1-L 0.79 0.79 0.31 0.31 Flexible Flame Retarded Fluro-Elastomer
1408-2-L 0.75 0.75 0.35 0.35 Flexible Flame Retarded Fluro-Elastomer
