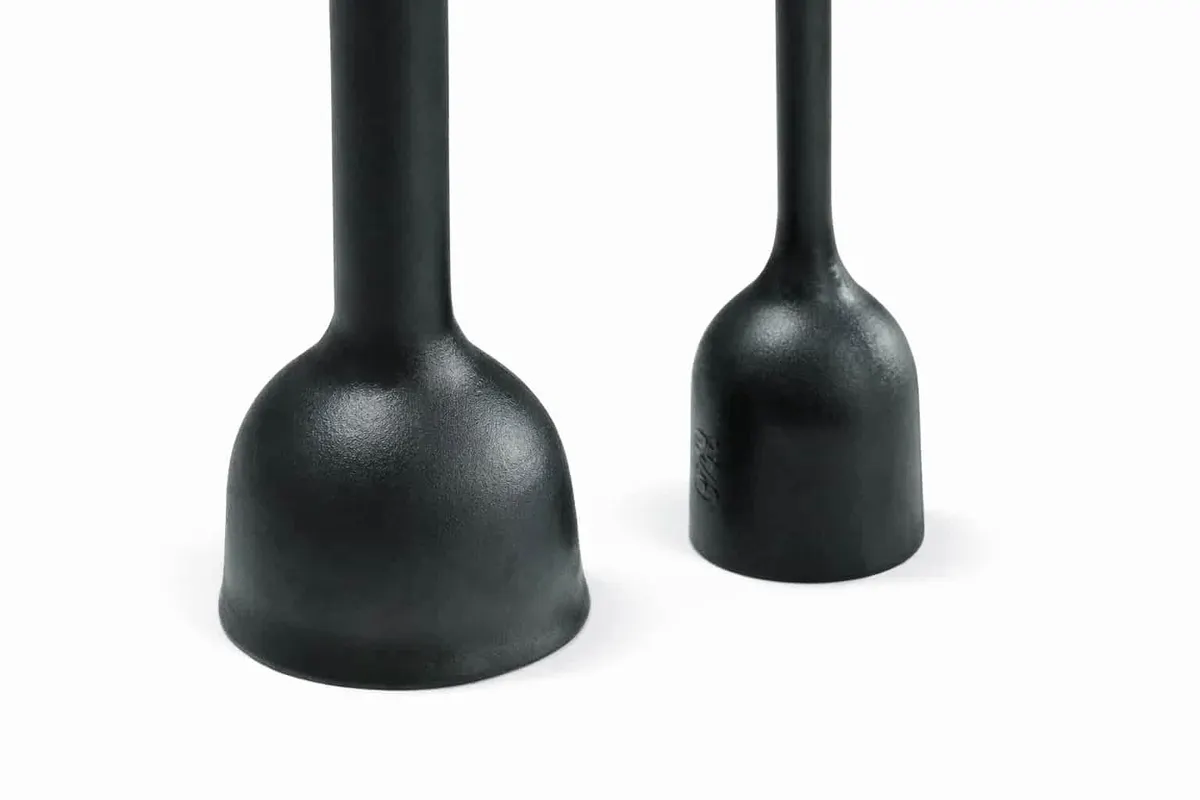

Helashrink 170 bottle heat shrink boot with rib for partially loaded connectors and small cables

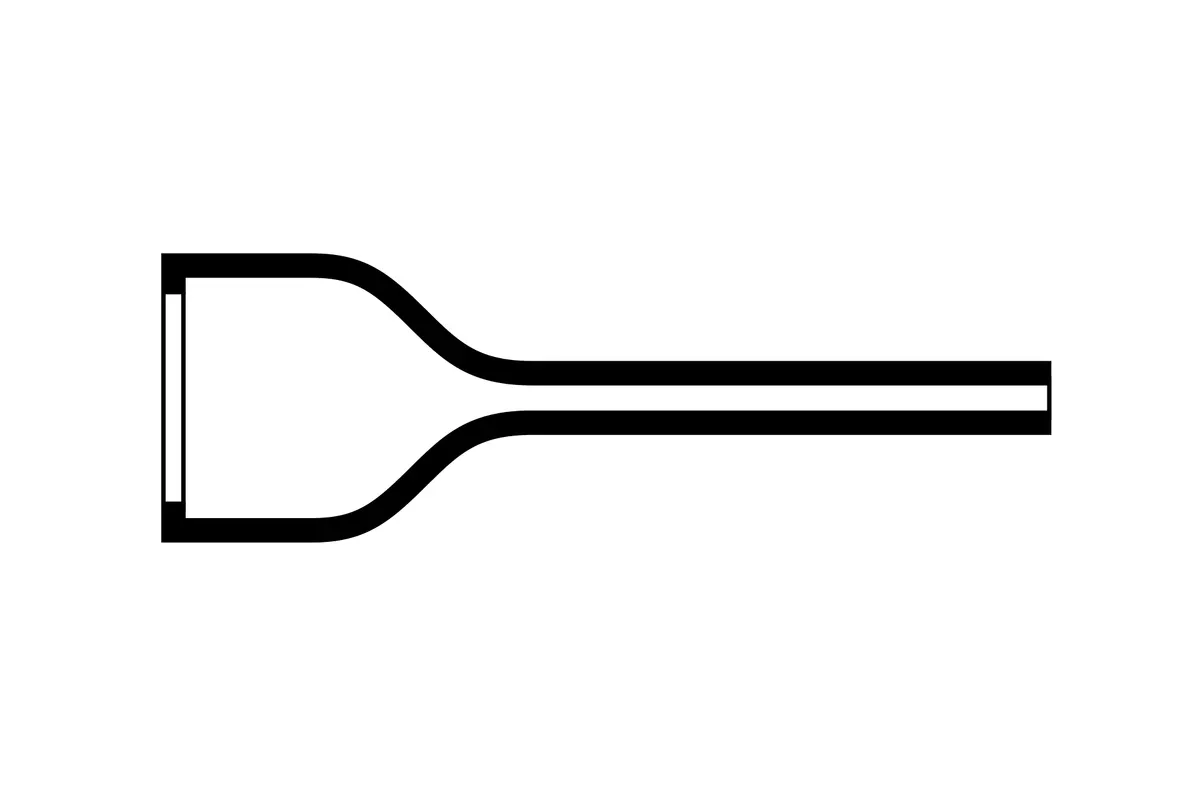

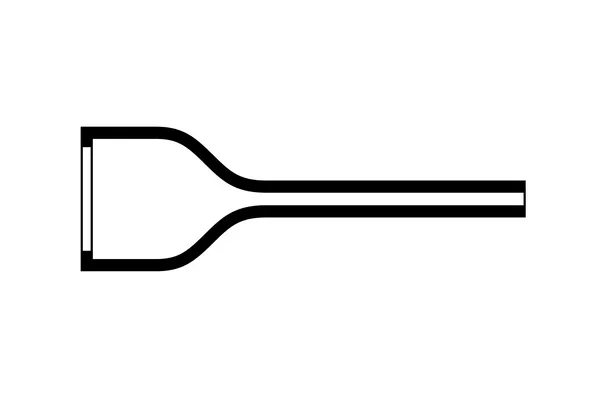

Overview diagram of Helashrink 170 series bottle shaped heat shrink boots with rib for VG style cable strain relief

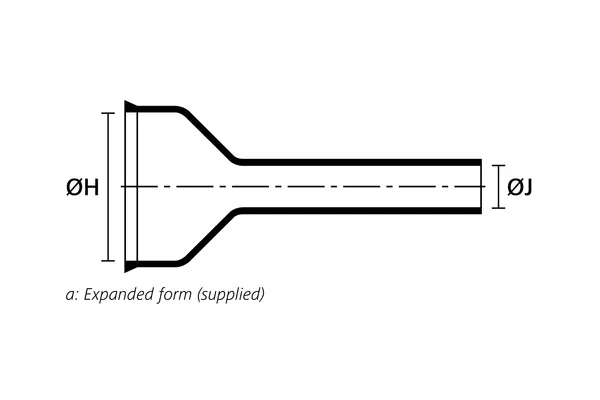

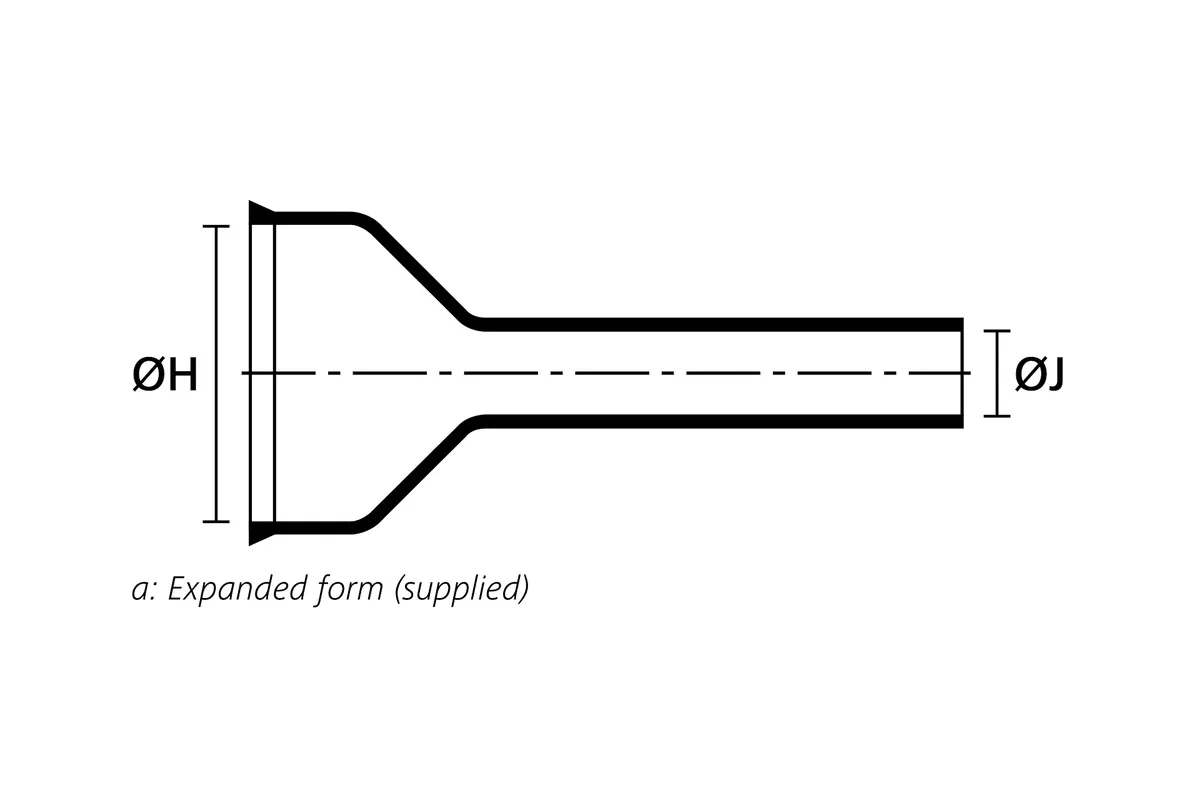

Technical drawing showing the expanded supplied form of a bottle shaped heat shrink molded shape with rib

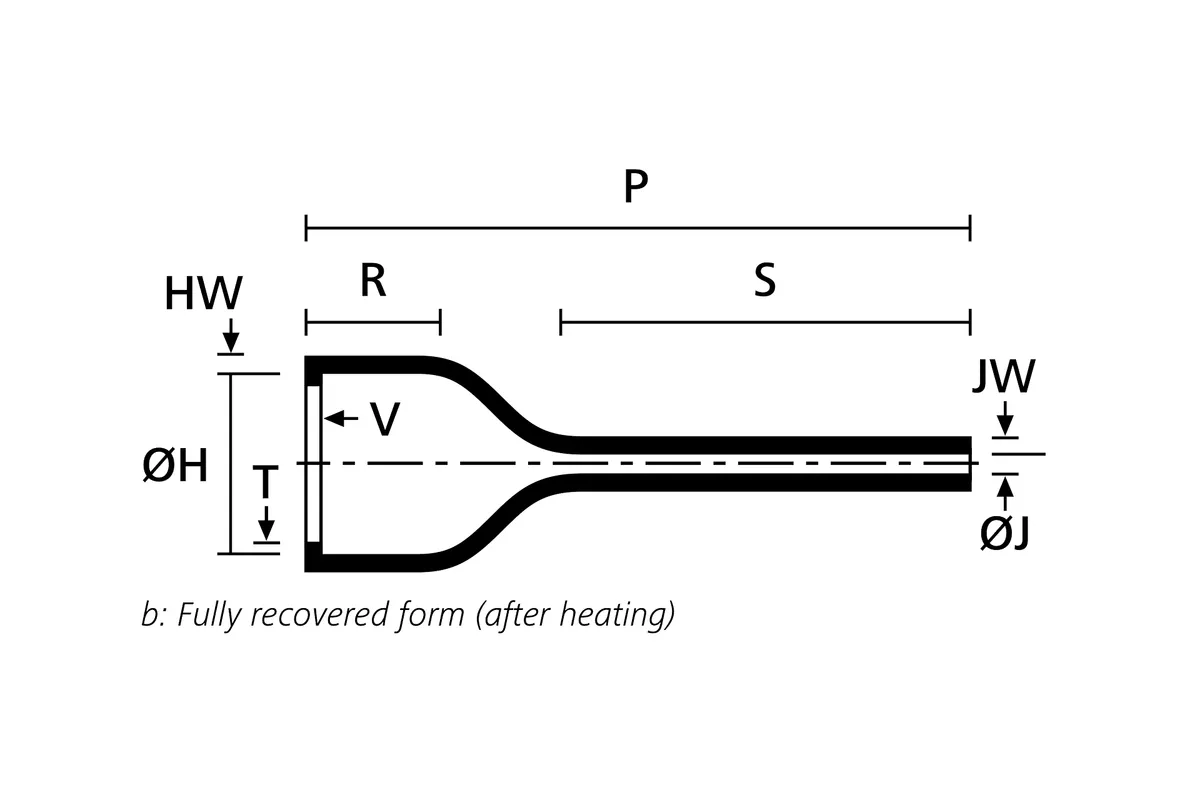

Technical drawing showing the fully recovered form of a bottle shaped heat shrink molded shape with rib

170 Series Bottle Heatshrink Shapes with Rib (VG Style)

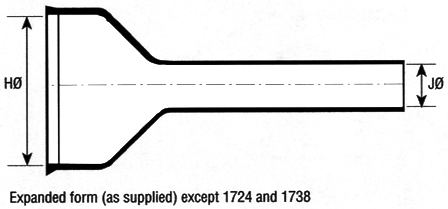

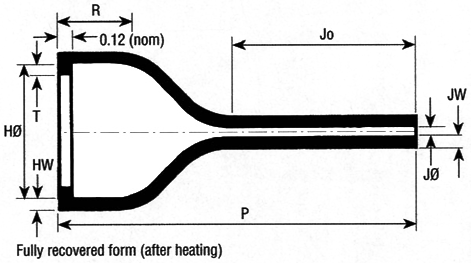

Heat Shrink Bottle Boots

Products

Item # Expanded (Min) H Expanded (Min) J P ±10% R ±10% Material
1724-1-B7 0.79 0.79 1.65 0.79 Semi-Rigid Flame Retarded Polyolefin
1724-1-G 0.79 0.79 1.65 0.79 Fluid Resistant Flame Retarded Elastomer
1724-1-H 0.79 0.79 1.65 0.79 Flexible Zero-Hal Limited Fire Hazard Material
1724-1-J 0.79 0.79 1.65 0.79 Flexible Flame Retarded Polyolefin
1724-1-L 0.79 0.79 1.65 0.79 Flexible Flame Retarded Fluro-Elastomer
1738-1-B7 0.79 0.79 1.26 0.39 Semi-Rigid Flame Retarded Polyolefin
1738-1-G 0.79 0.79 1.26 0.39 Fluid Resistant Flame Retarded Elastomer
1738-1-H 0.79 0.79 1.26 0.39 Flexible Zero-Hal Limited Fire Hazard Material
1738-1-J 0.79 0.79 1.26 0.39 Flexible Flame Retarded Polyolefin
1738-1-L 0.79 0.79 1.26 0.39 Flexible Flame Retarded Fluro-Elastomer
176-1-B7 0.76 0.25 2.37 0.46 Semi-Rigid Flame Retarded Polyolefin
176-1-G 0.76 0.25 2.37 0.46 Fluid Resistant Flame Retarded Elastomer
176-1-H 0.76 0.25 2.37 0.46 Flexible Zero-Hal Limited Fire Hazard Material
176-1-J 0.76 0.25 2.37 0.46 Flexible Flame Retarded Polyolefin
176-1-L 0.76 0.25 2.37 0.46 Flexible Flame Retarded Fluro-Elastomer
176-2-B7 0.76 0.25 1.18 0.46 Semi-Rigid Flame Retarded Polyolefin
176-2-G 0.76 0.25 1.18 0.46 Fluid Resistant Flame Retarded Elastomer
176-2-H 0.76 0.25 1.18 0.46 Flexible Zero-Hal Limited Fire Hazard Material
176-2-J 0.76 0.25 1.18 0.46 Flexible Flame Retarded Polyolefin
176-3-B7 0.98 0.16 1.77 0.46 Semi-Rigid Flame Retarded Polyolefin
176-3-G 0.98 0.16 1.77 0.46 Fluid Resistant Flame Retarded Elastomer
176-3-H 0.98 0.16 1.77 0.46 Flexible Zero-Hal Limited Fire Hazard Material
176-3-J 0.98 0.16 1.77 0.46 Flexible Flame Retarded Polyolefin
176-4-B7 0.76 0.25 2.37 0.46 Semi-Rigid Flame Retarded Polyolefin
176-4-G 0.76 0.25 2.37 0.46 Fluid Resistant Flame Retarded Elastomer
176-4-H 0.76 0.25 2.37 0.46 Flexible Zero-Hal Limited Fire Hazard Material
176-4-J 0.76 0.25 2.37 0.46 Flexible Flame Retarded Polyolefin
176-4-L 0.76 0.25 2.37 0.46 Flexible Flame Retarded Fluro-Elastomer
177-1-B7 1.03 0.30 2.92 0.48 Semi-Rigid Flame Retarded Polyolefin
177-1-H 1.03 0.30 2.92 0.48 Flexible Zero-Hal Limited Fire Hazard Material
177-1-J 1.03 0.30 2.92 0.48 Flexible Flame Retarded Polyolefin
177-1-L 1.03 0.30 2.92 0.48 Flexible Flame Retarded Fluro-Elastomer
178-1-B7 1.35 0.38 3.32 0.48 Semi-Rigid Flame Retarded Polyolefin
178-1-G 1.35 0.38 3.32 0.48 Fluid Resistant Flame Retarded Elastomer
178-1-H 1.35 0.38 3.32 0.48 Flexible Zero-Hal Limited Fire Hazard Material
178-1-J 1.35 0.38 3.32 0.48 Flexible Flame Retarded Polyolefin
178-1-L 1.35 0.38 3.32 0.48 Flexible Flame Retarded Fluro-Elastomer
179-1-B7 1.72 0.45 3.92 0.48 Semi-Rigid Flame Retarded Polyolefin
179-1-G 1.72 0.45 3.92 0.48 Fluid Resistant Flame Retarded Elastomer
179-1-H 1.72 0.45 3.92 0.48 Flexible Zero-Hal Limited Fire Hazard Material
179-1-J 1.72 0.45 3.92 0.48 Flexible Flame Retarded Polyolefin
179-1-L 1.72 0.45 3.92 0.48 Flexible Flame Retarded Fluro-Elastomer
176-2-L 0.76 0.25 1.18 0.46 Flexible Flame Retarded Fluro-Elastomer
176-3-L 0.98 0.16 1.77 0.46 Flexible Flame Retarded Fluro-Elastomer
177-1-G 1.03 0.30 2.92 0.48 Fluid Resistant Flame Retarded Elastomer
