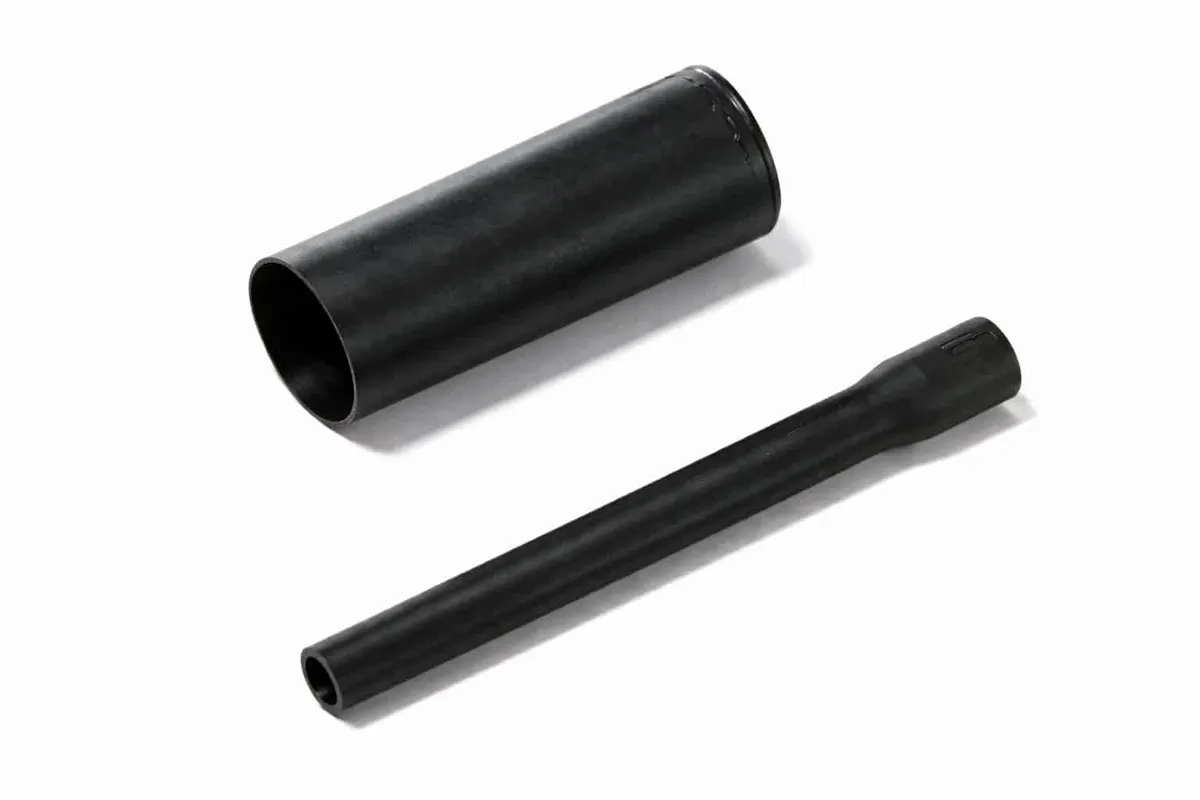

313F322-386 Straight Boot Heatshrink Shapes
Heat Shrink Straight Boots
Products

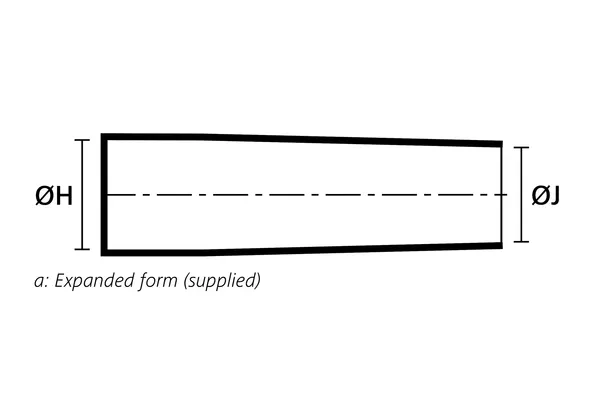

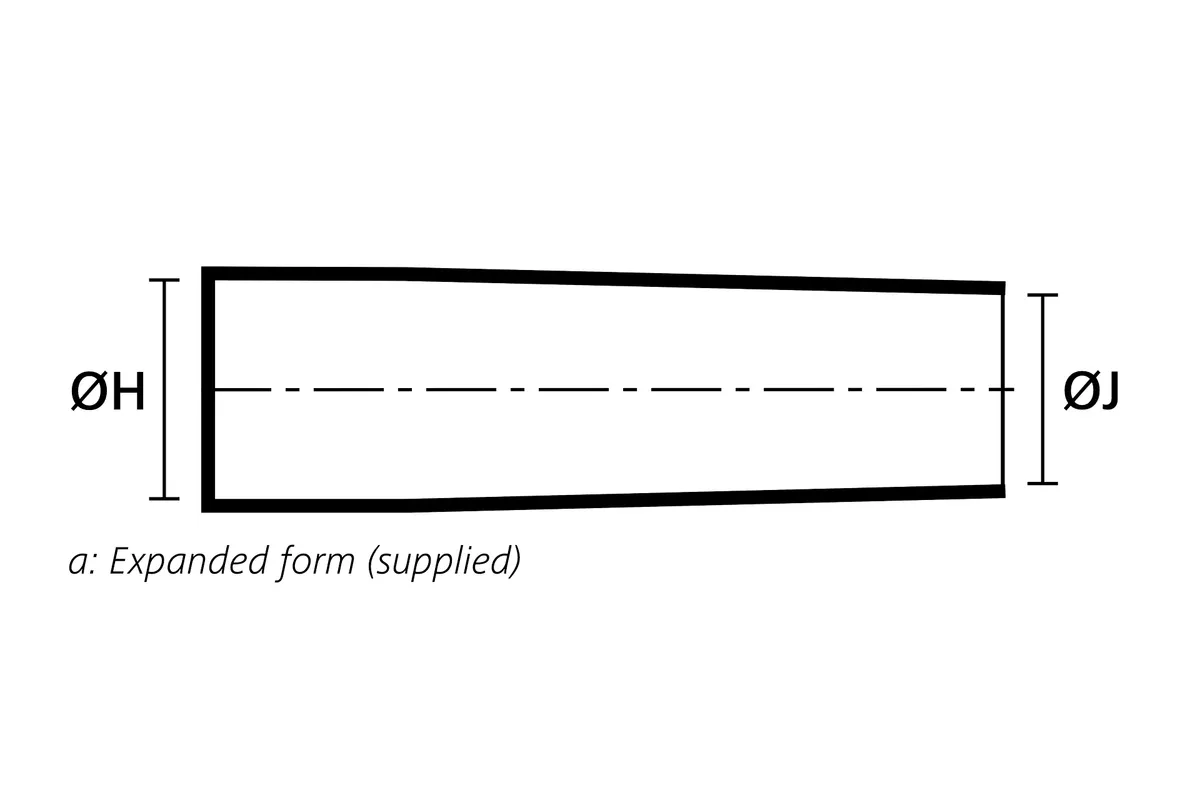

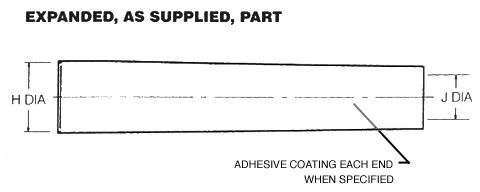

| Item # | H Dia. (Min X) | H Dia. (Max R) | J Dia. (Min X) | J Dia. (Max R) | Material |
|---|---|---|---|---|---|
| 313F32-6 | 0.94 | 0.39 | 0.68 | 0.26 | Flexible Flame Retardant Polyolefin |
| 313F32-8 | 0.94 | 0.39 | 0.68 | 0.26 | Viton-Polyester Polymer Blend |
| 313F32-9 | 0.94 | 0.39 | 0.68 | 0.26 | Modified Elastomer Blend |
| 313F332-6 | 1.07 | 0.52 | 0.82 | 0.30 | Flexible Flame Retardant Polyolefin |
| 313F332-8 | 1.07 | 0.52 | 0.82 | 0.30 | Viton-Polyester Polymer Blend |
| 313F332-9 | 1.07 | 0.52 | 0.82 | 0.30 | Modified Elastomer Blend |
| 313F343-6 | 1.22 | 0.73 | 0.96 | 0.35 | Flexible Flame Retardant Polyolefin |
| 313F343-8 | 1.22 | 0.73 | 0.96 | 0.35 | Viton-Polyester Polymer Blend |
| 313F343-9 | 1.22 | 0.73 | 0.96 | 0.35 | Modified Elastomer Blend |
| 313F353-6 | 1.40 | 0.87 | 1.13 | 0.40 | Flexible Flame Retardant Polyolefin |
| 313F353-8 | 1.40 | 0.87 | 1.13 | 0.40 | Viton-Polyester Polymer Blend |
| 313F353-9 | 1.40 | 0.87 | 1.13 | 0.40 | Modified Elastomer Blend |
| 313F364-6 | 1.53 | 1.11 | 1.24 | 0.43 | Flexible Flame Retardant Polyolefin |
| 313F364-9 | 1.53 | 1.11 | 1.24 | 0.43 | Modified Elastomer Blend |
| 313F374-6 | 1.78 | 1.27 | 1.51 | 0.50 | Flexible Flame Retardant Polyolefin |
| 313F374-8 | 1.78 | 1.27 | 1.51 | 0.50 | Viton-Polyester Polymer Blend |
| 313F374-9 | 1.78 | 1.27 | 1.51 | 0.50 | Modified Elastomer Blend |
| 313F385-6 | 2.03 | 1.79 | 1.79 | 0.59 | Flexible Flame Retardant Polyolefin |
| 313F385-8 | 2.03 | 1.79 | 1.79 | 0.59 | Viton-Polyester Polymer Blend |
| 313F385-9 | 2.03 | 1.79 | 1.79 | 0.59 | Modified Elastomer Blend |
| 313F396-6 | 2.47 | 1.79 | 2.10 | 0.66 | Flexible Flame Retardant Polyolefin |
| 313F396-9 | 2.47 | 1.79 | 2.10 | 0.66 | Modified Elastomer Blend |
| 313F364-8 | 1.53 | 1.11 | 1.24 | 0.43 | Viton-Polyester Polymer Blend |
| 313F396-8 | 2.47 | 1.79 | 2.10 | 0.66 | Viton-Polyester Polymer Blend |
