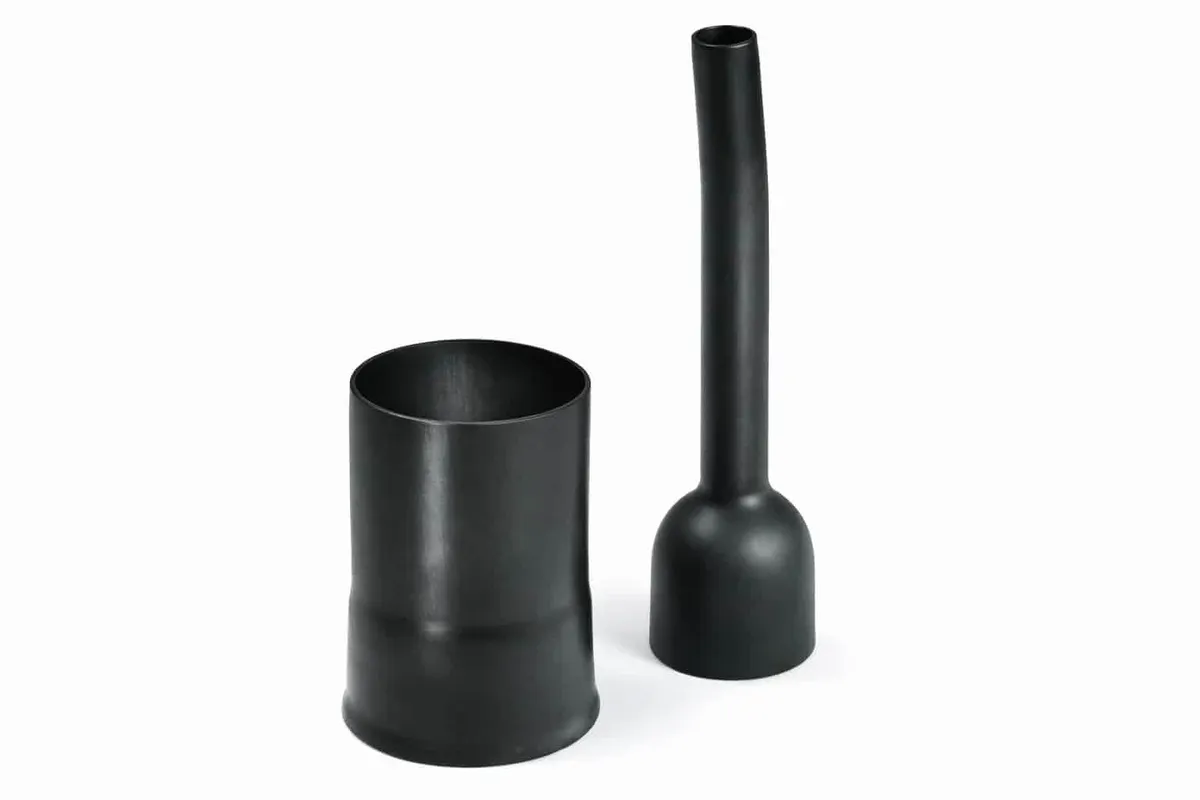

Helashrink 140 long outlet heat shrink boot without rib for aerospace harness strain relief and flex

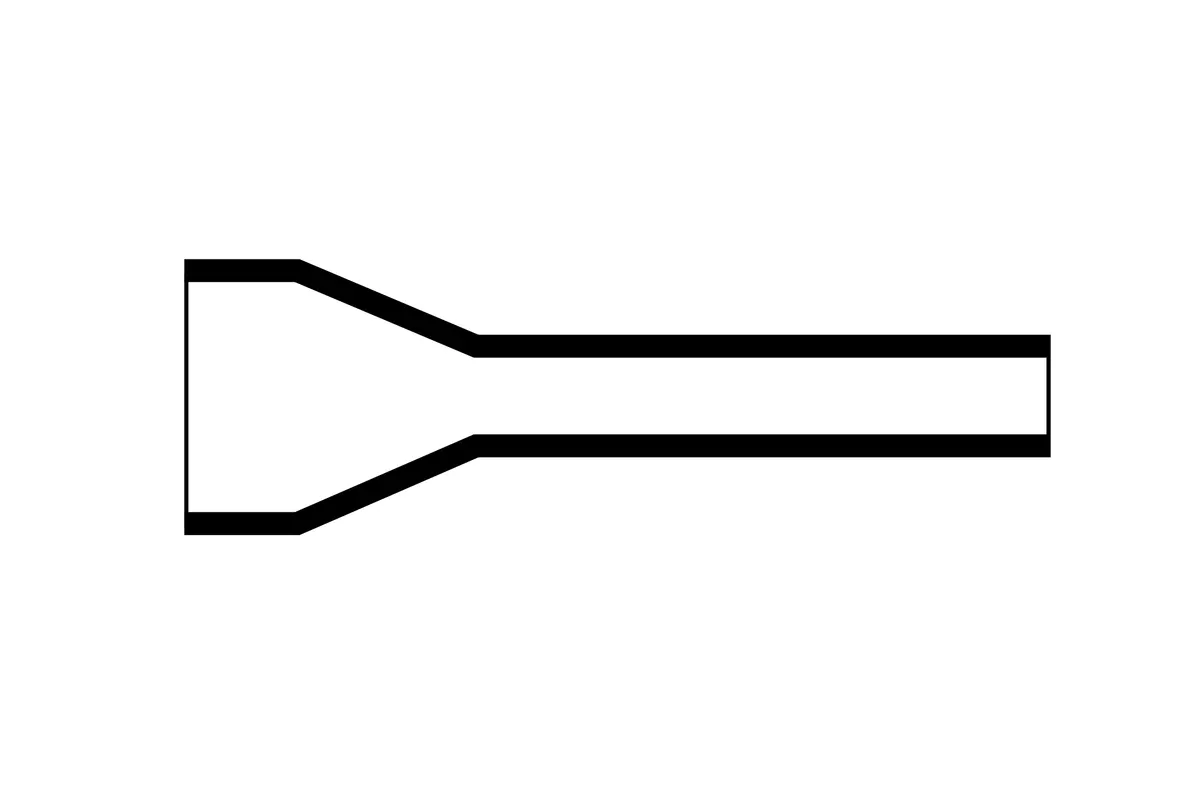

Overview diagram of Helashrink 140 series long outlet heat shrink shapes without rib for flexible cable routing

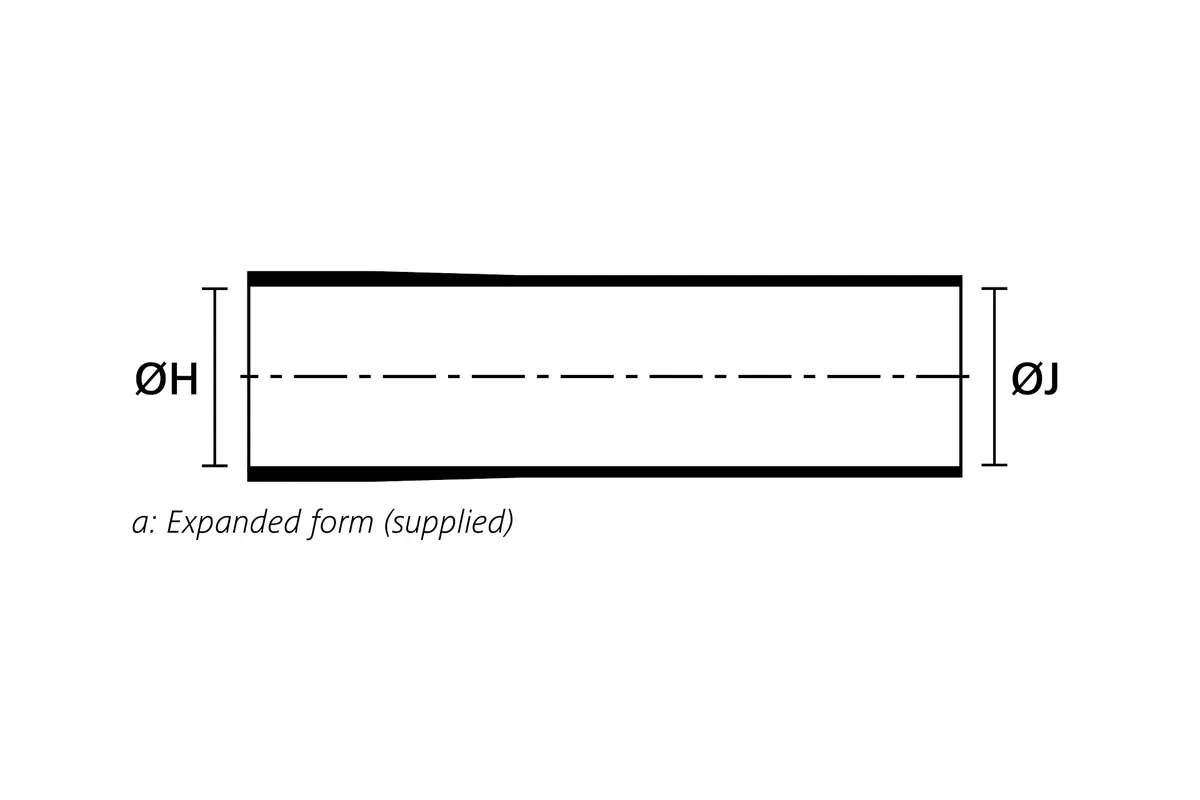

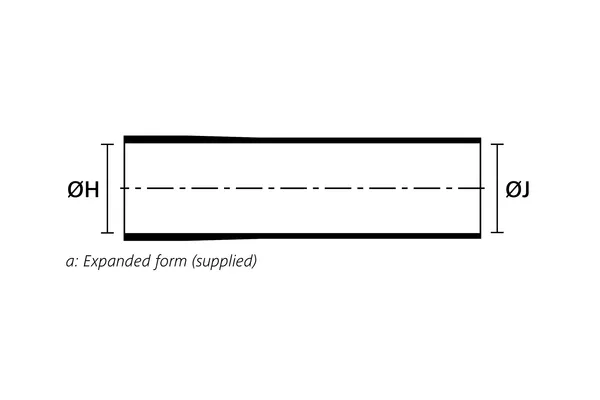

Technical drawing showing the expanded supplied form of a long outlet heat shrink molded shape without rib

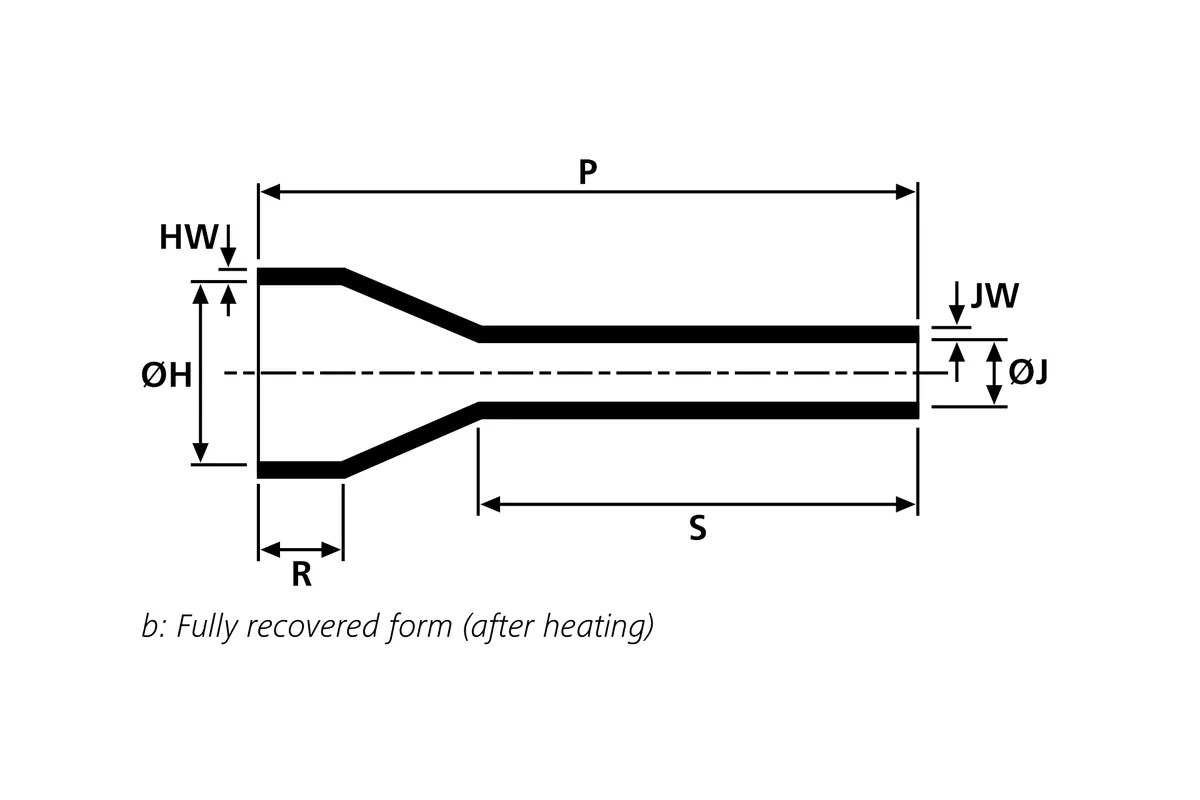

Technical drawing showing the fully recovered form of a long outlet heat shrink molded shape without rib

140 Series Long Outlet Heatshrink Shapes without Rib

Heat Shrink Outlet Shapes

Products

Item # Expanded (Min) H Expanded (Min) J Recovered (Max) H Recovered (Max) J Material
146-1-B7 0.79 0.79 0.57 0.21 Semi-Rigid Flame Retarded Polyolefin
146-1-G 0.79 0.79 0.57 0.21 Fluid Resistant Flame Retarded Elastomer
146-1-H 0.79 0.79 0.57 0.21 Flexible Zero-Hal Limited Fire Hazard Material
146-1-J 0.79 0.79 0.57 0.21 Flexible Flame Retarded Polyolefin
146-1-L 0.79 0.79 0.57 0.21 Flexible Flame Retarded Fluro-Elastomer
146-2-B7 0.88 0.44 0.57 0.21 Semi-Rigid Flame Retarded Polyolefin
146-2-G 0.88 0.44 0.57 0.21 Fluid Resistant Flame Retarded Elastomer
146-2-H 0.88 0.44 0.57 0.21 Flexible Zero-Hal Limited Fire Hazard Material
146-2-J 0.88 0.44 0.57 0.21 Flexible Flame Retarded Polyolefin
146-2-L 0.88 0.44 0.57 0.21 Flexible Flame Retarded Fluro-Elastomer
148-1-B7 1.20 1.20 0.71 0.31 Semi-Rigid Flame Retarded Polyolefin
148-1-G 1.20 1.20 0.71 0.31 Fluid Resistant Flame Retarded Elastomer
148-1-H 1.20 1.20 0.71 0.31 Flexible Zero-Hal Limited Fire Hazard Material
148-1-J 1.20 1.20 0.71 0.31 Flexible Flame Retarded Polyolefin
148-1-L 1.20 1.20 0.71 0.31 Flexible Flame Retarded Fluro-Elastomer
148-2-B7 1.20 0.60 0.71 0.31 Semi-Rigid Flame Retarded Polyolefin
148-2-G 1.20 0.60 0.71 0.31 Fluid Resistant Flame Retarded Elastomer
148-2-H 1.20 0.60 0.71 0.31 Flexible Zero-Hal Limited Fire Hazard Material
148-2-J 1.20 0.60 0.71 0.31 Flexible Flame Retarded Polyolefin
148-2-L 1.20 0.60 0.71 0.31 Flexible Flame Retarded Fluro-Elastomer
149-1-B7 1.62 1.62 0.86 0.40 Semi-Rigid Flame Retarded Polyolefin
149-1-G 1.62 1.62 0.86 0.40 Fluid Resistant Flame Retarded Elastomer
149-1-H 1.62 1.62 0.86 0.40 Flexible Zero-Hal Limited Fire Hazard Material
149-1-J 1.62 1.62 0.86 0.40 Flexible Flame Retarded Polyolefin
149-1-L 1.62 1.62 0.86 0.40 Flexible Flame Retarded Fluro-Elastomer
150-1-B7 2.05 2.05 1.22 0.50 Semi-Rigid Flame Retarded Polyolefin
150-1-G 2.05 2.05 1.22 0.50 Fluid Resistant Flame Retarded Elastomer
150-1-H 2.05 2.05 1.22 0.50 Flexible Zero-Hal Limited Fire Hazard Material
150-1-L 2.05 2.05 1.22 0.50 Flexible Flame Retarded Fluro-Elastomer
150-1-J 2.05 2.05 1.22 0.50 Flexible Flame Retarded Polyolefin
