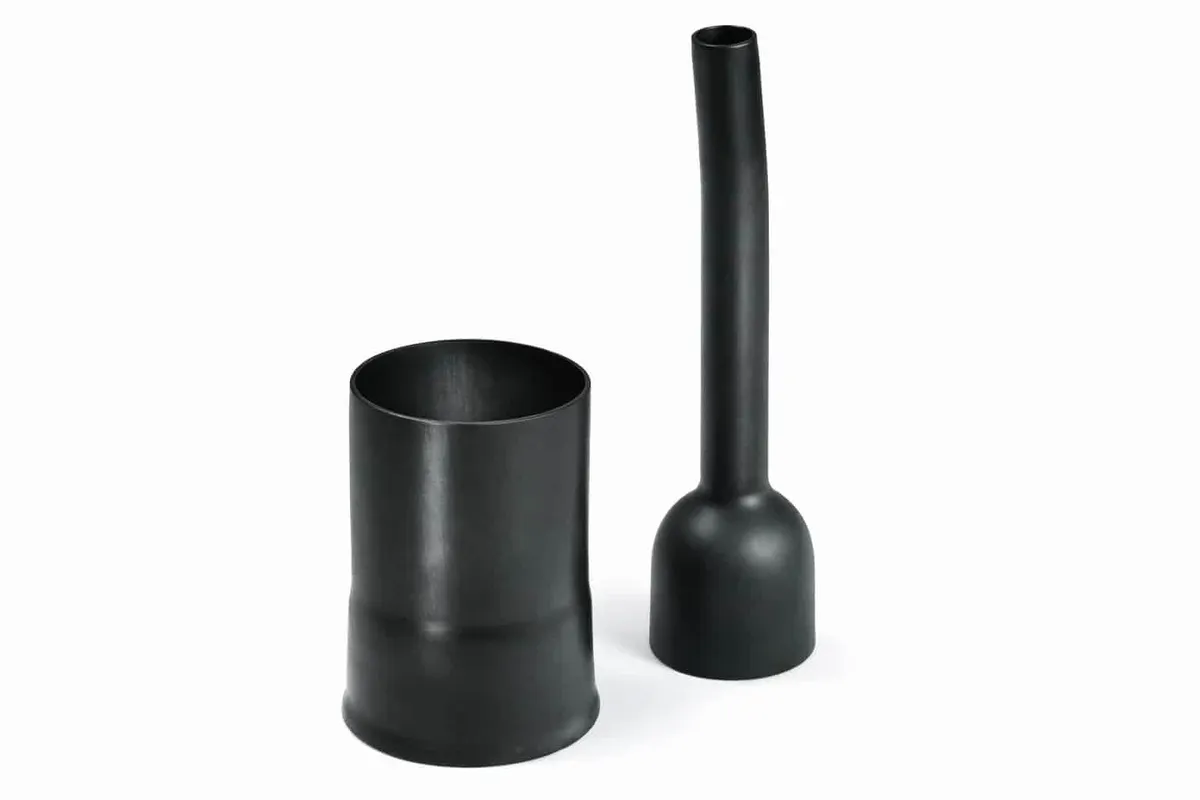

130 Series Long Outlet Heatshrink Shapes with Rib
Heat Shrink Outlet Shapes
Products

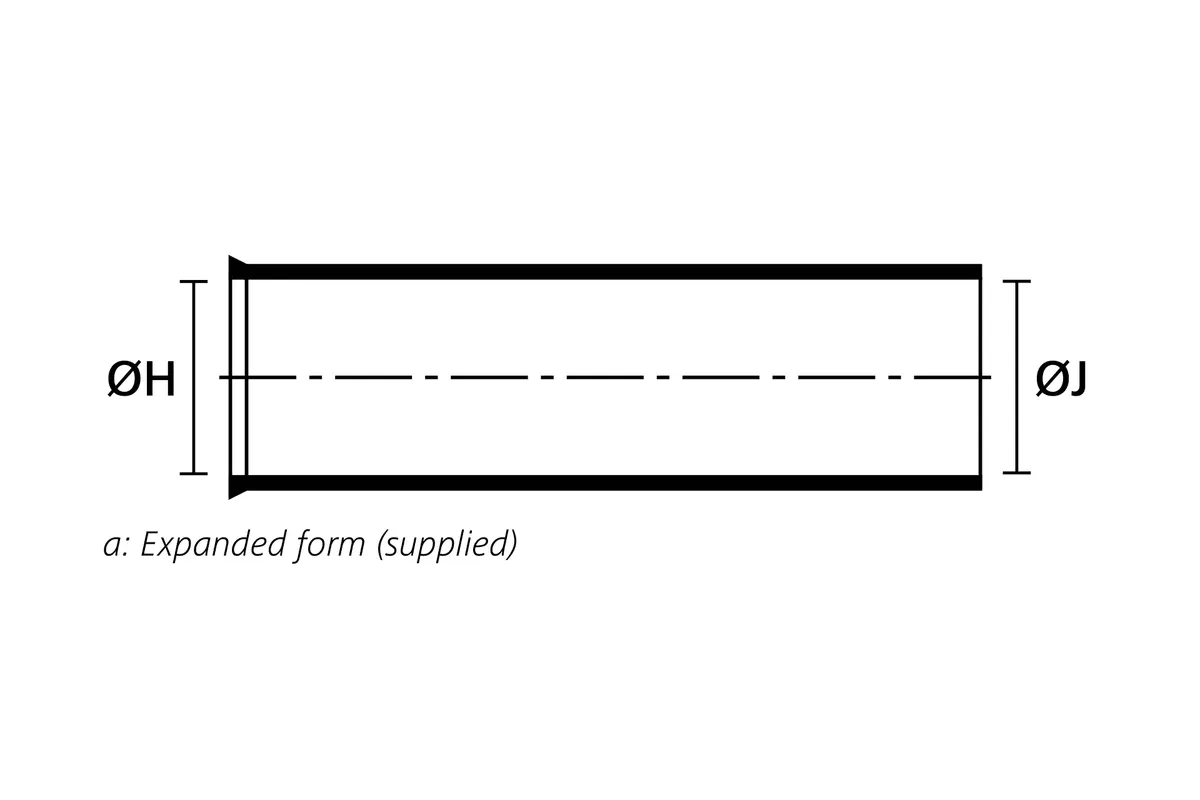

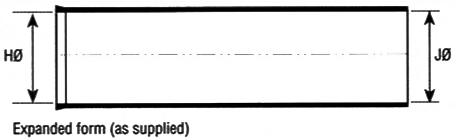

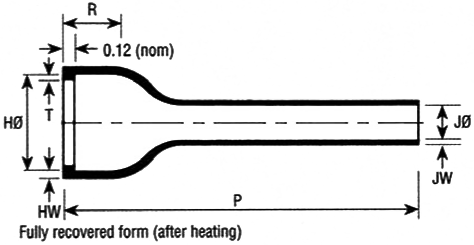

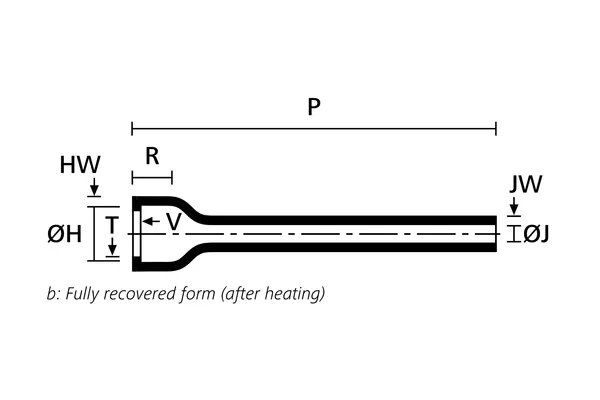

| Item # | Style | Expanded (Min) H | Expanded (Min) J | Recovered (Max) P ±10% | Material |
|---|---|---|---|---|---|
| 129-1-B7 | VG | 0.87 | 0.87 | 2.99 | Semi-Rigid Flame Retarded Polyolefin |
| 129-1-G | VG | 0.87 | 0.87 | 2.99 | Fluid Resistant Flame Retarded Elastomer |
| 129-1-H | VG | 0.87 | 0.87 | 2.99 | Flexible Zero-Hal Limited Fire Hazard Material |
| 129-1-J | VG | 0.87 | 0.87 | 2.99 | Flexible Flame Retarded Polyolefin |
| 129-1-L | VG | 0.87 | 0.87 | 2.99 | Flexible Flame Retarded Fluro-Elastomer |
| 129-4-B7 | MIL | 0.88 | 0.88 | 4.17 | Semi-Rigid Flame Retarded Polyolefin |
| 129-4-G | MIL | 0.88 | 0.88 | 4.17 | Fluid Resistant Flame Retarded Elastomer |
| 129-4-H | MIL | 0.88 | 0.88 | 4.17 | Flexible Zero-Hal Limited Fire Hazard Material |
| 129-4-J | MIL | 0.88 | 0.88 | 4.17 | Flexible Flame Retarded Polyolefin |
| 129-4-L | MIL | 0.88 | 0.88 | 4.17 | Flexible Flame Retarded Fluro-Elastomer |
| 130-1-B7 | VG | 0.89 | 0.89 | 3.27 | Semi-Rigid Flame Retarded Polyolefin |
| 130-1-G | VG | 0.89 | 0.89 | 3.27 | Fluid Resistant Flame Retarded Elastomer |
| 130-1-H | VG | 0.89 | 0.89 | 3.27 | Flexible Zero-Hal Limited Fire Hazard Material |
| 130-1-J | VG | 0.89 | 0.89 | 3.27 | Flexible Flame Retarded Polyolefin |
| 130-1-L | VG | 0.89 | 0.89 | 3.27 | Flexible Flame Retarded Fluro-Elastomer |
| 130-4-B7 | MIL | 1.01 | 1.01 | 4.77 | Semi-Rigid Flame Retarded Polyolefin |
| 130-4-G | MIL | 1.01 | 1.01 | 4.77 | Fluid Resistant Flame Retarded Elastomer |
| 130-4-H | MIL | 1.01 | 1.01 | 4.77 | Flexible Zero-Hal Limited Fire Hazard Material |
| 130-4-J | MIL | 1.01 | 1.01 | 4.77 | Flexible Flame Retarded Polyolefin |
| 130-4-L | MIL | 1.01 | 1.01 | 4.77 | Flexible Flame Retarded Fluro-Elastomer |
| 131-1-B7 | VG | 1.14 | 1.14 | 3.50 | Semi-Rigid Flame Retarded Polyolefin |
| 131-1-G | VG | 1.14 | 1.14 | 3.50 | Fluid Resistant Flame Retarded Elastomer |
| 131-1-H | VG | 1.14 | 1.14 | 3.50 | Flexible Zero-Hal Limited Fire Hazard Material |
| 131-1-J | VG | 1.14 | 1.14 | 3.50 | Flexible Flame Retarded Polyolefin |
| 131-1-L | VG | 1.14 | 1.14 | 3.50 | Flexible Flame Retarded Fluro-Elastomer |
| 131-4-B7 | MIL | 1.16 | 1.16 | 5.46 | Semi-Rigid Flame Retarded Polyolefin |
| 131-4-G | MIL | 1.16 | 1.16 | 5.46 | Fluid Resistant Flame Retarded Elastomer |
| 131-4-H | MIL | 1.16 | 1.16 | 5.46 | Flexible Zero-Hal Limited Fire Hazard Material |
| 131-4-J | MIL | 1.16 | 1.16 | 5.46 | Flexible Flame Retarded Polyolefin |
| 131-4-L | MIL | 1.16 | 1.16 | 5.46 | Flexible Flame Retarded Fluro-Elastomer |
| 132-1-G | VG | 1.34 | 1.34 | 4.02 | Fluid Resistant Flame Retarded Elastomer |
| 132-1-H | VG | 1.34 | 1.34 | 4.02 | Flexible Zero-Hal Limited Fire Hazard Material |
| 132-1-J | VG | 1.34 | 1.34 | 4.02 | Flexible Flame Retarded Polyolefin |
| 132-1-L | VG | 1.34 | 1.34 | 4.02 | Flexible Flame Retarded Fluro-Elastomer |
| 132-2-B7 | MIL | 1.34 | 1.34 | 1.38 | Semi-Rigid Flame Retarded Polyolefin |
| 132-2-G | MIL | 1.34 | 1.34 | 1.38 | Fluid Resistant Flame Retarded Elastomer |
| 132-2-H | MIL | 1.34 | 1.34 | 1.38 | Flexible Zero-Hal Limited Fire Hazard Material |
| 132-2-J | MIL | 1.34 | 1.34 | 1.38 | Flexible Flame Retarded Polyolefin |
| 132-2-L | MIL | 1.34 | 1.34 | 1.38 | Flexible Flame Retarded Fluro-Elastomer |
| 132-3-B7 | MIL | 1.34 | 1.34 | 2.36 | Semi-Rigid Flame Retarded Polyolefin |
| 132-3-G | MIL | 1.34 | 1.34 | 2.36 | Fluid Resistant Flame Retarded Elastomer |
| 132-3-H | MIL | 1.34 | 1.34 | 2.36 | Flexible Zero-Hal Limited Fire Hazard Material |
| 132-3-J | MIL | 1.34 | 1.34 | 2.36 | Flexible Flame Retarded Polyolefin |
| 132-3-L | MIL | 1.34 | 1.34 | 2.36 | Flexible Flame Retarded Fluro-Elastomer |
| 132-4-B7 | MIL | 1.34 | 1.34 | 6.28 | Semi-Rigid Flame Retarded Polyolefin |
| 132-4-G | MIL | 1.34 | 1.34 | 6.28 | Fluid Resistant Flame Retarded Elastomer |
| 132-4-H | MIL | 1.34 | 1.34 | 6.28 | Flexible Zero-Hal Limited Fire Hazard Material |
| 132-4-J | MIL | 1.34 | 1.34 | 6.28 | Flexible Flame Retarded Polyolefin |
| 132-4-L | MIL | 1.34 | 1.34 | 6.28 | Flexible Flame Retarded Fluro-Elastomer |
| 133-1-B7 | VG | 1.46 | 1.46 | 4.25 | Semi-Rigid Flame Retarded Polyolefin |
| 133-1-G | VG | 1.46 | 1.46 | 4.25 | Fluid Resistant Flame Retarded Elastomer |
| 133-1-H | VG | 1.46 | 1.46 | 4.25 | Flexible Zero-Hal Limited Fire Hazard Material |
| 133-1-J | VG | 1.46 | 1.46 | 4.25 | Flexible Flame Retarded Polyolefin |
| 133-1-L | VG | 1.46 | 1.46 | 4.25 | Flexible Flame Retarded Fluro-Elastomer |
| 133-2-G | MIL | 1.47 | 1.47 | 1.85 | Fluid Resistant Flame Retarded Elastomer |
| 133-2-H | MIL | 1.47 | 1.47 | 1.85 | Flexible Zero-Hal Limited Fire Hazard Material |
| 133-2-J | MIL | 1.47 | 1.47 | 1.85 | Flexible Flame Retarded Polyolefin |
| 133-2-L | MIL | 1.47 | 1.47 | 1.85 | Flexible Flame Retarded Fluro-Elastomer |
| 133-3-B7 | MIL | 1.47 | 1.47 | 2.36 | Semi-Rigid Flame Retarded Polyolefin |
| 133-3-G | MIL | 1.47 | 1.47 | 2.36 | Fluid Resistant Flame Retarded Elastomer |
| 133-3-H | MIL | 1.47 | 1.47 | 2.36 | Flexible Zero-Hal Limited Fire Hazard Material |
| 133-3-J | MIL | 1.47 | 1.47 | 2.36 | Flexible Flame Retarded Polyolefin |
| 133-3-L | MIL | 1.47 | 1.47 | 2.36 | Flexible Flame Retarded Fluro-Elastomer |
| 133-4-B7 | MIL | 1.47 | 1.47 | 7.00 | Semi-Rigid Flame Retarded Polyolefin |
| 133-4-G | MIL | 1.47 | 1.47 | 7.00 | Fluid Resistant Flame Retarded Elastomer |
| 133-4-H | MIL | 1.47 | 1.47 | 7.00 | Flexible Zero-Hal Limited Fire Hazard Material |
| 133-4-J | MIL | 1.47 | 1.47 | 7.00 | Flexible Flame Retarded Polyolefin |
| 133-4-L | MIL | 1.47 | 1.47 | 7.00 | Flexible Flame Retarded Fluro-Elastomer |
| 134-1-B7 | VG | 1.71 | 1.71 | 4.49 | Semi-Rigid Flame Retarded Polyolefin |
| 134-1-G | VG | 1.71 | 1.71 | 4.49 | Fluid Resistant Flame Retarded Elastomer |
| 134-1-H | VG | 1.71 | 1.71 | 4.49 | Flexible Zero-Hal Limited Fire Hazard Material |
| 134-1-J | VG | 1.71 | 1.71 | 4.49 | Flexible Flame Retarded Polyolefin |
| 134-1-L | VG | 1.71 | 1.71 | 4.49 | Flexible Flame Retarded Fluro-Elastomer |
| 134-4-B7 | MIL | 1.72 | 1.72 | 8.00 | Semi-Rigid Flame Retarded Polyolefin |
| 134-4-G | MIL | 1.72 | 1.72 | 8.00 | Fluid Resistant Flame Retarded Elastomer |
| 134-4-H | MIL | 1.72 | 1.72 | 8.00 | Flexible Zero-Hal Limited Fire Hazard Material |
| 134-4-J | MIL | 1.72 | 1.72 | 8.00 | Flexible Flame Retarded Polyolefin |
| 134-4-L | MIL | 1.72 | 1.72 | 8.00 | Flexible Flame Retarded Fluro-Elastomer |
| 135-1-B7 | VG | 1.97 | 1.97 | 4.65 | Semi-Rigid Flame Retarded Polyolefin |
| 135-1-G | VG | 1.97 | 1.97 | 4.65 | Fluid Resistant Flame Retarded Elastomer |
| 135-1-J | VG | 1.97 | 1.97 | 4.65 | Flexible Flame Retarded Polyolefin |
| 135-1-L | VG | 1.97 | 1.97 | 4.65 | Flexible Flame Retarded Fluro-Elastomer |
| 135-2-B7 | MIL | 1.97 | 1.97 | 1.73 | Semi-Rigid Flame Retarded Polyolefin |
| 135-2-G | MIL | 1.97 | 1.97 | 1.73 | Fluid Resistant Flame Retarded Elastomer |
| 135-2-J | MIL | 1.97 | 1.97 | 1.73 | Flexible Flame Retarded Polyolefin |
| 135-2-L | MIL | 1.97 | 1.97 | 1.73 | Flexible Flame Retarded Fluro-Elastomer |
| 135-4-B7 | MIL | 1.97 | 1.97 | 7.99 | Semi-Rigid Flame Retarded Polyolefin |
| 135-4-G | MIL | 1.97 | 1.97 | 7.99 | Fluid Resistant Flame Retarded Elastomer |
| 135-4-H | MIL | 1.97 | 1.97 | 7.99 | Flexible Zero-Hal Limited Fire Hazard Material |
| 135-4-J | MIL | 1.97 | 1.97 | 7.99 | Flexible Flame Retarded Polyolefin |
| 135-4-L | MIL | 1.97 | 1.97 | 7.99 | Flexible Flame Retarded Fluro-Elastomer |
| 136-1-B7 | VG | 2.46 | 2.46 | 4.76 | Semi-Rigid Flame Retarded Polyolefin |
| 136-1-G | VG | 2.46 | 2.46 | 4.76 | Fluid Resistant Flame Retarded Elastomer |
| 136-1-H | VG | 2.46 | 2.46 | 4.76 | Flexible Zero-Hal Limited Fire Hazard Material |
| 136-1-J | VG | 2.46 | 2.46 | 4.76 | Flexible Flame Retarded Polyolefin |
| 136-1-L | VG | 2.46 | 2.46 | 4.76 | Flexible Flame Retarded Fluro-Elastomer |
| 136-2-B7 | MIL | 2.76 | 2.76 | 4.92 | Semi-Rigid Flame Retarded Polyolefin |
| 136-2-G | MIL | 2.76 | 2.76 | 4.92 | Fluid Resistant Flame Retarded Elastomer |
| 136-2-H | MIL | 2.76 | 2.76 | 4.92 | Flexible Zero-Hal Limited Fire Hazard Material |
| 136-2-J | MIL | 2.76 | 2.76 | 4.92 | Flexible Flame Retarded Polyolefin |
| 136-2-L | MIL | 2.76 | 2.76 | 4.92 | Flexible Flame Retarded Fluro-Elastomer |
| 136-4-B7 | MIL | 2.47 | 2.47 | 8.00 | Semi-Rigid Flame Retarded Polyolefin |
| 136-4-G | MIL | 2.47 | 2.47 | 8.00 | Fluid Resistant Flame Retarded Elastomer |
| 136-4-H | MIL | 2.47 | 2.47 | 8.00 | Flexible Zero-Hal Limited Fire Hazard Material |
| 136-4-J | MIL | 2.47 | 2.47 | 8.00 | Flexible Flame Retarded Polyolefin |
| 136-4-L | MIL | 2.47 | 2.47 | 8.00 | Flexible Flame Retarded Fluro-Elastomer |
| 138-1-B7 | VG | 2.72 | 2.72 | 5.00 | Semi-Rigid Flame Retarded Polyolefin |
| 138-1-G | VG | 2.72 | 2.72 | 5.00 | Fluid Resistant Flame Retarded Elastomer |
| 138-1-H | VG | 2.72 | 2.72 | 5.00 | Flexible Zero-Hal Limited Fire Hazard Material |
| 138-1-J | VG | 2.72 | 2.72 | 5.00 | Flexible Flame Retarded Polyolefin |
| 138-4-B7 | MIL | 2.73 | 2.73 | 8.00 | Semi-Rigid Flame Retarded Polyolefin |
| 138-4-G | MIL | 2.73 | 2.73 | 8.00 | Fluid Resistant Flame Retarded Elastomer |
| 138-4-H | MIL | 2.73 | 2.73 | 8.00 | Flexible Zero-Hal Limited Fire Hazard Material |
| 138-4-J | MIL | 2.73 | 2.73 | 8.00 | Flexible Flame Retarded Polyolefin |
| 187-1-B7 | VG | 3.21 | 3.21 | 5.24 | Semi-Rigid Flame Retarded Polyolefin |
| 187-1-G | VG | 3.21 | 3.21 | 5.24 | Fluid Resistant Flame Retarded Elastomer |
| 187-1-H | VG | 3.21 | 3.21 | 5.24 | Flexible Zero-Hal Limited Fire Hazard Material |
| 187-1-J | VG | 3.21 | 3.21 | 5.24 | Flexible Flame Retarded Polyolefin |
| 187-1-L | VG | 3.21 | 3.21 | 5.24 | Flexible Flame Retarded Fluro-Elastomer |
| 187-4-G | MIL | 3.22 | 3.22 | 8.00 | Fluid Resistant Flame Retarded Elastomer |
| 187-4-H | MIL | 3.22 | 3.22 | 8.00 | Flexible Zero-Hal Limited Fire Hazard Material |
| 187-4-J | MIL | 3.22 | 3.22 | 8.00 | Flexible Flame Retarded Polyolefin |
| 187-4-L | MIL | 3.22 | 3.22 | 8.00 | Flexible Flame Retarded Fluro-Elastomer |
| 132-1-B7 | VG | 1.34 | 1.34 | 4.02 | Semi-Rigid Flame Retarded Polyolefin |
| 133-2-B7 | MIL | 1.47 | 1.47 | 1.85 | Semi-Rigid Flame Retarded Polyolefin |
| 135-1-H | VG | 1.97 | 1.97 | 4.65 | Flexible Zero-Hal Limited Fire Hazard Material |
| 135-2-H | MIL | 1.97 | 1.97 | 1.73 | Flexible Zero-Hal Limited Fire Hazard Material |
| 138-1-L | VG | 2.72 | 2.72 | 5.00 | Flexible Flame Retarded Fluro-Elastomer |
| 138-4-L | MIL | 2.73 | 2.73 | 8.00 | Flexible Flame Retarded Fluro-Elastomer |
| 187-4-B7 | MIL | 3.22 | 3.22 | 8.00 | Semi-Rigid Flame Retarded Polyolefin |
