Bottle-shaped heat shrink molded shape with rib.

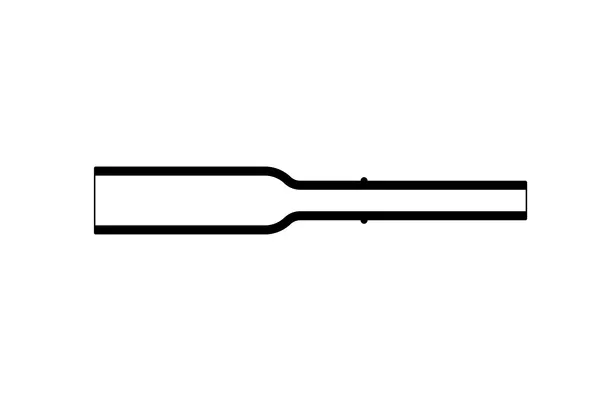

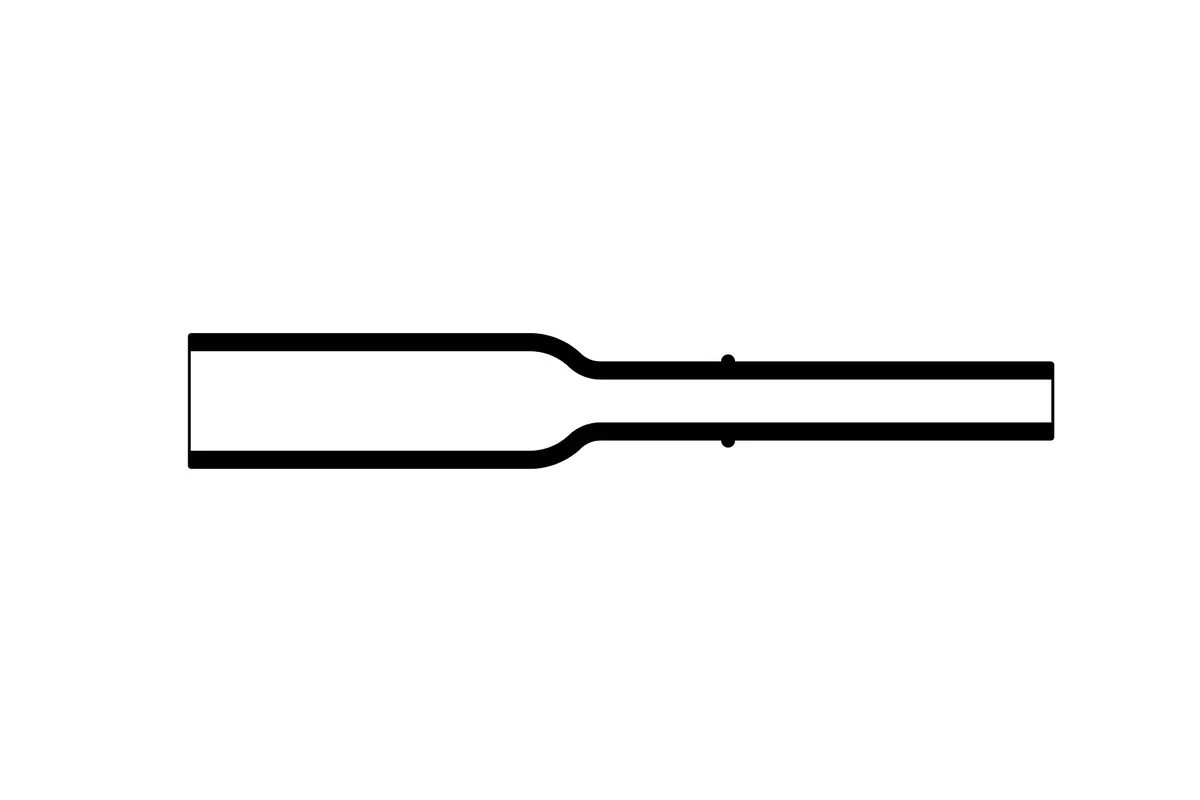

Bottle shapes without rib for extended strain relief.

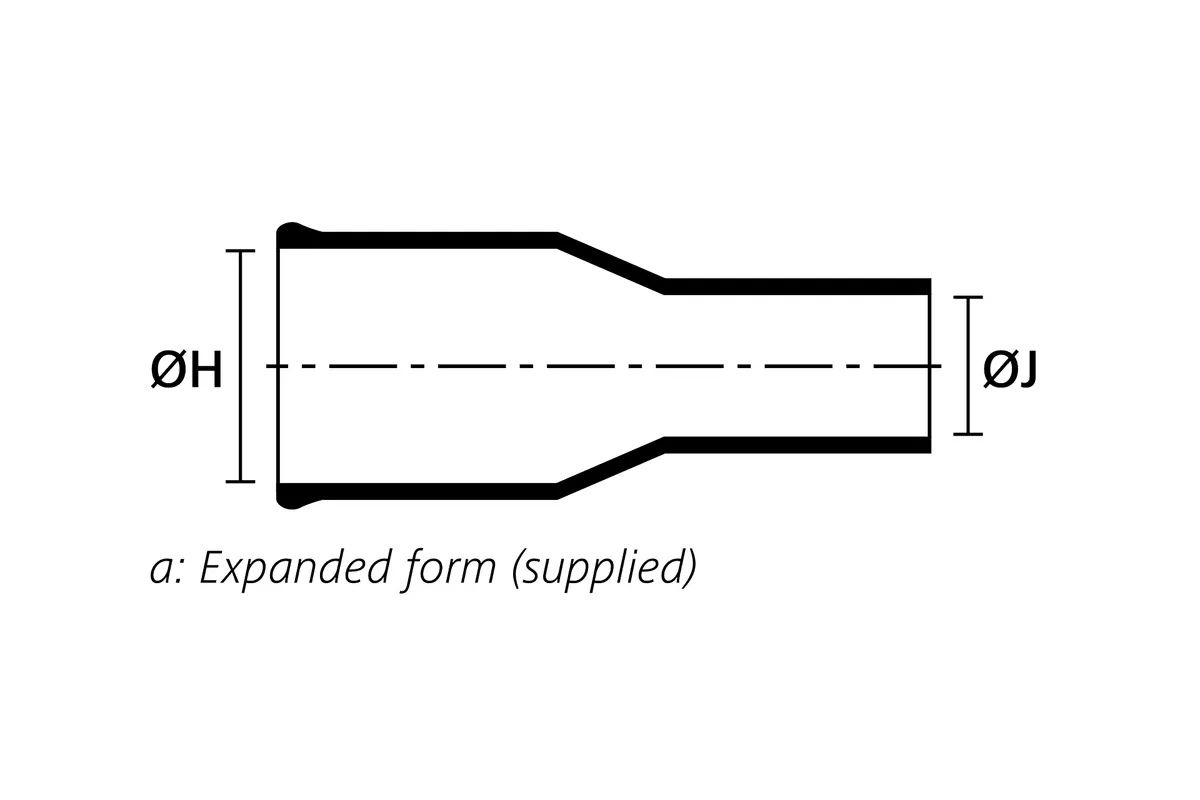

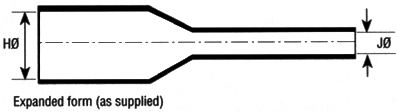

Expanded form of Helashrink 120 series bottle shape before heat recovery.

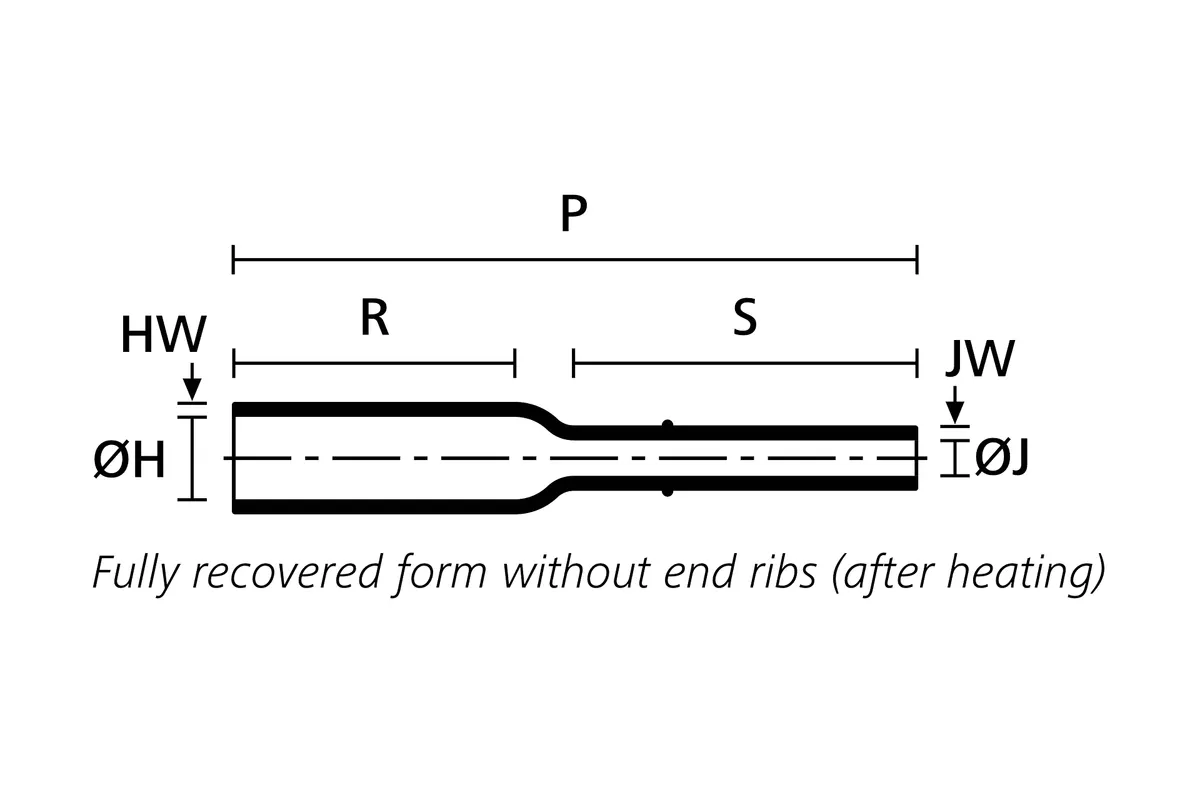

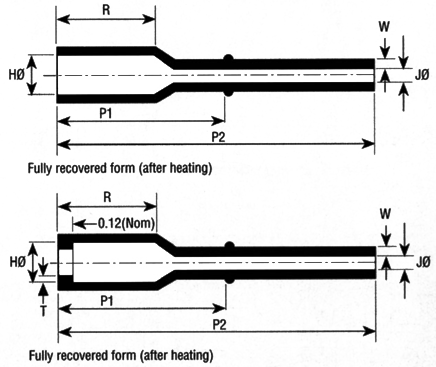

Fully recovered form of Helashrink 120 series bottle shape after heating.

120 Series Bottle Heatshrink Shapes without Rib

Heat Shrink Bottle Boots without Rib

Item #	Expanded (Min) H	Expanded (Min) J	Recovered (Max) R ±10%	W ±20%	Material
120-2-B7	0.80	0.40	0.75	0.04	Semi-Rigid Flame Retarded Polyolefin
120-2-G	0.80	0.40	0.75	0.04	Fluid Resistant Flame Retarded Elastomer
120-2-H	0.80	0.40	0.75	0.04	Flexible Zero-Hal Limited Fire Hazard Material
120-2-J	0.80	0.40	0.75	0.04	Flexible Flame Retarded Polyolefin
120-2-L	0.80	0.40	0.75	0.04	Flexible Flame Retarded Fluro-Elastomer
120-3-B7	0.65	0.42	0.95	0.05	Semi-Rigid Flame Retarded Polyolefin
120-3-G	0.65	0.42	0.95	0.05	Fluid Resistant Flame Retarded Elastomer
120-3-H	0.65	0.42	0.95	0.05	Flexible Zero-Hal Limited Fire Hazard Material
120-3-J	0.65	0.42	0.95	0.05	Flexible Flame Retarded Polyolefin
120-1-B7	0.65	0.40	0.75	0.04	Semi-Rigid Flame Retarded Polyolefin
120-1-G	0.65	0.40	0.75	0.04	Fluid Resistant Flame Retarded Elastomer
120-1-H	0.65	0.40	0.75	0.04	Flexible Zero-Hal Limited Fire Hazard Material
120-1-J	0.65	0.40	0.75	0.04	Flexible Flame Retarded Polyolefin
120-1-L	0.65	0.40	0.75	0.04	Flexible Flame Retarded Fluro-Elastomer
120-3-L	0.65	0.42	0.95	0.05	Flexible Flame Retarded Fluro-Elastomer
