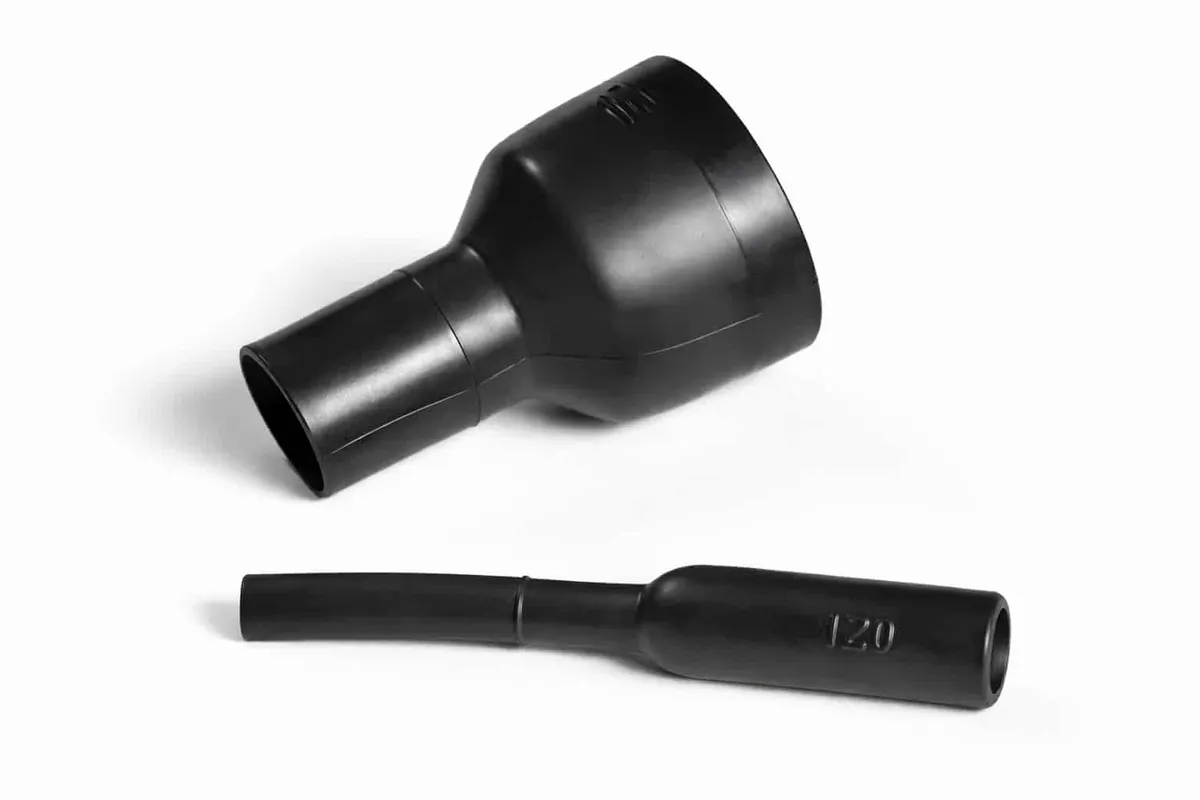

Bottle-shaped heat shrink molded shape with rib.

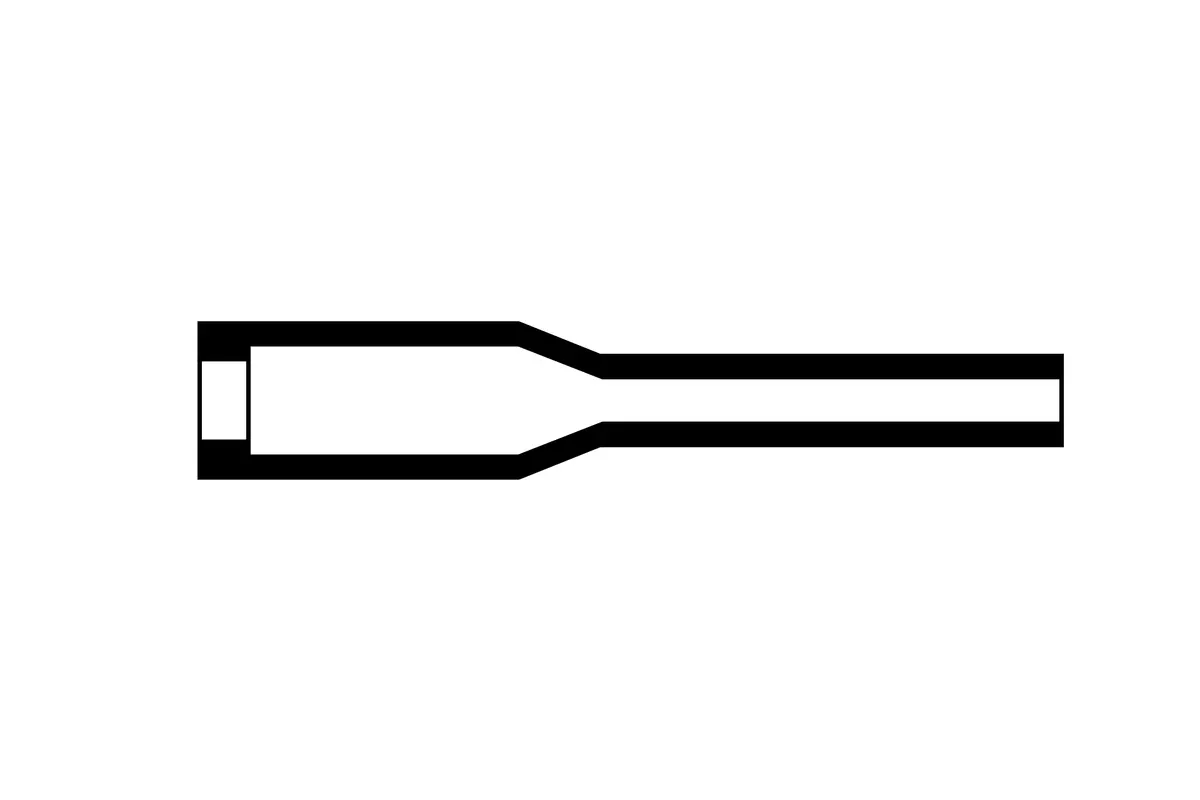

Bottle shapes with rib for enhanced sealing and strain relief.

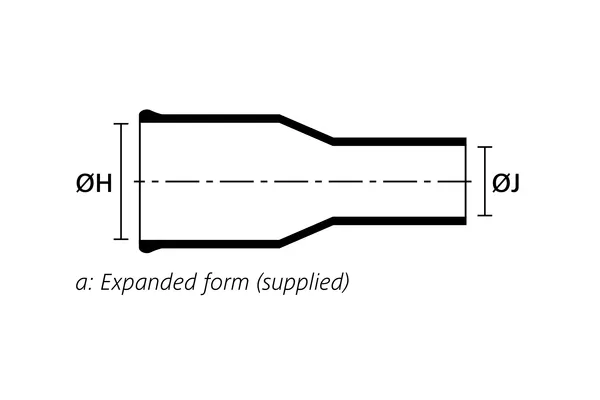

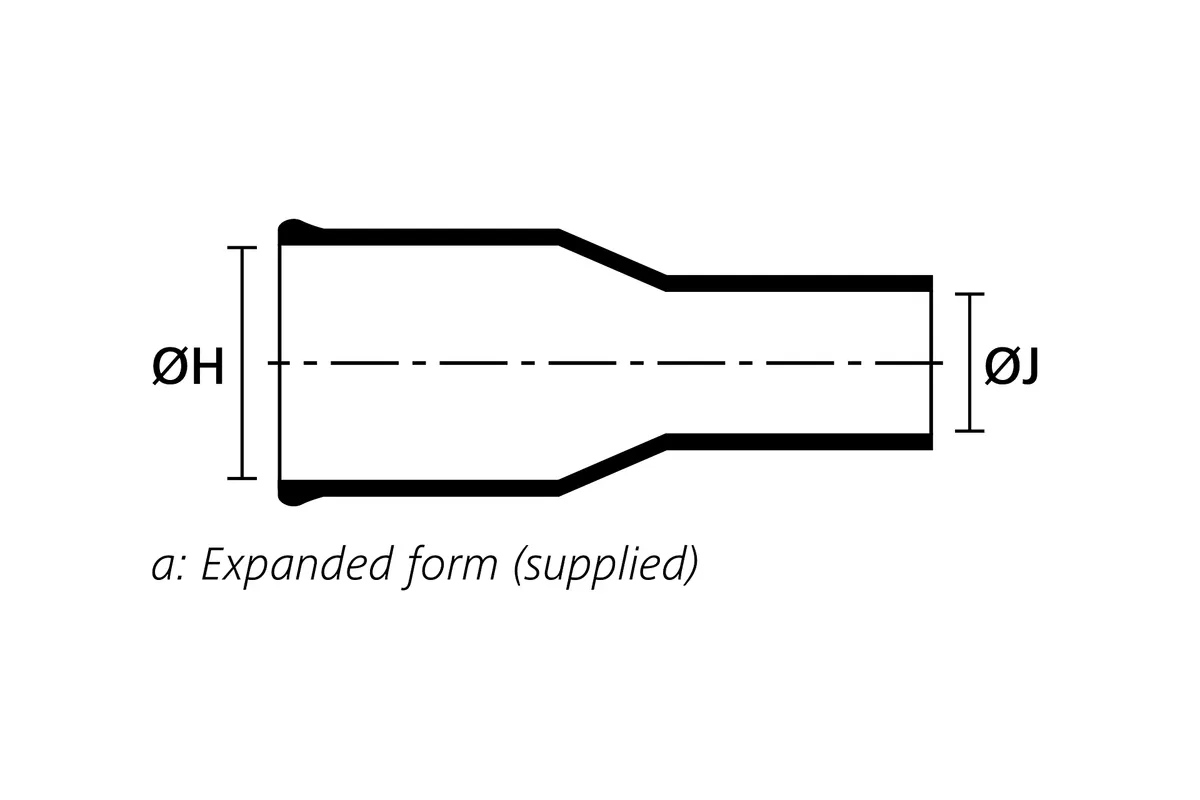

Expanded form of Helashrink 120 series bottle shape with rib before heat recovery.

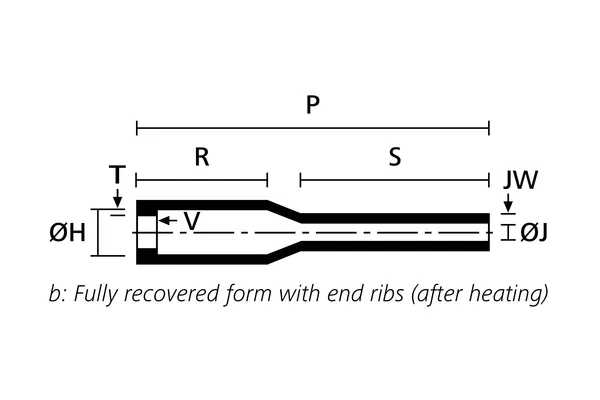

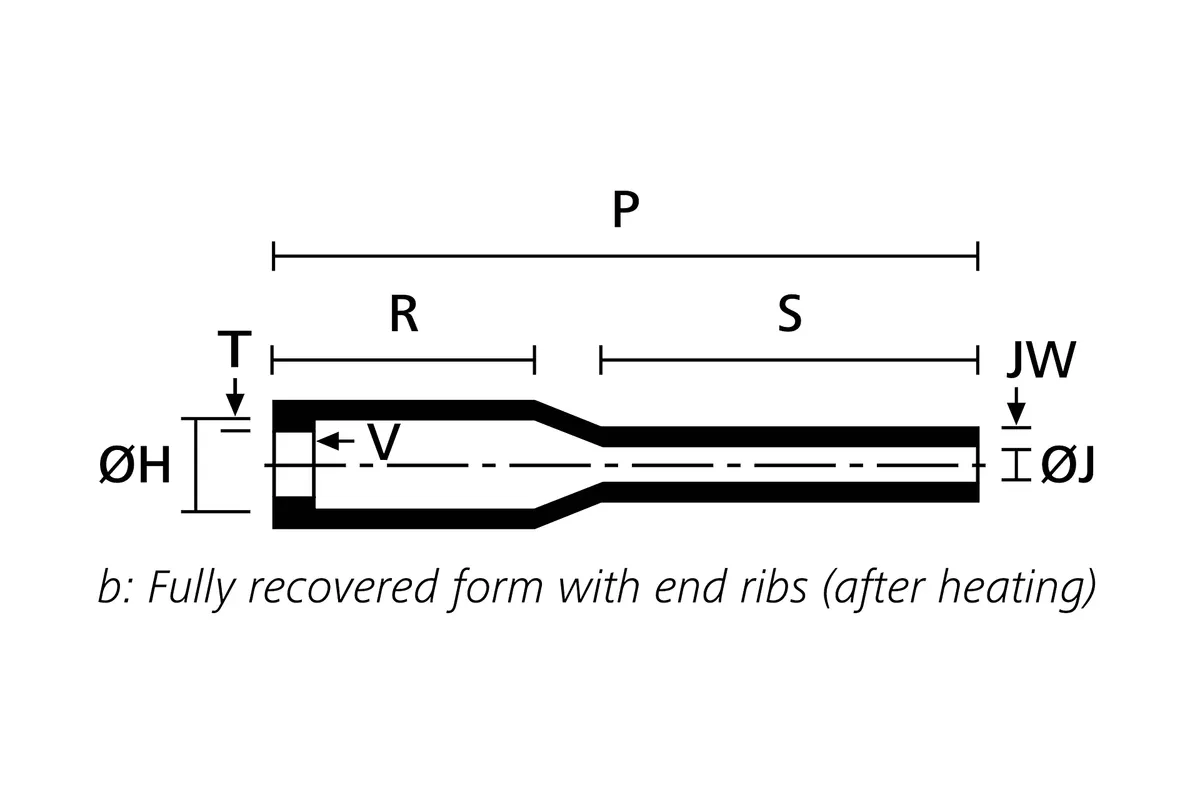

Fully recovered form of Helashrink 120 series bottle shape with end ribs after heating.

120 Series Bottle Heatshrink Shapes with Rib

Heat Shrink Bottle Boots with Rib

Item #	Expanded (Min) H	Expanded (Min) J	Recovered (Max) R ±10%	W ±20%	Material
120-41-B7	0.65	0.42	0.95	0.05	Semi-Rigid Flame Retarded Polyolefin
120-41-G	0.65	0.42	0.95	0.05	Fluid Resistant Flame Retarded Elastomer
120-41-H	0.65	0.42	0.95	0.05	Flexible Zero-Hal Limited Fire Hazard Material
120-41-J	0.65	0.42	0.95	0.05	Flexible Flame Retarded Polyolefin
120-41-L	0.65	0.42	0.95	0.05	Flexible Flame Retarded Fluro-Elastomer
120-42-B7	0.65	0.42	0.95	0.05	Semi-Rigid Flame Retarded Polyolefin
120-42-G	0.65	0.42	0.95	0.05	Fluid Resistant Flame Retarded Elastomer
120-42-H	0.65	0.42	0.95	0.05	Flexible Zero-Hal Limited Fire Hazard Material
120-42-J	0.65	0.42	0.95	0.05	Flexible Flame Retarded Polyolefin
120-42-L	0.65	0.42	0.95	0.05	Flexible Flame Retarded Fluro-Elastomer
