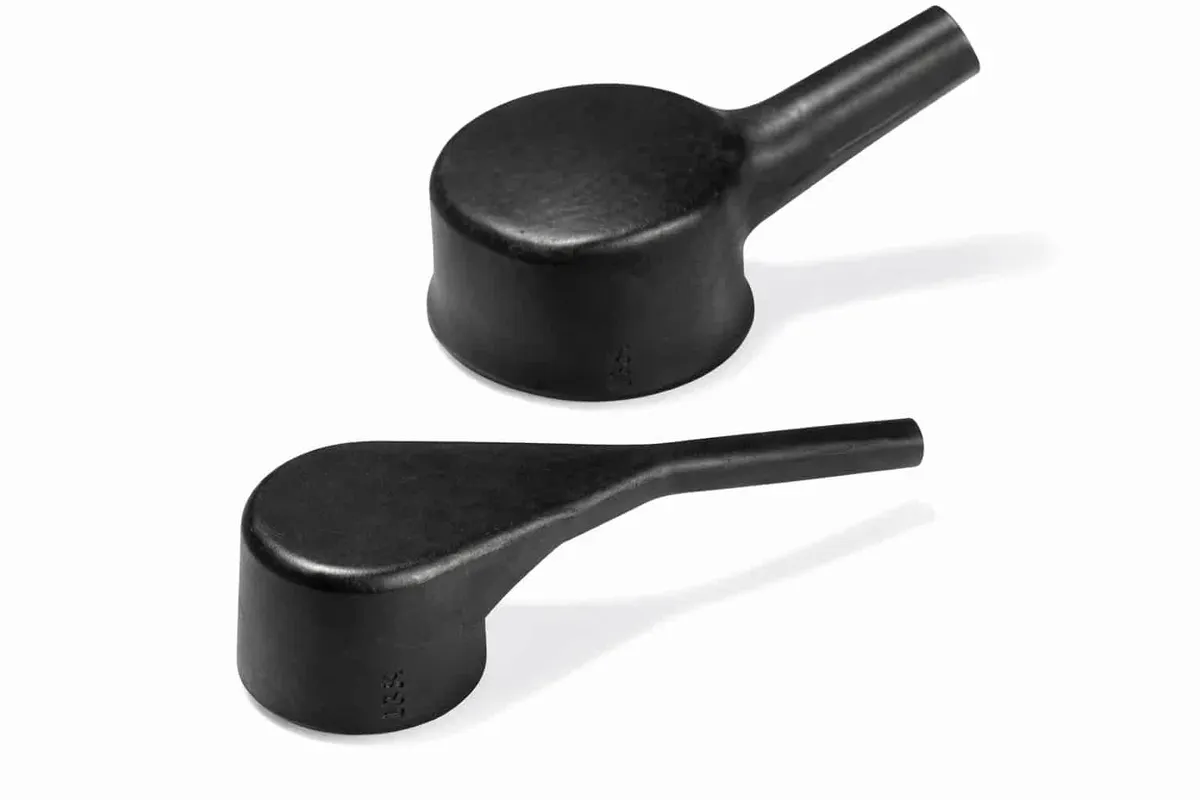

Helashrink 1100 series low profile right angle heat shrink shape with high ratio providing strain relief for connector cables
Diagram of Helashrink 1100 series low profile high ratio right angle heat shrink shape for small cable diameters

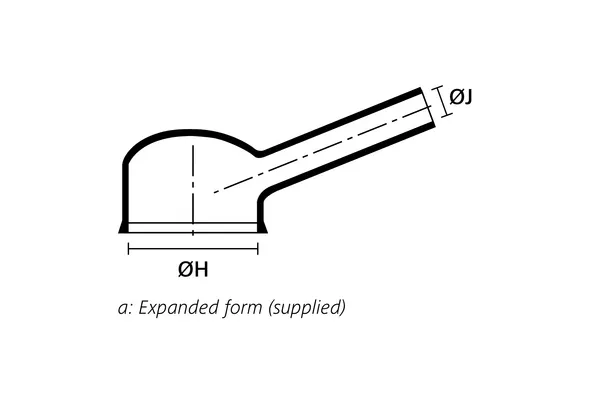

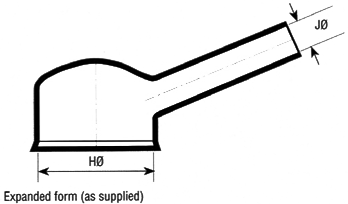

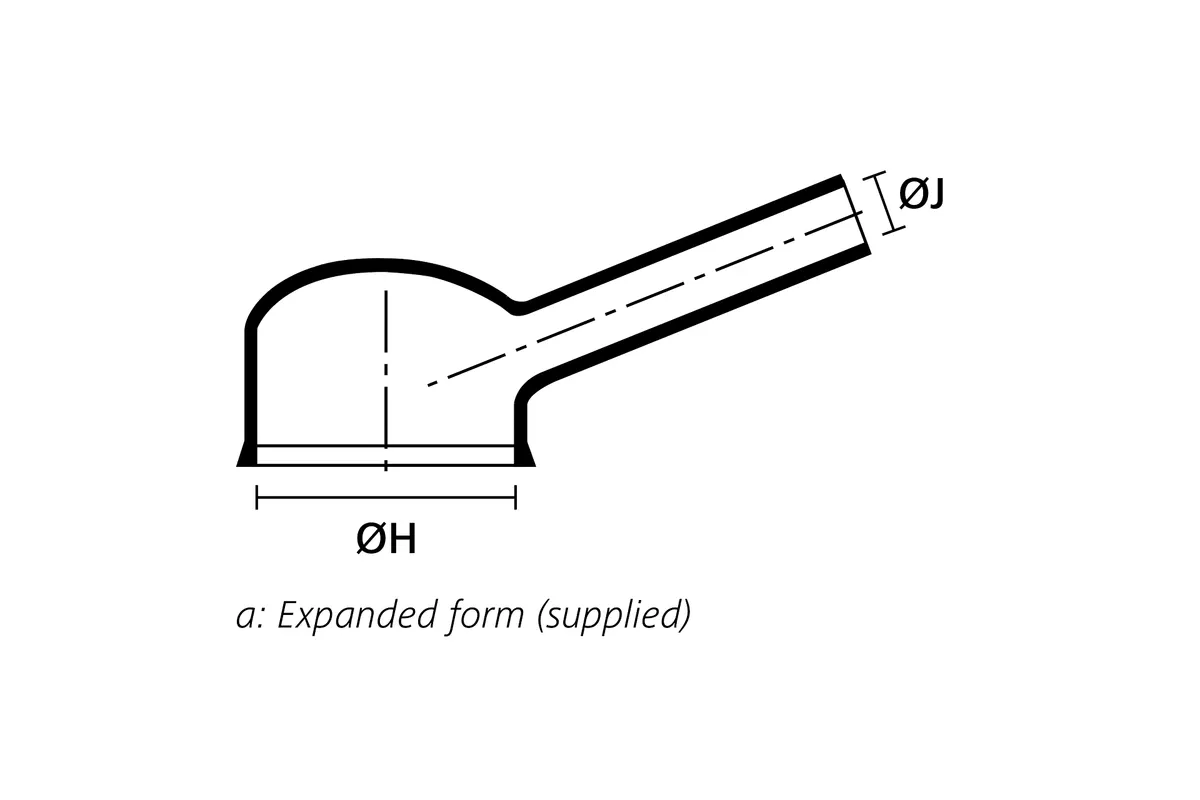

Technical drawing showing the expanded supplied form of a low profile right angle heat shrink molded shape

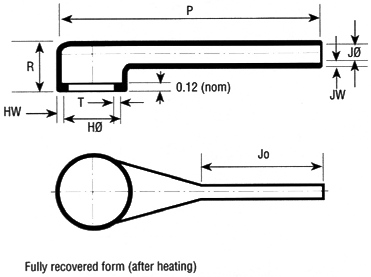

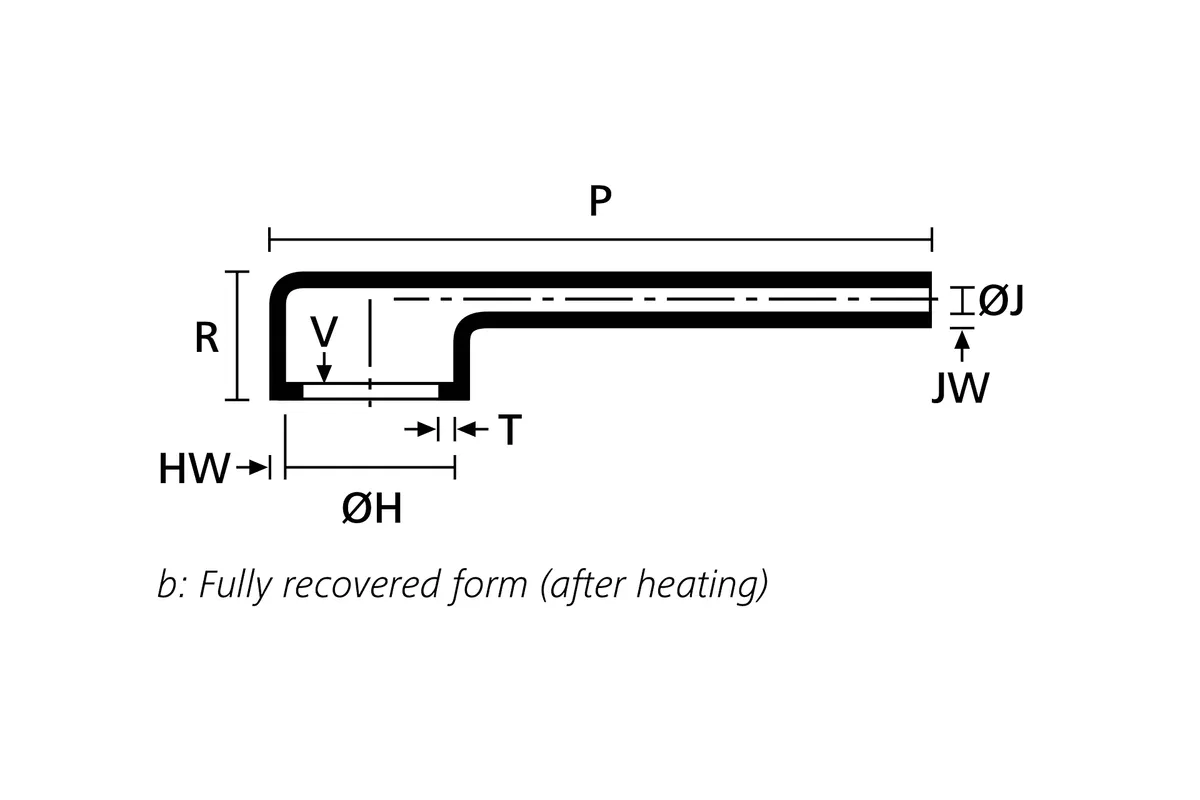

Technical drawing showing the fully recovered side view of a low profile right angle heat shrink molded shape

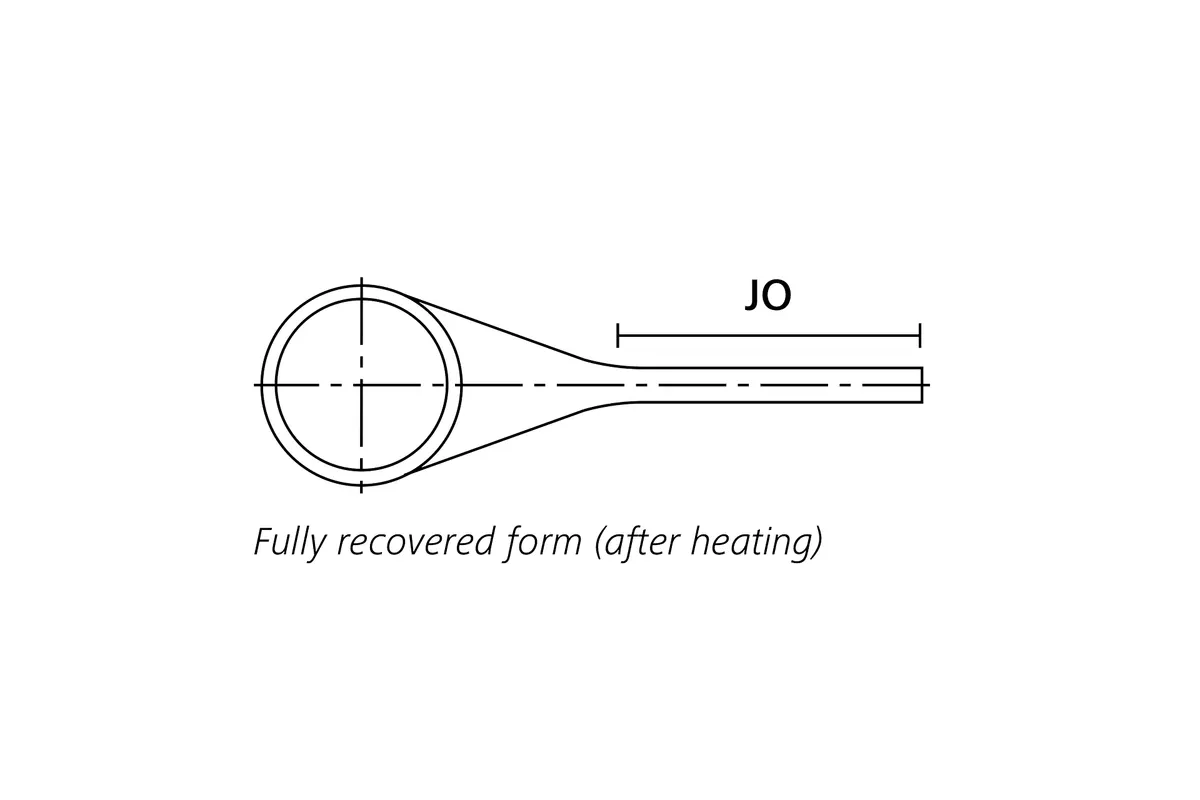

Technical drawing showing the end view of a fully recovered low profile right angle heat shrink molded shape

1100 Series Right Angle Low Profile High Ratio Heatshrink Shapes with Rib (VG Style)

Heat Shrink Right Angle Boots

Products

Item # Expanded (Min) H Expanded (Min) J P ±10% R ±10% Material
1133-1-B7 0.75 0.24 1.77 0.63 Semi-Rigid Flame Retarded Polyolefin
1133-1-G 0.75 0.24 1.77 0.63 Fluid Resistant Flame Retarded Elastomer
1133-1-H 0.75 0.24 1.77 0.63 Flexible Zero-Hal Limited Fire Hazard Material
1133-1-J 0.75 0.24 1.77 0.63 Flexible Flame Retarded Polyolefin
1133-1-L 0.75 0.24 1.77 0.63 Flexible Flame Retarded Fluro-Elastomer
1133-2-B7 0.76 0.25 0.18 0.64 Semi-Rigid Flame Retarded Polyolefin
1133-2-G 0.76 0.25 0.18 0.64 Fluid Resistant Flame Retarded Elastomer
1133-2-H 0.76 0.25 0.18 0.64 Flexible Zero-Hal Limited Fire Hazard Material
1133-2-J 0.76 0.25 0.18 0.64 Flexible Flame Retarded Polyolefin
1133-2-L 0.76 0.25 0.18 0.64 Flexible Flame Retarded Fluro-Elastomer
1134-1-B7 1.02 0.30 2.64 0.71 Semi-Rigid Flame Retarded Polyolefin
1134-1-G 1.02 0.30 2.64 0.71 Fluid Resistant Flame Retarded Elastomer
1134-1-H 1.02 0.30 2.64 0.71 Flexible Zero-Hal Limited Fire Hazard Material
1134-1-J 1.02 0.30 2.64 0.71 Flexible Flame Retarded Polyolefin
1134-1-L 1.02 0.30 2.64 0.71 Flexible Flame Retarded Fluro-Elastomer
1135-1-B7 1.34 0.37 3.19 0.75 Semi-Rigid Flame Retarded Polyolefin
1135-1-G 1.34 0.37 3.19 0.75 Fluid Resistant Flame Retarded Elastomer
1135-1-J 1.34 0.37 3.19 0.75 Flexible Flame Retarded Polyolefin
1135-1-L 1.34 0.37 3.19 0.75 Flexible Flame Retarded Fluro-Elastomer
1135-2-B7 1.35 0.38 2.17 0.74 Semi-Rigid Flame Retarded Polyolefin
1135-2-G 1.35 0.38 2.17 0.74 Fluid Resistant Flame Retarded Elastomer
1135-2-H 1.35 0.38 2.17 0.74 Flexible Zero-Hal Limited Fire Hazard Material
1135-2-J 1.35 0.38 2.17 0.74 Flexible Flame Retarded Polyolefin
1136-1-B7 1.71 0.45 4.57 0.83 Semi-Rigid Flame Retarded Polyolefin
1136-1-G 1.71 0.45 4.57 0.83 Fluid Resistant Flame Retarded Elastomer
1136-1-H 1.71 0.45 4.57 0.83 Flexible Zero-Hal Limited Fire Hazard Material
1136-1-J 1.71 0.45 4.57 0.83 Flexible Flame Retarded Polyolefin
1136-1-L 1.71 0.45 4.57 0.83 Flexible Flame Retarded Fluro-Elastomer
1135-1-H 1.34 0.37 3.19 0.75 Flexible Zero-Hal Limited Fire Hazard Material
1135-2-L 1.35 0.38 2.17 0.74 Flexible Flame Retarded Fluro-Elastomer
