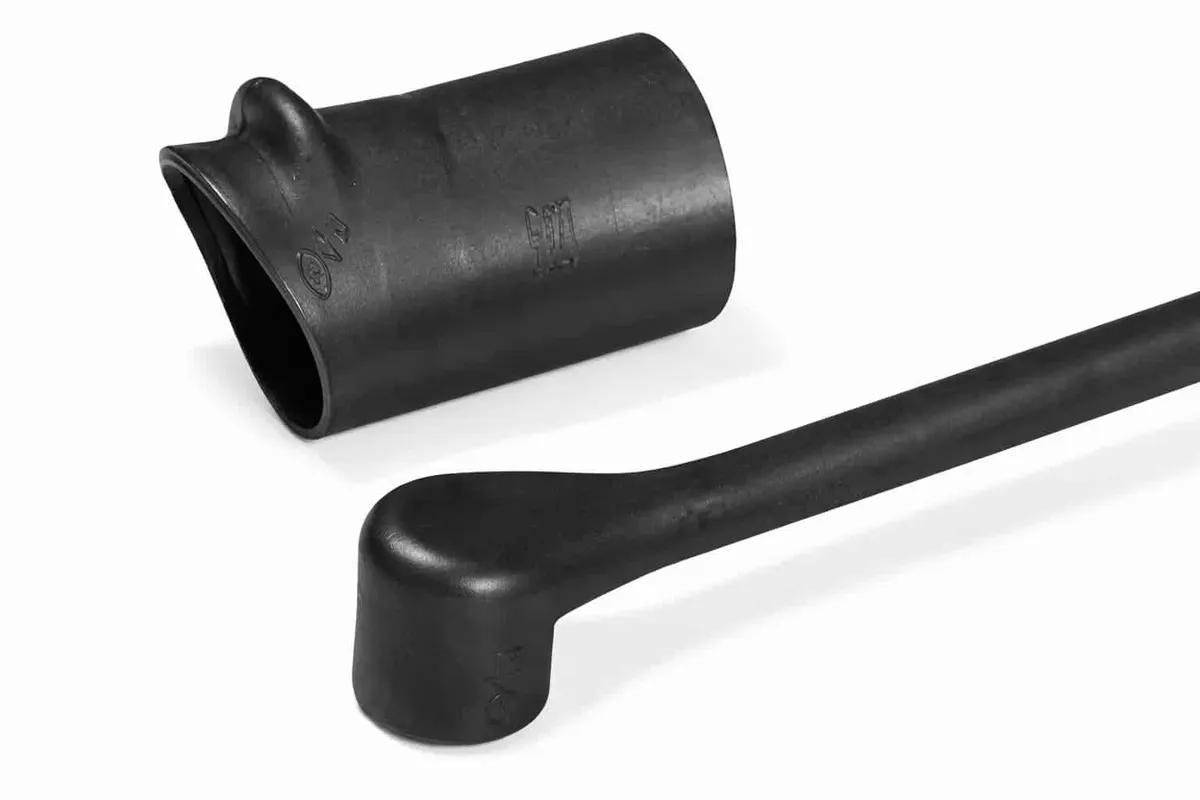

1100 Series Right Angle Heatshrink Shapes with Rib (VG/MIL Style)
Heat Shrink Right Angle Boots
Products

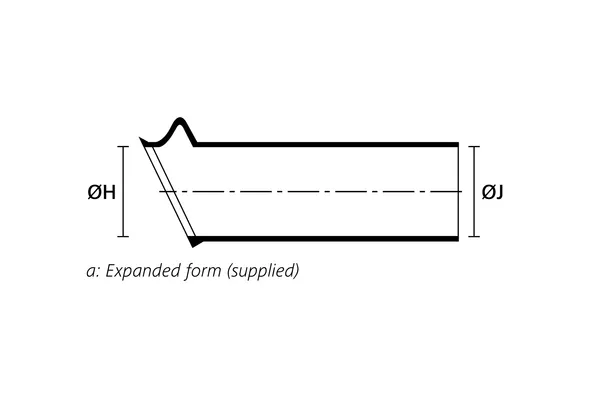

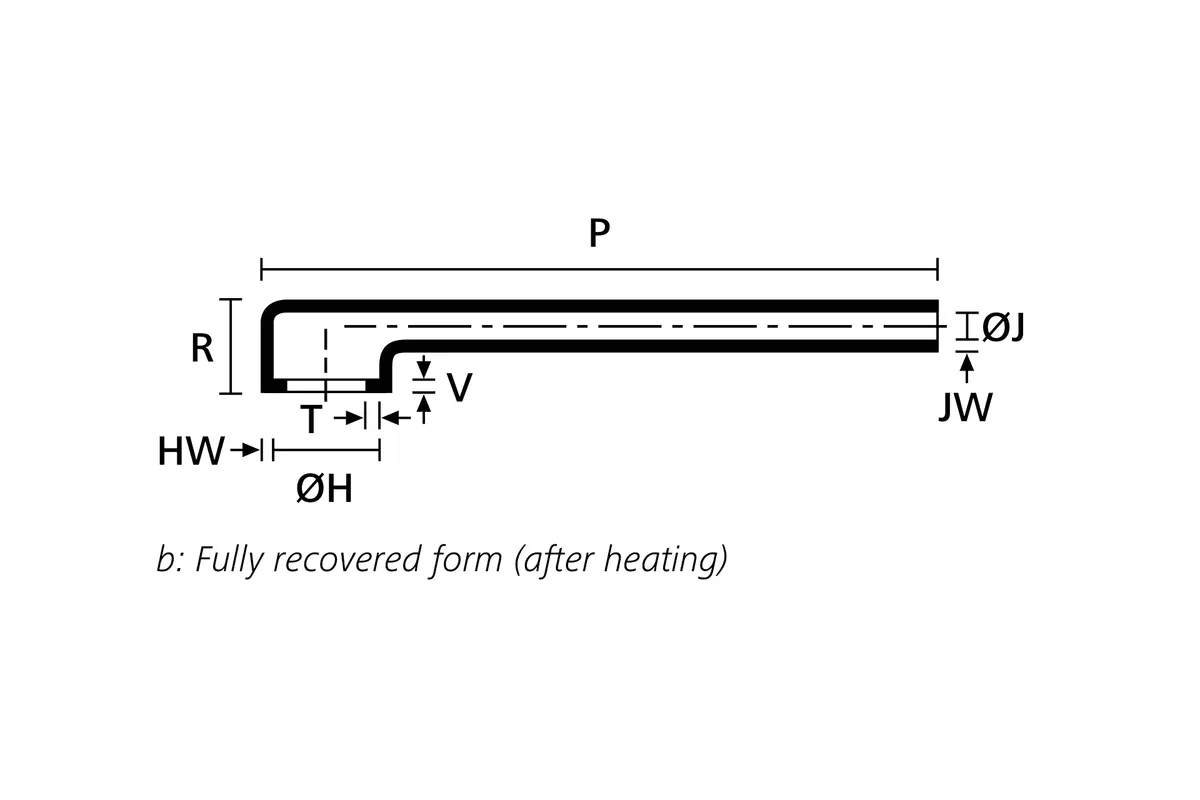

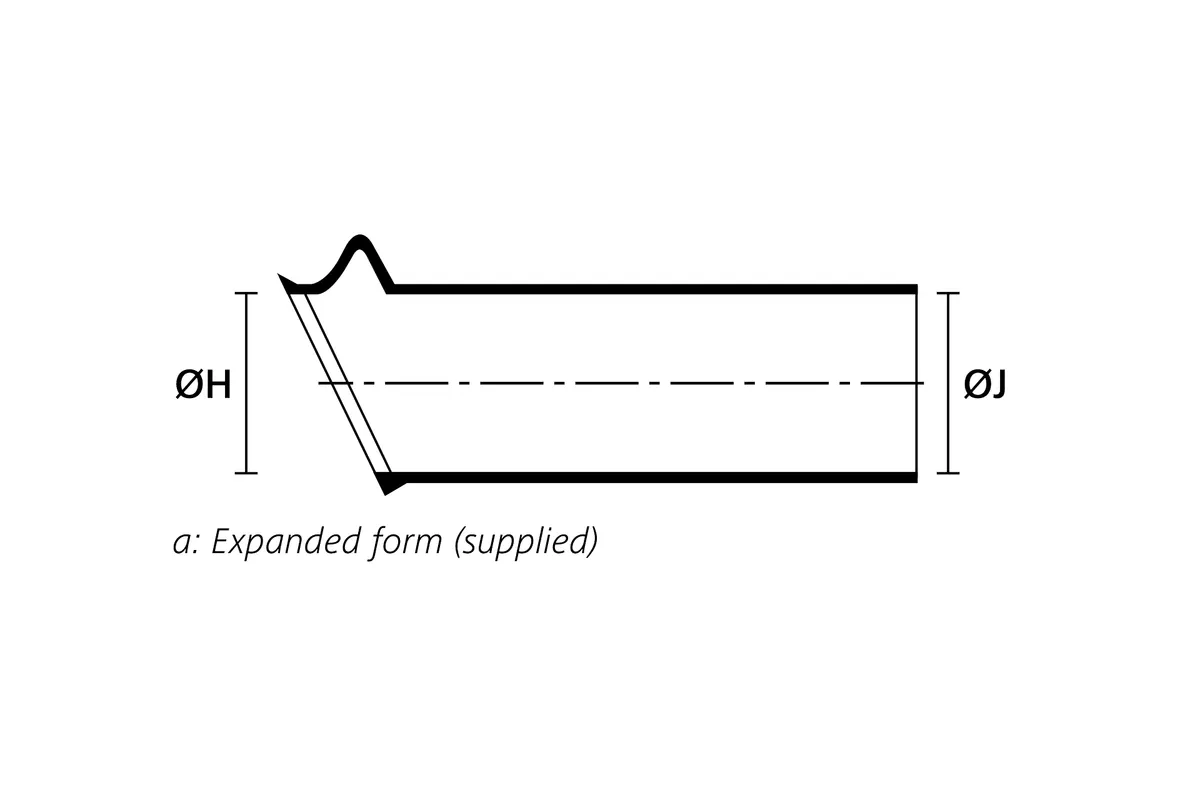

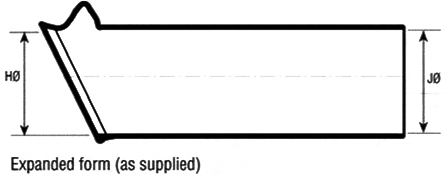

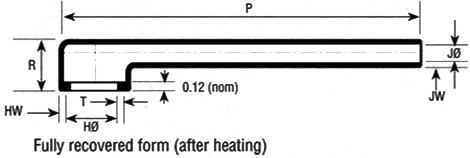

| Item # | Style | Expanded (Min) H | Expanded (Min) J | P ±10% | Material |
|---|---|---|---|---|---|
| 1121-1-B7 | VG | 0.87 | 0.87 | 2.76 | Semi-Rigid Flame Retarded Polyolefin |
| 1121-1-G | VG | 0.87 | 0.87 | 2.76 | Fluid Resistant Flame Retarded Elastomer |
| 1121-1-H | VG | 0.87 | 0.87 | 2.76 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1121-1-J | VG | 0.87 | 0.87 | 2.76 | Flexible Flame Retarded Polyolefin |
| 1121-1-L | VG | 0.87 | 0.87 | 2.76 | Flexible Flame Retarded Fluro-Elastomer |
| 1121-4-B7 | MIL | 0.88 | 0.88 | 4.14 | Semi-Rigid Flame Retarded Polyolefin |
| 1121-4-G | MIL | 0.88 | 0.88 | 4.14 | Fluid Resistant Flame Retarded Elastomer |
| 1121-4-H | MIL | 0.88 | 0.88 | 4.14 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1121-4-J | MIL | 0.88 | 0.88 | 4.14 | Flexible Flame Retarded Polyolefin |
| 1121-4-L | MIL | 0.88 | 0.88 | 4.14 | Flexible Flame Retarded Fluro-Elastomer |
| 1122-1-B7 | VG | 1.00 | 1.00 | 3.11 | Semi-Rigid Flame Retarded Polyolefin |
| 1122-1-G | VG | 1.00 | 1.00 | 3.11 | Fluid Resistant Flame Retarded Elastomer |
| 1122-1-H | VG | 1.00 | 1.00 | 3.11 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1122-1-J | VG | 1.00 | 1.00 | 3.11 | Flexible Flame Retarded Polyolefin |
| 1122-1-L | VG | 1.00 | 1.00 | 3.11 | Flexible Flame Retarded Fluro-Elastomer |
| 1122-4-B7 | MIL | 1.01 | 1.01 | 4.88 | Semi-Rigid Flame Retarded Polyolefin |
| 1122-4-G | MIL | 1.01 | 1.01 | 4.88 | Fluid Resistant Flame Retarded Elastomer |
| 1122-4-H | MIL | 1.01 | 1.01 | 4.88 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1122-4-J | MIL | 1.01 | 1.01 | 4.88 | Flexible Flame Retarded Polyolefin |
| 1122-4-L | MIL | 1.01 | 1.01 | 4.88 | Flexible Flame Retarded Fluro-Elastomer |
| 1123-1-B7 | VG | 1.14 | 1.14 | 3.50 | Semi-Rigid Flame Retarded Polyolefin |
| 1123-1-H | VG | 1.14 | 1.14 | 3.50 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1123-1-J | VG | 1.14 | 1.14 | 3.50 | Flexible Flame Retarded Polyolefin |
| 1123-1-L | VG | 1.14 | 1.14 | 3.50 | Flexible Flame Retarded Fluro-Elastomer |
| 1123-4-B7 | MIL | 1.16 | 1.16 | 5.76 | Semi-Rigid Flame Retarded Polyolefin |
| 1123-4-G | MIL | 1.16 | 1.16 | 5.76 | Fluid Resistant Flame Retarded Elastomer |
| 1123-4-H | MIL | 1.16 | 1.16 | 5.76 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1123-4-J | MIL | 1.16 | 1.16 | 5.76 | Flexible Flame Retarded Polyolefin |
| 1123-4-L | MIL | 1.16 | 1.16 | 5.76 | Flexible Flame Retarded Fluro-Elastomer |
| 1124-1-G | VG | 1.34 | 1.34 | 4.02 | Fluid Resistant Flame Retarded Elastomer |
| 1124-1-H | VG | 1.34 | 1.34 | 4.02 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1124-1-J | VG | 1.34 | 1.34 | 4.02 | Flexible Flame Retarded Polyolefin |
| 1124-1-L | VG | 1.34 | 1.34 | 4.02 | Flexible Flame Retarded Fluro-Elastomer |
| 1124-4-B7 | MIL | 1.34 | 1.34 | 6.78 | Semi-Rigid Flame Retarded Polyolefin |
| 1124-4-G | MIL | 1.34 | 1.34 | 6.78 | Fluid Resistant Flame Retarded Elastomer |
| 1124-4-H | MIL | 1.34 | 1.34 | 6.78 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1124-4-J | MIL | 1.34 | 1.34 | 6.78 | Flexible Flame Retarded Polyolefin |
| 1124-4-L | MIL | 1.34 | 1.34 | 6.78 | Flexible Flame Retarded Fluro-Elastomer |
| 1125-1-B7 | VG | 1.46 | 1.46 | 4.25 | Semi-Rigid Flame Retarded Polyolefin |
| 1125-1-G | VG | 1.46 | 1.46 | 4.25 | Fluid Resistant Flame Retarded Elastomer |
| 1125-1-H | VG | 1.46 | 1.46 | 4.25 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1125-1-J | VG | 1.46 | 1.46 | 4.25 | Flexible Flame Retarded Polyolefin |
| 1125-1-L | VG | 1.46 | 1.46 | 4.25 | Flexible Flame Retarded Fluro-Elastomer |
| 1125-2-B7 | MIL | 1.62 | 1.62 | 3.23 | Semi-Rigid Flame Retarded Polyolefin |
| 1125-2-G | MIL | 1.62 | 1.62 | 3.23 | Fluid Resistant Flame Retarded Elastomer |
| 1125-2-H | MIL | 1.62 | 1.62 | 3.23 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1125-2-J | MIL | 1.62 | 1.62 | 3.23 | Flexible Flame Retarded Polyolefin |
| 1125-2-L | MIL | 1.62 | 1.62 | 3.23 | Flexible Flame Retarded Fluro-Elastomer |
| 1125-4-B7 | MIL | 1.47 | 1.47 | 7.29 | Semi-Rigid Flame Retarded Polyolefin |
| 1125-4-G | MIL | 1.47 | 1.47 | 7.29 | Fluid Resistant Flame Retarded Elastomer |
| 1125-4-H | MIL | 1.47 | 1.47 | 7.29 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1125-4-J | MIL | 1.47 | 1.47 | 7.29 | Flexible Flame Retarded Polyolefin |
| 1125-4-L | MIL | 1.47 | 1.47 | 7.29 | Flexible Flame Retarded Fluro-Elastomer |
| 1126-1-B7 | VG | 1.71 | 1.71 | 4.76 | Semi-Rigid Flame Retarded Polyolefin |
| 1126-1-G | VG | 1.71 | 1.71 | 4.76 | Fluid Resistant Flame Retarded Elastomer |
| 1126-1-H | VG | 1.71 | 1.71 | 4.76 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1126-1-J | VG | 1.71 | 1.71 | 4.76 | Flexible Flame Retarded Polyolefin |
| 1126-1-L | VG | 1.71 | 1.71 | 4.76 | Flexible Flame Retarded Fluro-Elastomer |
| 1126-4-B7 | MIL | 1.72 | 1.72 | 8.41 | Semi-Rigid Flame Retarded Polyolefin |
| 1126-4-G | MIL | 1.72 | 1.72 | 8.41 | Fluid Resistant Flame Retarded Elastomer |
| 1126-4-H | MIL | 1.72 | 1.72 | 8.41 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1126-4-J | MIL | 1.72 | 1.72 | 8.41 | Flexible Flame Retarded Polyolefin |
| 1127-1-B7 | VG | 1.97 | 1.97 | 5.20 | Semi-Rigid Flame Retarded Polyolefin |
| 1127-1-G | VG | 1.97 | 1.97 | 5.20 | Fluid Resistant Flame Retarded Elastomer |
| 1127-1-H | VG | 1.97 | 1.97 | 5.20 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1127-1-J | VG | 1.97 | 1.97 | 5.20 | Flexible Flame Retarded Polyolefin |
| 1127-1-L | VG | 1.97 | 1.97 | 5.20 | Flexible Flame Retarded Fluro-Elastomer |
| 1127-3-B7 | MIL | 1.97 | 1.97 | 2.56 | Semi-Rigid Flame Retarded Polyolefin |
| 1127-3-G | MIL | 1.97 | 1.97 | 2.56 | Fluid Resistant Flame Retarded Elastomer |
| 1127-3-H | MIL | 1.97 | 1.97 | 2.56 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1127-3-J | MIL | 1.97 | 1.97 | 2.56 | Flexible Flame Retarded Polyolefin |
| 1127-3-L | MIL | 1.97 | 1.97 | 2.56 | Flexible Flame Retarded Fluro-Elastomer |
| 1127-4-B7 | MIL | 1.97 | 1.97 | 8.84 | Semi-Rigid Flame Retarded Polyolefin |
| 1127-4-G | MIL | 1.97 | 1.97 | 8.84 | Fluid Resistant Flame Retarded Elastomer |
| 1127-4-H | MIL | 1.97 | 1.97 | 8.84 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1127-4-J | MIL | 1.97 | 1.97 | 8.84 | Flexible Flame Retarded Polyolefin |
| 1127-4-L | MIL | 1.97 | 1.97 | 8.84 | Flexible Flame Retarded Fluro-Elastomer |
| 1128-1-B7 | VG | 2.46 | 2.46 | 5.24 | Semi-Rigid Flame Retarded Polyolefin |
| 1128-1-G | VG | 2.46 | 2.46 | 5.24 | Fluid Resistant Flame Retarded Elastomer |
| 1128-1-H | VG | 2.46 | 2.46 | 5.24 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1128-1-J | VG | 2.46 | 2.46 | 5.24 | Flexible Flame Retarded Polyolefin |
| 1128-1-L | VG | 2.46 | 2.46 | 5.24 | Flexible Flame Retarded Fluro-Elastomer |
| 1128-4-B7 | MIL | 2.47 | 2.47 | 8.95 | Semi-Rigid Flame Retarded Polyolefin |
| 1128-4-G | MIL | 2.47 | 2.47 | 8.95 | Fluid Resistant Flame Retarded Elastomer |
| 1128-4-H | MIL | 2.47 | 2.47 | 8.95 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1128-4-J | MIL | 2.47 | 2.47 | 8.95 | Flexible Flame Retarded Polyolefin |
| 1128-4-L | MIL | 2.47 | 2.47 | 8.95 | Flexible Flame Retarded Fluro-Elastomer |
| 1129-1-B7 | VG | 2.72 | 2.72 | 5.39 | Semi-Rigid Flame Retarded Polyolefin |
| 1129-1-G | VG | 2.72 | 2.72 | 5.39 | Fluid Resistant Flame Retarded Elastomer |
| 1129-1-H | VG | 2.72 | 2.72 | 5.39 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1129-1-J | VG | 2.72 | 2.72 | 5.39 | Flexible Flame Retarded Polyolefin |
| 1129-1-L | VG | 2.72 | 2.72 | 5.39 | Flexible Flame Retarded Fluro-Elastomer |
| 1129-4-B7 | MIL | 2.73 | 2.73 | 9.19 | Semi-Rigid Flame Retarded Polyolefin |
| 1129-4-G | MIL | 2.73 | 2.73 | 9.19 | Fluid Resistant Flame Retarded Elastomer |
| 1129-4-H | MIL | 2.73 | 2.73 | 9.19 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1129-4-L | MIL | 2.73 | 2.73 | 9.19 | Flexible Flame Retarded Fluro-Elastomer |
| 1141-1-B7 | VG | 3.23 | 3.23 | 5.51 | Semi-Rigid Flame Retarded Polyolefin |
| 1141-1-G | VG | 3.23 | 3.23 | 5.51 | Fluid Resistant Flame Retarded Elastomer |
| 1141-1-H | VG | 3.23 | 3.23 | 5.51 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1141-1-J | VG | 3.23 | 3.23 | 5.51 | Flexible Flame Retarded Polyolefin |
| 1141-1-L | VG | 3.23 | 3.23 | 5.51 | Flexible Flame Retarded Fluro-Elastomer |
| 1141-4-B7 | MIL | 3.22 | 3.22 | 9.33 | Semi-Rigid Flame Retarded Polyolefin |
| 1141-4-G | MIL | 3.22 | 3.22 | 9.33 | Fluid Resistant Flame Retarded Elastomer |
| 1141-4-H | MIL | 3.22 | 3.22 | 9.33 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1141-4-J | MIL | 3.22 | 3.22 | 9.33 | Flexible Flame Retarded Polyolefin |
| 1141-4-L | MIL | 3.22 | 3.22 | 9.33 | Flexible Flame Retarded Fluro-Elastomer |
| 1123-1-G | VG | 1.14 | 1.14 | 3.50 | Fluid Resistant Flame Retarded Elastomer |
| 1124-1-B7 | VG | 1.34 | 1.34 | 4.02 | Semi-Rigid Flame Retarded Polyolefin |
| 1126-4-L | MIL | 1.72 | 1.72 | 8.41 | Flexible Flame Retarded Fluro-Elastomer |
| 1129-4-J | MIL | 2.73 | 2.73 | 9.19 | Flexible Flame Retarded Polyolefin |
