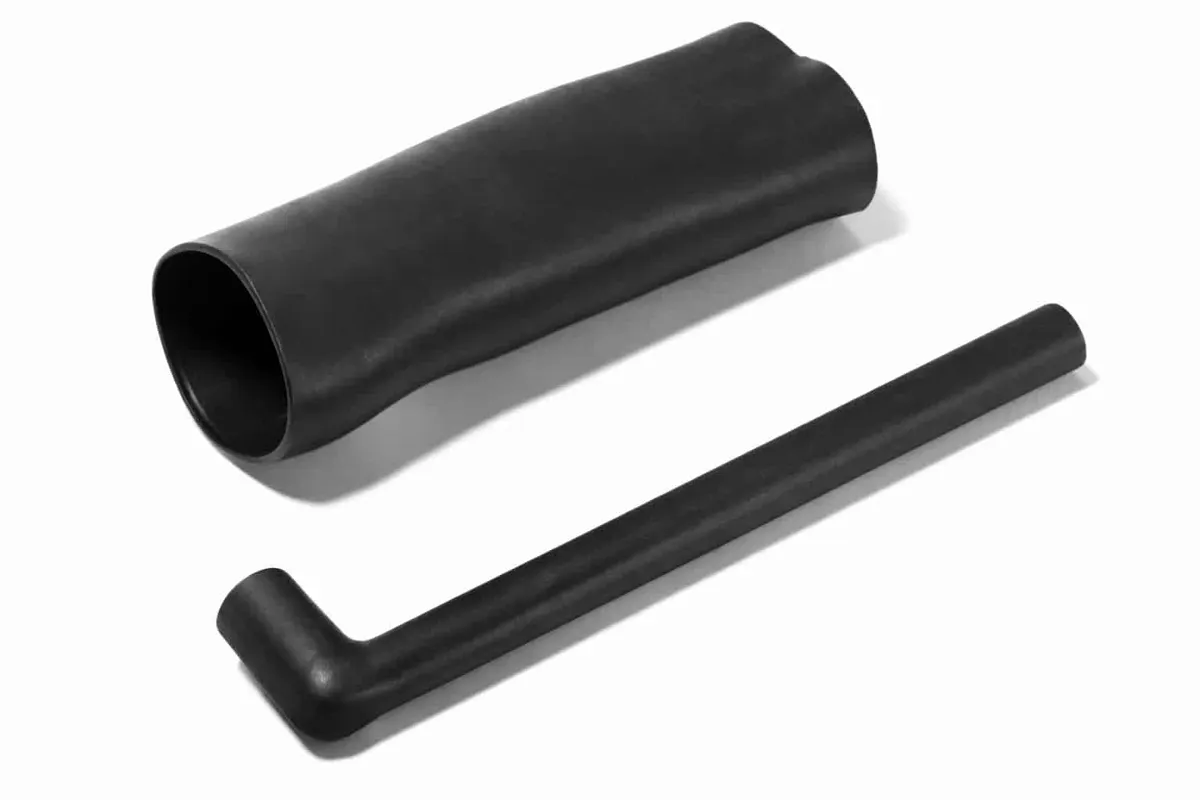

333F322 to 385 Right Angle Heatshrink Shapes with Adapter Lip
Heat Shrink Right Angle Boots
Products

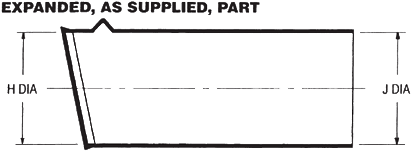

| Item # | H Dia. (Min X) | H Dia. (Max R) | J Dia. (Min X) | J Dia. (Max R) | Material |
|---|---|---|---|---|---|
| 333F322-6 | 0.94 | 0.39 | 0.68 | 0.26 | Flexible Flame Retardant Polyolefin |
| 333F322-8 | 0.94 | 0.39 | 0.68 | 0.26 | Viton-Polyester Polymer Blend |
| 333F322-9 | 0.94 | 0.39 | 0.68 | 0.26 | Modified Elastomer Blend |
| 333F332-6 | 1.07 | 0.52 | 0.82 | 0.29 | Flexible Flame Retardant Polyolefin |
| 333F332-8 | 1.07 | 0.52 | 0.82 | 0.29 | Viton-Polyester Polymer Blend |
| 333F332-9 | 1.07 | 0.52 | 0.82 | 0.29 | Modified Elastomer Blend |
| 333F343-6 | 1.22 | 0.73 | 0.96 | 0.33 | Flexible Flame Retardant Polyolefin |
| 333F343-8 | 1.22 | 0.73 | 0.96 | 0.33 | Viton-Polyester Polymer Blend |
| 333F343-9 | 1.22 | 0.73 | 0.96 | 0.33 | Modified Elastomer Blend |
| 333F353-6 | 1.40 | 1.10 | 1.24 | 0.43 | Flexible Flame Retardant Polyolefin |
| 333F353-8 | 1.40 | 1.10 | 1.24 | 0.43 | Viton-Polyester Polymer Blend |
| 333F353-9 | 1.40 | 1.10 | 1.24 | 0.43 | Modified Elastomer Blend |
| 333F364-6 | 1.53 | 1.10 | 1.24 | 0.43 | Flexible Flame Retardant Polyolefin |
| 333F364-8 | 1.53 | 1.10 | 1.24 | 0.43 | Viton-Polyester Polymer Blend |
| 333F364-9 | 1.53 | 1.10 | 1.24 | 0.43 | Modified Elastomer Blend |
| 333F374-6 | 1.78 | 1.34 | 1.51 | 0.48 | Flexible Flame Retardant Polyolefin |
| 333F374-8 | 1.78 | 1.34 | 1.51 | 0.48 | Viton-Polyester Polymer Blend |
| 333F374-9 | 1.78 | 1.34 | 1.51 | 0.48 | Modified Elastomer Blend |
| 333F385-6 | 2.03 | 1.62 | 1.75 | 0.56 | Flexible Flame Retardant Polyolefin |
| 333F385-8 | 2.03 | 1.62 | 1.75 | 0.56 | Viton-Polyester Polymer Blend |
| 333F385-9 | 2.03 | 1.62 | 1.75 | 0.56 | Modified Elastomer Blend |
