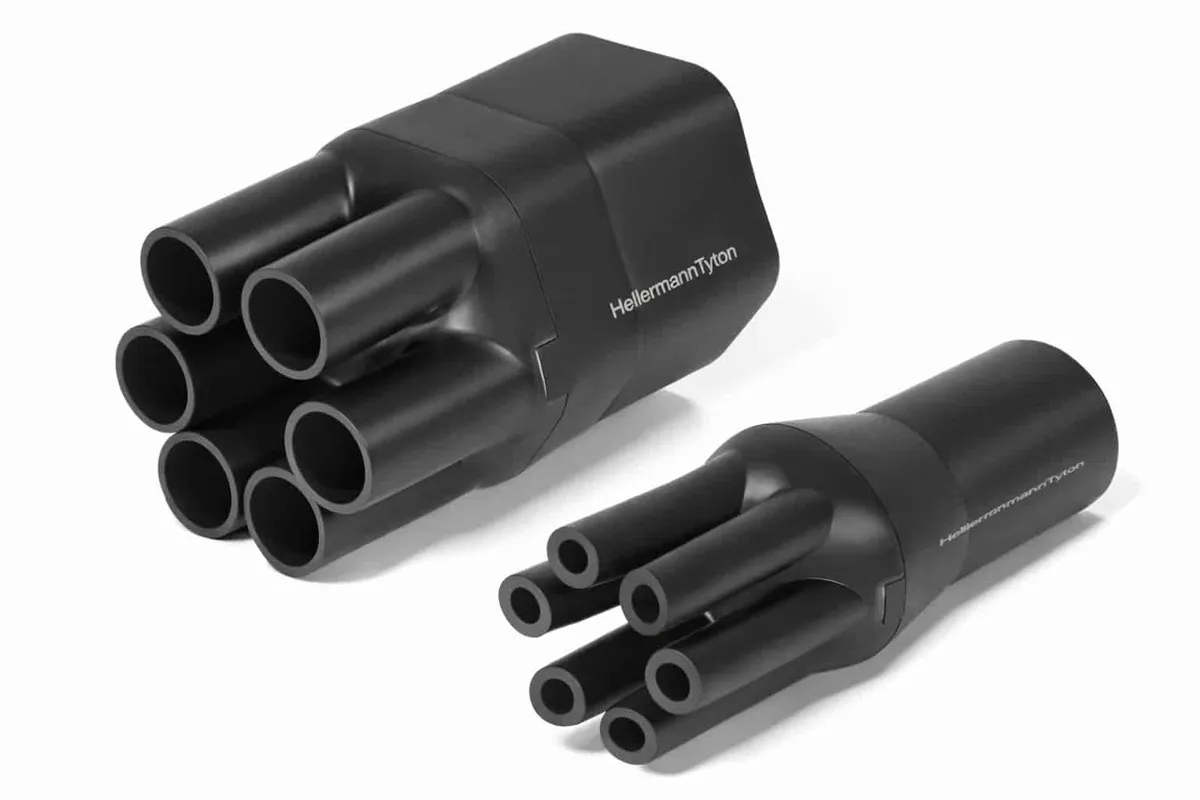

600 series 6-way Outlet Heatshrink Shapes (In Line)

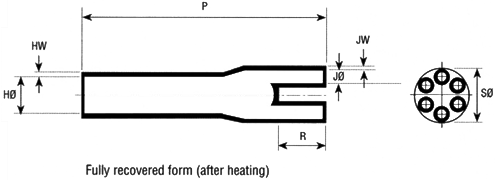

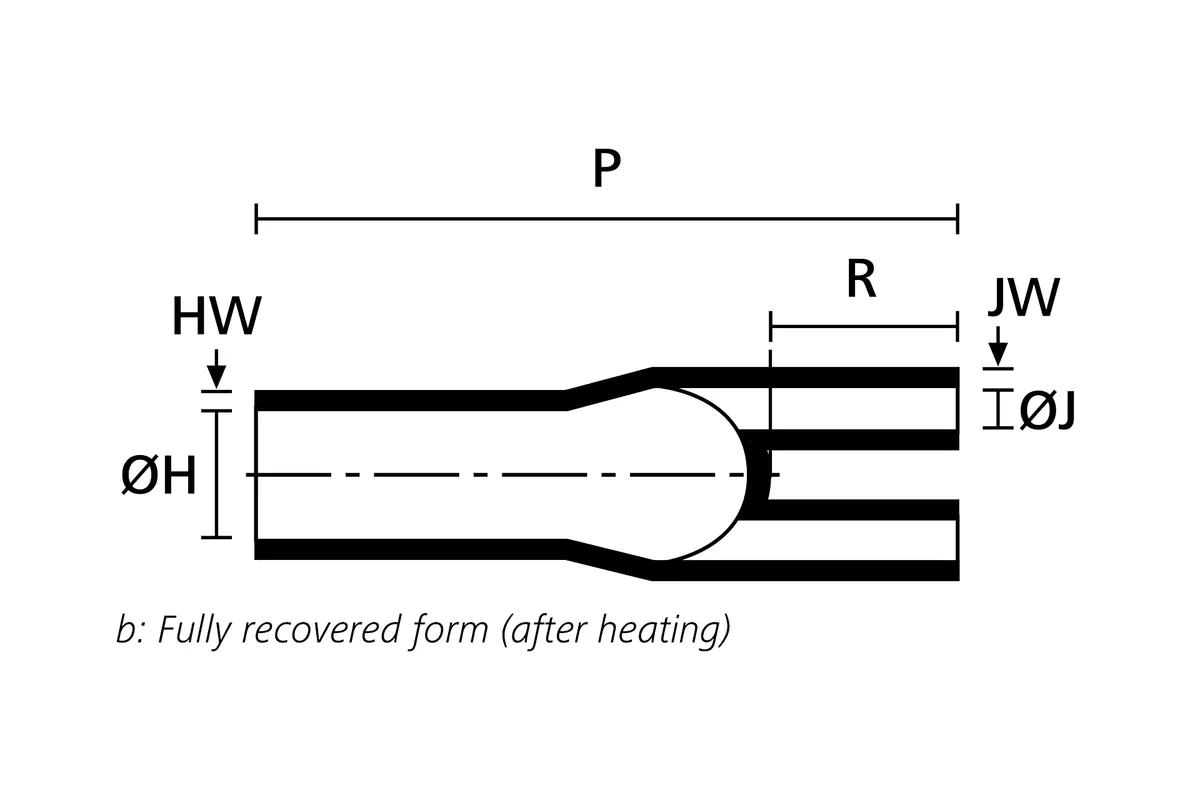

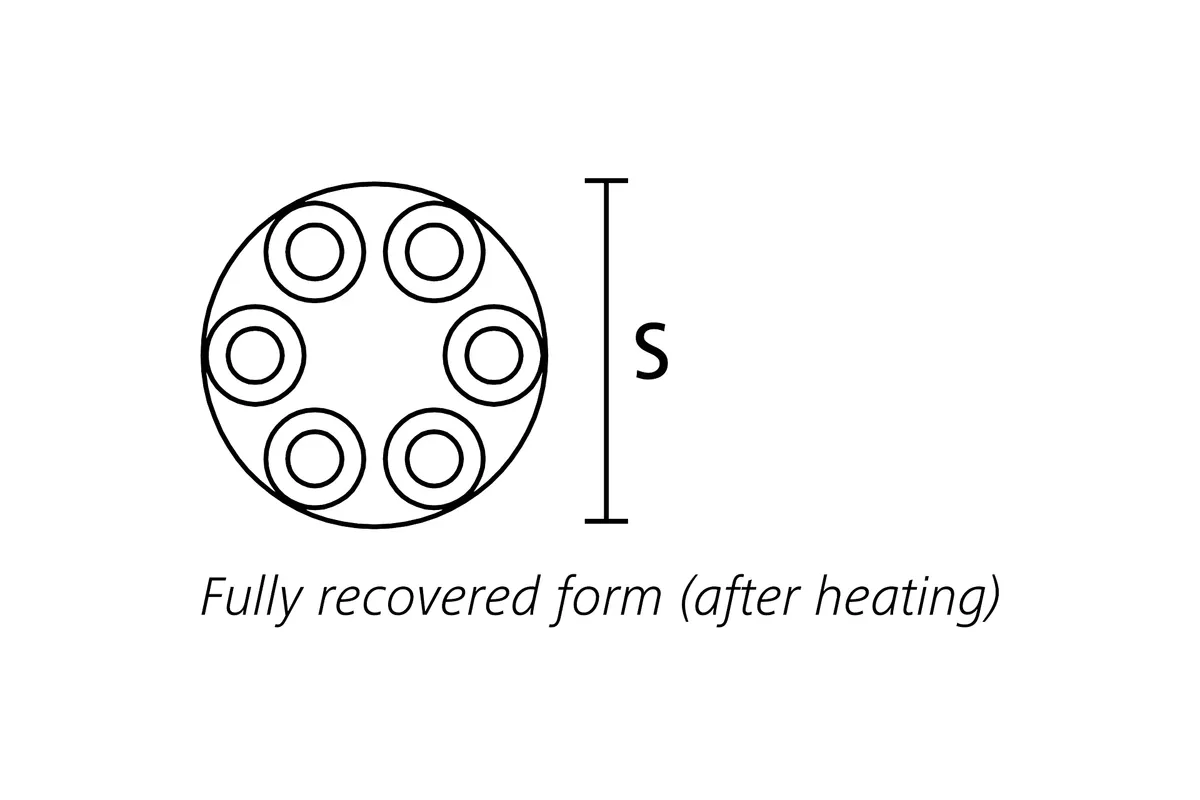

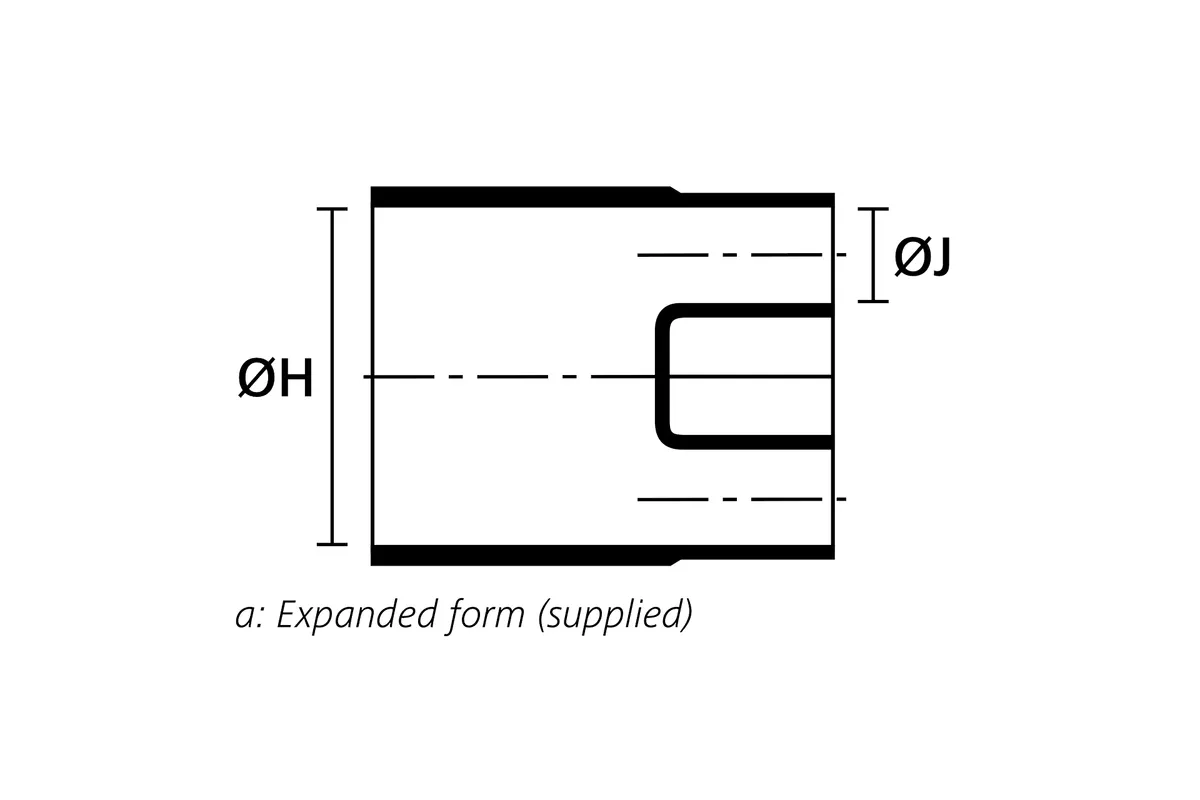

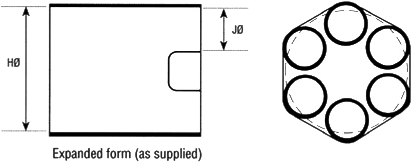

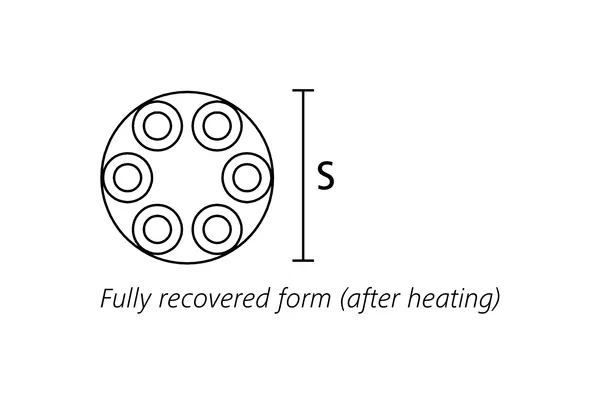

Heat Shrink 6-Way Outlet Shapes
Products
| Item # | Expanded (Min) H | Expanded (Min) J | S Nom | P ±10% | Material |
|---|---|---|---|---|---|
| 608-1-B7 | 2.39 | 0.82 | 1.97 | 5.40 | Semi-Rigid Flame Retarded Polyolefin |
| 608-1-G | 2.39 | 0.82 | 1.97 | 5.40 | Fluid Resistant Flame Retarded Elastomer |
| 608-1-J | 2.39 | 0.82 | 1.97 | 5.40 | Flexible Flame Retarded Polyolefin |
| 608-1-L | 2.39 | 0.82 | 1.97 | 5.40 | Flexible Flame Retarded Fluro-Elastomer |
| 609-1-B7 | 1.18 | 0.32 | 0.98 | 2.95 | Semi-Rigid Flame Retarded Polyolefin |
| 609-1-G | 1.18 | 0.32 | 0.98 | 2.95 | Fluid Resistant Flame Retarded Elastomer |
| 609-1-H | 1.18 | 0.32 | 0.98 | 2.95 | Flexible Zero-Hal Limited Fire Hazard Material |
| 609-1-J | 1.18 | 0.32 | 0.98 | 2.95 | Flexible Flame Retarded Polyolefin |
| 609-1-L | 1.18 | 0.32 | 0.98 | 2.95 | Flexible Flame Retarded Fluro-Elastomer |
| 608-1-H | 2.39 | 0.82 | 1.97 | 5.40 | Flexible Zero-Hal Limited Fire Hazard Material |
