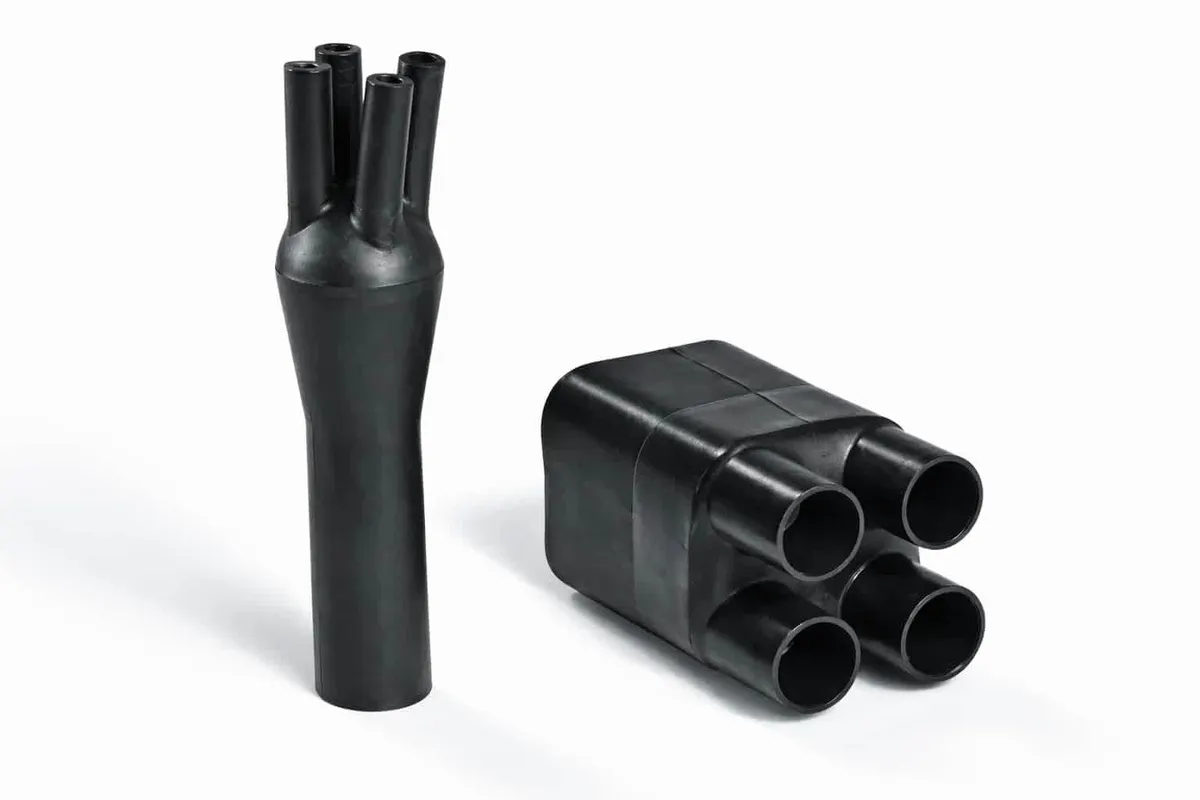

400 Series 4-way Outlet Heatshrink Shapes (VG Style)
Heat Shrink 4-Way Outlet Shapes
Products

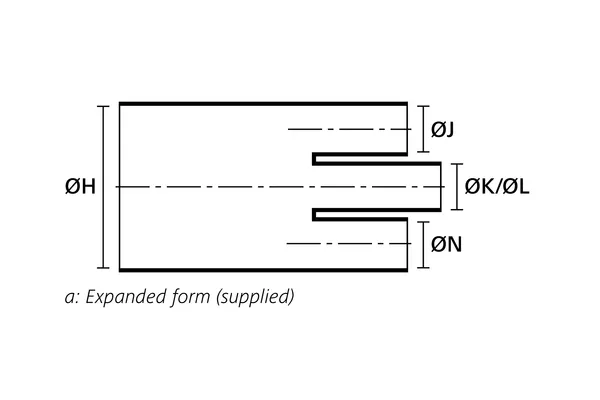

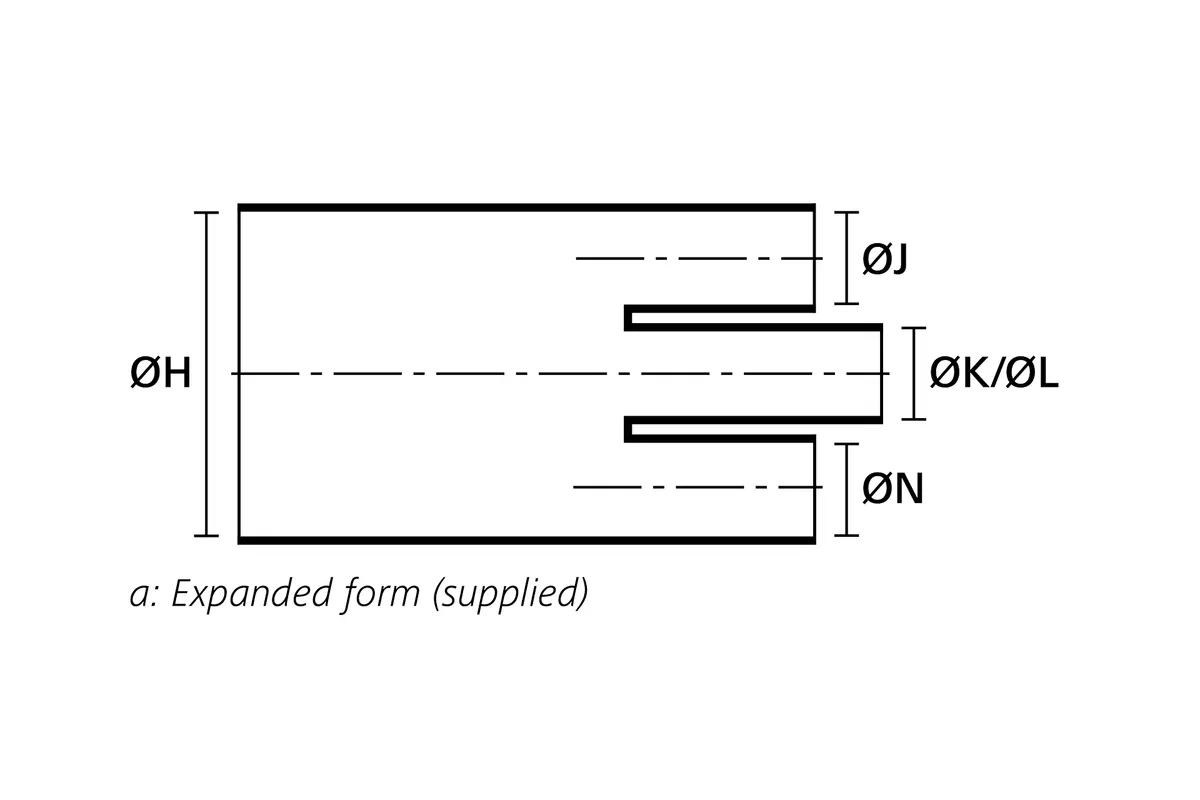

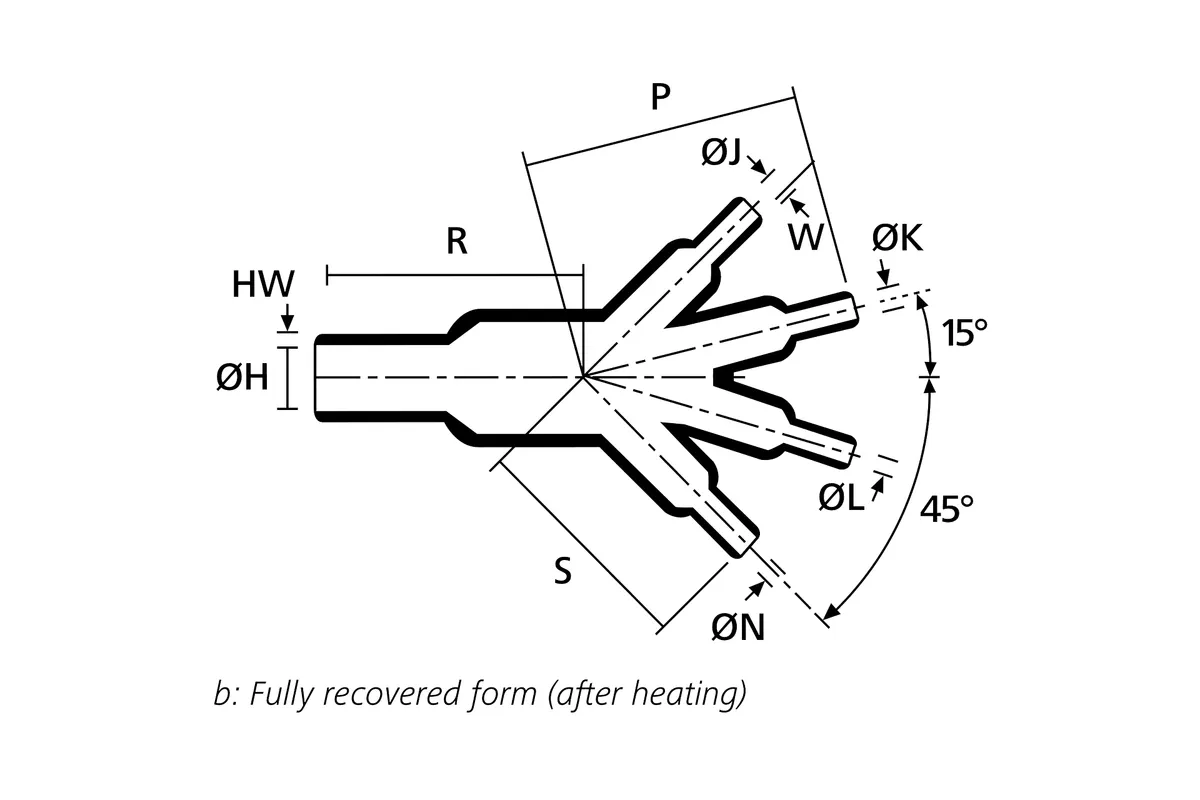

| Item # | Expanded (Min) H | Expanded (Min) J | P ±10% | T ±10% | Material |
|---|---|---|---|---|---|
| 403-1-B7 | 1.06 | 0.51 | 4.02 | 1.93 | Semi-Rigid Flame Retarded Polyolefin |
| 403-1-G | 1.06 | 0.51 | 4.02 | 1.93 | Fluid Resistant Flame Retarded Elastomer |
| 403-1-H | 1.06 | 0.51 | 4.02 | 1.93 | Flexible Zero-Hal Limited Fire Hazard Material |
| 403-1-J | 1.06 | 0.51 | 4.02 | 1.93 | Flexible Flame Retarded Polyolefin |
| 403-1-L | 1.06 | 0.51 | 4.02 | 1.93 | Flexible Flame Retarded Fluro-Elastomer |
| 411-1-B7 | 0.75 | 0.37 | 2.80 | 1.42 | Semi-Rigid Flame Retarded Polyolefin |
| 411-1-G | 0.75 | 0.37 | 2.80 | 1.42 | Fluid Resistant Flame Retarded Elastomer |
| 411-1-H | 0.75 | 0.37 | 2.80 | 1.42 | Flexible Zero-Hal Limited Fire Hazard Material |
| 411-1-J | 0.75 | 0.37 | 2.80 | 1.42 | Flexible Flame Retarded Polyolefin |
| 413-1-B7 | 1.52 | 0.75 | 5.91 | 2.95 | Semi-Rigid Flame Retarded Polyolefin |
| 413-1-G | 1.52 | 0.75 | 5.91 | 2.95 | Fluid Resistant Flame Retarded Elastomer |
| 413-1-H | 1.52 | 0.75 | 5.91 | 2.95 | Flexible Zero-Hal Limited Fire Hazard Material |
| 413-1-J | 1.52 | 0.75 | 5.91 | 2.95 | Flexible Flame Retarded Polyolefin |
| 411-1-L | 0.75 | 0.37 | 2.80 | 1.42 | Flexible Flame Retarded Fluro-Elastomer |
| 413-1-L | 1.52 | 0.75 | 5.91 | 2.95 | Flexible Flame Retarded Fluro-Elastomer |
