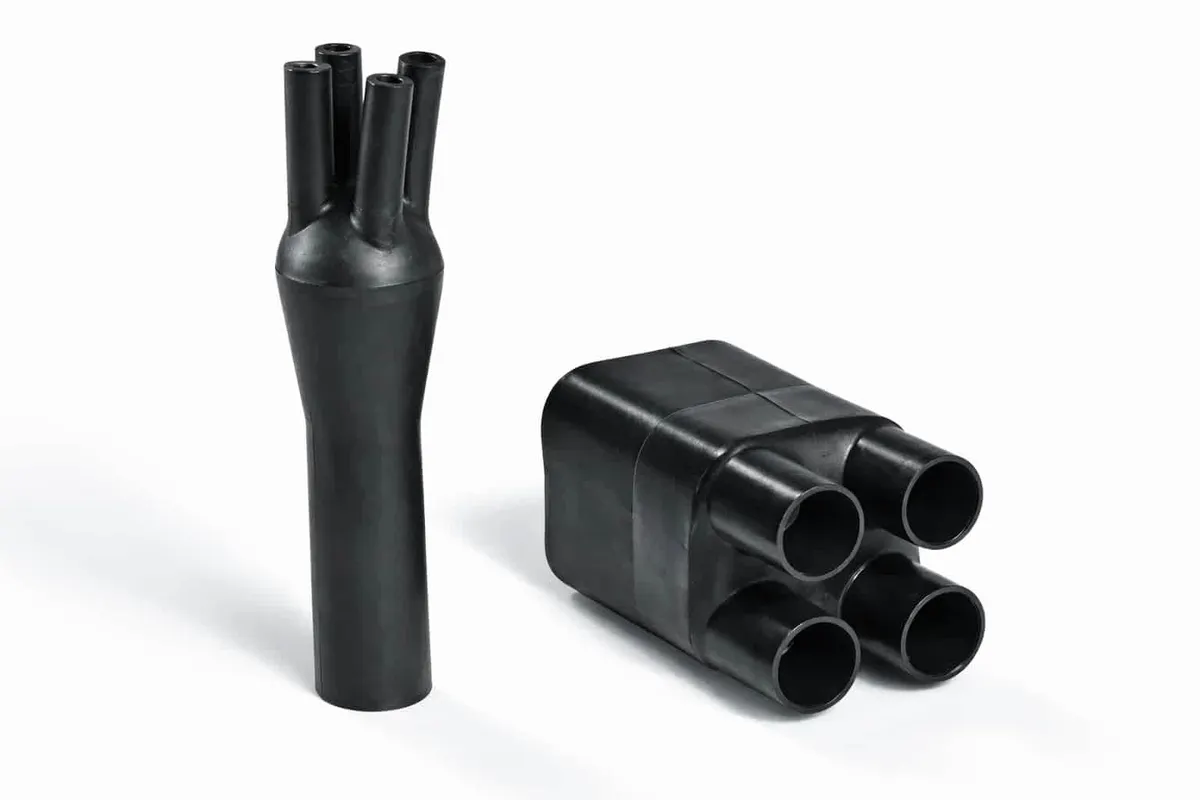

Helashrink 400 series four way outlet breakout boot used to insulate and seal cable branch points in electrical harnesses

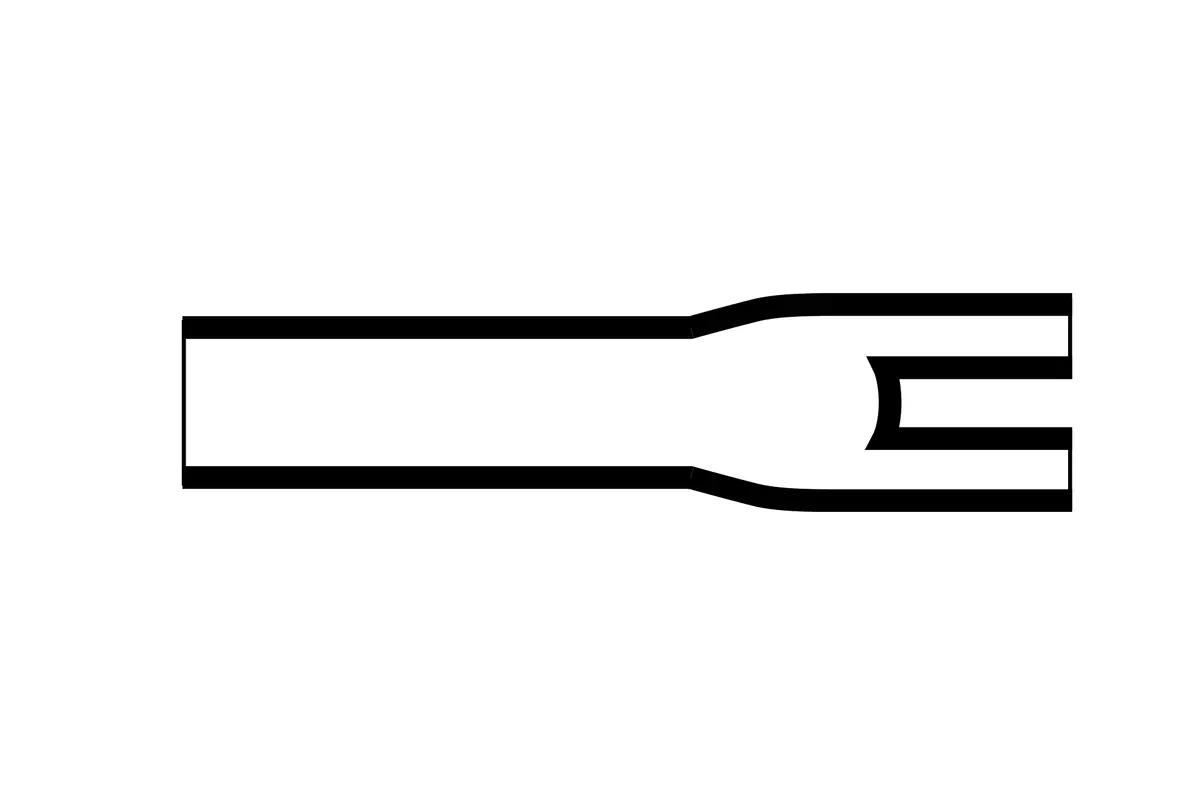

Diagram of Helashrink 400 series four way outlet heat shrink shape for inline low voltage cable breakouts

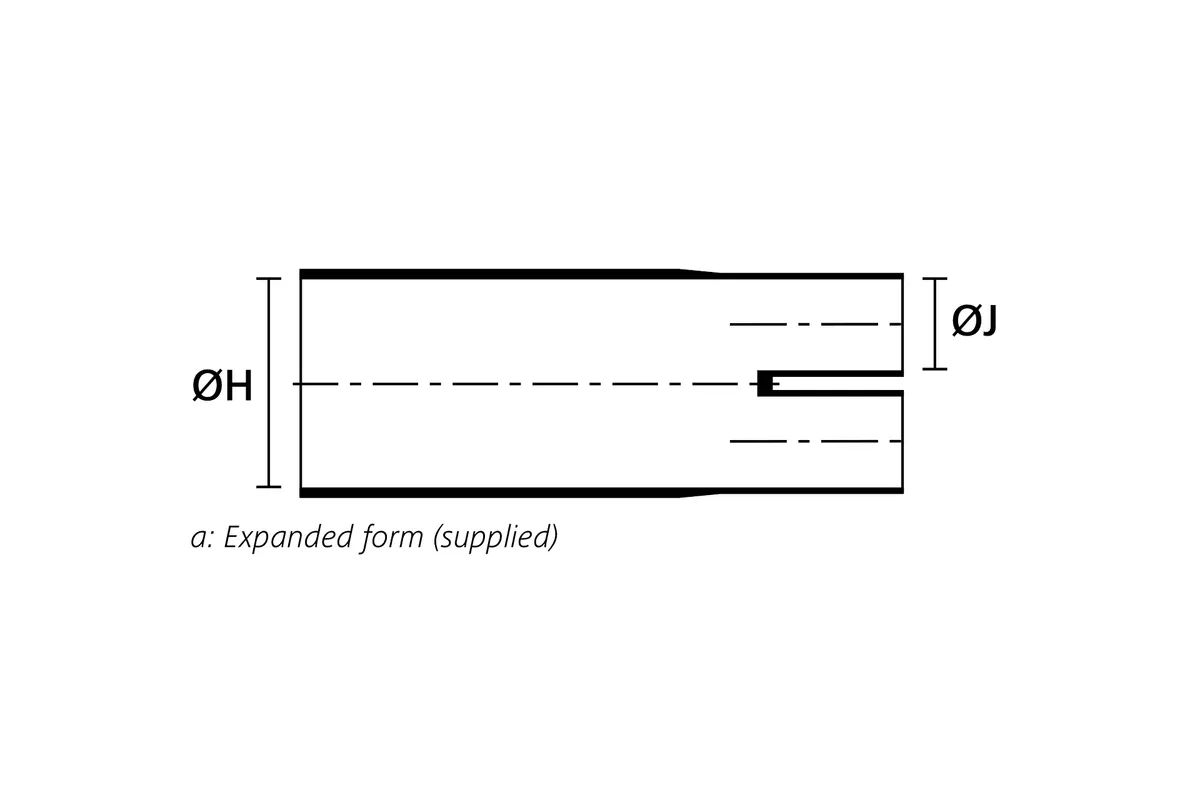

Technical drawing showing the expanded supplied form of a four way heat shrink outlet breakout boot

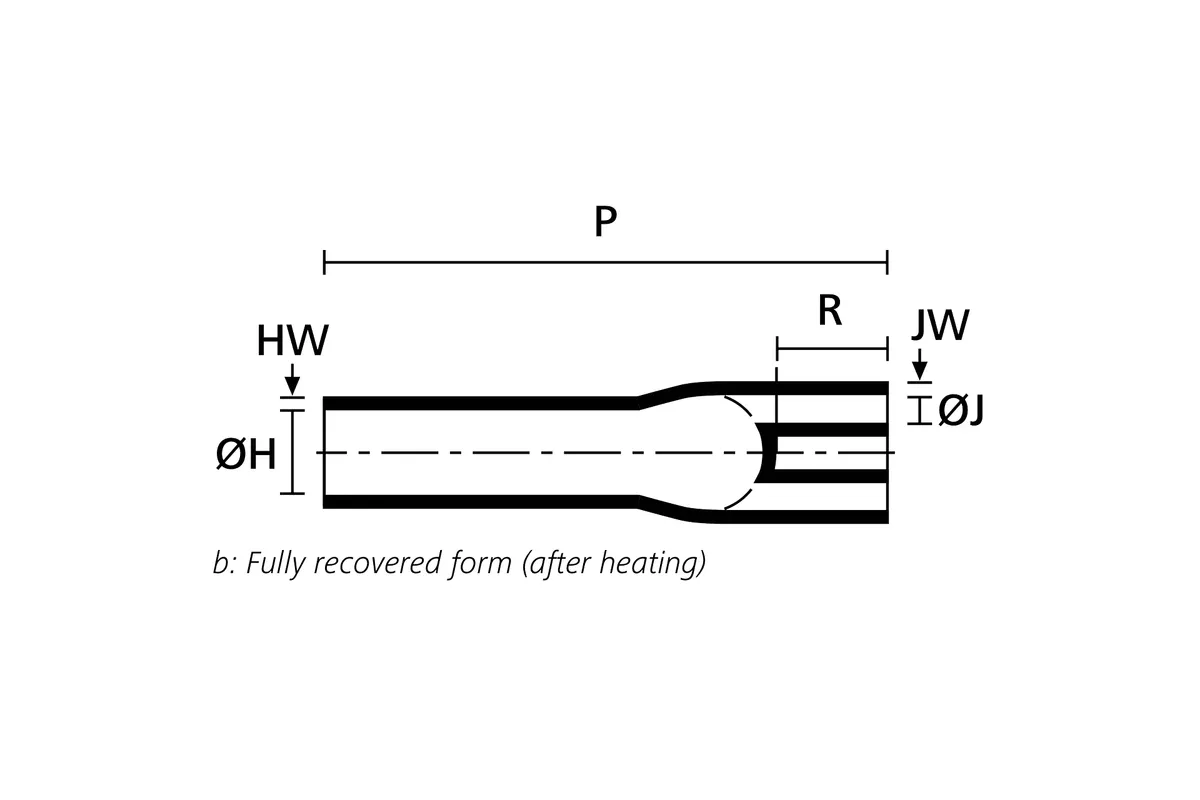

Technical drawing showing the fully recovered side view of a four way heat shrink outlet breakout boot

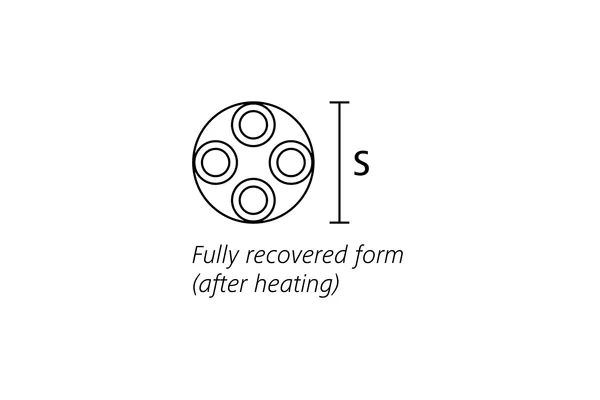

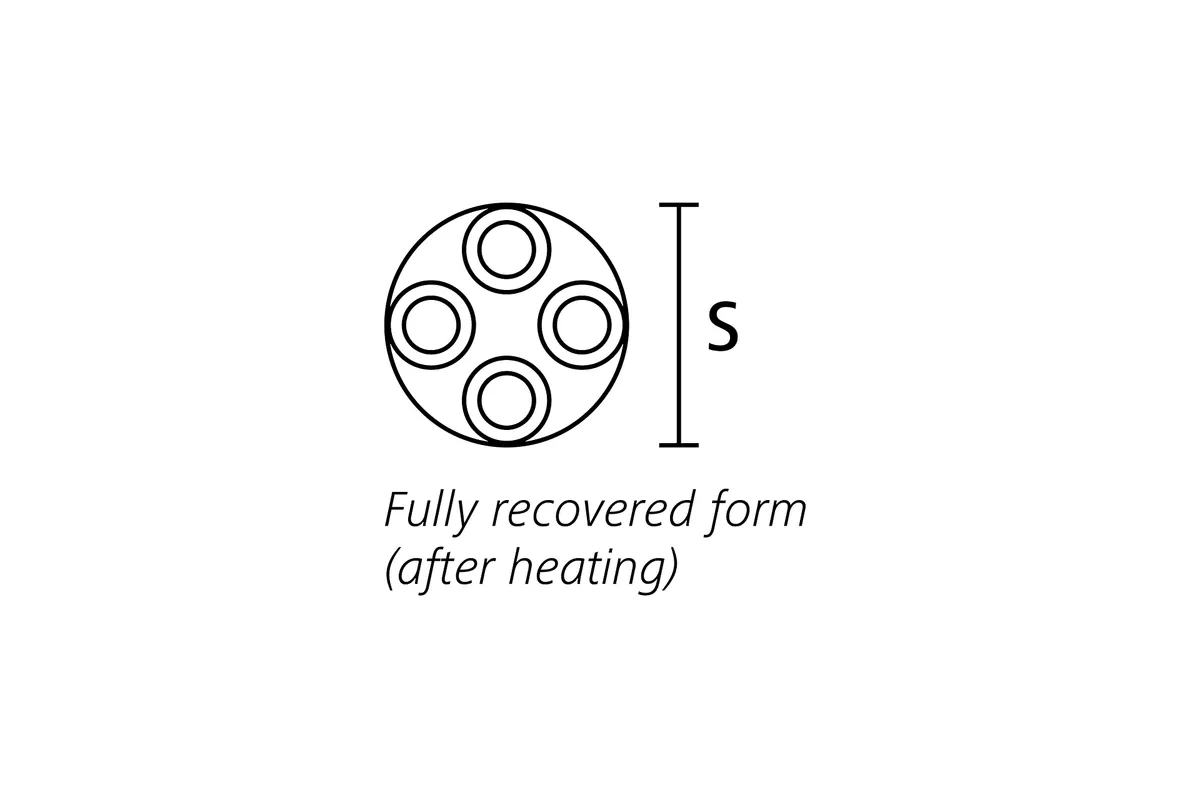

Technical drawing showing the end view of a fully recovered four way heat shrink outlet breakout boot

400 Series 4-way Outlet Heatshrink Shapes (In Line)

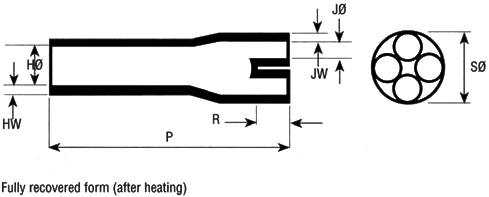

Heat Shrink 4-Way Outlet Shapes

Products

Item # Expanded (Min) H Expanded (Min) J P ±10% R ±10% Material
408-2-B7 1.38 0.59 3.74 0.94 Semi-Rigid Flame Retarded Polyolefin
408-2-G 1.38 0.59 3.74 0.94 Fluid Resistant Flame Retarded Elastomer
408-2-J 1.38 0.59 3.74 0.94 Flexible Flame Retarded Polyolefin
408-2-L 1.38 0.59 3.74 0.94 Flexible Flame Retarded Fluro-Elastomer
409-2-B7 1.87 0.85 6.50 1.50 Semi-Rigid Flame Retarded Polyolefin
409-2-G 1.87 0.85 6.50 1.50 Fluid Resistant Flame Retarded Elastomer
409-2-H 1.87 0.85 6.50 1.50 Flexible Zero-Hal Limited Fire Hazard Material
409-2-J 1.87 0.85 6.50 1.50 Flexible Flame Retarded Polyolefin
409-2-L 1.87 0.85 6.50 1.50 Flexible Flame Retarded Fluro-Elastomer
409-4-B7 2.36 1.18 6.50 1.50 Semi-Rigid Flame Retarded Polyolefin
409-4-G 2.36 1.18 6.50 1.50 Fluid Resistant Flame Retarded Elastomer
409-4-H 2.36 1.18 6.50 1.50 Flexible Zero-Hal Limited Fire Hazard Material
409-4-J 2.36 1.18 6.50 1.50 Flexible Flame Retarded Polyolefin
409-4-L 2.36 1.18 6.50 1.50 Flexible Flame Retarded Fluro-Elastomer
418-4-B7 2.36 1.18 7.95 1.50 Semi-Rigid Flame Retarded Polyolefin
418-4-G 2.36 1.18 7.95 1.50 Fluid Resistant Flame Retarded Elastomer
418-4-H 2.36 1.18 7.95 1.50 Flexible Zero-Hal Limited Fire Hazard Material
418-4-J 2.36 1.18 7.95 1.50 Flexible Flame Retarded Polyolefin
418-4-L 2.36 1.18 7.95 1.50 Flexible Flame Retarded Fluro-Elastomer
434-2-B7 0.98 0.28 3.07 0.85 Semi-Rigid Flame Retarded Polyolefin
434-2-G 0.98 0.28 3.07 0.85 Fluid Resistant Flame Retarded Elastomer
434-2-H 0.98 0.28 3.07 0.85 Flexible Zero-Hal Limited Fire Hazard Material
434-2-J 0.98 0.28 3.07 0.85 Flexible Flame Retarded Polyolefin
434-2-L 0.98 0.28 3.07 0.85 Flexible Flame Retarded Fluro-Elastomer
435-2-B7 1.26 0.51 3.68 1.12 Semi-Rigid Flame Retarded Polyolefin
435-2-G 1.26 0.51 3.68 1.12 Fluid Resistant Flame Retarded Elastomer
435-2-H 1.26 0.51 3.68 1.12 Flexible Zero-Hal Limited Fire Hazard Material
435-2-J 1.26 0.51 3.68 1.12 Flexible Flame Retarded Polyolefin
435-2-L 1.26 0.51 3.68 1.12 Flexible Flame Retarded Fluro-Elastomer
436-2-B7 1.77 0.79 3.90 1.34 Semi-Rigid Flame Retarded Polyolefin
436-2-G 1.77 0.79 3.90 1.34 Fluid Resistant Flame Retarded Elastomer
436-2-H 1.77 0.79 3.90 1.34 Flexible Zero-Hal Limited Fire Hazard Material
436-2-J 1.77 0.79 3.90 1.34 Flexible Flame Retarded Polyolefin
436-2-L 1.77 0.79 3.90 1.34 Flexible Flame Retarded Fluro-Elastomer
437-2-B7 2.36 1.00 9.45 1.89 Semi-Rigid Flame Retarded Polyolefin
437-2-G 2.36 1.00 9.45 1.89 Fluid Resistant Flame Retarded Elastomer
437-2-H 2.36 1.00 9.45 1.89 Flexible Zero-Hal Limited Fire Hazard Material
437-2-J 2.36 1.00 9.45 1.89 Flexible Flame Retarded Polyolefin
437-2-L 2.36 1.00 9.45 1.89 Flexible Flame Retarded Fluro-Elastomer
438-2-B7 2.64 1.20 5.57 1.67 Semi-Rigid Flame Retarded Polyolefin
438-2-G 2.64 1.20 5.57 1.67 Fluid Resistant Flame Retarded Elastomer
438-2-H 2.64 1.20 5.57 1.67 Flexible Zero-Hal Limited Fire Hazard Material
438-2-J 2.64 1.20 5.57 1.67 Flexible Flame Retarded Polyolefin
439-2-B7 5.25 1.35 10.02 3.35 Semi-Rigid Flame Retarded Polyolefin
439-2-G 5.25 1.35 10.02 3.35 Fluid Resistant Flame Retarded Elastomer
439-2-J 5.25 1.35 10.02 3.35 Flexible Flame Retarded Polyolefin
439-2-L 5.25 1.35 10.02 3.35 Flexible Flame Retarded Fluro-Elastomer
442-1-B7 1.10 0.35 3.07 0.67 Semi-Rigid Flame Retarded Polyolefin
442-1-G 1.10 0.35 3.07 0.67 Fluid Resistant Flame Retarded Elastomer
442-1-H 1.10 0.35 3.07 0.67 Flexible Zero-Hal Limited Fire Hazard Material
442-1-J 1.10 0.35 3.07 0.67 Flexible Flame Retarded Polyolefin
442-1-L 1.10 0.35 3.07 0.67 Flexible Flame Retarded Fluro-Elastomer
443-1-B7 1.38 0.59 4.72 1.02 Semi-Rigid Flame Retarded Polyolefin
443-1-G 1.38 0.59 4.72 1.02 Fluid Resistant Flame Retarded Elastomer
443-1-H 1.38 0.59 4.72 1.02 Flexible Zero-Hal Limited Fire Hazard Material
443-1-J 1.38 0.59 4.72 1.02 Flexible Flame Retarded Polyolefin
443-1-L 1.38 0.59 4.72 1.02 Flexible Flame Retarded Fluro-Elastomer
444-1-B7 3.10 1.50 9.45 2.17 Semi-Rigid Flame Retarded Polyolefin
444-1-G 3.10 1.50 9.45 2.17 Fluid Resistant Flame Retarded Elastomer
444-1-H 3.10 1.50 9.45 2.17 Flexible Zero-Hal Limited Fire Hazard Material
444-1-J 3.10 1.50 9.45 2.17 Flexible Flame Retarded Polyolefin
444-1-L 3.10 1.50 9.45 2.17 Flexible Flame Retarded Fluro-Elastomer
408-2-H 1.38 0.59 3.74 0.94 Flexible Zero-Hal Limited Fire Hazard Material
438-2-L 2.64 1.20 5.57 1.67 Flexible Flame Retarded Fluro-Elastomer
439-2-H 5.25 1.35 10.02 3.35 Flexible Zero-Hal Limited Fire Hazard Material
