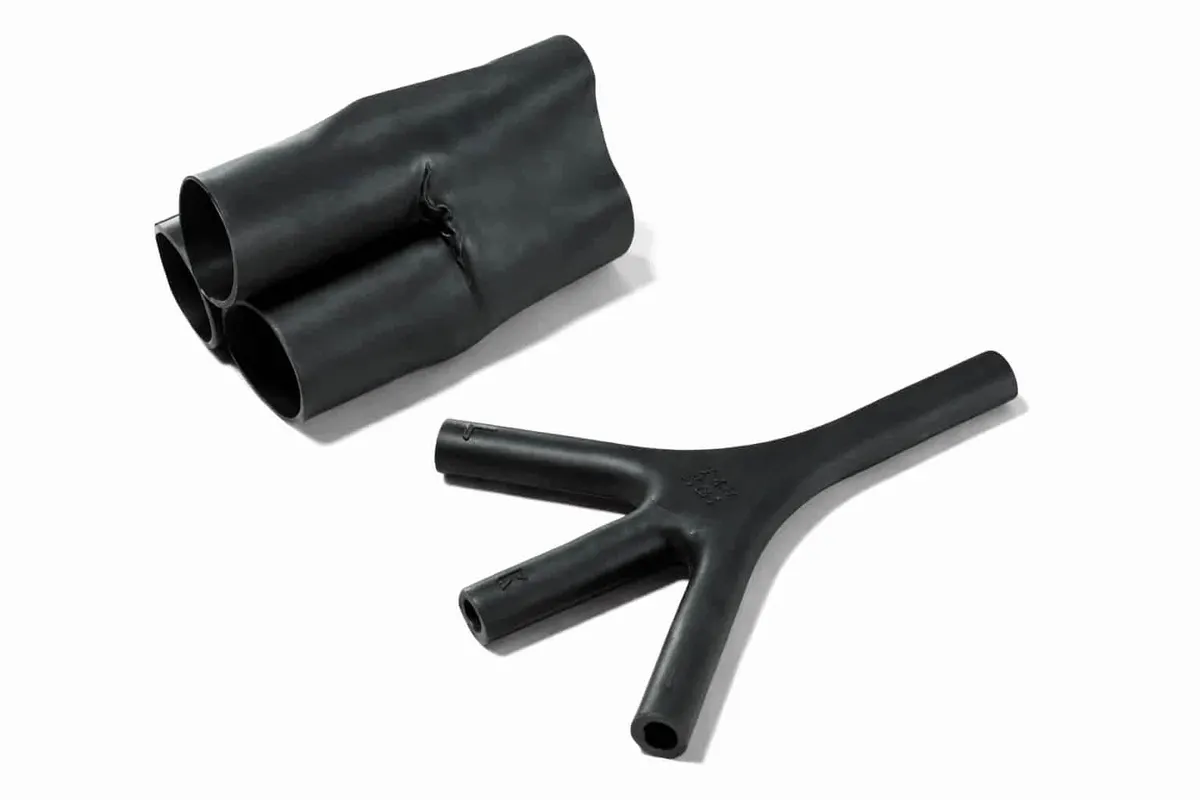

573H 532 to 535 Transition Heatshrink Shapes (1 to 3 cables) Low Profile
Transition Heat Shrink Boots
Products
| Item # | H Dia. (Min X) | H Dia. (Max R) | HO ±15% R | P Nom R | Material |
|---|---|---|---|---|---|
| 573H532-6 | 0.78 | 0.26 | 1.00 | 3.38 | Flexible Flame Retardant Polyolefin |
| 573H532-8 | 0.78 | 0.26 | 1.00 | 3.38 | Viton-Polyester Polymer Blend |
| 573H532-9 | 0.78 | 0.26 | 1.00 | 3.38 | Modified Elastomer Blend |
| 573H533-6 | 1.35 | 0.45 | 1.62 | 5.34 | Flexible Flame Retardant Polyolefin |
| 573H533-8 | 1.35 | 0.45 | 1.62 | 5.34 | Viton-Polyester Polymer Blend |
| 573H533-9 | 1.35 | 0.45 | 1.62 | 5.34 | Modified Elastomer Blend |
| 573H534-01-6 | 2.37 | 0.79 | 1.09 | 5.34 | Flexible Flame Retardant Polyolefin |
| 573H534-01-8 | 2.37 | 0.79 | 1.09 | 5.34 | Viton-Polyester Polymer Blend |
| 573H534-01-9 | 2.37 | 0.79 | 1.09 | 5.34 | Modified Elastomer Blend |
| 573H534-6 | 2.37 | 0.79 | 2.50 | 8.16 | Flexible Flame Retardant Polyolefin |
| 573H534-8 | 2.37 | 0.79 | 2.50 | 8.16 | Viton-Polyester Polymer Blend |
| 573H534-9 | 2.37 | 0.79 | 2.50 | 8.16 | Modified Elastomer Blend |
| 573H535-01-6 | 3.93 | 1.31 | 1.79 | 8.16 | Flexible Flame Retardant Polyolefin |
| 573H535-01-8 | 3.93 | 1.31 | 1.79 | 8.16 | Viton-Polyester Polymer Blend |
| 573H535-01-9 | 3.93 | 1.31 | 1.79 | 8.16 | Modified Elastomer Blend |
| 573H535-6 | 3.93 | 1.31 | 3.50 | 11.60 | Flexible Flame Retardant Polyolefin |
| 573H535-8 | 3.93 | 1.31 | 3.50 | 11.60 | Viton-Polyester Polymer Blend |
| 573H535-9 | 3.93 | 1.31 | 3.50 | 11.60 | Modified Elastomer Blend |
