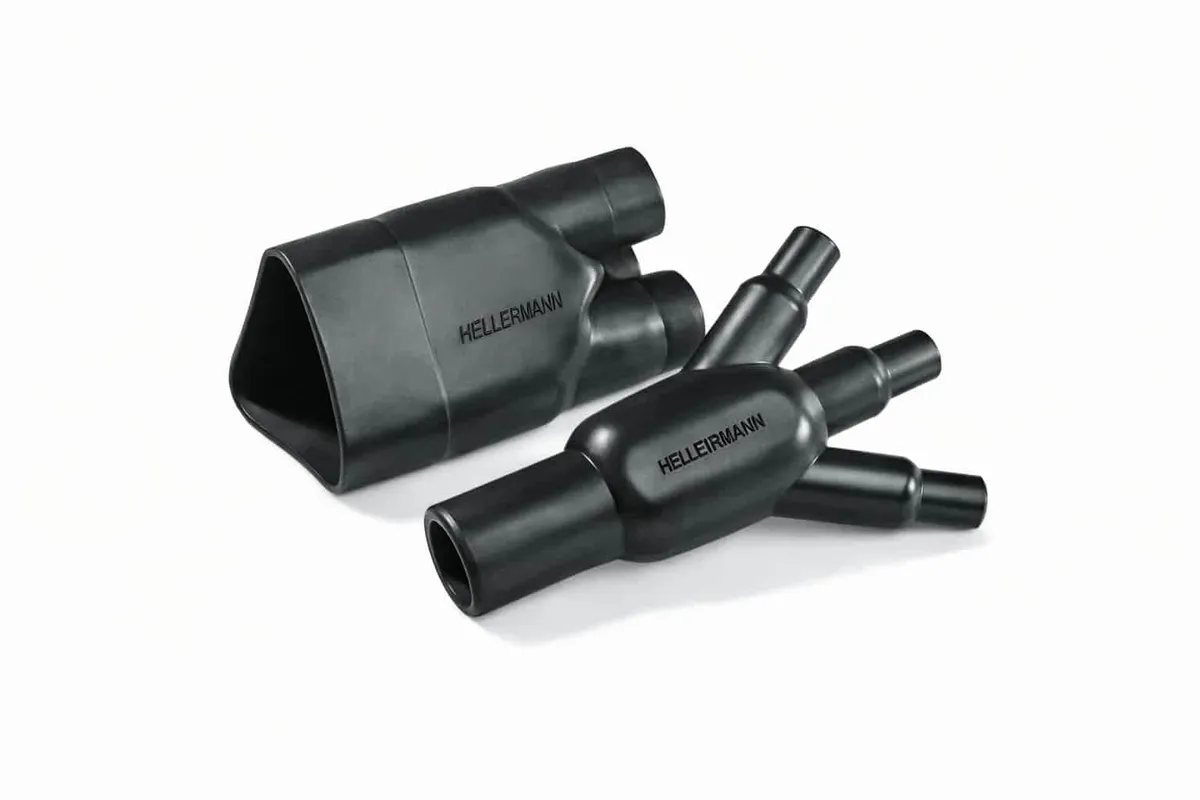

300 Series 3-way Outlet Heatshrink Shapes (VG Style)
Heat Shrink 3-Way Outlet Shapes
Products

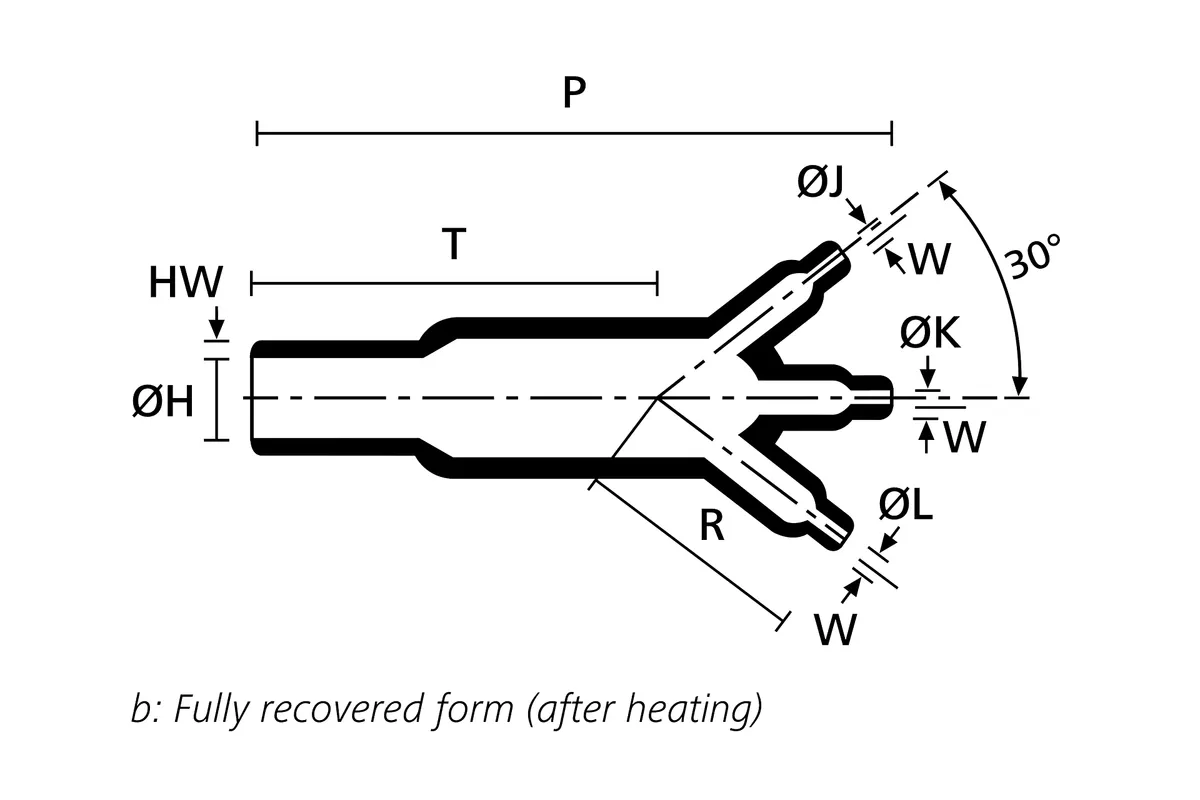

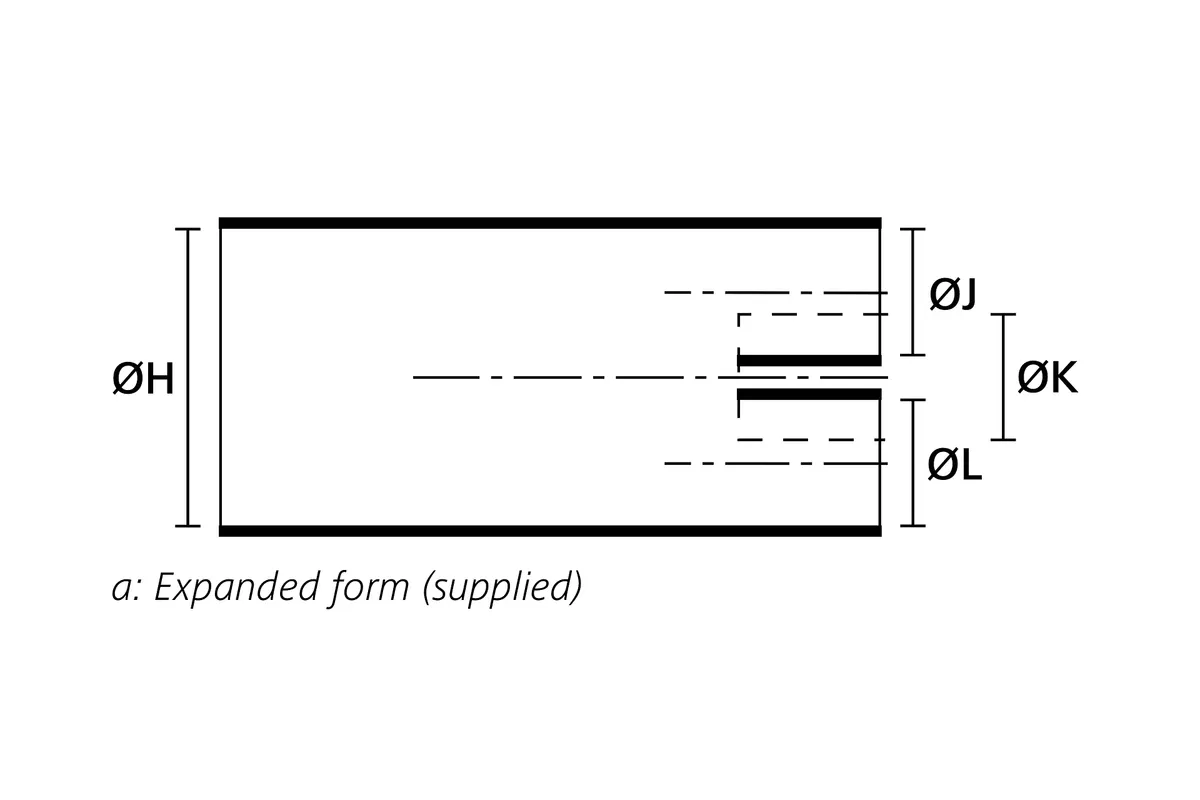

| Item # | Expanded (Min) H | Expanded (Min) J | P ±10% | R ±10% | Material |
|---|---|---|---|---|---|
| 304-1-B7 | 1.06 | 0.51 | 3.66 | 1.97 | Semi-Rigid Flame Retarded Polyolefin |
| 304-1-G | 1.06 | 0.51 | 3.66 | 1.97 | Fluid Resistant Flame Retarded Elastomer |
| 304-1-H | 1.06 | 0.51 | 3.66 | 1.97 | Flexible Zero-Hal Limited Fire Hazard Material |
| 310-1-B7 | 1.52 | 0.75 | 5.31 | 2.91 | Semi-Rigid Flame Retarded Polyolefin |
| 304-1-J | 1.06 | 0.51 | 3.66 | 1.97 | Flexible Flame Retarded Polyolefin |
| 304-1-L | 1.06 | 0.51 | 3.66 | 1.97 | Flexible Flame Retarded Fluro-Elastomer |
| 306-1-B7 | 0.51 | 0.26 | 1.81 | 0.98 | Semi-Rigid Flame Retarded Polyolefin |
| 306-1-G | 0.51 | 0.26 | 1.81 | 0.98 | Fluid Resistant Flame Retarded Elastomer |
| 306-1-H | 0.51 | 0.26 | 1.81 | 0.98 | Flexible Zero-Hal Limited Fire Hazard Material |
| 306-1-J | 0.51 | 0.26 | 1.81 | 0.98 | Flexible Flame Retarded Polyolefin |
| 306-1-L | 0.51 | 0.26 | 1.81 | 0.98 | Flexible Flame Retarded Fluro-Elastomer |
| 310-1-H | 1.52 | 0.75 | 5.31 | 2.91 | Flexible Zero-Hal Limited Fire Hazard Material |
| 310-1-J | 1.52 | 0.75 | 5.31 | 2.91 | Flexible Flame Retarded Polyolefin |
| 310-1-L | 1.52 | 0.75 | 5.31 | 2.91 | Flexible Flame Retarded Fluro-Elastomer |
| 311-1-B7 | 2.19 | 1.06 | 7.56 | 4.06 | Semi-Rigid Flame Retarded Polyolefin |
| 311-1-G | 2.19 | 1.06 | 7.56 | 4.06 | Fluid Resistant Flame Retarded Elastomer |
| 311-1-H | 2.19 | 1.06 | 7.56 | 4.06 | Flexible Zero-Hal Limited Fire Hazard Material |
| 311-1-J | 2.19 | 1.06 | 7.56 | 4.06 | Flexible Flame Retarded Polyolefin |
| 311-1-L | 2.19 | 1.06 | 7.56 | 4.06 | Flexible Flame Retarded Fluro-Elastomer |
| 334-1-B7 | 0.52 | 0.26 | 1.82 | 1.00 | Semi-Rigid Flame Retarded Polyolefin |
| 334-1-G | 0.52 | 0.26 | 1.82 | 1.00 | Fluid Resistant Flame Retarded Elastomer |
| 334-1-H | 0.52 | 0.26 | 1.82 | 1.00 | Flexible Zero-Hal Limited Fire Hazard Material |
| 334-1-J | 0.52 | 0.26 | 1.82 | 1.00 | Flexible Flame Retarded Polyolefin |
| 334-1-L | 0.52 | 0.26 | 1.82 | 1.00 | Flexible Flame Retarded Fluro-Elastomer |
| 310-1-G | 1.52 | 0.75 | 5.31 | 2.91 | Fluid Resistant Flame Retarded Elastomer |
