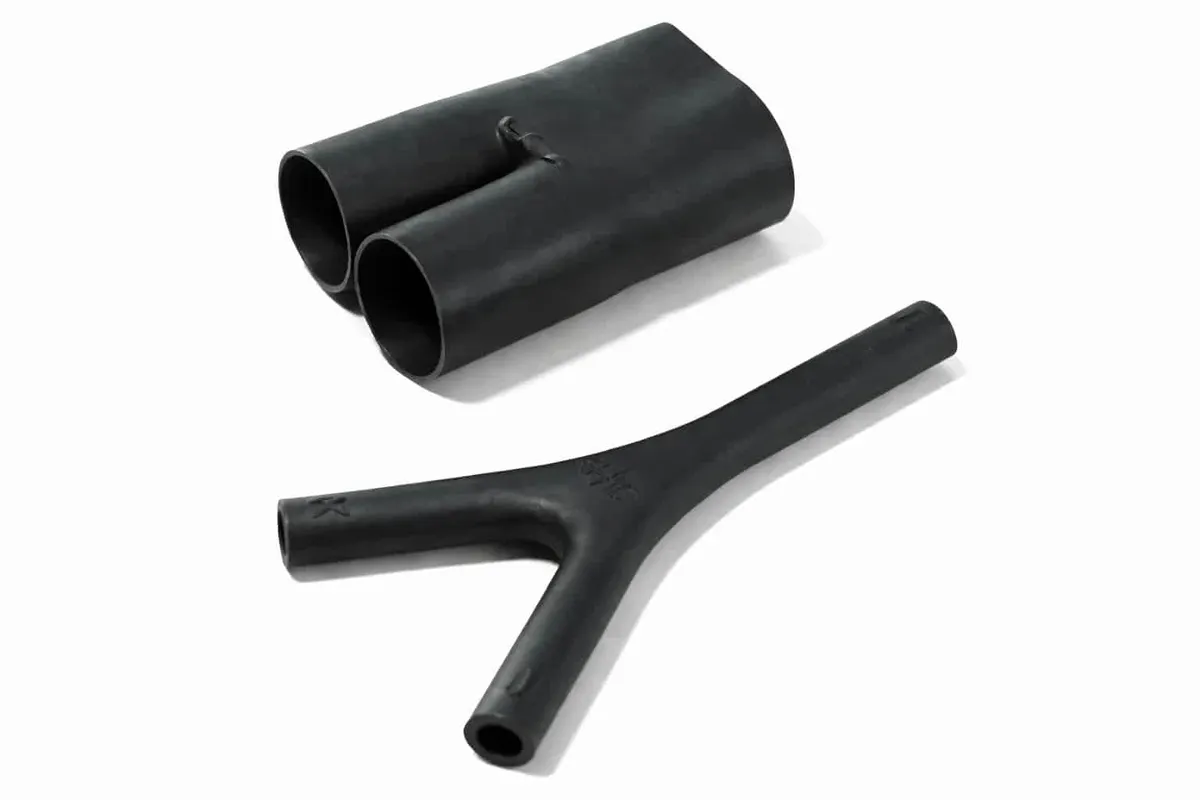

492H 412 to 415 Transition Heatshrink Shapes (1 to 2 cables) Low Profile
Transition Heat Shrink Boots
Products

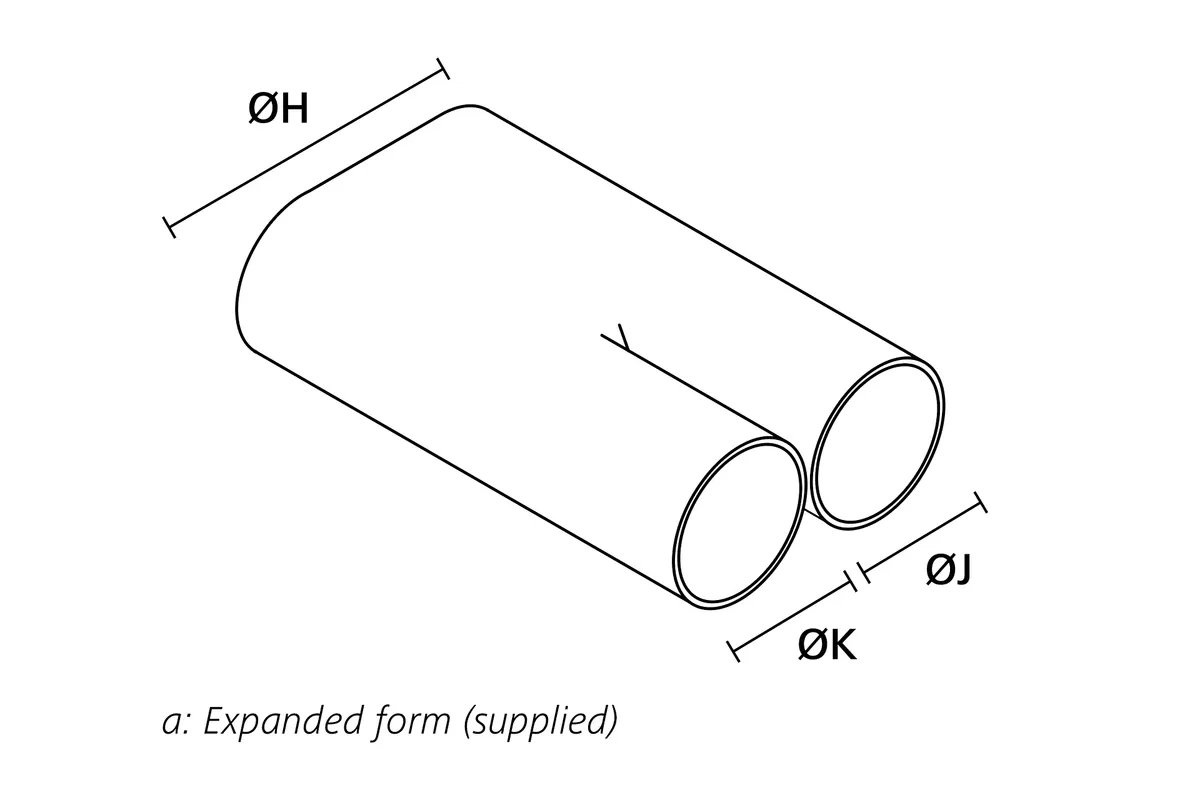

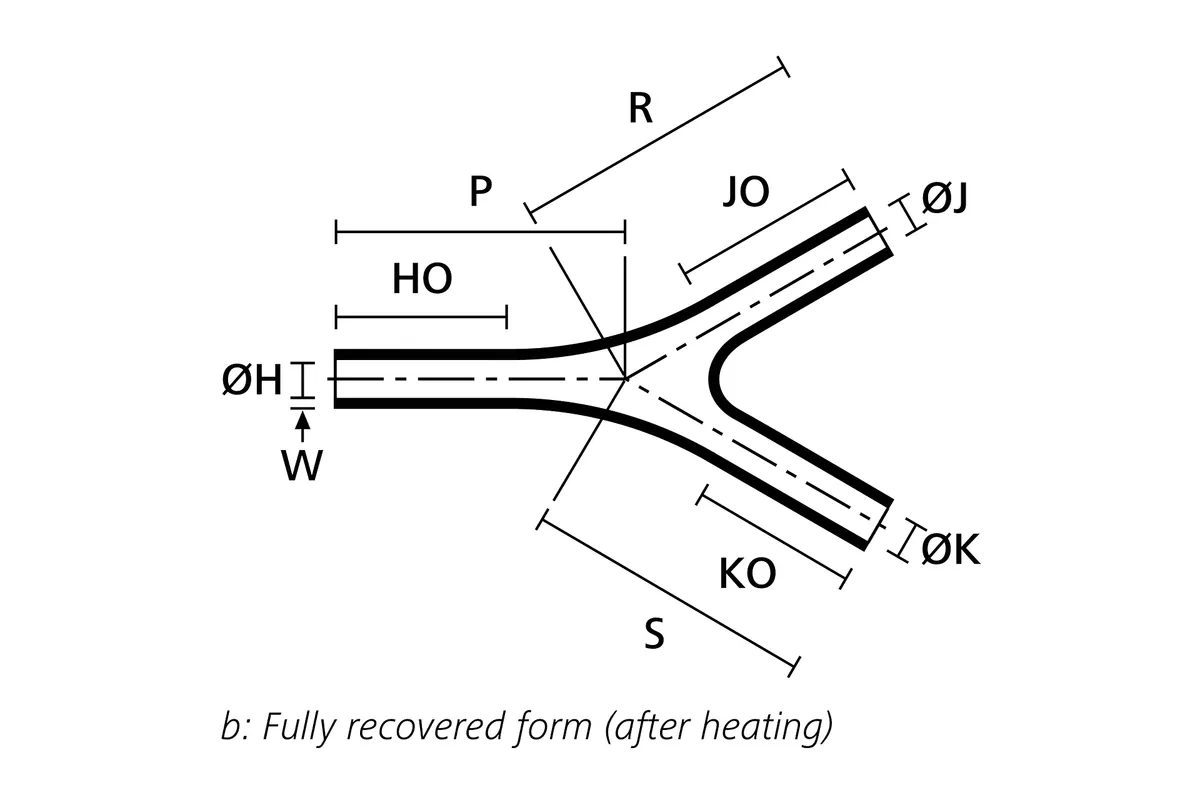

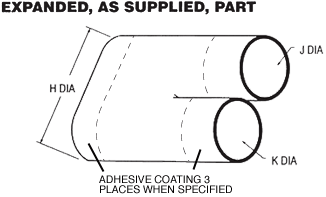

| Item # | H Dia. (Min X) | H Dia. (Max R) | HO ±15% R | W Nom R | Material |
|---|---|---|---|---|---|
| 492H412-6 | 0.78 | 0.26 | 1.00 | 0.04 | Flexible Flame Retardant Polyolefin |
| 492H412-8 | 0.78 | 0.26 | 1.00 | 0.04 | Viton-Polyester Polymer Blend |
| 492H412-9 | 0.78 | 0.26 | 1.00 | 0.04 | Modified Elastomer Blend |
| 492H413-6 | 1.35 | 0.45 | 1.62 | 0.05 | Flexible Flame Retardant Polyolefin |
| 492H413-8 | 1.35 | 0.45 | 1.62 | 0.05 | Viton-Polyester Polymer Blend |
| 492H413-9 | 1.35 | 0.45 | 1.62 | 0.05 | Modified Elastomer Blend |
| 492H414-01-6 | 2.37 | 0.79 | 1.25 | 0.06 | Flexible Flame Retardant Polyolefin |
| 492H414-01-8 | 2.37 | 0.79 | 1.25 | 0.06 | Viton-Polyester Polymer Blend |
| 492H414-01-9 | 2.37 | 0.79 | 1.25 | 0.06 | Modified Elastomer Blend |
| 492H414-6 | 2.37 | 0.79 | 2.50 | 0.06 | Flexible Flame Retardant Polyolefin |
| 492H414-8 | 2.37 | 0.79 | 2.50 | 0.06 | Viton-Polyester Polymer Blend |
| 492H414-9 | 2.37 | 0.79 | 2.50 | 0.06 | Modified Elastomer Blend |
| 492H415-01-8 | 3.28 | 1.31 | 1.96 | 0.07 | Viton-Polyester Polymer Blend |
| 492H415-01-9 | 3.28 | 1.31 | 1.96 | 0.07 | Modified Elastomer Blend |
| 492H415-8 | 3.28 | 1.31 | 3.50 | 0.07 | Viton-Polyester Polymer Blend |
| 492H415-9 | 3.28 | 1.31 | 3.50 | 0.07 | Modified Elastomer Blend |
| 492H415-01-6 | 3.28 | 1.31 | 1.96 | 0.07 | Flexible Flame Retardant Polyolefin |
| 492H415-6 | 3.28 | 1.31 | 3.50 | 0.07 | Flexible Flame Retardant Polyolefin |
