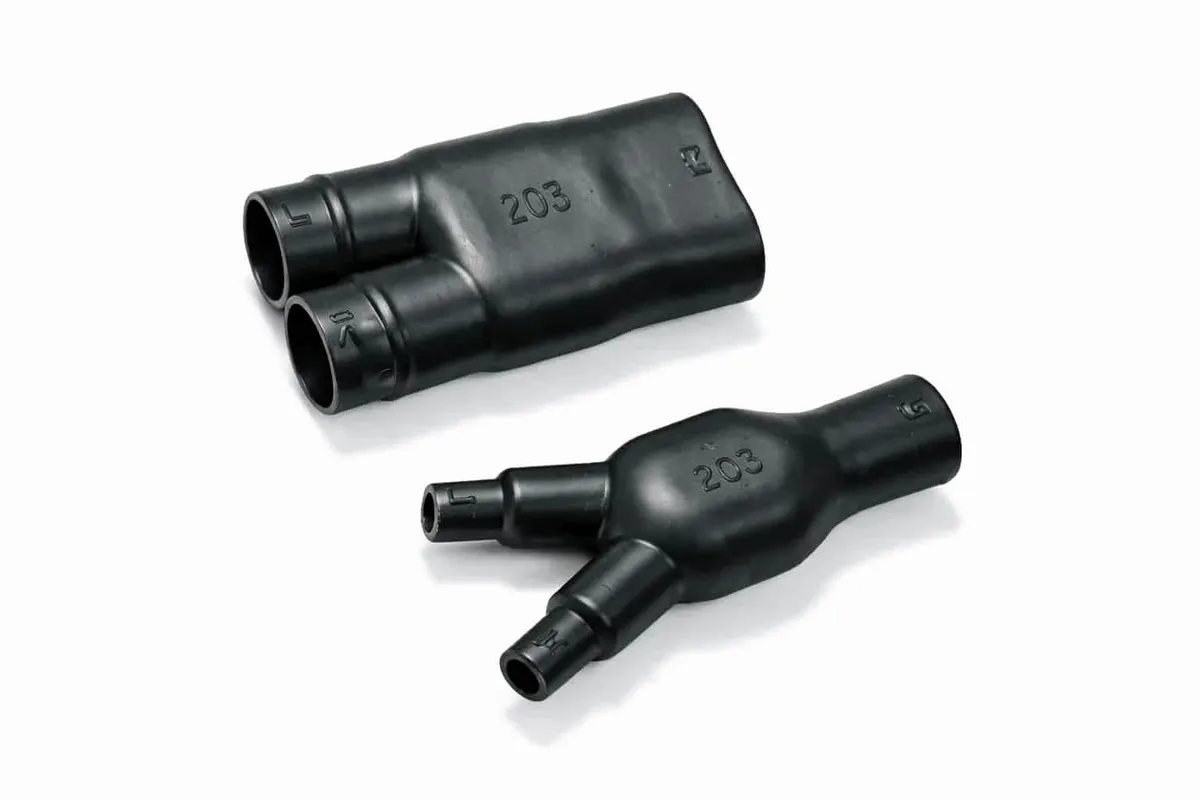

200 Series 2-way Outlet Heatshrink Shapes (VG Style)

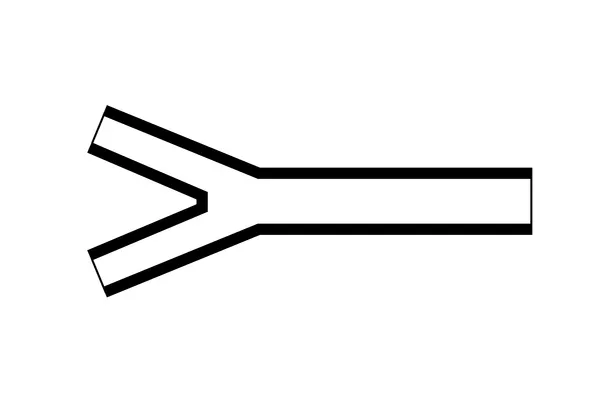

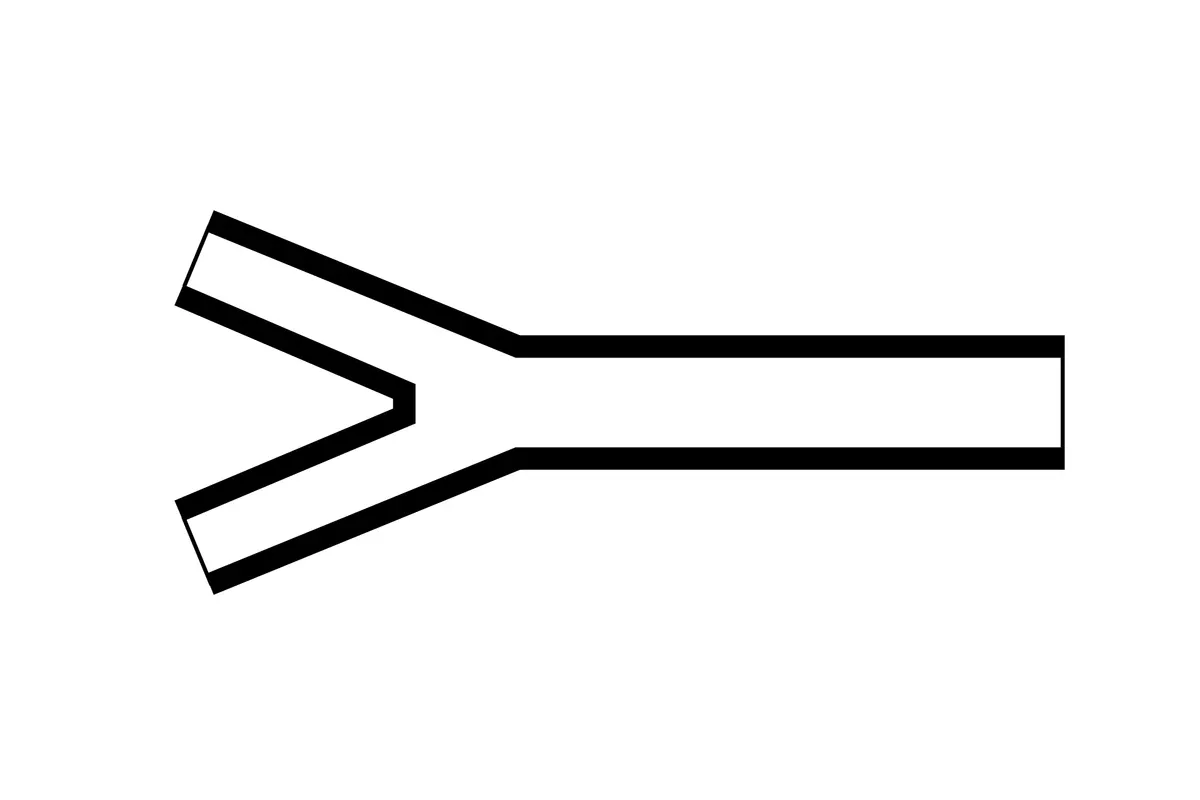

Heat Shrink 2-Way Outlet Shapes
Products

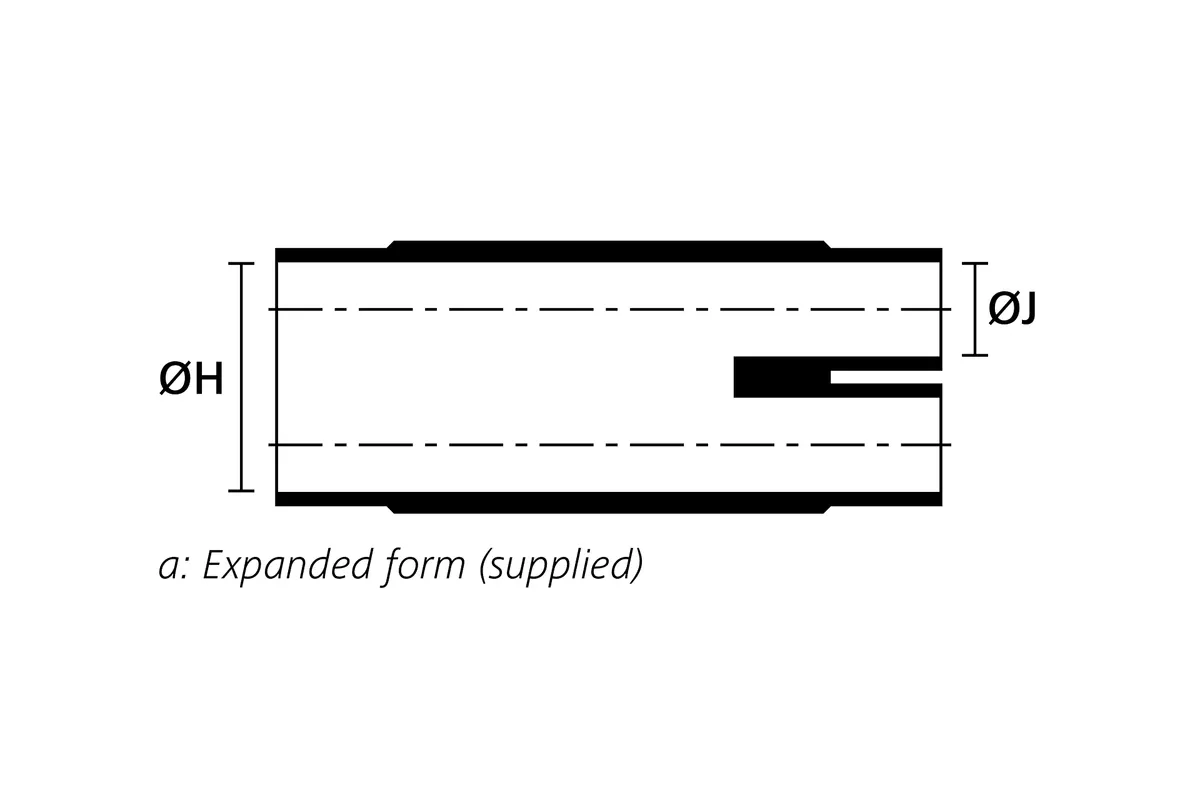

| Item # | Expanded (Min) H | Expanded (Min) J | P ±10% | R ±10% | Material |
|---|---|---|---|---|---|
| 203-1-B7 | 1.06 | 0.51 | 3.15 | 1.69 | Semi-Rigid Flame Retarded Polyolefin |
| 203-1-G | 1.06 | 0.51 | 3.15 | 1.69 | Fluid Resistant Flame Retarded Elastomer |
| 203-1-H | 1.06 | 0.51 | 3.15 | 1.69 | Flexible Zero-Hal Limited Fire Hazard Material |
| 203-1-L | 1.06 | 0.51 | 3.15 | 1.69 | Flexible Flame Retarded Fluro-Elastomer |
| 204-1-B7 | 1.54 | 1.06 | 5.16 | 3.19 | Semi-Rigid Flame Retarded Polyolefin |
| 204-1-G | 1.54 | 1.06 | 5.16 | 3.19 | Fluid Resistant Flame Retarded Elastomer |
| 204-1-H | 1.54 | 1.06 | 5.16 | 3.19 | Flexible Zero-Hal Limited Fire Hazard Material |
| 204-1-J | 1.54 | 1.06 | 5.16 | 3.19 | Flexible Flame Retarded Polyolefin |
| 204-1-L | 1.54 | 1.06 | 5.16 | 3.19 | Flexible Flame Retarded Fluro-Elastomer |
| 206-1-G | 0.51 | 0.28 | 1.61 | 0.75 | Fluid Resistant Flame Retarded Elastomer |
| 206-1-H | 0.51 | 0.28 | 1.61 | 0.75 | Flexible Zero-Hal Limited Fire Hazard Material |
| 206-1-J | 0.51 | 0.28 | 1.61 | 0.75 | Flexible Flame Retarded Polyolefin |
| 206-1-L | 0.51 | 0.28 | 1.61 | 0.75 | Flexible Flame Retarded Fluro-Elastomer |
| 211-1-B7 | 2.20 | 1.06 | 6.81 | 3.70 | Semi-Rigid Flame Retarded Polyolefin |
| 211-1-G | 2.20 | 1.06 | 6.81 | 3.70 | Fluid Resistant Flame Retarded Elastomer |
| 211-1-H | 2.20 | 1.06 | 6.81 | 3.70 | Flexible Zero-Hal Limited Fire Hazard Material |
| 211-1-J | 2.20 | 1.06 | 6.81 | 3.70 | Flexible Flame Retarded Polyolefin |
| 211-1-L | 2.20 | 1.06 | 6.81 | 3.70 | Flexible Flame Retarded Fluro-Elastomer |
| 212-1-B7 | 0.57 | 0.33 | 5.35 | 2.48 | Semi-Rigid Flame Retarded Polyolefin |
| 212-1-G | 0.57 | 0.33 | 5.35 | 2.48 | Fluid Resistant Flame Retarded Elastomer |
| 212-1-H | 0.57 | 0.33 | 5.35 | 2.48 | Flexible Zero-Hal Limited Fire Hazard Material |
| 212-1-J | 0.57 | 0.33 | 5.35 | 2.48 | Flexible Flame Retarded Polyolefin |
| 212-1-L | 0.57 | 0.33 | 5.35 | 2.48 | Flexible Flame Retarded Fluro-Elastomer |
| 213-1-B7 | 0.68 | 0.44 | 3.27 | 2.52 | Semi-Rigid Flame Retarded Polyolefin |
| 213-1-G | 0.68 | 0.44 | 3.27 | 2.52 | Fluid Resistant Flame Retarded Elastomer |
| 213-1-H | 0.68 | 0.44 | 3.27 | 2.52 | Flexible Zero-Hal Limited Fire Hazard Material |
| 213-1-J | 0.68 | 0.44 | 3.27 | 2.52 | Flexible Flame Retarded Polyolefin |
| 213-1-L | 0.68 | 0.44 | 3.27 | 2.52 | Flexible Flame Retarded Fluro-Elastomer |
| 213-2-B7 | 1.57 | 1.25 | 3.27 | 2.52 | Semi-Rigid Flame Retarded Polyolefin |
| 213-2-G | 1.57 | 1.25 | 3.27 | 2.52 | Fluid Resistant Flame Retarded Elastomer |
| 213-2-H | 1.57 | 1.25 | 3.27 | 2.52 | Flexible Zero-Hal Limited Fire Hazard Material |
| 213-2-J | 1.57 | 1.25 | 3.27 | 2.52 | Flexible Flame Retarded Polyolefin |
| 213-2-L | 1.57 | 1.25 | 3.27 | 2.52 | Flexible Flame Retarded Fluro-Elastomer |
| 227-1-B7 | 0.52 | 0.26 | 1.61 | 0.76 | Semi-Rigid Flame Retarded Polyolefin |
| 227-1-G | 0.52 | 0.26 | 1.61 | 0.76 | Fluid Resistant Flame Retarded Elastomer |
| 227-1-H | 0.52 | 0.26 | 1.61 | 0.76 | Flexible Zero-Hal Limited Fire Hazard Material |
| 227-1-J | 0.52 | 0.26 | 1.61 | 0.76 | Flexible Flame Retarded Polyolefin |
| 203-1-J | 1.06 | 0.51 | 3.15 | 1.69 | Flexible Flame Retarded Polyolefin |
| 206-1-B7 | 0.51 | 0.28 | 1.61 | 0.75 | Semi-Rigid Flame Retarded Polyolefin |
| 227-1-L | 0.52 | 0.26 | 1.61 | 0.76 | Flexible Flame Retarded Fluro-Elastomer |
Visit the FDH Electronics online store and create an account for special pricing.
