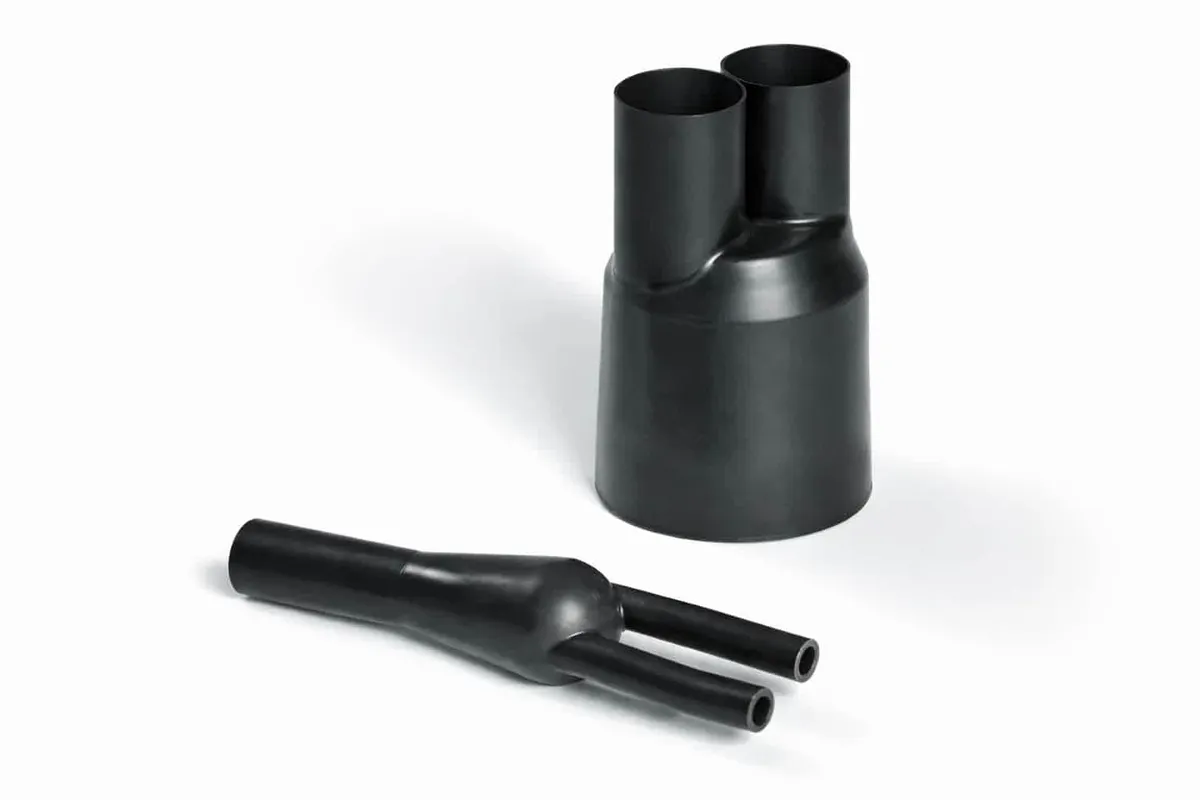

200 Series 2-way Outlet Heatshrink Shapes (In Line)
Heat Shrink 2-Way Outlet Shapes
Products

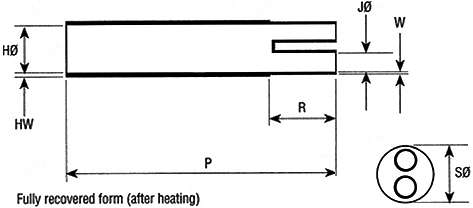

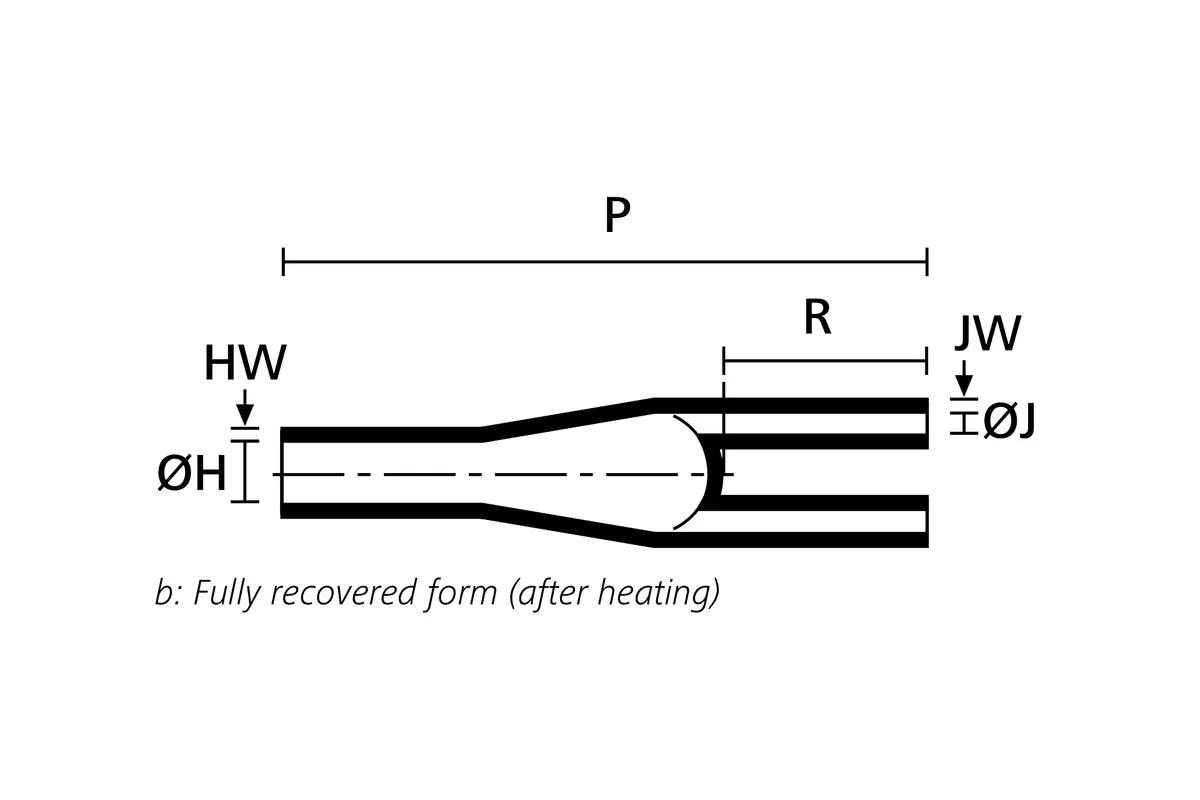

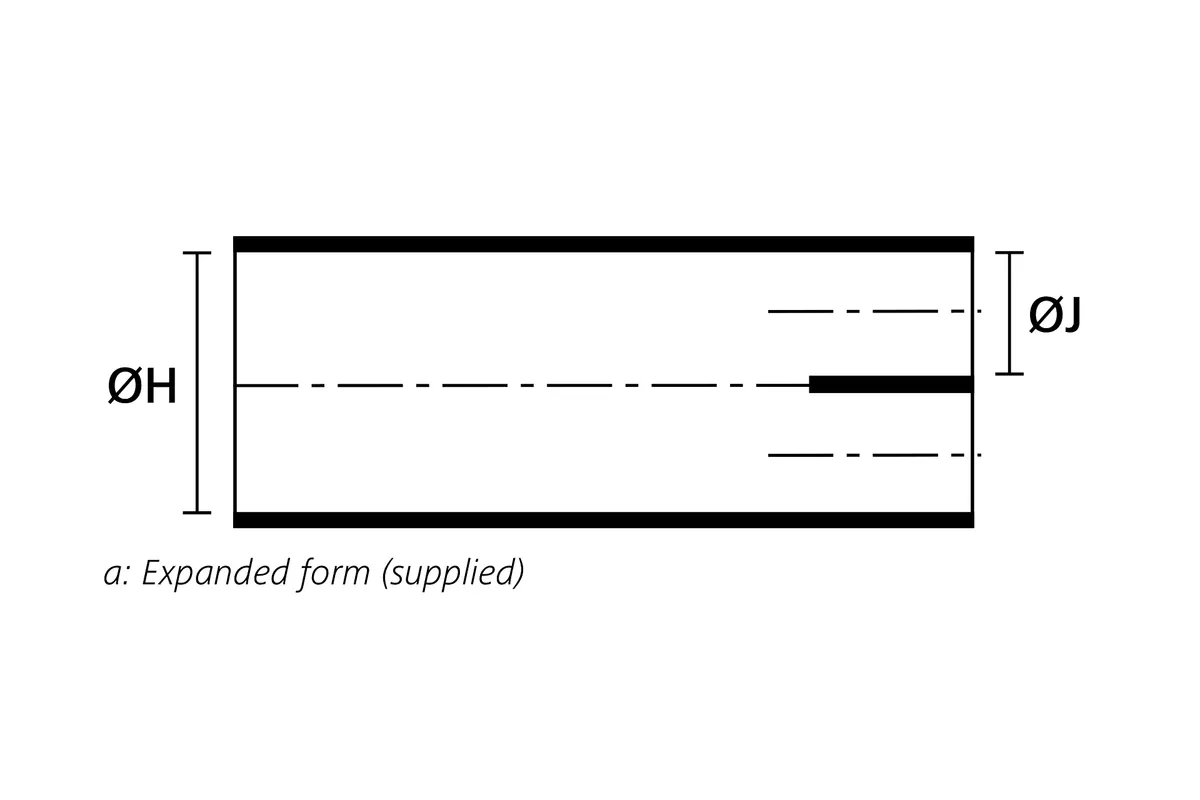

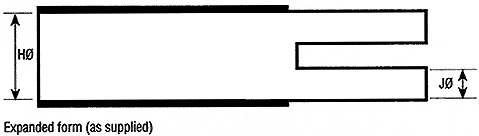

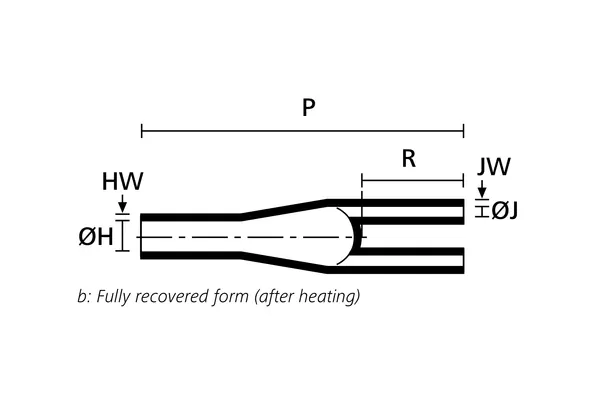

| Item # | Expanded (Min) H | Expanded (Min) J | P ±10% | R ±10% | Material |
|---|---|---|---|---|---|
| 216-3-B7 | 0.83 | 0.35 | 3.01 | 0.79 | Semi-Rigid Flame Retarded Polyolefin |
| 216-3-G | 0.83 | 0.35 | 3.01 | 0.79 | Fluid Resistant Flame Retarded Elastomer |
| 216-3-H | 0.83 | 0.35 | 3.01 | 0.79 | Flexible Zero-Hal Limited Fire Hazard Material |
| 216-3-L | 0.83 | 0.35 | 3.01 | 0.79 | Flexible Flame Retarded Fluro-Elastomer |
| 217-2-B7 | 1.22 | 0.59 | 3.92 | 1.12 | Semi-Rigid Flame Retarded Polyolefin |
| 217-2-G | 1.22 | 0.59 | 3.92 | 1.12 | Fluid Resistant Flame Retarded Elastomer |
| 217-2-H | 1.22 | 0.59 | 3.92 | 1.12 | Flexible Zero-Hal Limited Fire Hazard Material |
| 217-2-J | 1.22 | 0.59 | 3.92 | 1.12 | Flexible Flame Retarded Polyolefin |
| 217-2-L | 1.22 | 0.59 | 3.92 | 1.12 | Flexible Flame Retarded Fluro-Elastomer |
| 218-2-B7 | 1.97 | 0.83 | 4.69 | 1.34 | Semi-Rigid Flame Retarded Polyolefin |
| 218-2-G | 1.97 | 0.83 | 4.69 | 1.34 | Fluid Resistant Flame Retarded Elastomer |
| 218-2-J | 1.97 | 0.83 | 4.69 | 1.34 | Flexible Flame Retarded Polyolefin |
| 218-2-L | 1.97 | 0.83 | 4.69 | 1.34 | Flexible Flame Retarded Fluro-Elastomer |
| 219-2-B7 | 3.43 | 1.69 | 5.57 | 1.67 | Semi-Rigid Flame Retarded Polyolefin |
| 219-2-G | 3.43 | 1.69 | 5.57 | 1.67 | Fluid Resistant Flame Retarded Elastomer |
| 219-2-H | 3.43 | 1.69 | 5.57 | 1.67 | Flexible Zero-Hal Limited Fire Hazard Material |
| 219-2-J | 3.43 | 1.69 | 5.57 | 1.67 | Flexible Flame Retarded Polyolefin |
| 219-2-L | 3.43 | 1.69 | 5.57 | 1.67 | Flexible Flame Retarded Fluro-Elastomer |
| 220-1-B7 | 1.97 | 0.91 | 6.89 | 3.94 | Semi-Rigid Flame Retarded Polyolefin |
| 220-1-G | 1.97 | 0.91 | 6.89 | 3.94 | Fluid Resistant Flame Retarded Elastomer |
| 220-1-H | 1.97 | 0.91 | 6.89 | 3.94 | Flexible Zero-Hal Limited Fire Hazard Material |
| 220-1-J | 1.97 | 0.91 | 6.89 | 3.94 | Flexible Flame Retarded Polyolefin |
| 220-1-L | 1.97 | 0.91 | 6.89 | 3.94 | Flexible Flame Retarded Fluro-Elastomer |
| 221-1-B7 | 3.62 | 1.81 | 6.89 | 3.94 | Semi-Rigid Flame Retarded Polyolefin |
| 221-1-G | 3.62 | 1.81 | 6.89 | 3.94 | Fluid Resistant Flame Retarded Elastomer |
| 221-1-H | 3.62 | 1.81 | 6.89 | 3.94 | Flexible Zero-Hal Limited Fire Hazard Material |
| 221-1-J | 3.62 | 1.81 | 6.89 | 3.94 | Flexible Flame Retarded Polyolefin |
| 221-1-L | 3.62 | 1.81 | 6.89 | 3.94 | Flexible Flame Retarded Fluro-Elastomer |
| 223-2-B7 | 1.30 | 0.69 | 3.70 | 1.18 | Semi-Rigid Flame Retarded Polyolefin |
| 223-2-G | 1.30 | 0.69 | 3.70 | 1.18 | Fluid Resistant Flame Retarded Elastomer |
| 223-2-H | 1.30 | 0.69 | 3.70 | 1.18 | Flexible Zero-Hal Limited Fire Hazard Material |
| 223-2-J | 1.30 | 0.69 | 3.70 | 1.18 | Flexible Flame Retarded Polyolefin |
| 223-2-L | 1.30 | 0.69 | 3.70 | 1.18 | Flexible Flame Retarded Fluro-Elastomer |
| 223-3-B7 | 1.30 | 0.69 | 2.36 | 1.18 | Semi-Rigid Flame Retarded Polyolefin |
| 223-3-G | 1.30 | 0.69 | 2.36 | 1.18 | Fluid Resistant Flame Retarded Elastomer |
| 223-3-H | 1.30 | 0.69 | 2.36 | 1.18 | Flexible Zero-Hal Limited Fire Hazard Material |
| 223-3-J | 1.30 | 0.69 | 2.36 | 1.18 | Flexible Flame Retarded Polyolefin |
| 223-3-L | 1.30 | 0.69 | 2.36 | 1.18 | Flexible Flame Retarded Fluro-Elastomer |
| 216-3-J | 0.83 | 0.35 | 3.01 | 0.79 | Flexible Flame Retarded Polyolefin |
| 218-2-H | 1.97 | 0.83 | 4.69 | 1.34 | Flexible Zero-Hal Limited Fire Hazard Material |
