Helashrink 200 low profile 2-way outlet heat shrink shape for multi-core cable routing and relief

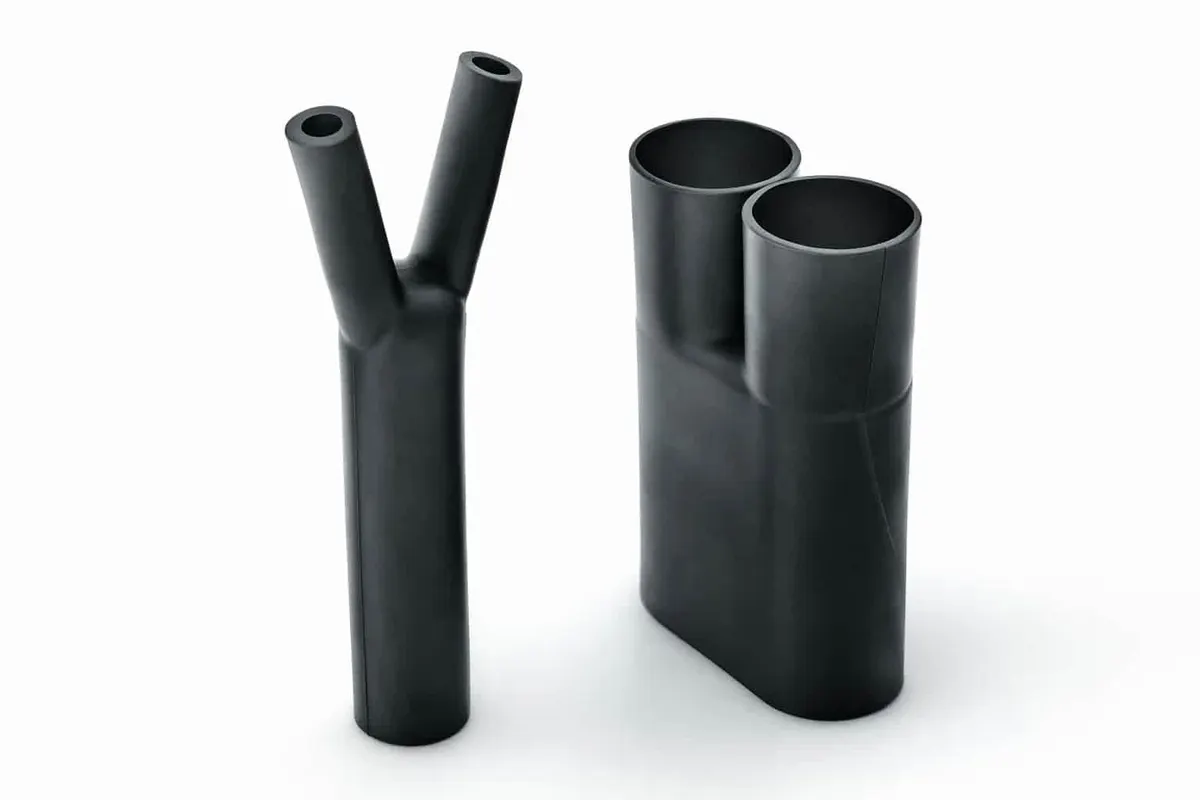

Overview diagram of Helashrink 200 series low profile two way outlet heat shrink shapes for routing multi core cables

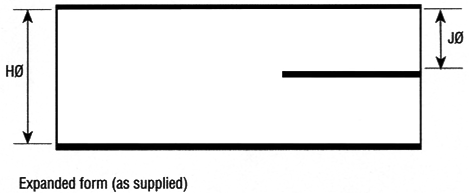

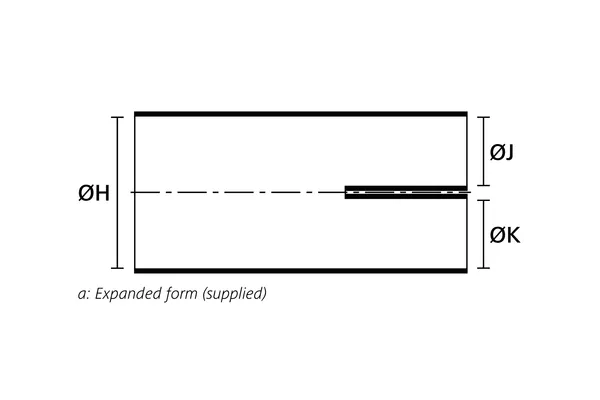

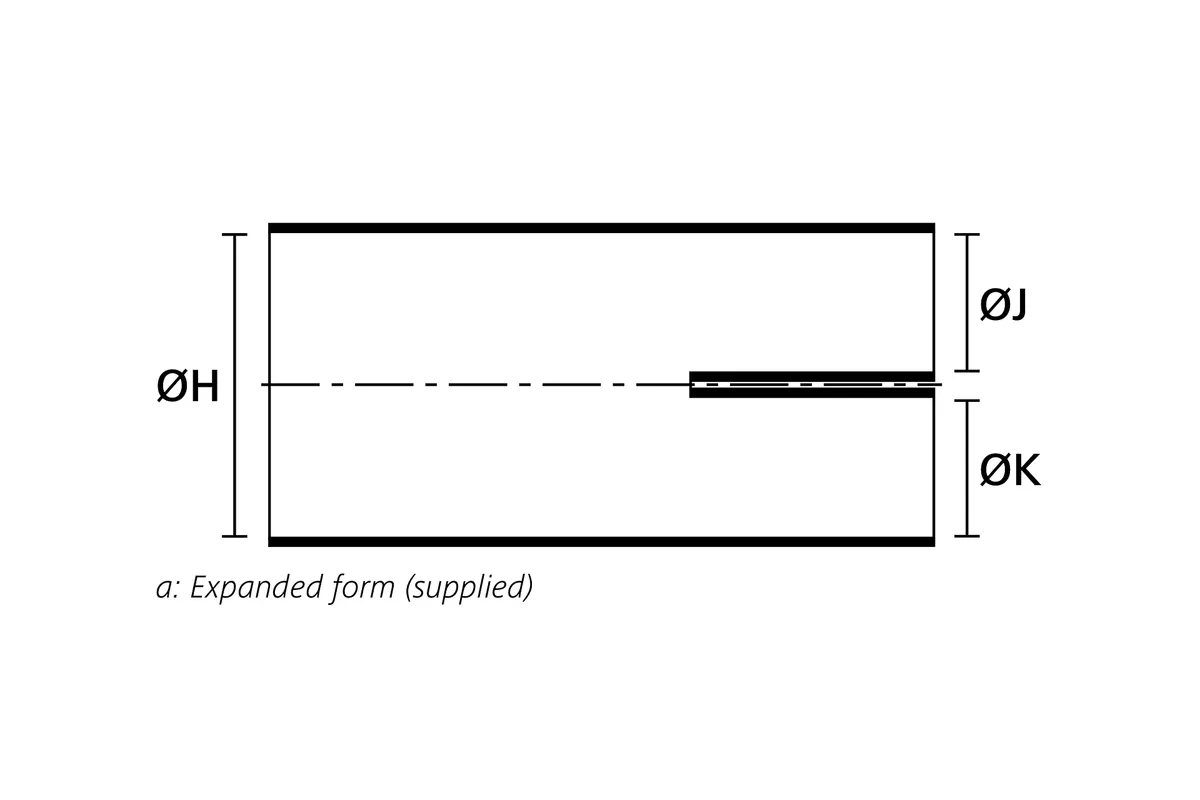

Technical drawing showing the expanded supplied form of a low profile two way heat shrink outlet shape

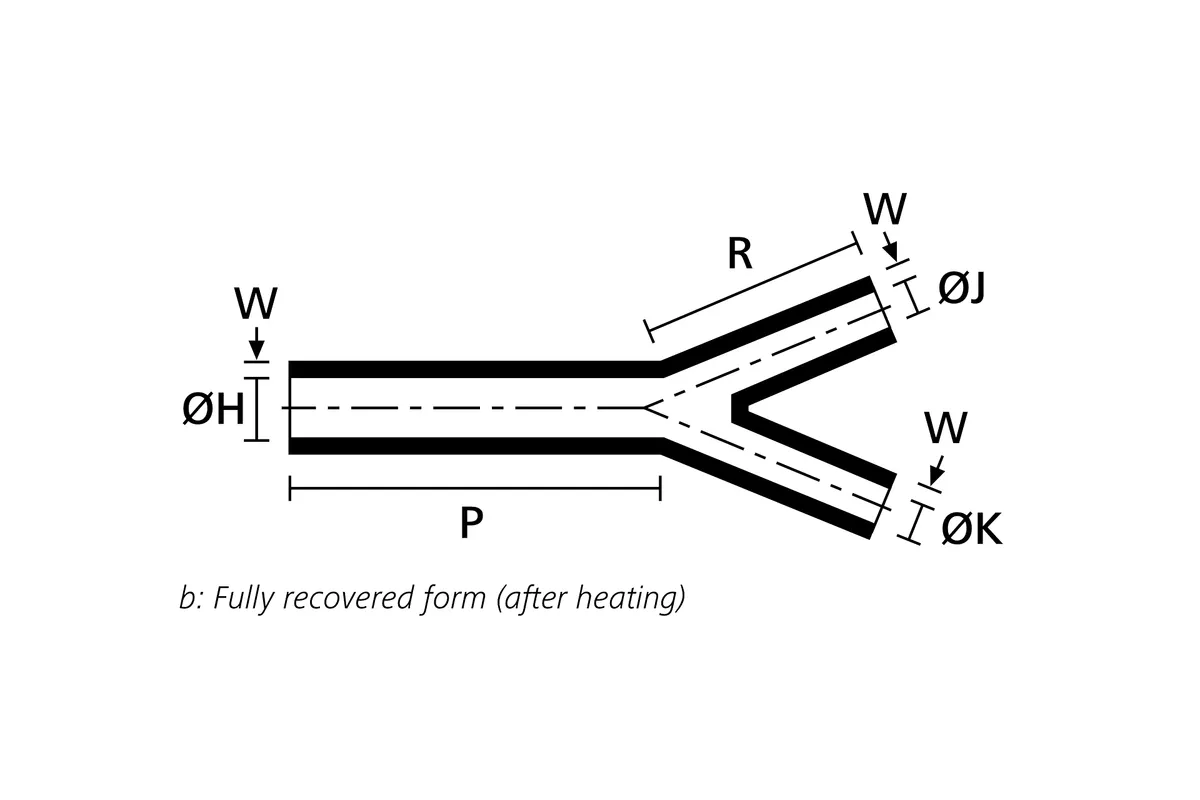

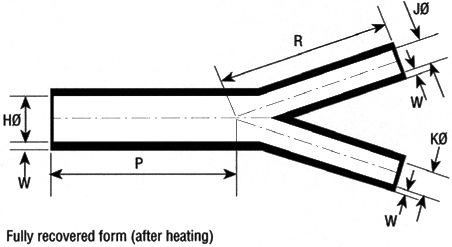

Technical drawing showing the fully recovered form of a low profile two way heat shrink outlet shape

200 Series 2-way Outlet Shapes Low Profile Heatshrink Shapes

Low Profile Outlet Heat Shrink Shapes

Products

Item # Expanded (Min) H Expanded (Min) J Expanded (Min) K Recovered (Max) J Material
201-1-B7 0.75 0.55 0.55 0.25 Semi-Rigid Flame Retarded Polyolefin
201-1-G 0.75 0.55 0.55 0.25 Fluid Resistant Flame Retarded Elastomer
201-1-H 0.75 0.55 0.55 0.25 Flexible Zero-Hal Limited Fire Hazard Material
201-1-J 0.75 0.55 0.55 0.25 Flexible Flame Retarded Polyolefin
201-1-L 0.75 0.55 0.55 0.25 Flexible Flame Retarded Fluro-Elastomer
201-3-B7 1.00 0.55 0.55 0.25 Semi-Rigid Flame Retarded Polyolefin
201-3-G 1.00 0.55 0.55 0.25 Fluid Resistant Flame Retarded Elastomer
201-3-H 1.00 0.55 0.55 0.25 Flexible Zero-Hal Limited Fire Hazard Material
201-3-J 1.00 0.55 0.55 0.25 Flexible Flame Retarded Polyolefin
202-1-B7 0.75 0.30 0.30 0.15 Semi-Rigid Flame Retarded Polyolefin
202-1-G 0.75 0.30 0.30 0.15 Fluid Resistant Flame Retarded Elastomer
202-1-H 0.75 0.30 0.30 0.15 Flexible Zero-Hal Limited Fire Hazard Material
202-1-J 0.75 0.30 0.30 0.15 Flexible Flame Retarded Polyolefin
202-1-L 0.75 0.30 0.30 0.15 Flexible Flame Retarded Fluro-Elastomer
202-2-B7 0.79 0.49 0.49 0.15 Semi-Rigid Flame Retarded Polyolefin
202-2-G 0.79 0.49 0.49 0.15 Fluid Resistant Flame Retarded Elastomer
202-2-H 0.79 0.49 0.49 0.15 Flexible Zero-Hal Limited Fire Hazard Material
202-2-J 0.79 0.49 0.49 0.15 Flexible Flame Retarded Polyolefin
202-2-L 0.79 0.49 0.49 0.15 Flexible Flame Retarded Fluro-Elastomer
202-3-B7 0.96 0.63 0.63 0.15 Semi-Rigid Flame Retarded Polyolefin
202-3-G 0.96 0.63 0.63 0.15 Fluid Resistant Flame Retarded Elastomer
202-3-H 0.96 0.63 0.63 0.15 Flexible Zero-Hal Limited Fire Hazard Material
202-3-J 0.96 0.63 0.63 0.15 Flexible Flame Retarded Polyolefin
202-3-L 0.96 0.63 0.63 0.15 Flexible Flame Retarded Fluro-Elastomer
201-3-L 1.00 0.55 0.55 0.25 Flexible Flame Retarded Fluro-Elastomer
